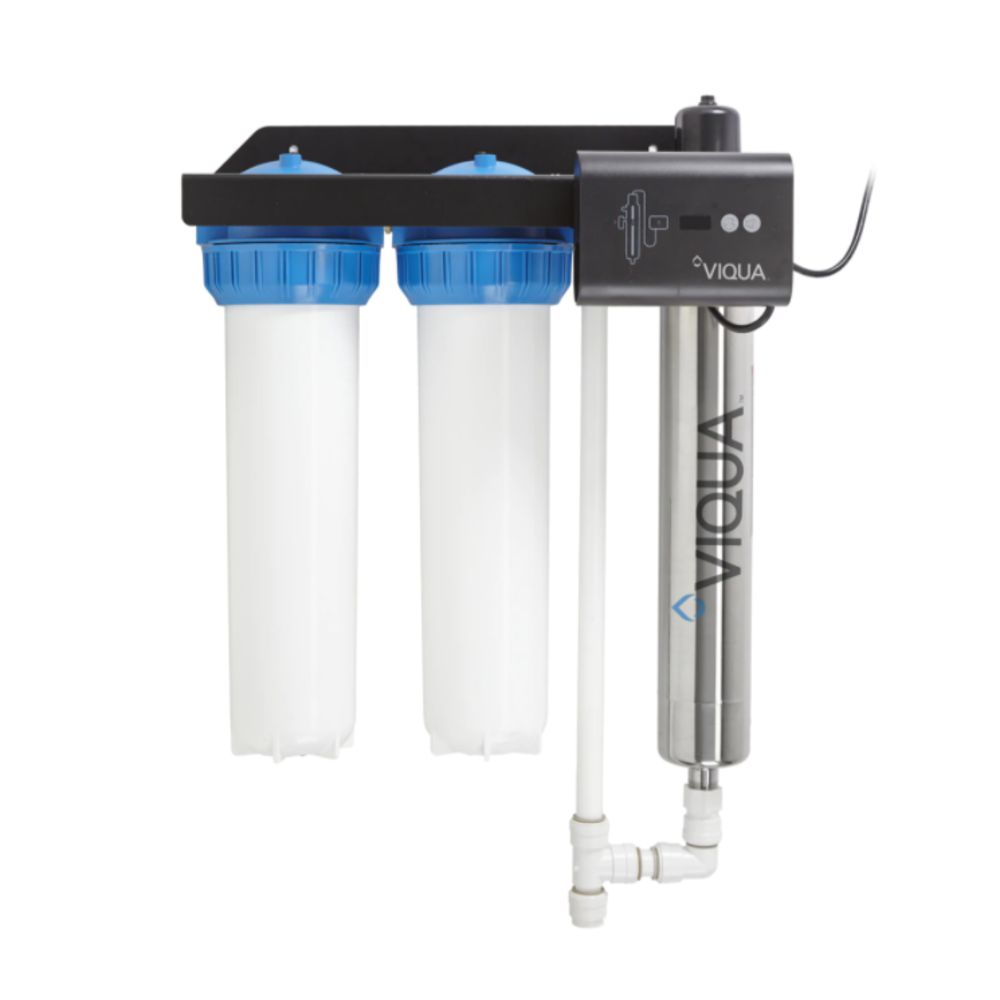

Viqua IHS22-E4 UV Water Purification and Filter System Powered by UVMax

The Viqua IHS22-E4 UV System is an ultraviolet water system that provides a point-of-entry water treatment system with both disinfection and filtration. The Viqua IHS22-E4 is a compact unit that incorporates the Viqua E4 disinfection system and two filter housings, all on the same installation bracket. Viqua™-HO coated, high-output, low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.

The Viqua controller provides constant output current and a universal power input (100-240V/50-60Hz), as well as visually displaying remaining lamp life and total days of operation.
Viqua UV Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the over-molded connector can be removed without any additional tools.
Features & Advantages Advanced Prefiltration The Viqua IHS22-E4 System features two stages of prefiltration to prepare your water for UV disinfection. 20" BB 5 Mic Sediment Filter:

• Graded density polypropylene
• Removes sediment & rust up to 5 mic
• High dirt-holding capacity

20" BB 5 Micron Carbon Block Filter:

• Coconut shell carbon block
• Removes chlorine, taste, and odor
• Makes water clear & great-tasting
• The Power Of Ultraviolet Rays

This system uses ultraviolet light to sterilize chlorine-resistant viruses and bacteria. The UV light literally breaks the bond of the molecules inside the
DNA of viruses and bacteria, making
them unable to reproduce or cause
harm and illness. You can count
on this system to keep you and
your family safe from:

• Cryptosporidium
• Giardia
• E. Coli

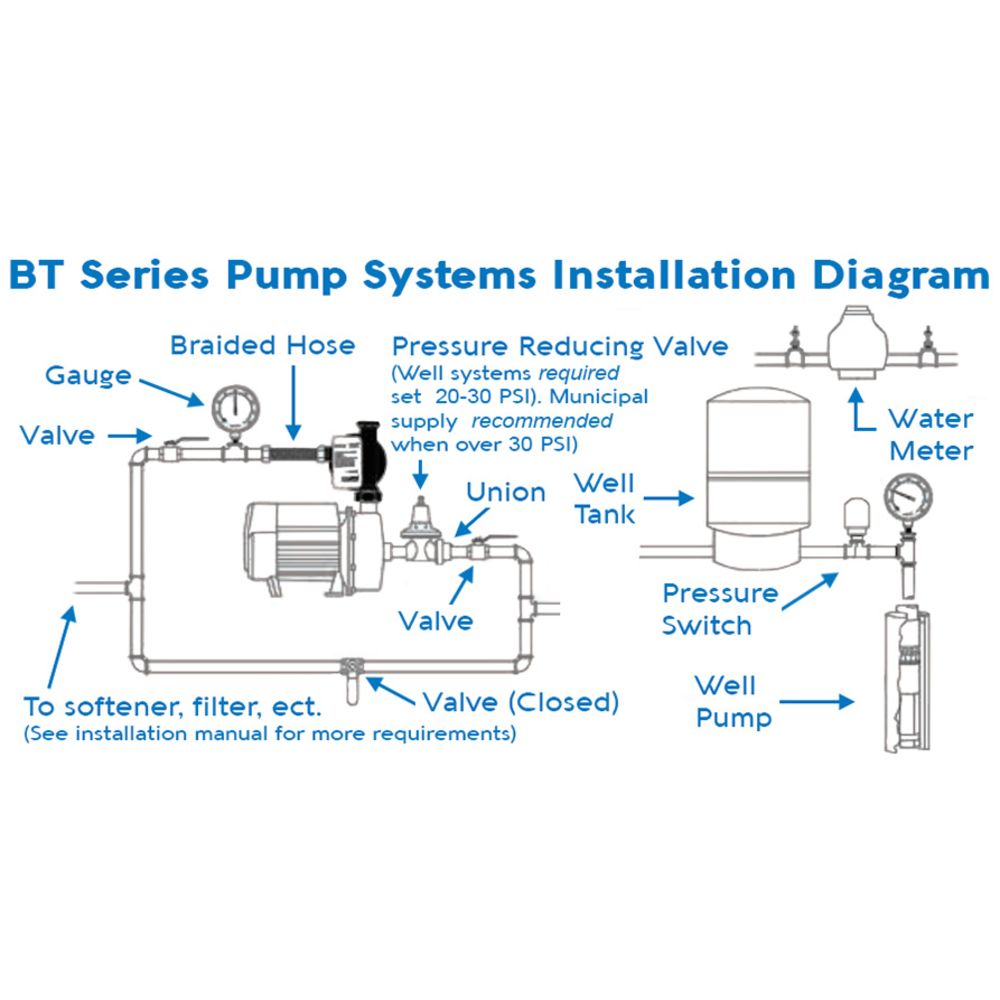

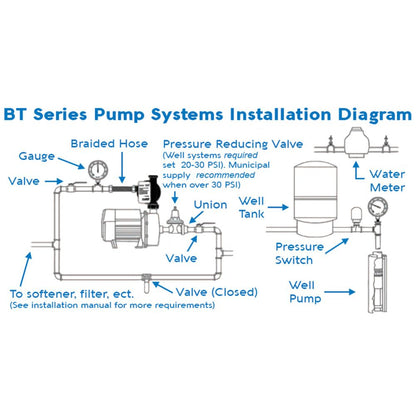

This is a sample setup for your Viqua IHS22-E4 System. Many of these components are optional add-ons, and are not included with this ultraviolet system.
