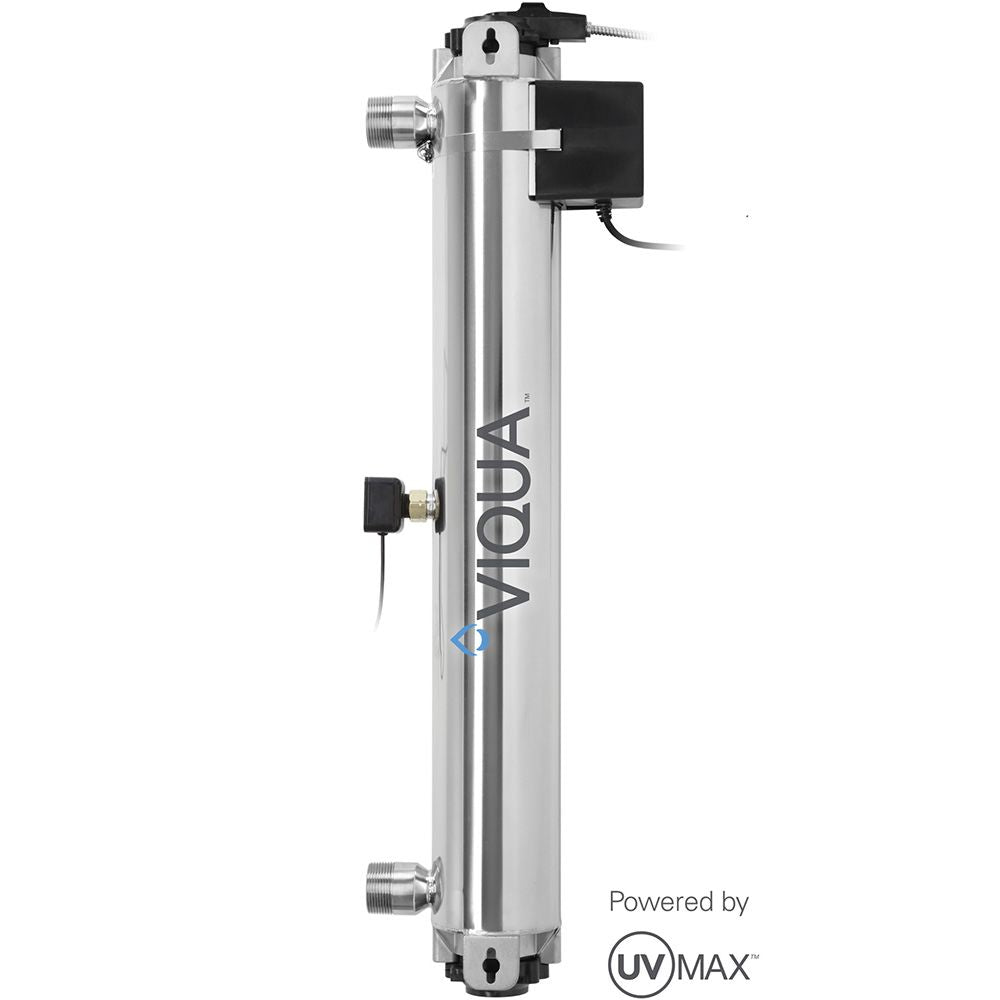

Viqua H Plus Monitored Ultraviolet Water System Powered by UVMax 39 gpm

The Viqua H Plus disinfection water system eliminates the concern over harmful bacteria, virus and microorganisms in drinking water. It's compact design, simple installation, and low cost of operation are ideal for a small to medium size home.

Please note that the difference between the 120V and 230V Viqua H Plus is simply the power cord. If you are in the U.S.A. you will not need the 230V. The 120V has the standard 3-pronged cord, whereas the 230V comes with the Continental European power cord (CEE 7/7).

Specifications:

• Type 316 stainless steel reactor
• Viqua H Plus UV purification water system has color coded plug and play connections
• UV intensity monitor with diagnostic test
• CoolTouch fan
• Flow Rate: 39 gpm
• Inlet/Outlet: Combo 1.25" NPT, 1" MPT
• Voltage: 120-240V (50-60Hz)
• Chamber Material: 316L SST
• Power Consumption: 160 watts
• Chamber Dimensions: 30.7" x 3.9"
• 120 Volt: Standard 3-pronged power cord
• 230 Volt: European 2-pronged power cord (CEE7/7)

This system is compatible with the 602855 Trojan Lamp and the 602975 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for H Plus includes:

• Trojan Lamp (1): 602855
• Trojan Quartz Sleeve (1): 602975
• Trojan O-Rings (2): 2233
