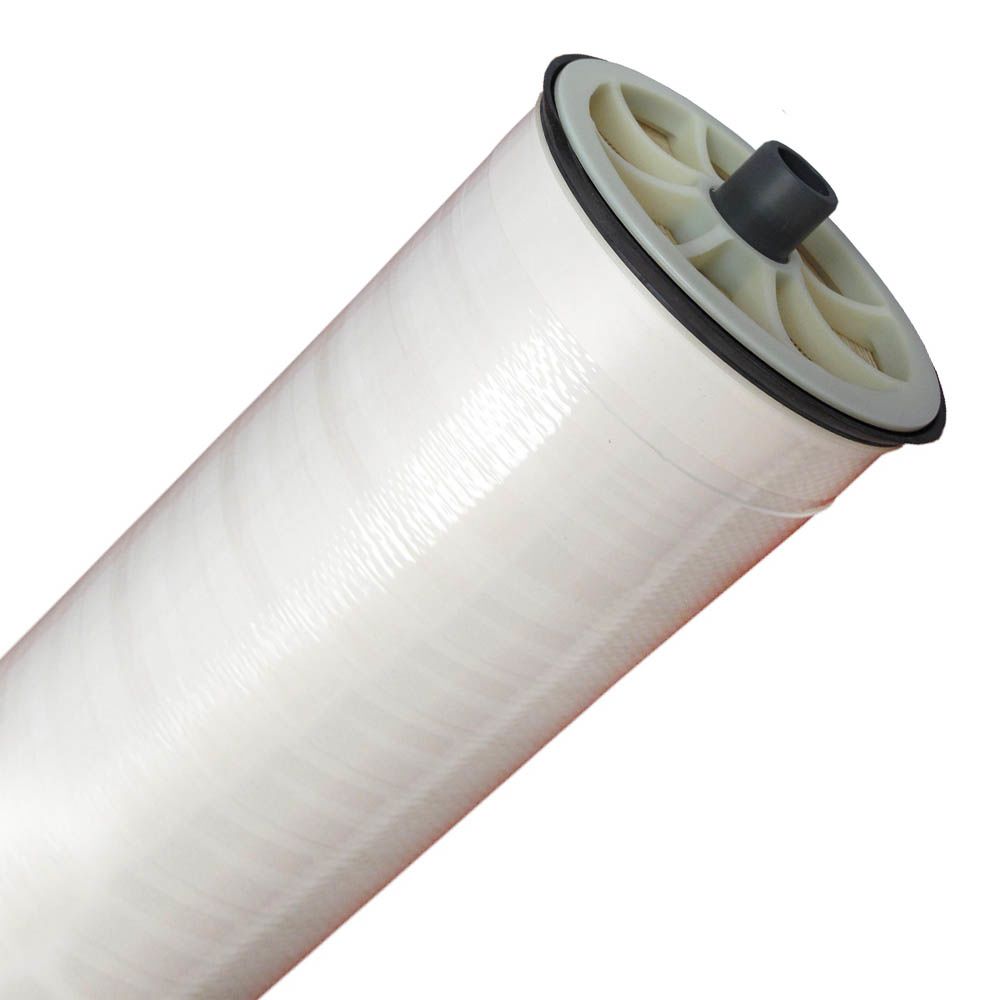

Veolia Osmonics Desal DK4040F30 2000 GPD RO Membrane Element Fiberglass

The Veolia Osmonics Desal DK-Series family of proprietary thin-film reverse osmosis membrane is characterized by an approximate molecular weight cut-off of 150-300 Dalton for uncharged organic molecules. Divalent and multivalent anions are preferentially rejected by the membrane while monovalent ion rejection is dependent upon feed concentration and composition. Since monovalent ions pass through the membrane, they do not contribute to the osmotic pressure, thus enabling D-Series nanofiltration membrane systems to operate at feed pressures below those of RO systems. Among other applications DK High Rejection NF Elements are used for dye removal/concentration, sodium chloride diafiltration and metals recovery.


Specifications:

• Thin-Film Reverse Osmosis Membrane Element
• 2000 Gallons Per Day
• Dimensions: 4" x 40"
• Male End Connections
• Fiberglass Outer Wrap
• 30 mil Feed Spacers

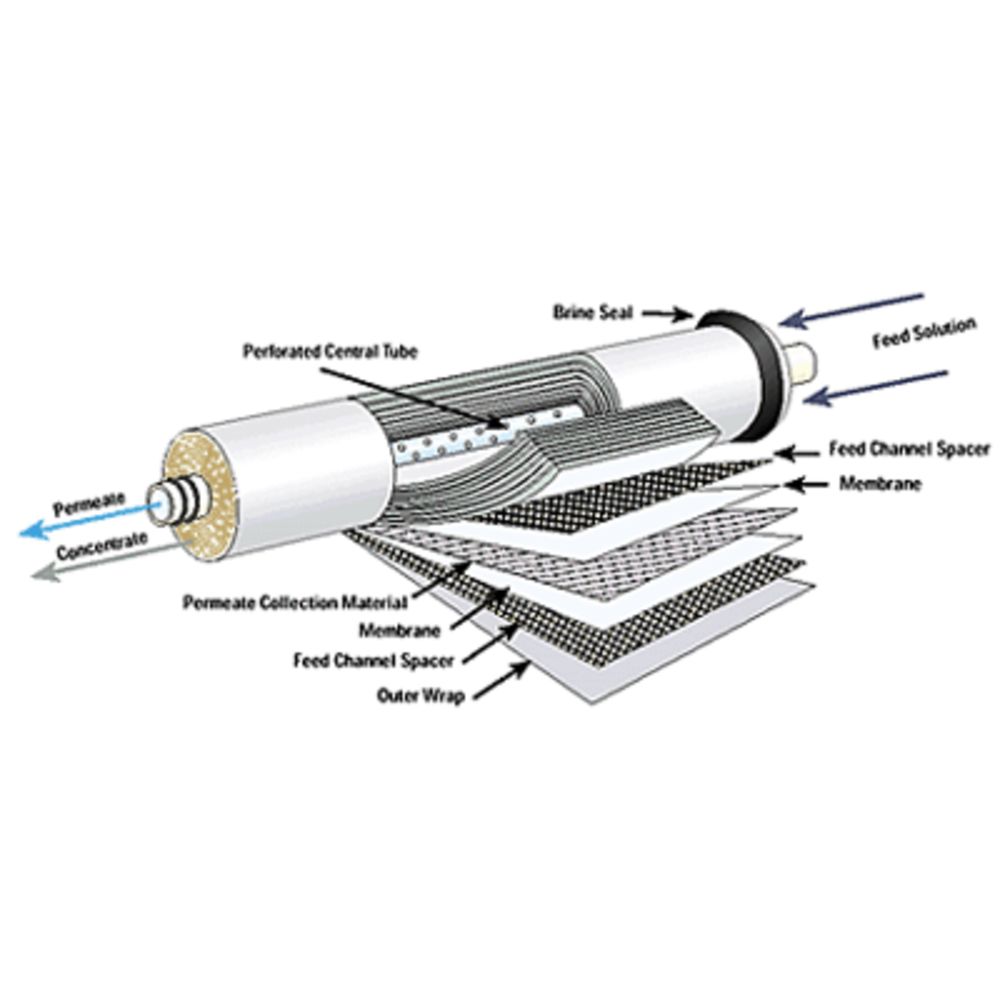

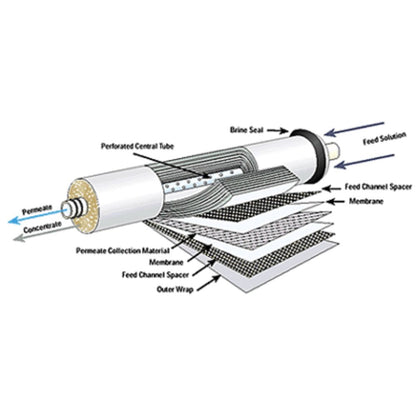

Element Membrane Diagram (not the encapsulated model):
