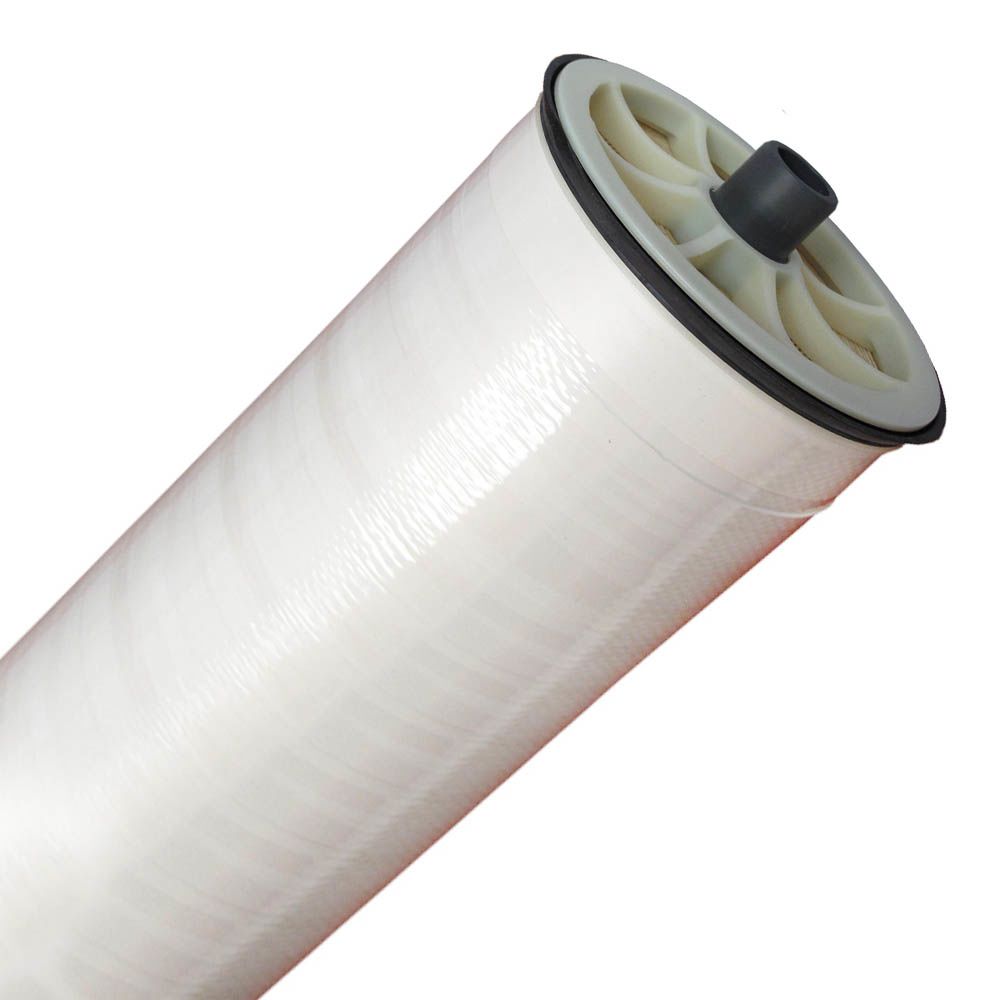

Veolia Osmonics Desal AK4040TF RO Membrane Element 2350 GPD LP-Dry

The Veolia Osmonics Desal AK4040TF Thin Film RO Membrane Element is part of Veolia Osmonics A-Series family of proprietary thin-film RO membranes. These low pressure brackish water elements are characterized by high flux and excellent soldium chloride rejection. They are ideal for use when high rejection and low operating pressure is desired. Because they are able to achieve good rejection at low operating pressure, these membranes allow for significant energy savings. They features a tape outerwrap, 28 mil feed spacers, and male end connections.

Specifications:

• Flow: 2,350 GPD
• Active Area: 89 ft²
• Average Rejection: 99%
• Operating Pressure: 110 psig
• Max Temperature: 122°F
• Max Pressure: 400 psig
• Operating Flux: 10-20 GFD
• Feed NTU: <1
• Feed SDI: <3
• Optimum Rejection pH: 7.0 -7.5
• Operating pH Range: 4.0 - 11.0
• Cleaning pH Range: 2.0 - 11.5
• Max Pressure Drop: 10 psig per element
• Chlorine Tolerance: 1,000 ppm-hrs
