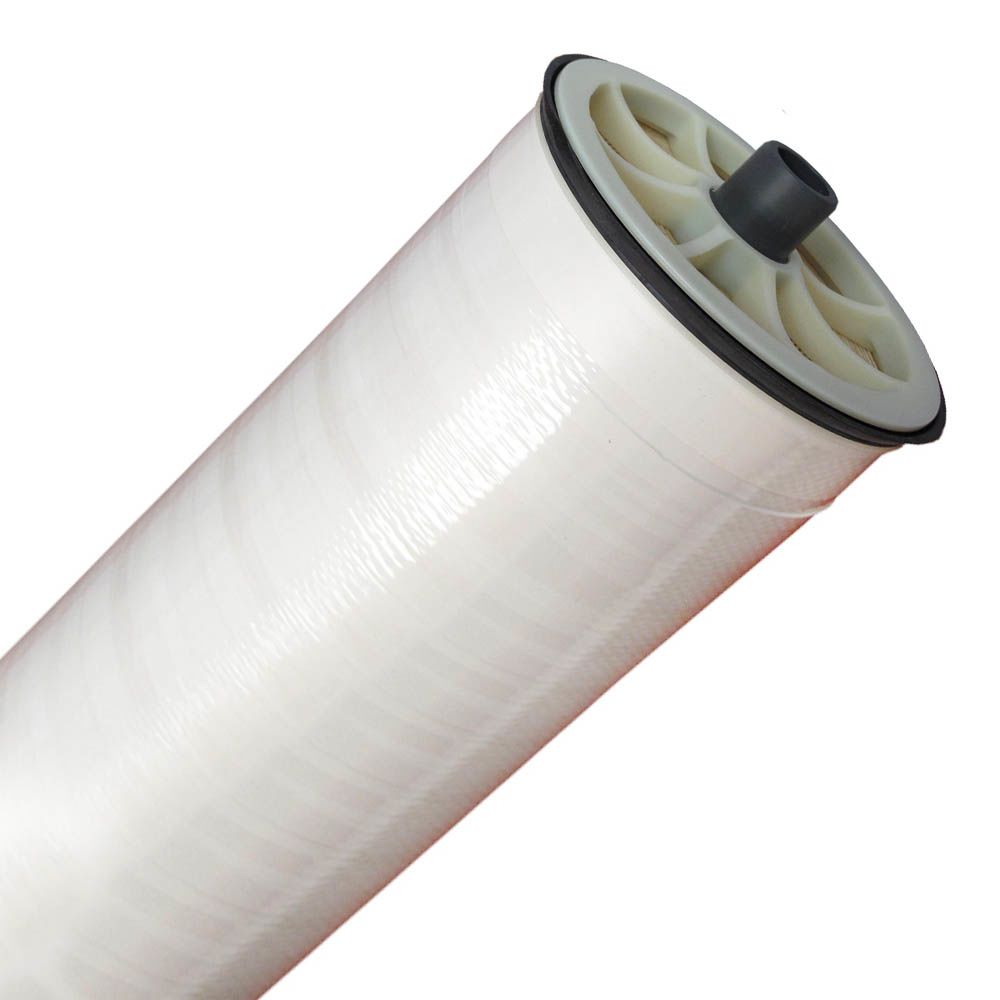

Veolia Osmonics Desal AG-90 2200 GPD RO Membrane Element

The Veolia Osmonics Desal AG-Series family of proprietary thin-film reverse osmosis membrane is characterized by high flux and high sodium chloride rejection. AG HR brackish water elements are selected when high rejection and operating pressures as low as 200 psi (1,379 kPa) are desired. These elements are recommended for brackish water with salt concentration (TDS) levels between 1,000 and 10,000mg/l or when very high salt rejection of monovalent ions is required.

Specifications:

• High Flux and Excellent NaCL Rejection
• Thin-Film Reverse Osmosis Membrane Element
• 2200 Gallons Per Day
• Dimensions: 4" x 40"
• Male End Connections
• Fiberglass Outer Wrap
• 28 mil Feed Spacers
• Operating Pressures as low as 200 PSIG

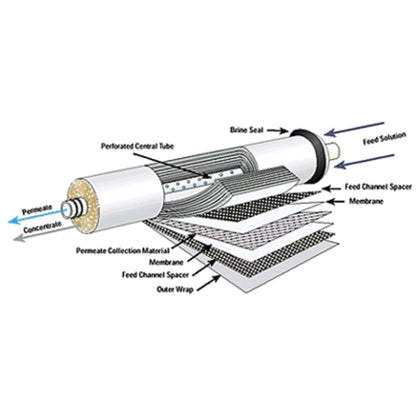

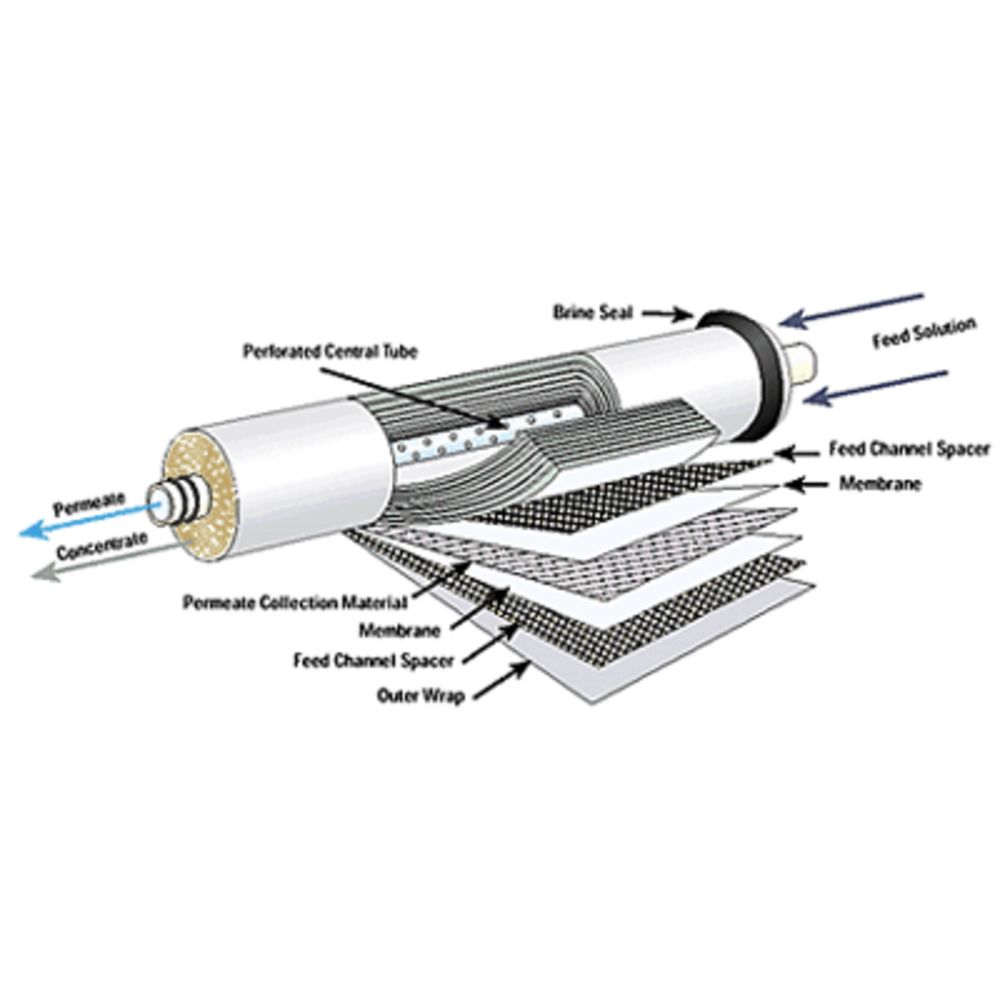

Element Membrane Diagram (not the encapsulated model):
