UV System Viqua Arros 9-V 120V 6.4gpm@125psi NSF 55 Class B

Product Details

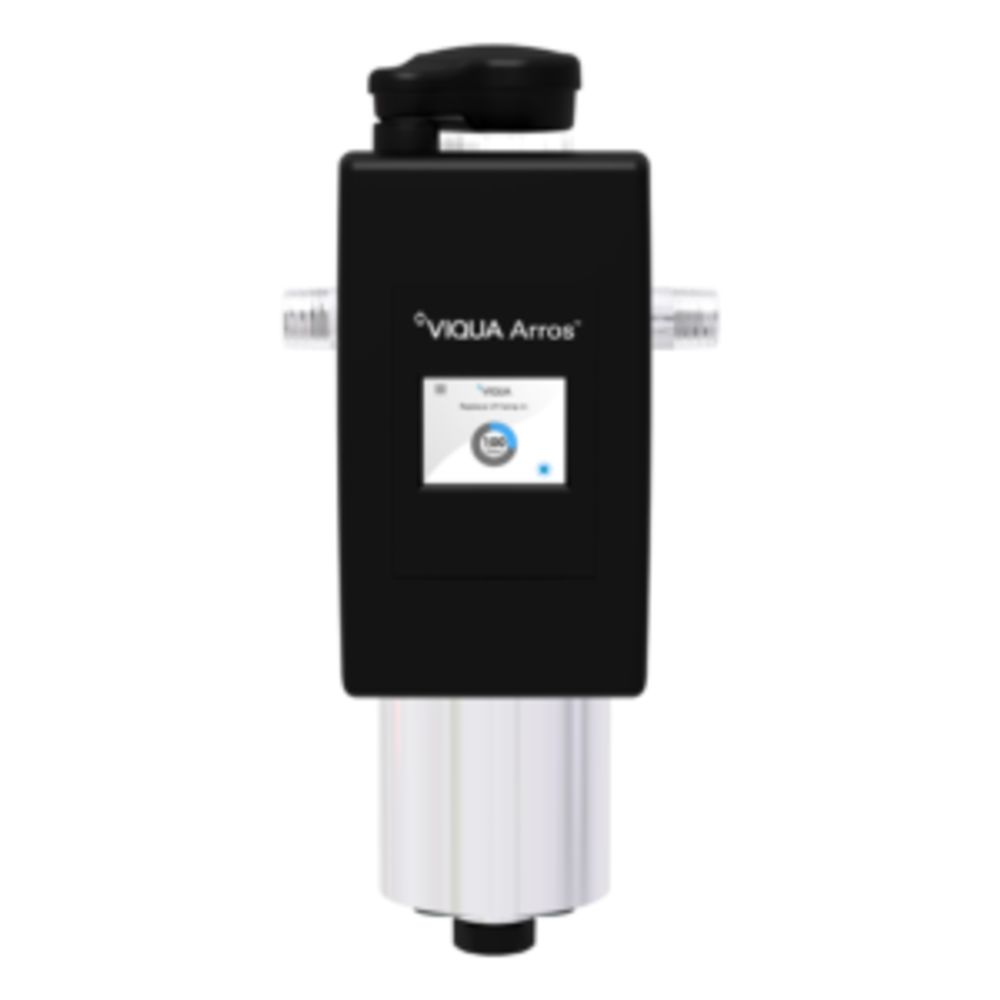

The VIQUA Arros 9-V is a premium residential UV water treatment system designed for efficiency and reliability. This model is NSF 55 Class B certified and offers an effective flow rate of 6.4 GPM, making it an ideal choice for various whole-home and point-of-entry water treatment applications.

Reduced Installation Complexity

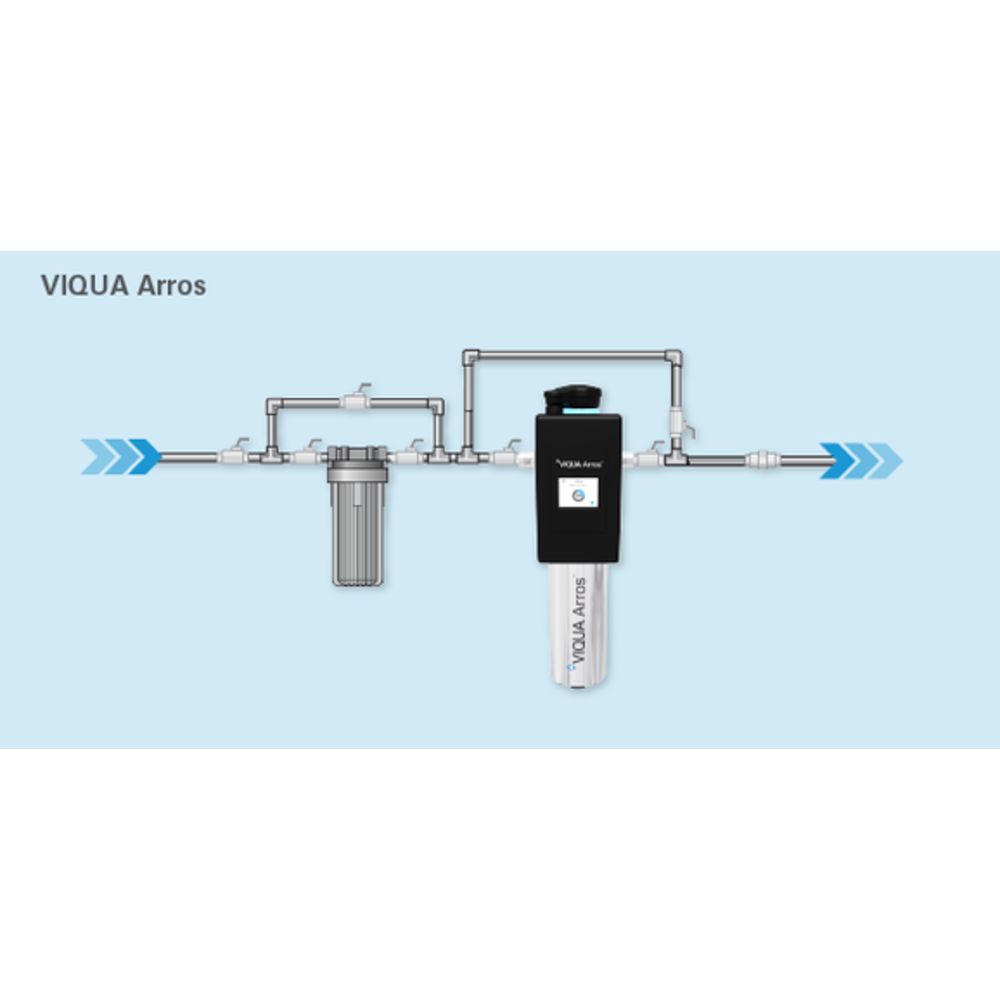

• Tidal™ Chamber Design: Aligns inlet and outlet ports on a single plane, streamlining installation and reducing material use.
• PolyProtect™ Shield: Blocks UV light, allowing direct plumbing to PEX and other polymer materials without compromising system integrity.
• Simplified Mounting: Features an elongated steel bracket for easy and secure system installation.

Ease of Maintenance

• All-in-One Lamp Design: Makes handling and replacing the lamp unit hassle-free.
• Quick Drain Plug: Facilitates easy and clean draining of the system.
• User-Friendly Interface: LCD touchscreen for quick access to replacement part information and dealer contact details.

Optimized Treatment Performance

• Stream™ Technology: Provides accurate in-lamp usage measurement for consistent performance.
• Space-Efficient Design: Improved dose efficiency allows for a more compact UV chamber and lamp, saving installation space.

Features & Specs

• Connection Size: Combo Port: 1 in. MNPT, 3/4 in. FNPT
• Dimensions: 11.2” x 4.0” (28.4 cm x 10.16 cm)
• Flow Rate: 16 mJ/cm² @ 70% UVT: 6.4 GPM (30 lpm) | 1.45 m³/hr
• Power Consumption: 33 W
• Shipping Weight: 12 lbs (5.5 kg)

Application
Ideal for a wide range of residential applications, the VIQUA Arros 9-V system is validated to inactivate heterotrophs, Escherichia coli (E. coli), and fecal coliform, ensuring safe drinking water for your home or cottage.
