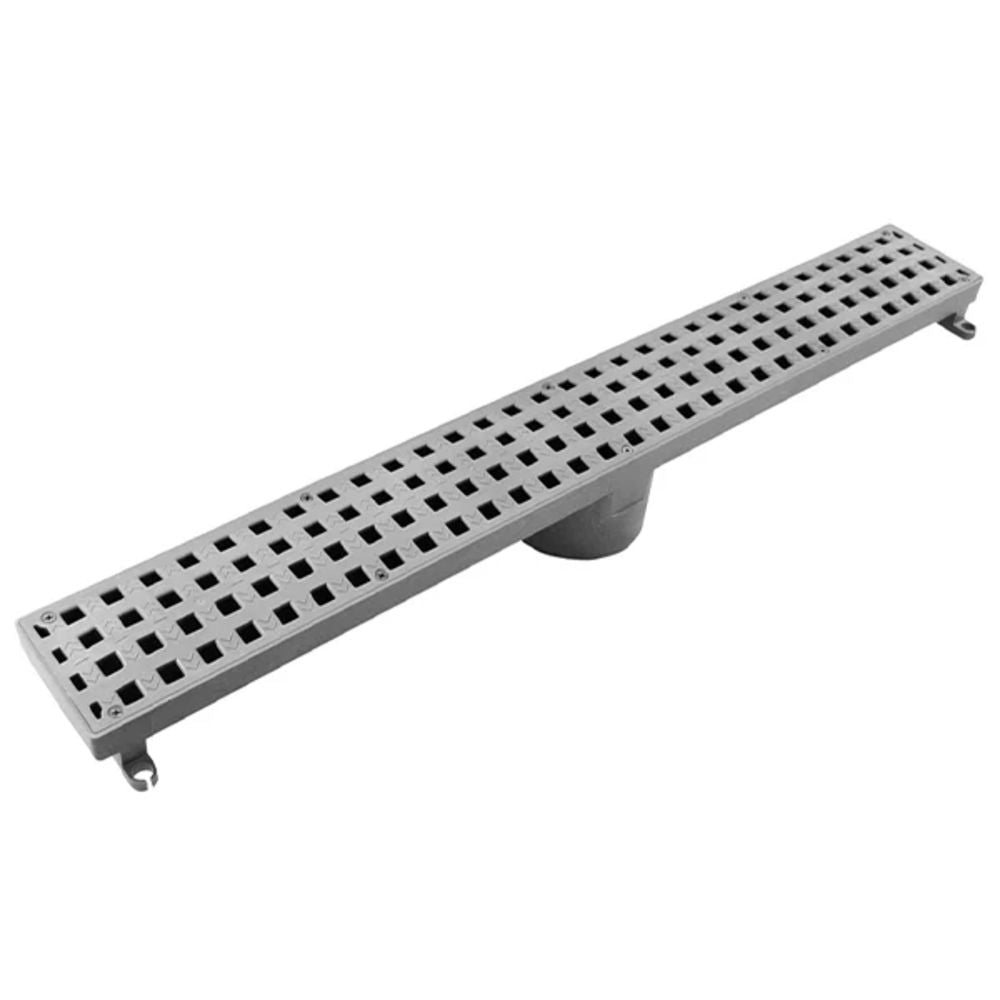

Trench Pan with ADA Grate

The Tuf-Tite® 36” TPAN™ is an industrial-strength, pre-sloped trench pan system designed for heavy traffic applications. Molded from UV-stabilized and chemical-resistant materials, this H-20 rated unit comes fully assembled and features an ADA-compliant grate. It is engineered to be set in concrete, providing a rigid, permanent drainage solution that prevents standing water in high-load areas.

Features:

H-20 Heavy Traffic Rated: Engineered for heavy wheel loads and 235 p.s.i. industrial strength when set in concrete.

ADA Compliant Grate: Designed to meet American Disabilities Act standards for pedestrian and wheelchair safety.

Pre-Sloped & Pre-Assembled: One-piece design eliminates the need for extra parts and ensures efficient drainage without standing water.

Durable Construction: Molded of UV-stabilized, chemical-resistant polymer with internal ribs for exceptional rigidity.

Universal Pipe Compatibility: Features molded-in cutouts to accommodate 3” Sch. 40, 4” Sch. 40, and 4” SDR 35 drain pipes.

Installation Ready: Designed for seamless integration into concrete slabs; the load-bearing area is fully supported once poured.

Versatile Layouts: Includes features for 90-degree corners to suit various site requirements.
