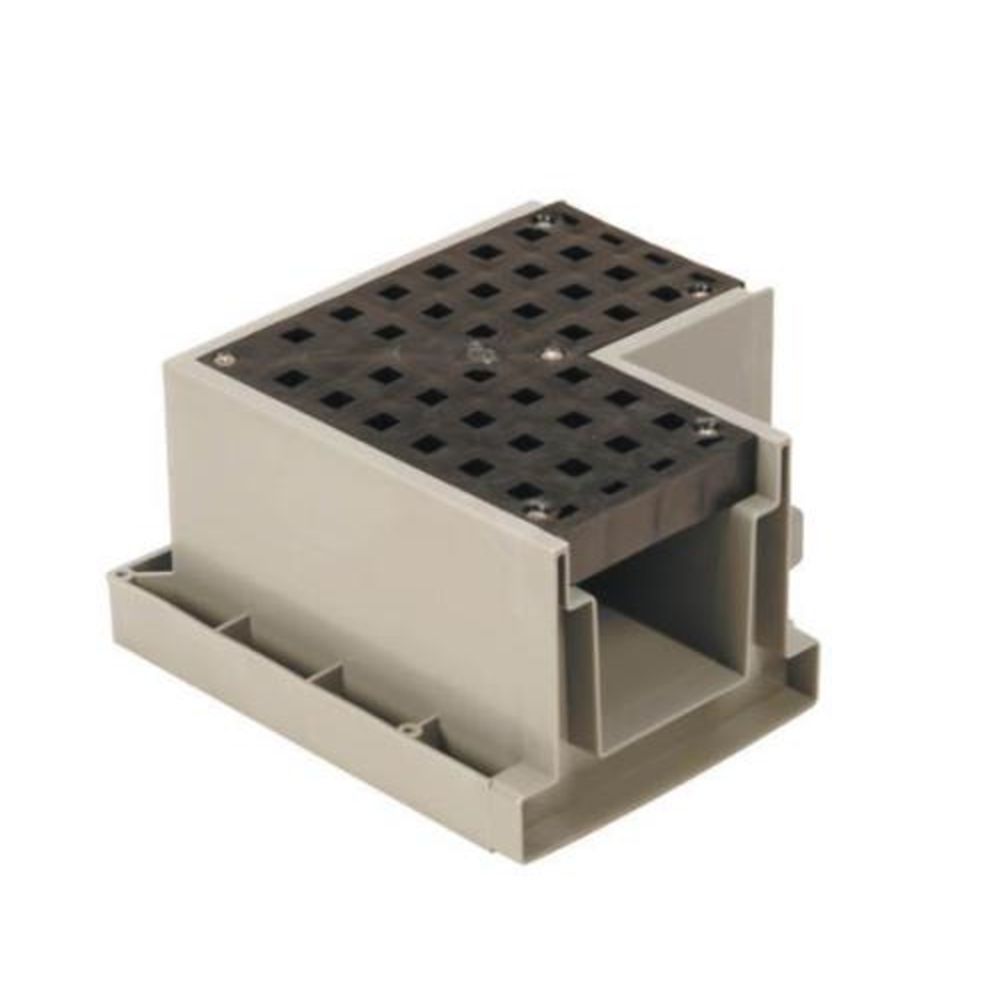

TR1-90 Corner Section

The Tuf-Tite® TR1-90 Corner Section is a 90-degree injection-molded HDPE corner unit for the TR1 Trench Drain system, designed to create seamless L-shaped or perimeter drainage layouts. It comes fully assembled with an ADA-compliant grate and screws, ready for simple, snap-together installation.

Features:

Material: Made from strong, flexible, non-corrosive, UV-stabilized high-density polyethylene (HDPE).

Dimensions: The unit measures approximately 8.75 inches in length (on each side at the base), 6.75 inches in width at the base, and 5 inches in depth.

Installation: Features molded interlocking ends for simple, snap-together construction, eliminating the need for extra fittings to connect to other TR1 trench drain sections.

Grate: Includes an ADA-compliant grate and stainless steel screws, with a choice of black or gray grate colors.

Durability: When part of the full TR1 system, it contributes to an H-20 wheel load rating (235 psi industrial strength), suitable for heavy traffic areas like driveways, warehouse floors, and loading docks.

Versatility: It can be installed in residential or commercial settings and helps direct water efficiently with a contoured bottom design that eliminates standing water.
