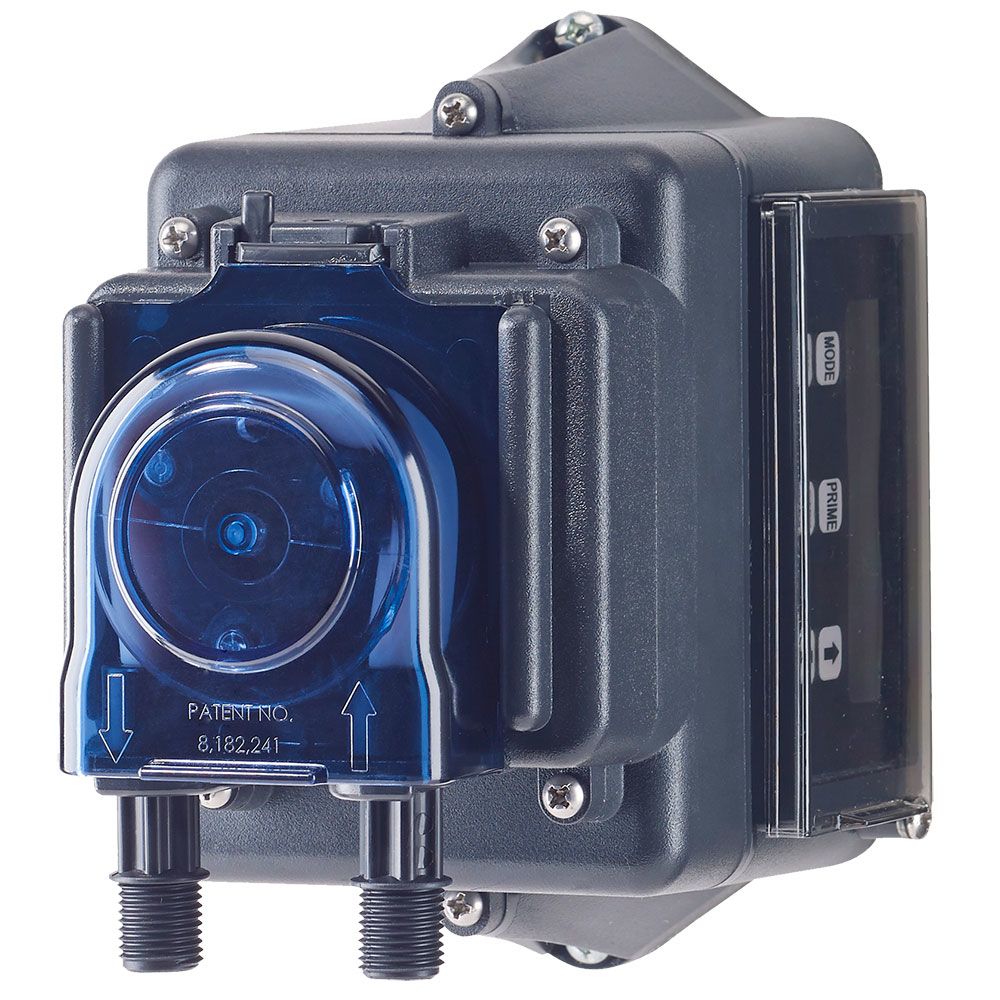

Stenner Econ Integrator Proportional Pump 30 GPD #H Tube 120V

Stenner Econ Integrator Proportional Pump 30 GPD #H Tube 120V

E20RHH81S

Log in to see price
Shipping calculated at checkout.

In stock
The Stenner E20RHH81S Econ Integrator is a proportional pump which is ideal for use in livestock operations when an existing water meter is utilized to tally water consumption to a controller. This flow activated pump can be used with meter systems or other control systems that respond to flow.

Features:
  • Econ Integrator for light duty applications. The Stenner E20RHH81S Econ Integrator Pump is designed for light duty applications such as livestock operations.
  • Econ Integrator features an internal relay function. The Stenner E20RHH81S Econ Integrator Pump features an internal relay function and can work with multiple pumps which can be activated by one meter.
  • Econ Integrator has three operating modes. The Stenner E20RHH81S Econ Integrator pump has three operating modes. The three operating modes are Seconds, Flow Switch or Auxiliary power.
Specifications:
  • CE listed
  • Tube Size: H
  • Cord Length: 10 feet
  • Self-priming to 25 feet
  • Pump Capacity: 30.0 GPD
  • Max Working Pressure: 80 psi
  • Output Reproducibility: ± 2%


Documents

Stenner Econ Integrator Proportional Pump 30 GPD #H Tube 120V Manual
