Home / Pumps & Tanks / Pumps & Motors / Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt
  • Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt
  • Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt
  • Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt
1 3

Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt

Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt

S7NE20PHF81S7

Log in to see price
Shipping calculated at checkout.

Low stock

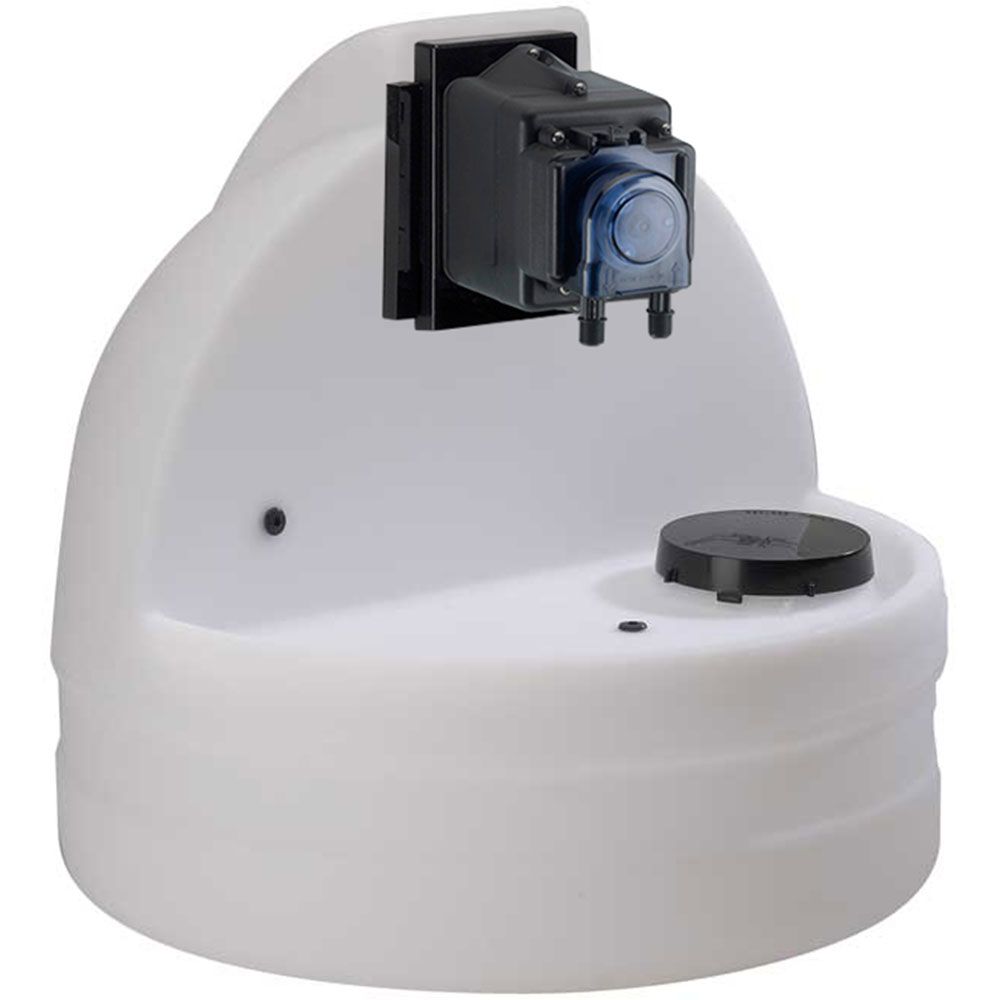

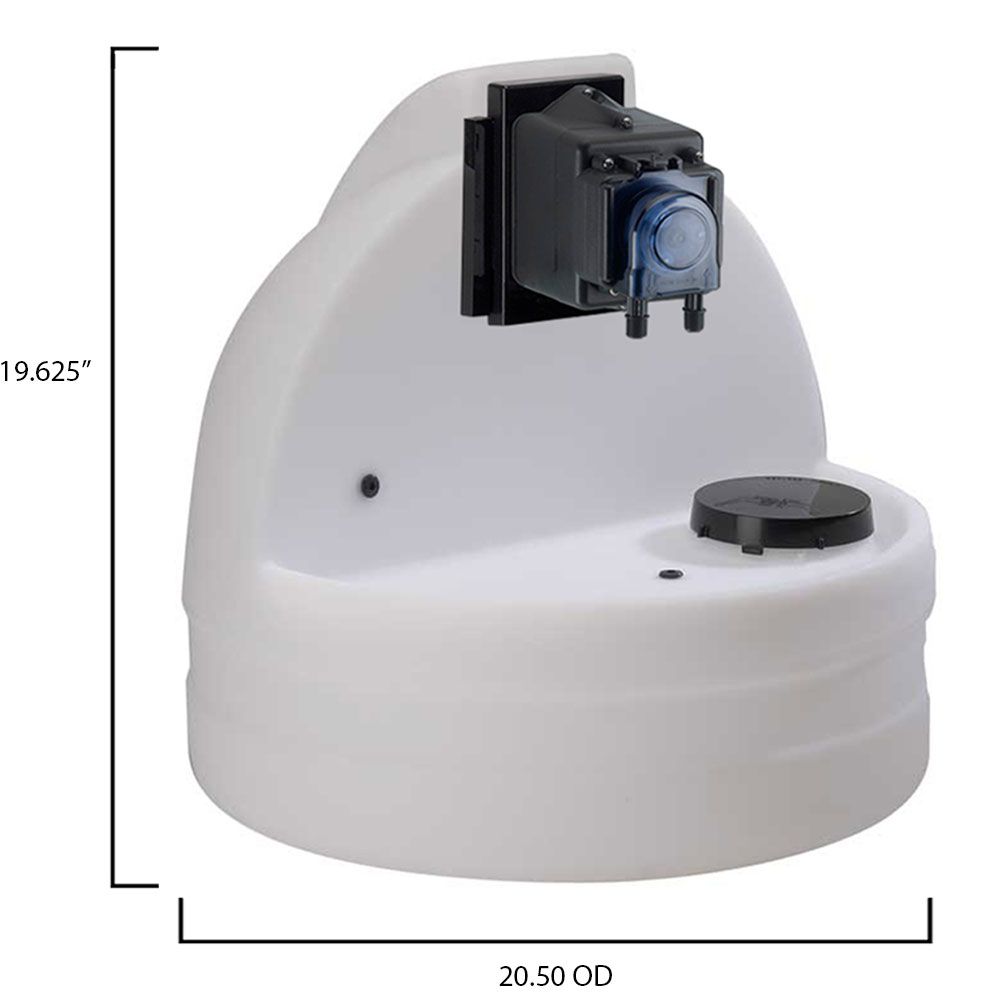

The Stenner S7NE20PHF81S Econ FP Pump with 7.5 gallon tank features a flow activated pump which is specifically designed to interface with a dry contact water meter, dry contact flow switch, or a 12-24 VAC/VDC signal from any control equipment. This flow activated pump can be used with meter systems or other control systems that respond to flow. The tank features a childproof lid and rain-roof. The tank is constructed from Polyethylene and NSF 61 & 372 certified.

Features:

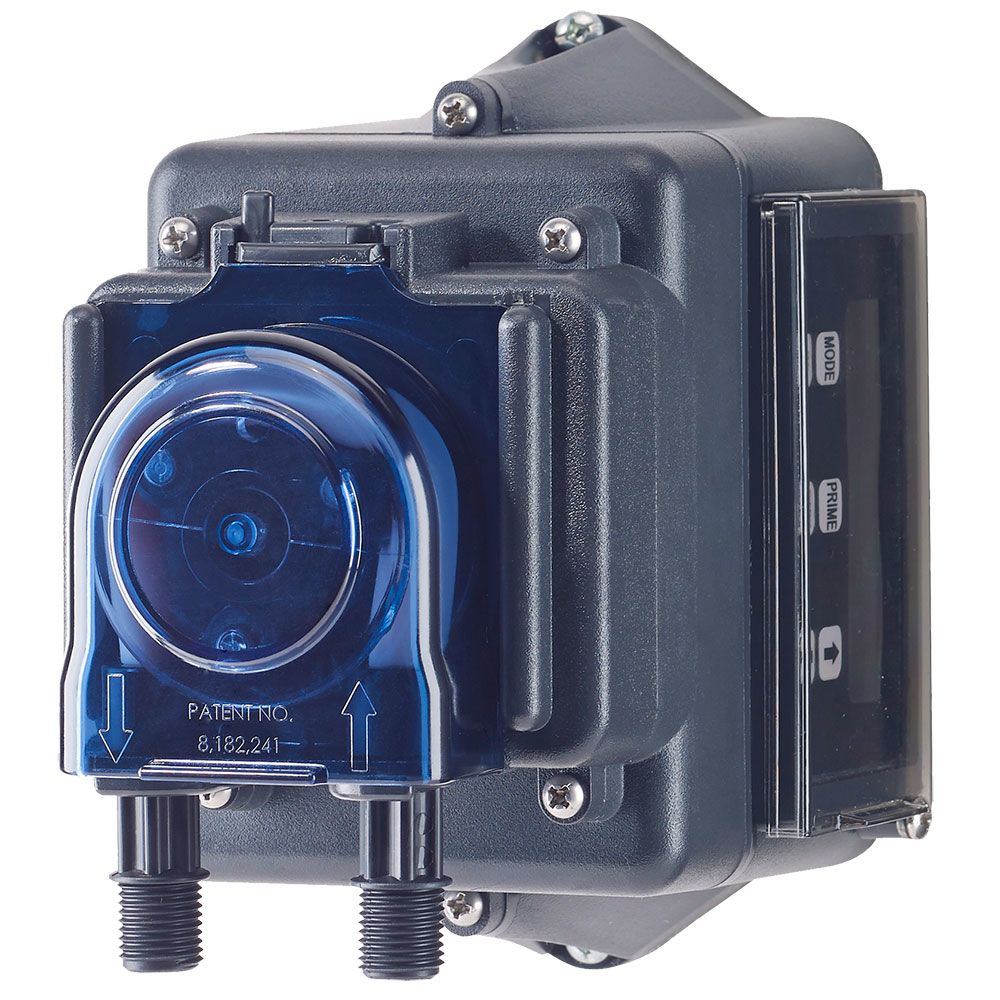

  • Stenner Econ FP Series Pumps are small but powerful. The Stenner S7NE20PHF81S features the Econ FP Series Pump. This pump is built with three operating modes: seconds, flow switch, and Auxiliary. The flow rate for this pump is 4.5 Gallons per day.
  • Stenner Econ 7.5-Gallon Tank is lightweight and UV resistant. The Stenner Econ 7.5-Gallon Tank is a white UV resistant tank that features a child resistant lid. This tank is constructed of Polyethylene and is lightweight.
  • Stenner Accessory Kit is shipped with each pump. The accessory kit includes 3 connecting nuts (1/4"), 3 ferrules (1/4"), 1 injection check valve, 1 weighted suction line strainer (1/4"), 1 twenty foot roll suction/discharge tubing (1/4"), 1 additional pump tube, and manual.
Specifications:
  • Pump Capacity: 4.5 gpd
  • Max Temperature: 104°F
  • Cord Length: 10 foot
  • Tube Material: Santoprene
  • Tank Material: Polyethylene
  • Max Working Pressure: 80 psi
  • Series: FP flow activated pump
  • Tank Certification: NSF 61 & 372 approved


Documents

Stenner Econ FP Series Pump with 7.5 Gallon Tank #F Tube 4.5 GPD System - 120 volt Manual
