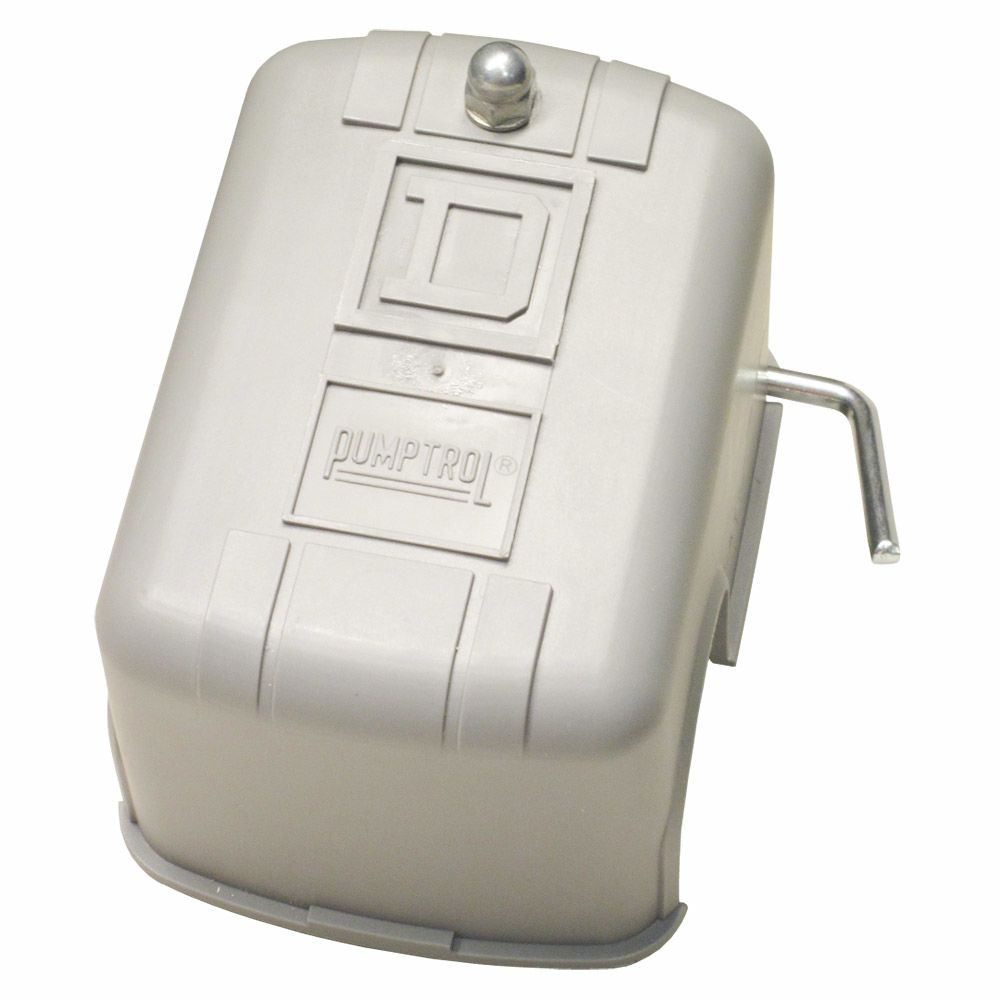

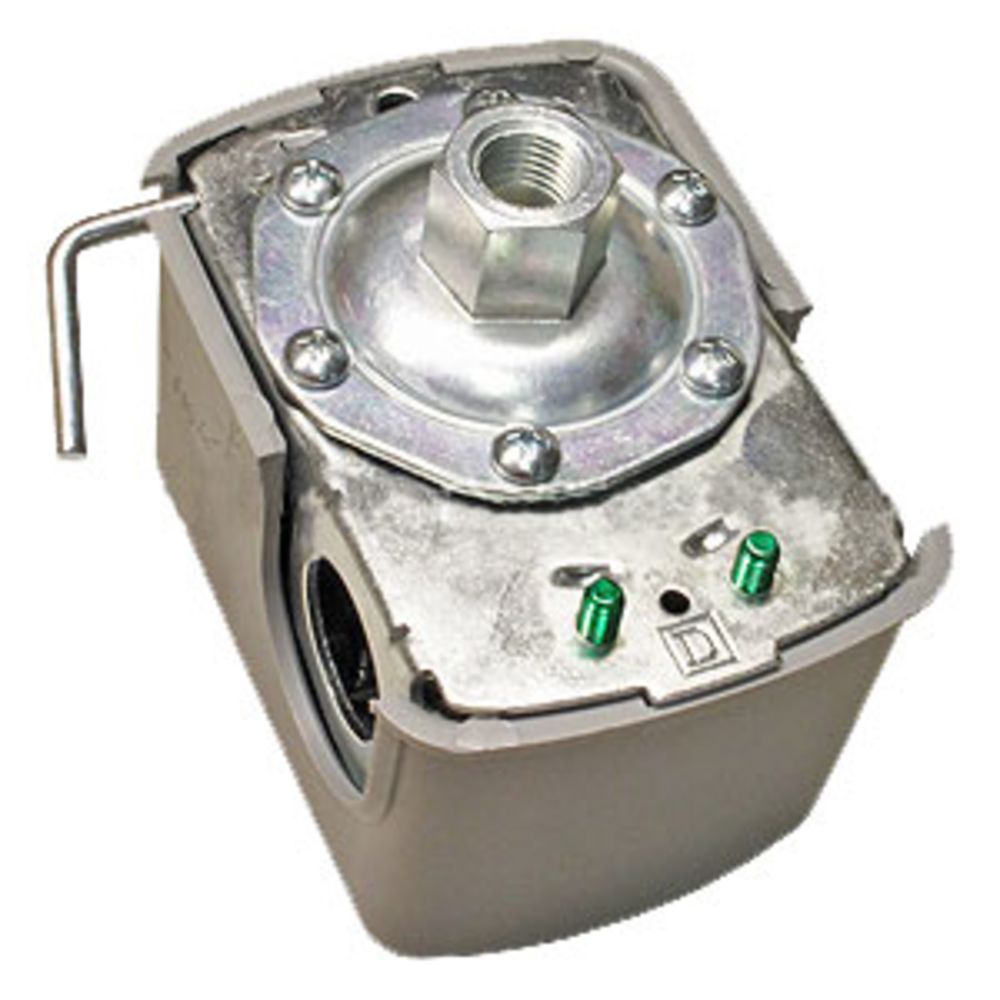

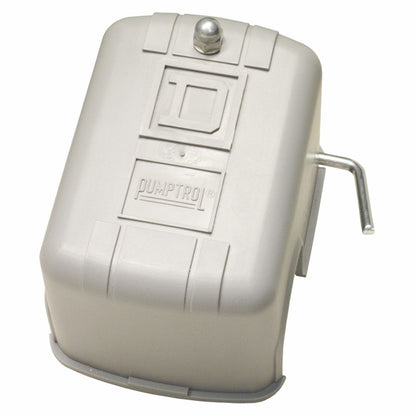

Square D Pressure Switch, Low Pressure 30/50 Adjustable, DPST, Diaphragm 1/4 FPT

Square D Pressure Switch, Low Pressure 30/50 Adjustable, DPST, Diaphragm 1/4 FPT

SKU:9013FSG2J21M4:40PK

Shipping calculated at checkout.

In stock

Choose:
Square D Pumptrol 9013FSG2J21M4 well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:
  • Amps: 10A
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified
  • Indoor Use
  • Pressure Connection: 1/4" FNPT
  • Maximum Voltage Rating: 575VAC
  • Factory Set Cut-In Pressure: 30 psi
  • Factory Set Cut-Out Pressure: 50 psi
  • Maximum Allowable Pressure: 220 psig
  • Low Pressure Cut-Off: 10 psi below cut-in


Documents

Square D Pressure Switch, Low Pressure 30/50 Adjustable, DPST, Diaphragm 1/4 FPT Manual
