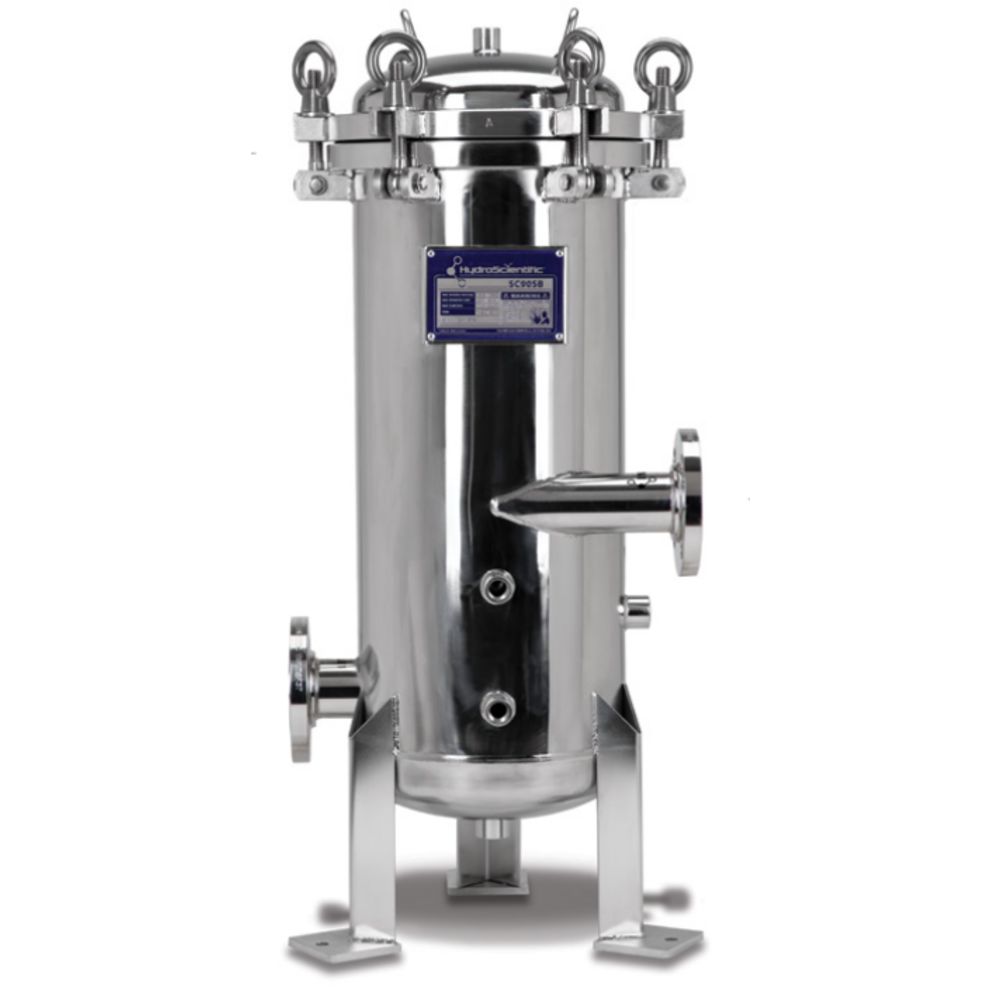

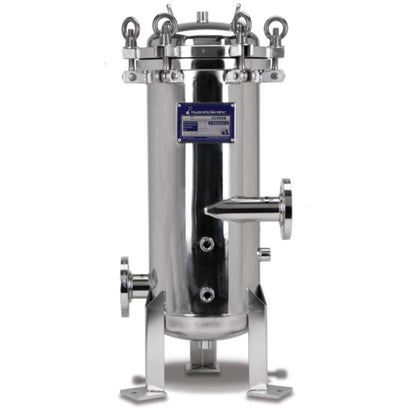

Sciclone™ Swing Bolt 170 Jumbo Filter Housing, 2FNPT, ML, GP, 304SS, EP

This Hydronix Water Technology Sciclone™ Swing Bolt 170 Jumbo Filter Housing provides an exceptional performance housing design that helps separate dense solids prior to water passing through the filter cartridge. The Sciclonic™ design delivers extended filter life, low cost operation, reduced maintenance costs, and increased dirt holding capacity.

Features:

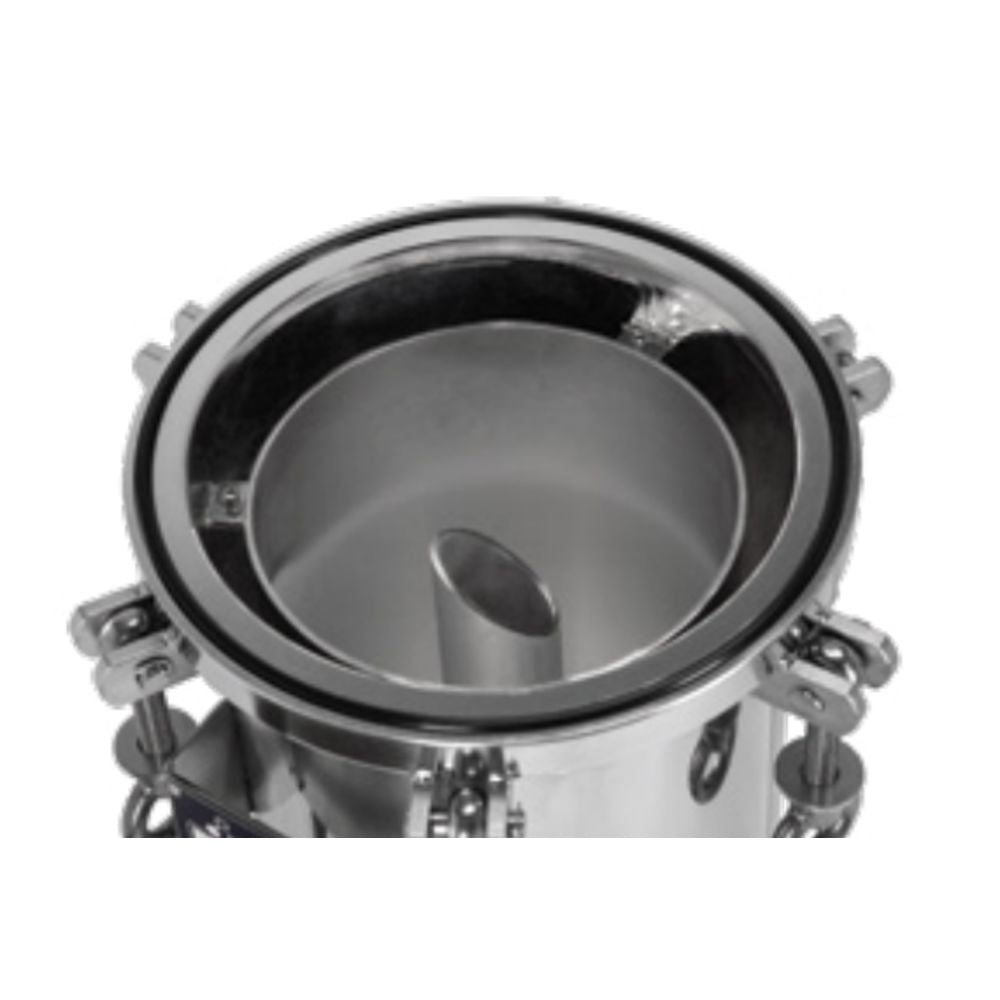

• Sciclonic™ Water Flow Design

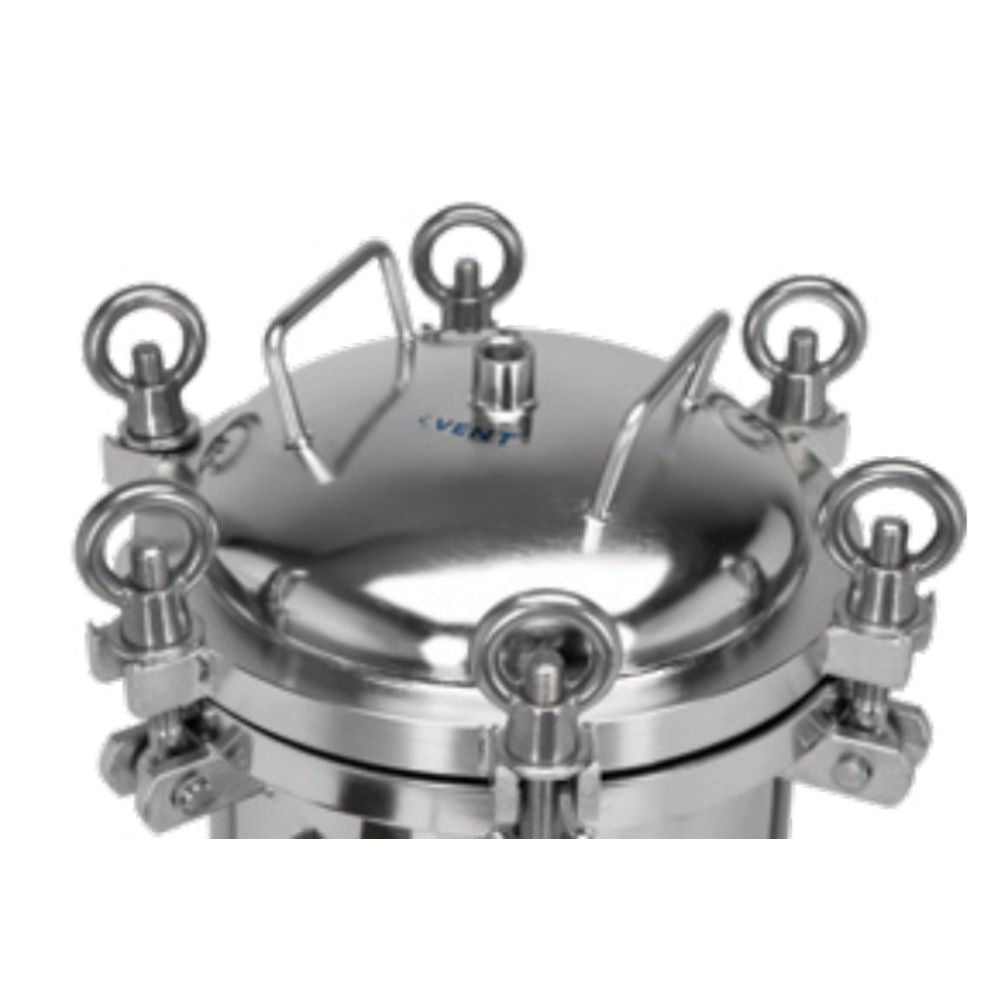

• Swing bolt closure for quick and secure filter change
• Heavy duty 304 Stainless Steel for durability
• Accepts jumbo style cartridges
• NSF/ANSI/CAN 61 & NSF/ANSI 372 certified

Applications:

• Residential, Commercial, Industrial and Municipal
• Cooling Tower Filtration
• Whole House Filtration
• Process Water
• Well Water
• Small Community Compliance
• Industrial Waste Water Treatment

Materials of Construction:

• Housing Shell: 304 Stainless Steel
• Swing Bolt Lid Closure: Zinc Plated Steel
• Vent and Drain Plugs: 304 Stainless Steel
• Heavy Duty Mounting Legs: 304 Stainless Steel
• O-Ring/Gasket: EPDM - FDA Grade (Viton, Silicone and EPR Options)

Operational Data:

• Max Working Pressure: 150 psi at 300 Deg. F (10.3 bar at 149 Deg. C)
• Max Operating Temperature: 300 Deg. F (149 Deg. C)
