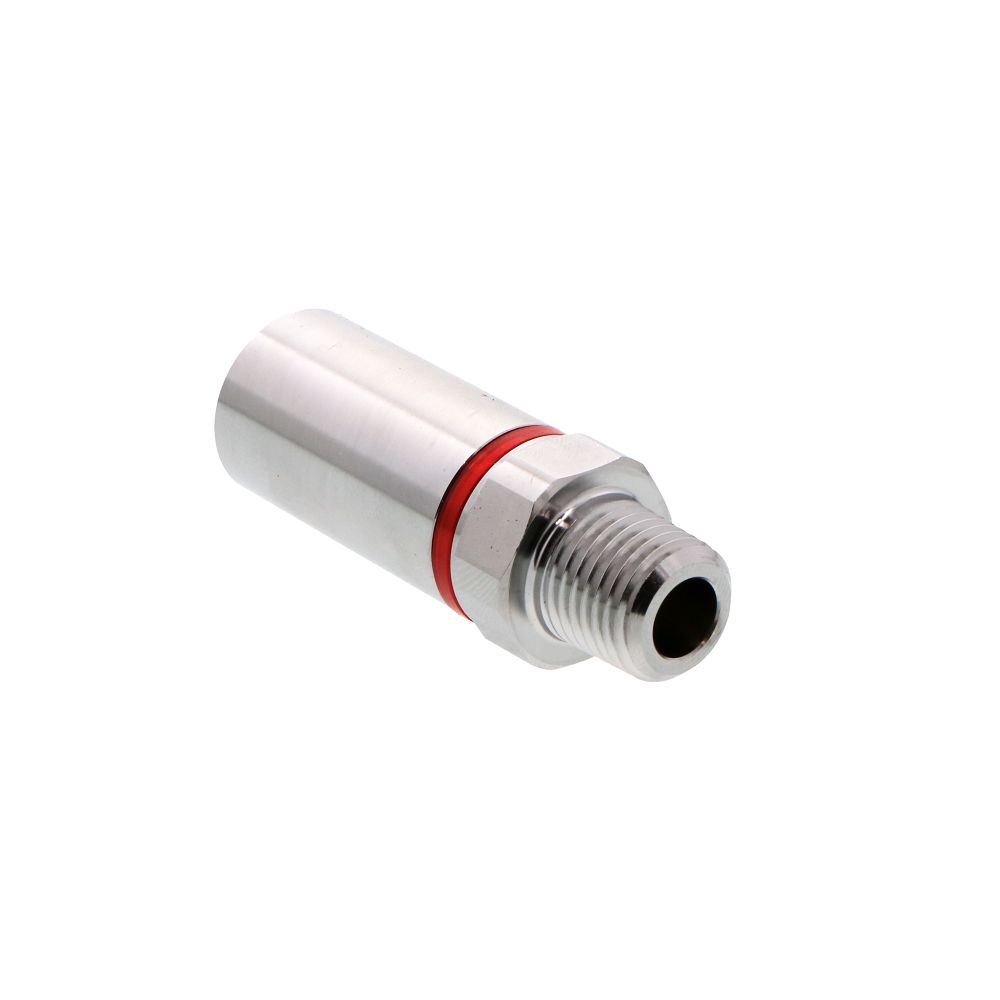

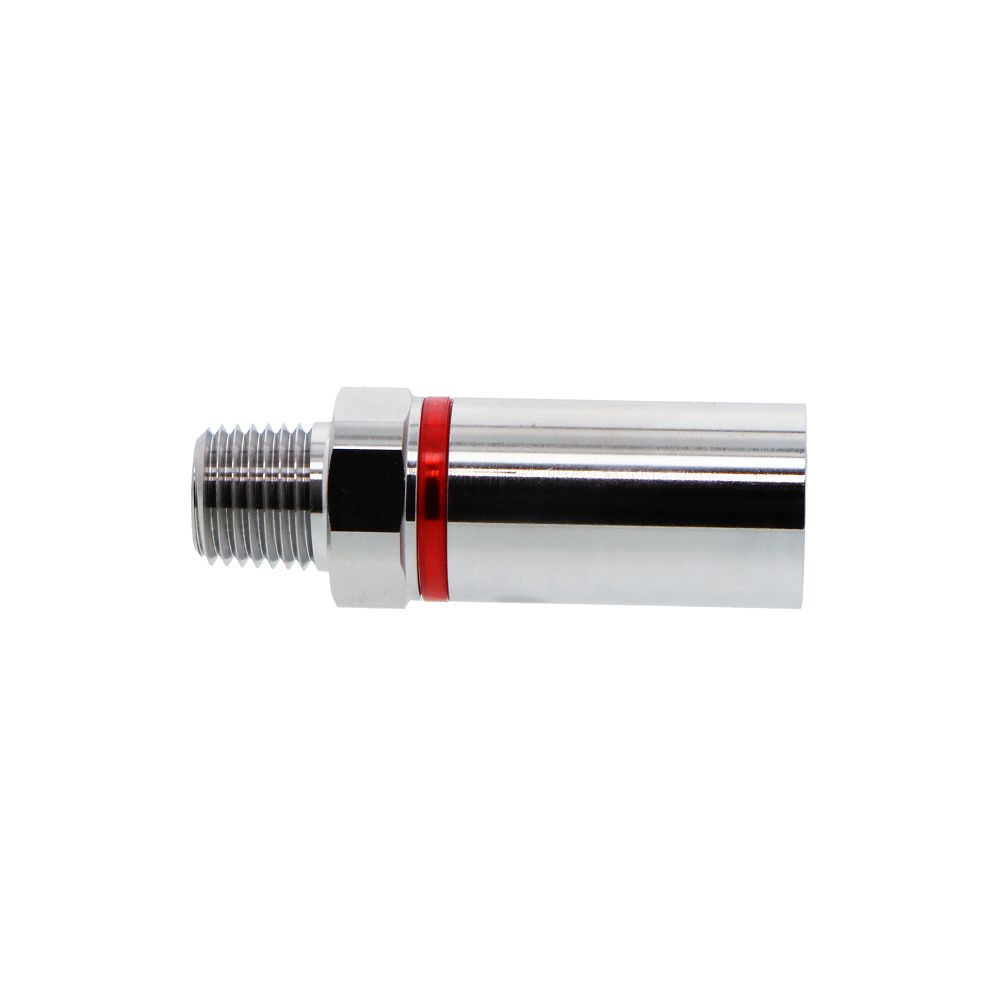

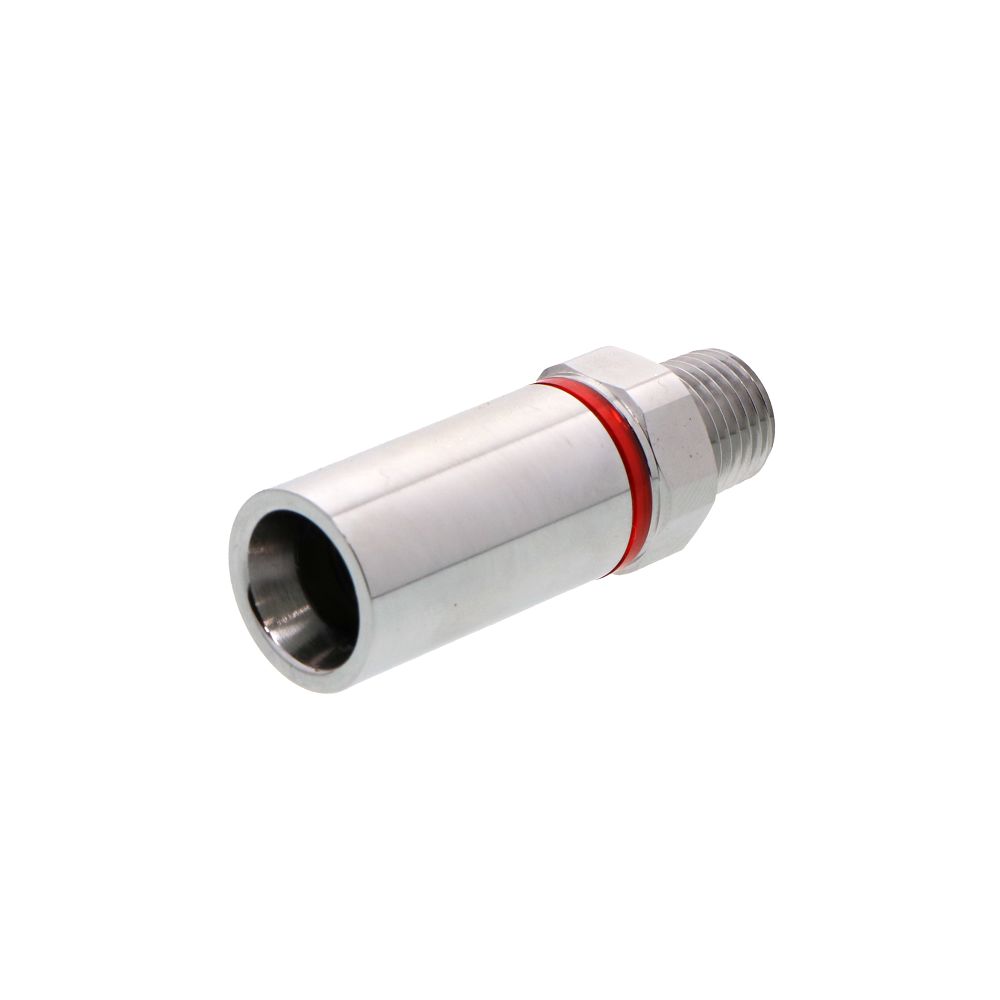

RPLQ4D10004RED Rack and Panel Body Straight Thread Port 1/4 NPT Warm Red

Colder RPLQ4 Series Quick Disconnect Couplings are reliable, dripless connectors designed for use in rack-mounted liquid cooling applications. The non-spill design and durable construction of the RPLQ4 series ensures that the connectors continue to protect valuable electronics over time. Couplings need only be within 1/8" of fully engaged in order to achieve the maximum flow. These RPLQ4 connectors are constructed out of chrome-plated brass with polysulfone valves, and come with either cool blue or warm red color rings for quick identification.

Specifications

• Material: Chrome-plated brass
• Valves: Polysulfone
• Valved Spring (wetted): Stainless steel
• Seals: EPDM
• Lubricants: Krytox® PFPE
• Color: Chrome with cool blue or chrome with warm red
• Flow Capacity: 1/4" nominal flow
• Operating Pressure: Vacuum to 120 psi, 8.3 bar
• Temperature: 0°F to 240°F
• Max Flow at Disconnect: 3.0 gal/min
