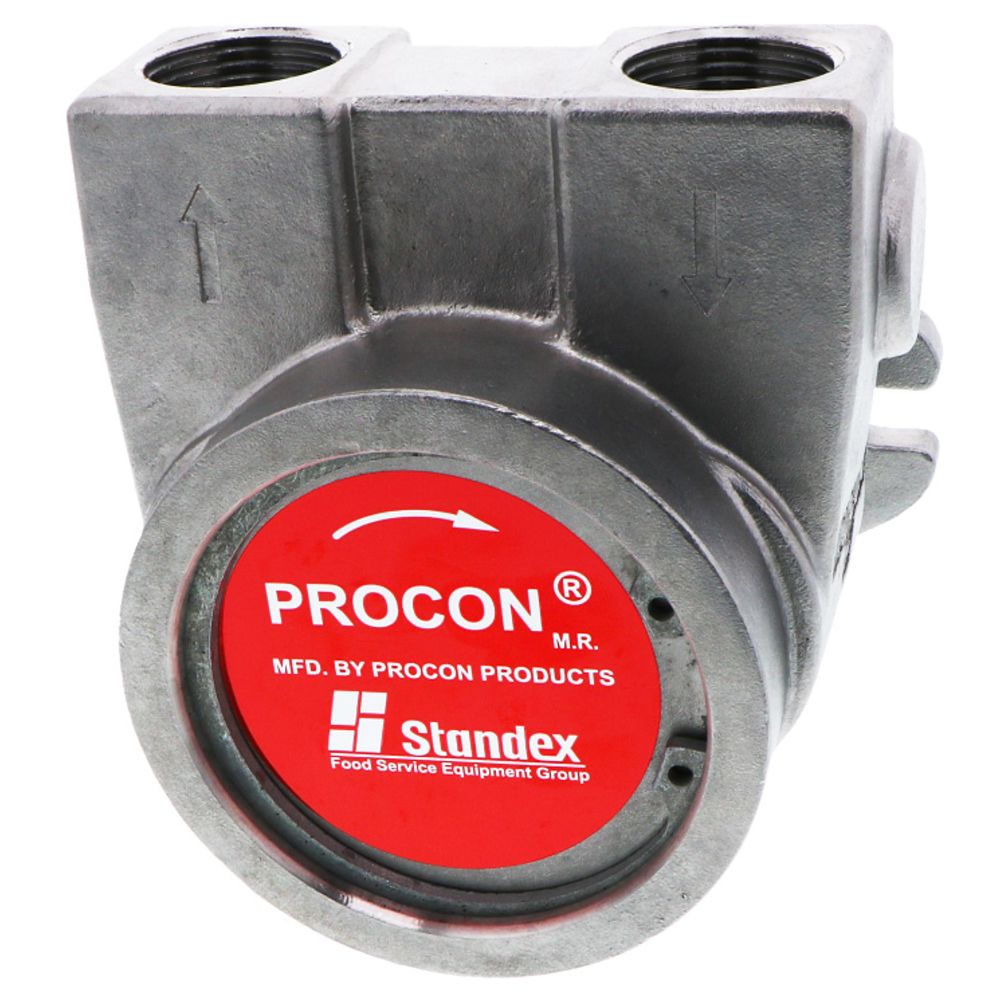

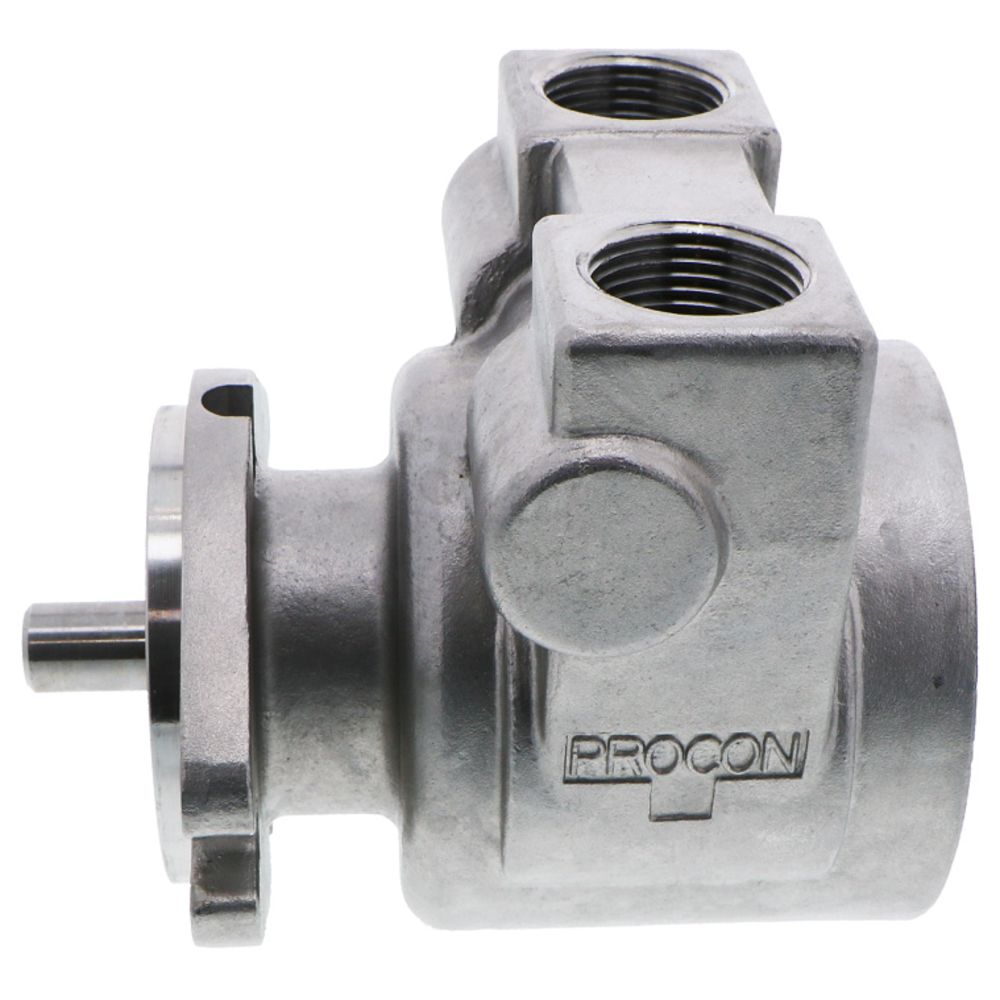

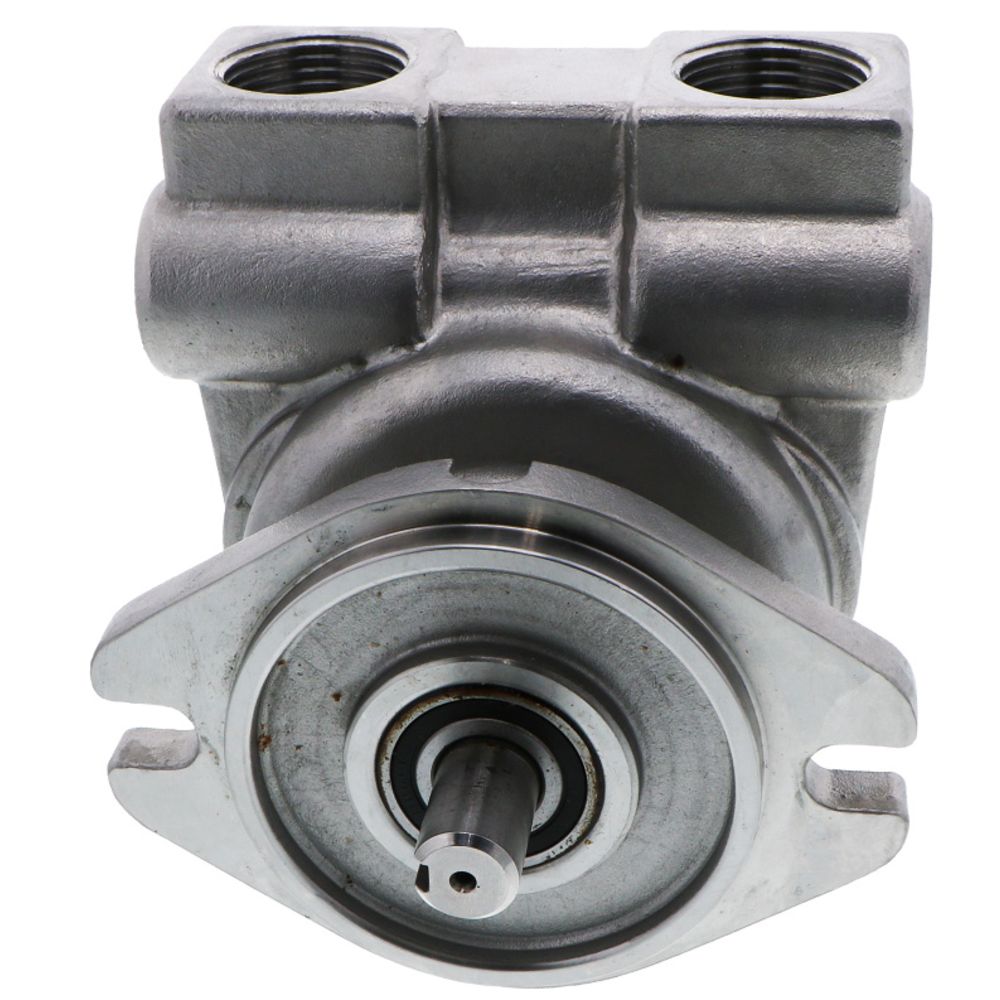

Procon Pump NSF Stainless Steel 660 GPH 1" NPT w/ Key Slot Drive (Bolt-on)

The Procon Pump NSF Stainless Steel 660 GPH 1" NPT w/ Key Slot Drive (Bolt-on) rotary vane pump is a positive displacement pump. This Series 6 Procon pump is brass with a key slot drive. The inlet and outlet ports are 1" NPT and the pump has a flow-rate of 660 gallons per hour. The seal configuration for the 116N660F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 6 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 116N660F11XX pump is designed to be bolted directly to the motor.

Additional Specification:

• Capacity: 660 GPH
• Nominal Speed: 1725 RPM
• Maximum Discharge Pressure: 250 PSI
• Rotation: Clockwise
• Weight: 2.5 lbs
• Port Size: 1" NPT Inlet and Outlet
• Key Slot Drive
