Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)

Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)

112A080F12XX

Log in to see price
Shipping calculated at checkout.

Low stock

Choose:

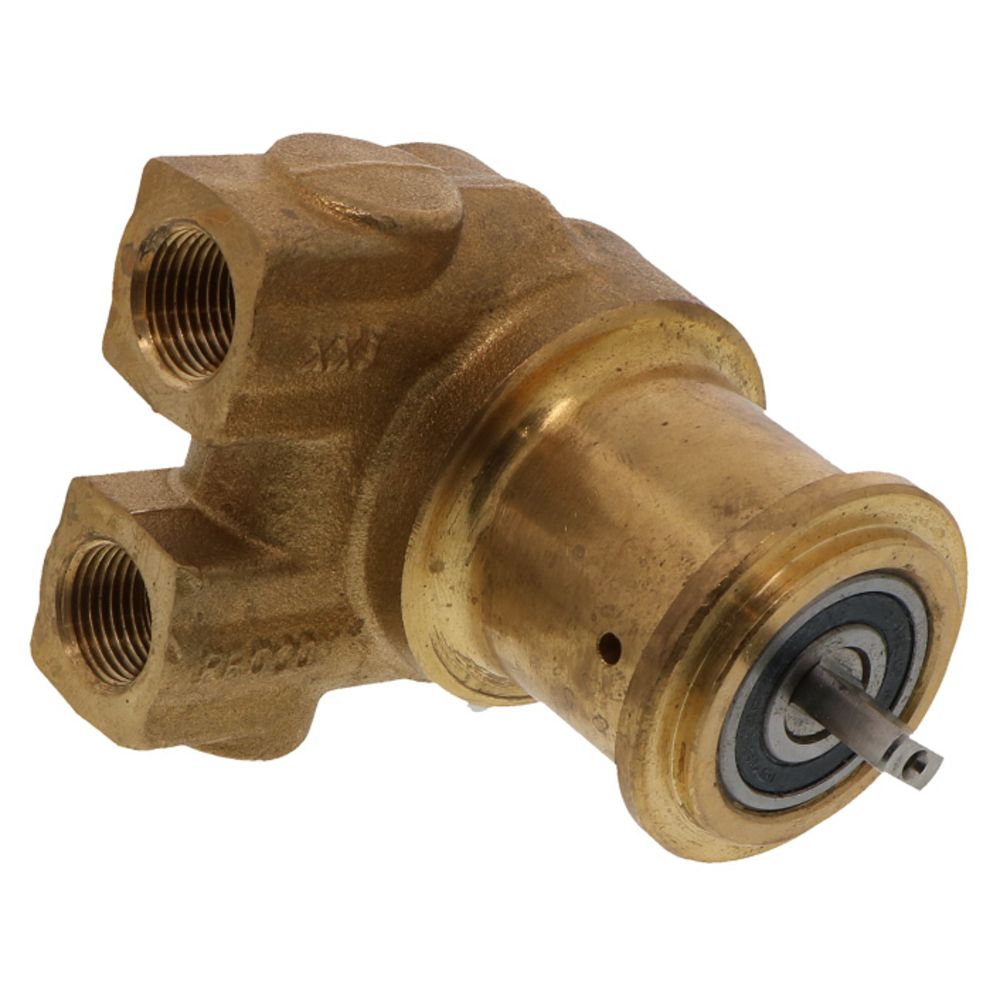

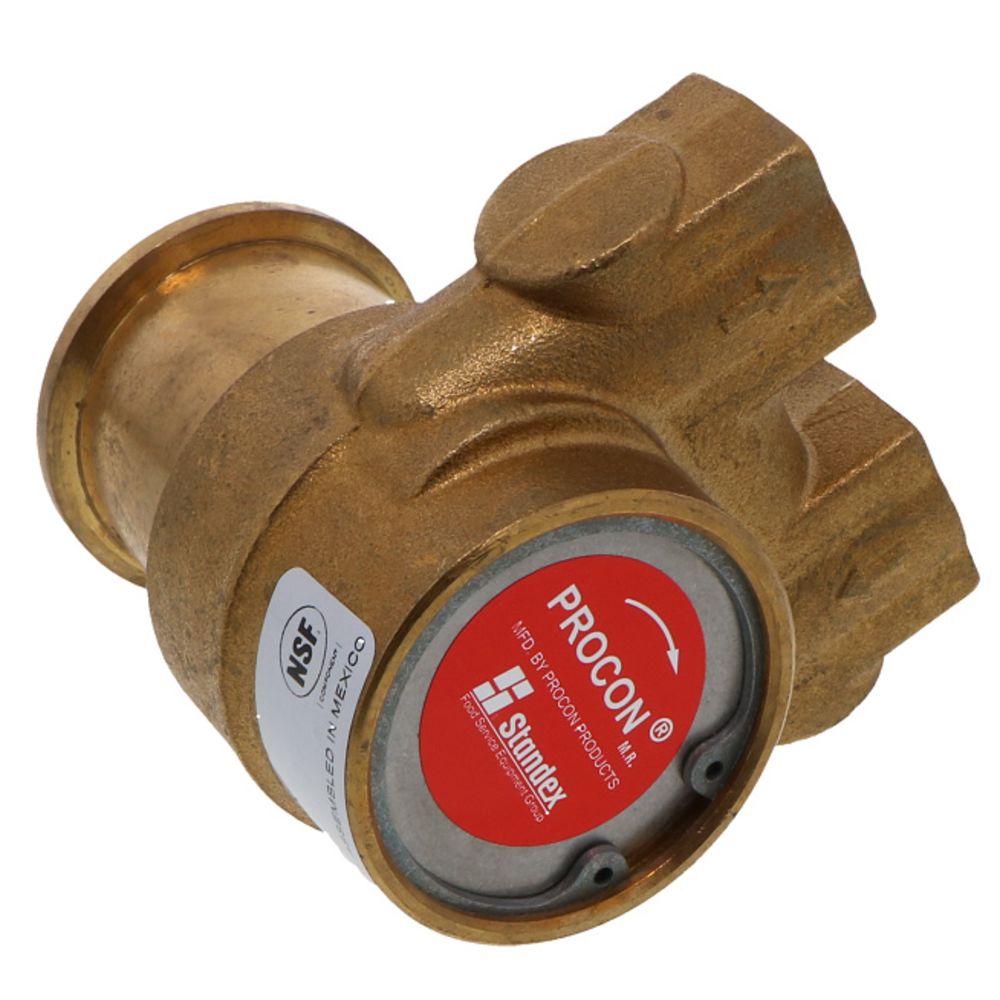

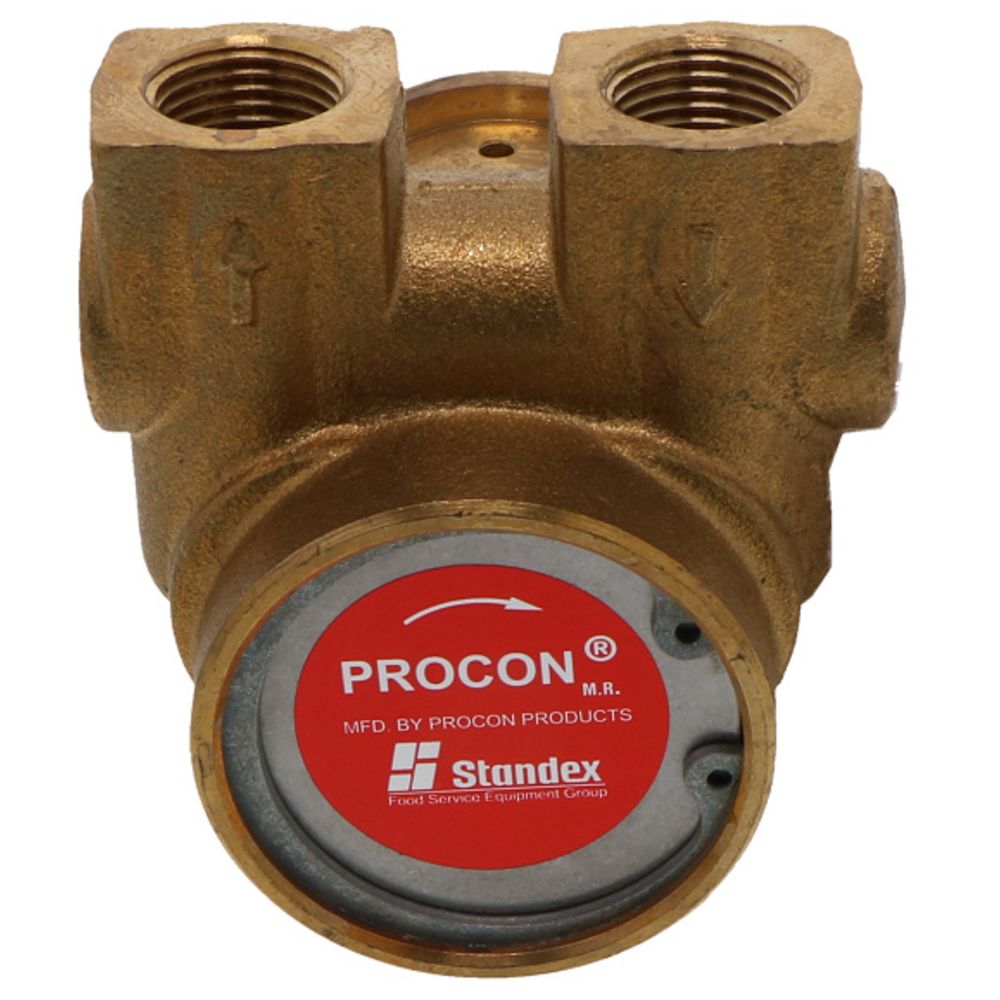

The Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on) Series 2 Rotary Vane Pump is a positive displacement pump. This Series 2 Procon pump is brass and includes a .188" Double Flat Drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 80 gallons per hour. The elastometer and seal configuration for this pump is high-quality Nitrile Type 21, which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 112B125F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.
Specifications:
  • NSF Standard 169 listed
  • Capacity: 80 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Self-priming & maintenance free
  • Port Size: 3/8" NPT Inlet and Outlet
  • .188" Double Flat Drive
Typical Applications:
  • Carbonation
  • Espresso & coffee
  • Welding
  • Cold carb circulation
  • Reverse osmosis
  • Beer chillers
  • Pesticide Systems
  • Solar Applications


Documents

Procon Pump NSF Brass 80 GPH 3/8
