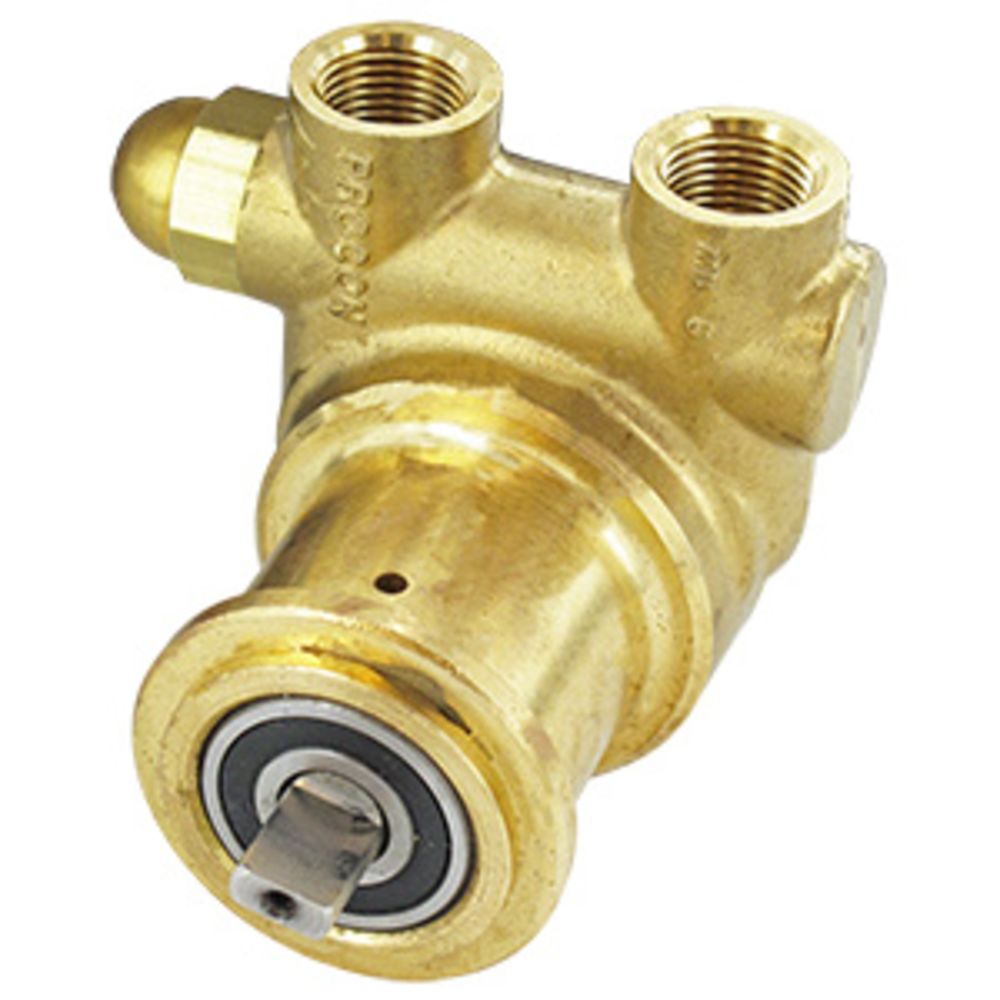

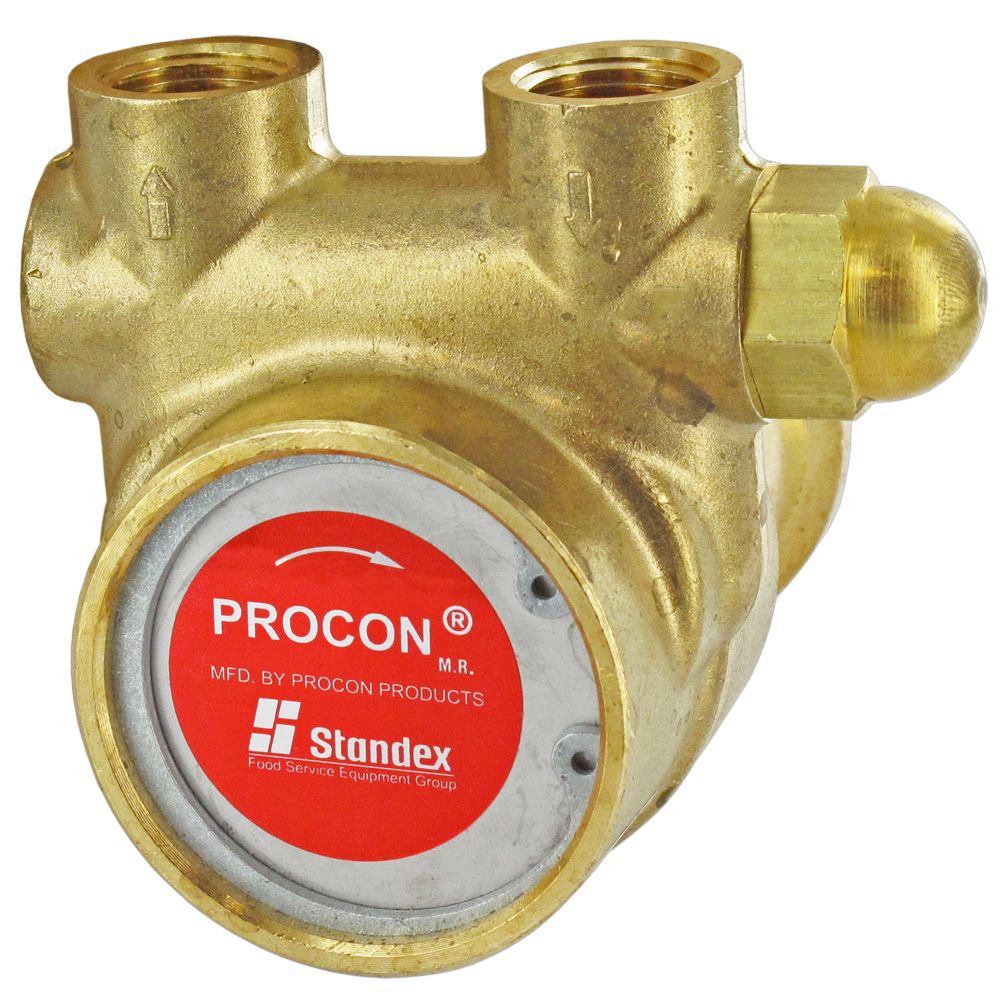

Procon Pump NSF Brass 35 GPH 3/8" NPT - 50 psi PRV w/ .188" Double Flat Drive

The Procon Pump NSF Brass 35 GPH 3/8" NPT - 50 psi PRV w/ .188" Double Flat Drive rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 35 gallons per hour. The seal configuration for the 102A035F12GD050 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 50 PSI. The 102A035F12GD050 pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:

• Capacity: 35 GPH

• Nominal Speed: 1725 RPMs

• Relief Valve: 50 PSI

• Rotation: Clockwise

• Weight: 2.5 lbs

• Port Size: 3/8" NPT Inlet and Outlet

• Double Flat Drive: .188" 35 GPH
