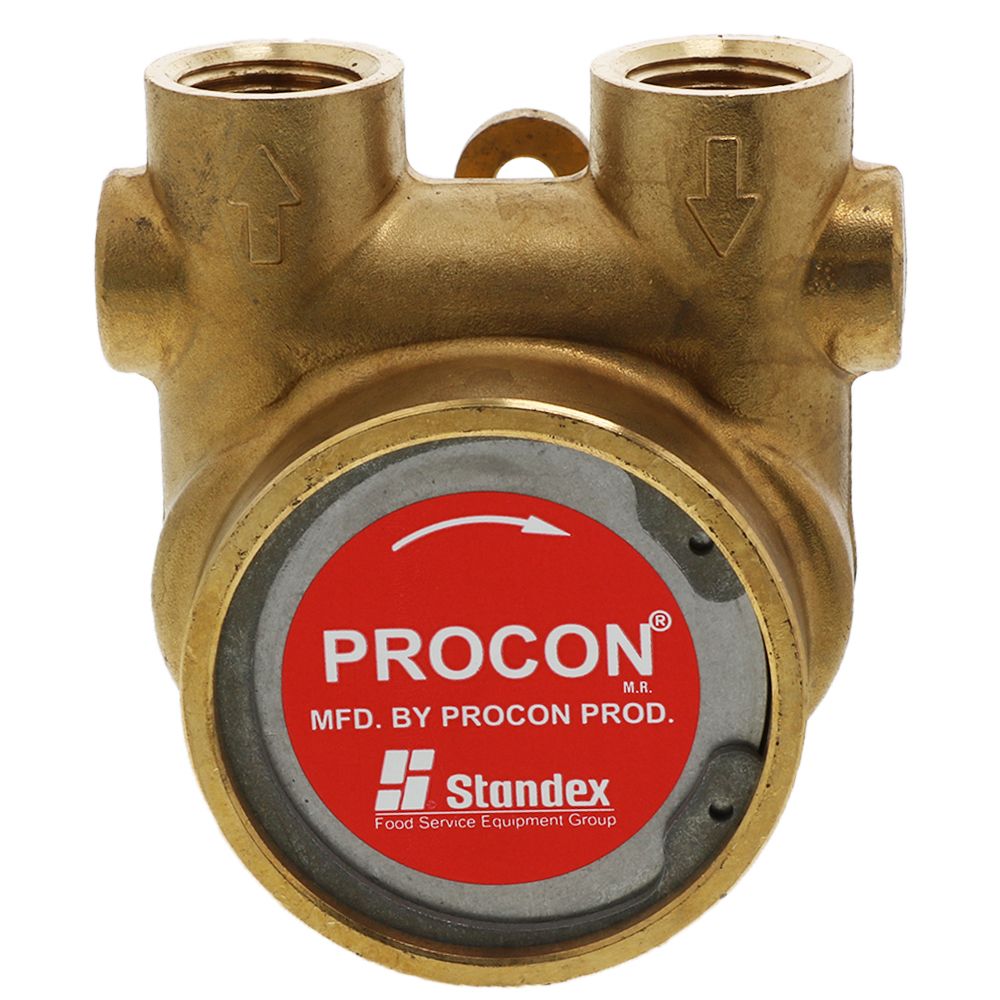

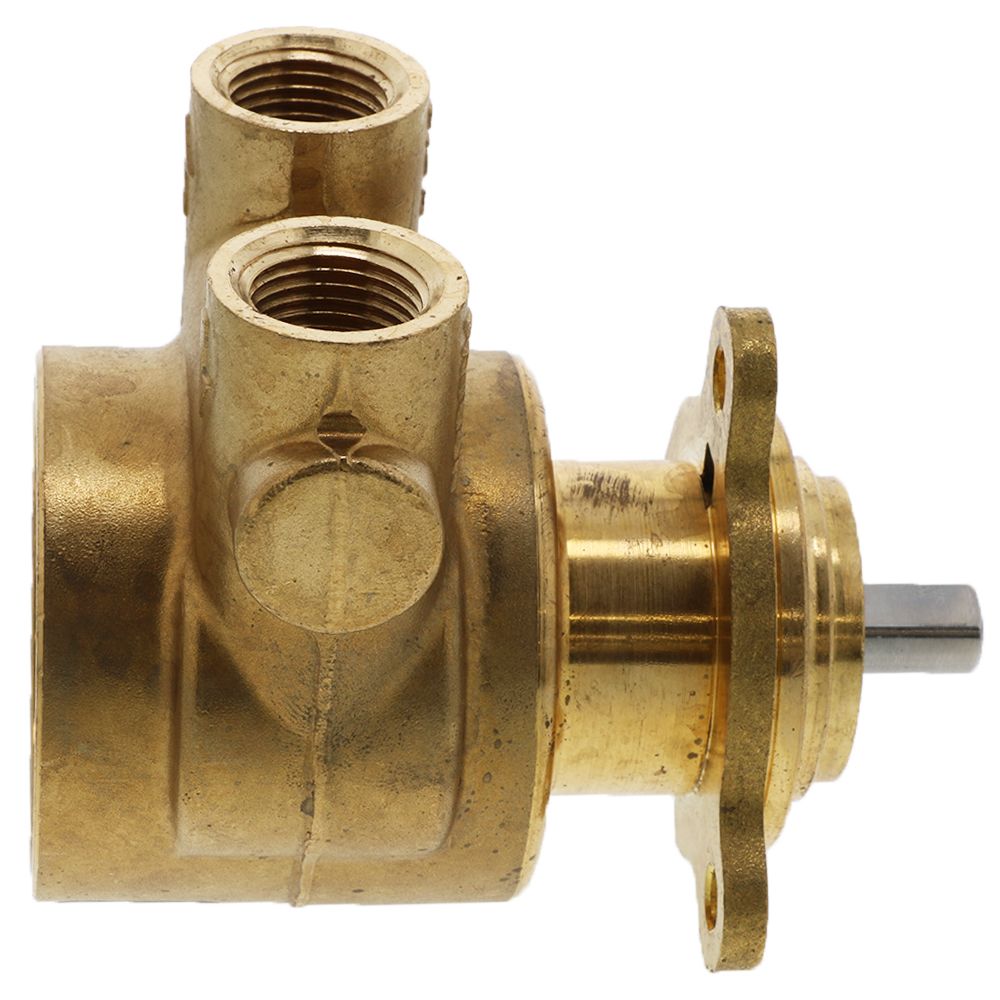

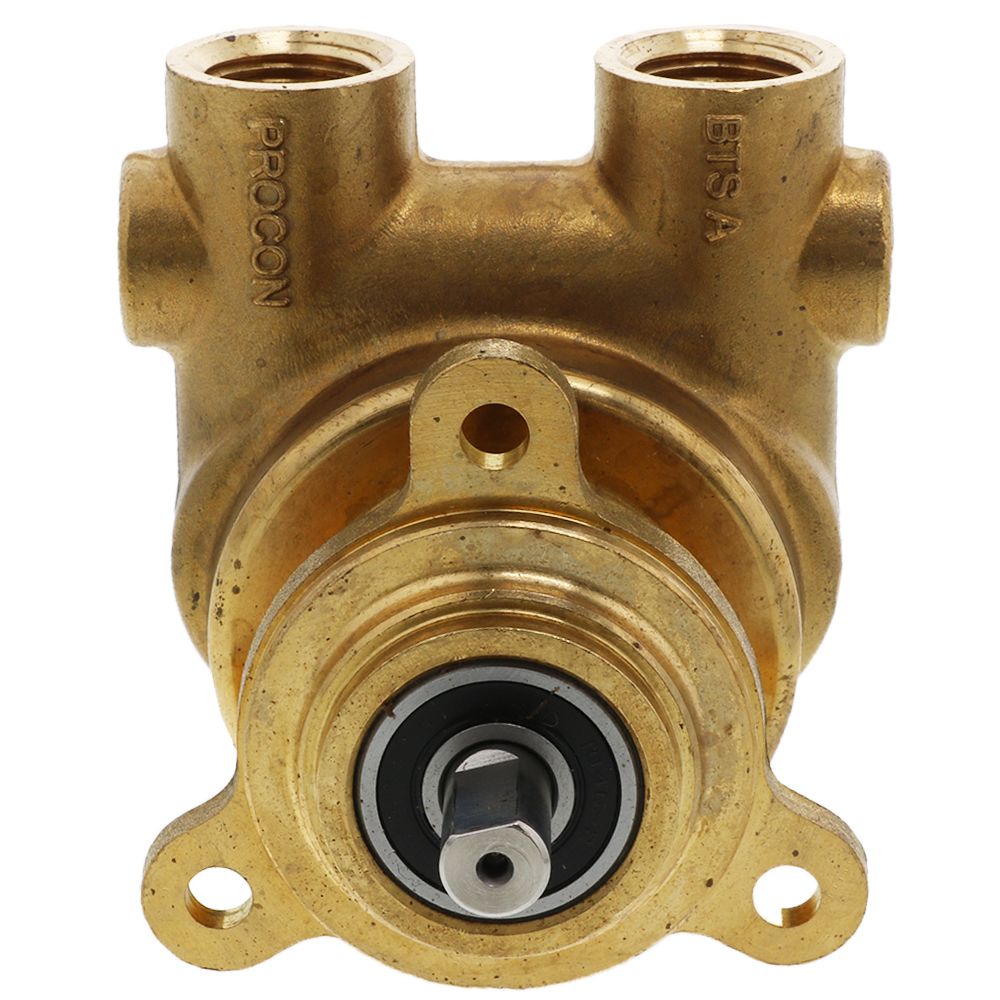

Procon Pump NSF Brass 330 GPH 1/2" NPT w/ Single Flat Drive (Bolt-on)

The Procon Pump NSF Brass 330 GPH 1/2" NPT w/ Single Flat Drive (Bolt-on) rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a single flat drive. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 114E330F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 114E330F11XX pump is designed to be bolted directly to the motor.

Additional Specifications:

• Capacity: 330 GPH
• Nominal Speed: 1725 RPM
• Maximum Discharge Pressure: 250 PSI
• Rotation: Clockwise with a Slinger
• Weight: 2.5 lbs
• Port Size: 1/2" NPT Inlet and Outlet
• Single Flat Drive
