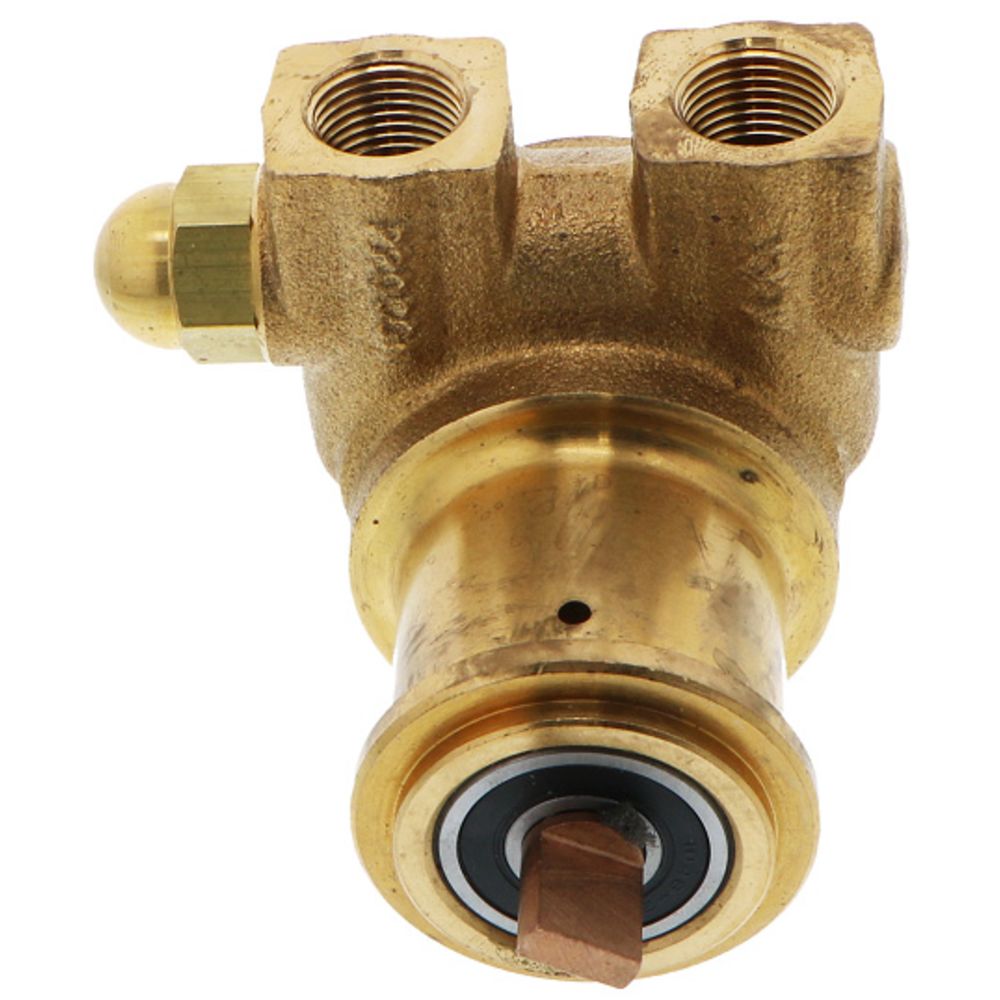

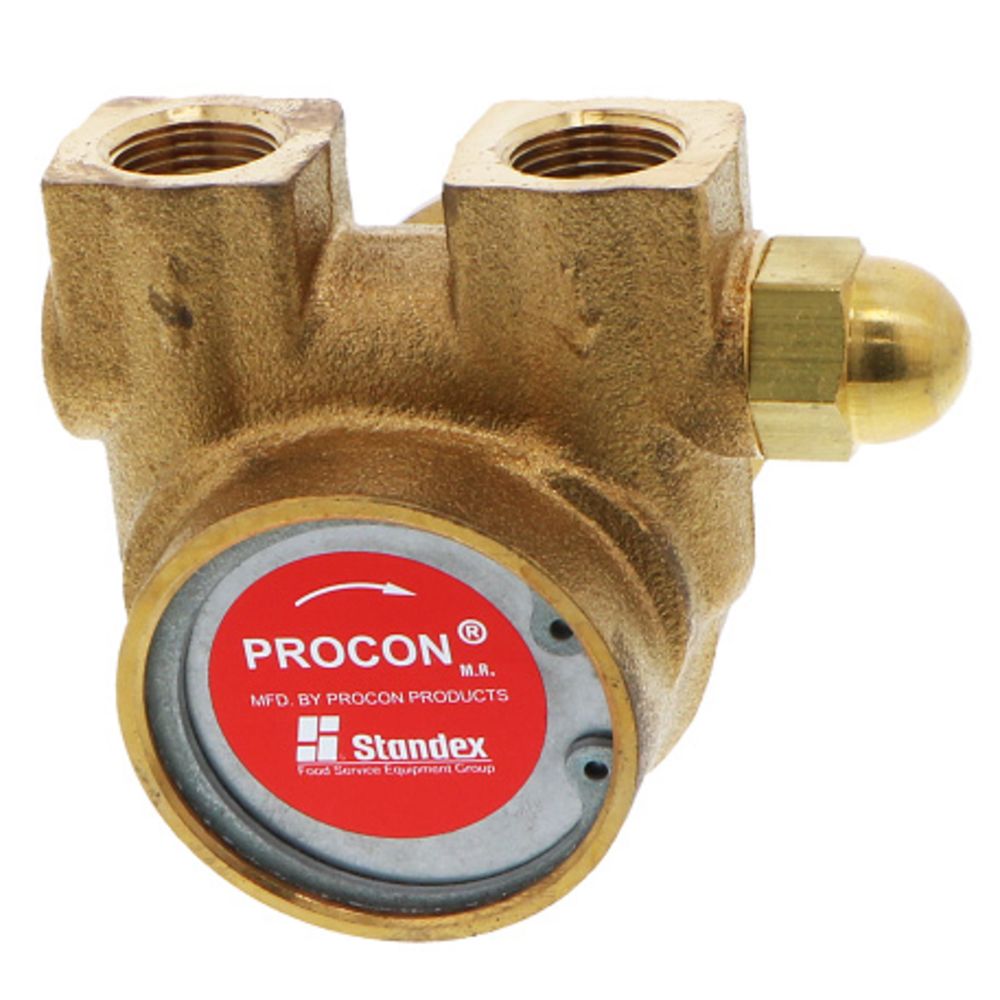

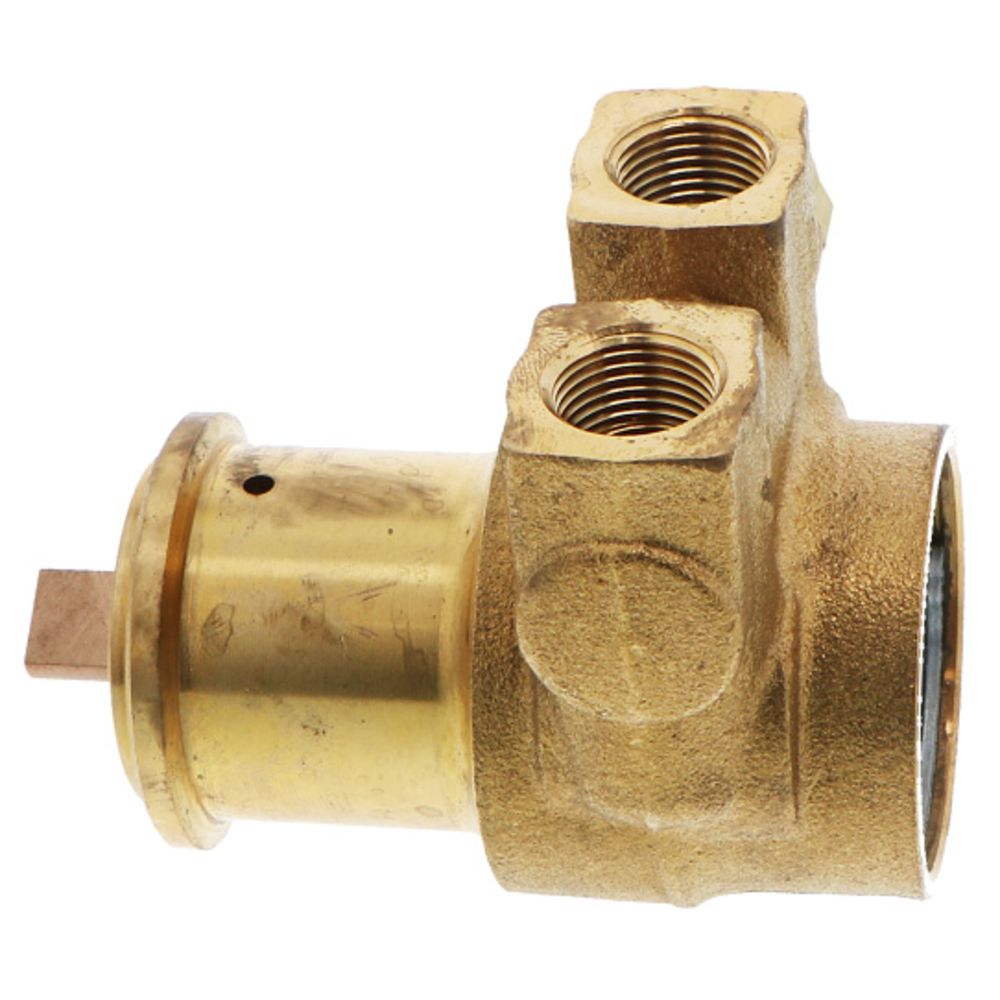

Procon Pump NSF Brass 125 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

The Procon Pump NSF Brass 125 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on) rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive and 1143 bronze coupling. The inlet and outlet ports are 3/8" NPT, with integral strainer, and the pump has a flow-rate of 125 gallons per hour. The seal configuration for the 112B140F11BA250 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve on this pump is set to 250 PSI. The 112B140F11BA250 pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

• Capacity: 125 GPH
• Nominal Speed: 1725 RPM
• Relief Valve: 250 PSI
• Rotation: Clockwise
• Weight: 2.5 lbs
• Port Size: 3/8" NPT Inlet and Outlet with integral strainer
