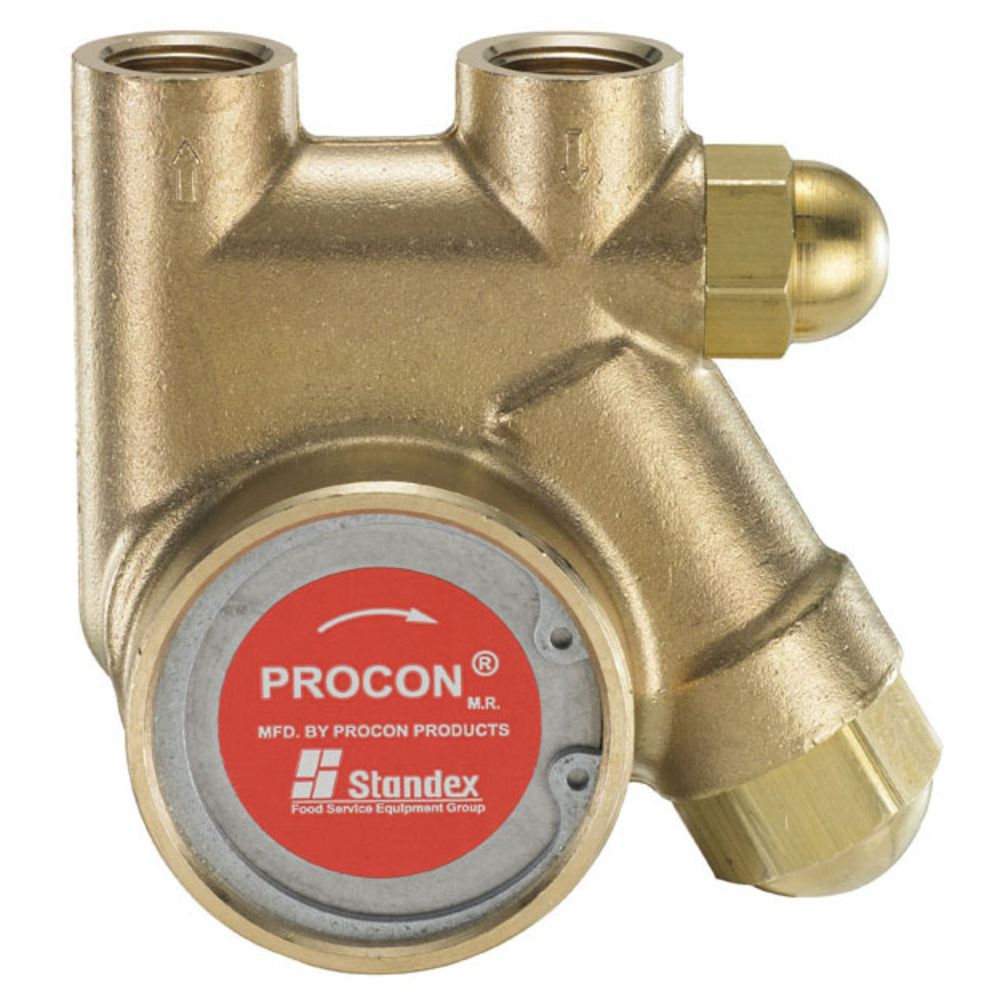

Procon Pump NSF Brass 110 GPH 3/8" NPT - 99 psi PRV w/ .188" Double Flat Drive

The Procon Pump NSF Brass 110 GPH 3/8" NPT - 99 psi PRV w/ .188" Double Flat Drive rotary vane pump is a positive displacement pump. This Series 1 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT, with an intergral strainer, and the pump has a flow-rate of 110 gallons per hour. The seal configuration for the 101A110R11BC099 uses Flourocarbon Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 1 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 99 PSI. The 101A110R11BC099 pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

• Capacity: 110 GPH

• Nominal Speed: 1725 RPM

• Relief Valve: 99 PSI

• Rotation: Clockwise

• Weight: 2.5 lbs

• Port Size: 3/8" NPT Inlet and Outlet with Integral Strainer

• Double Flat Drive: .188"
