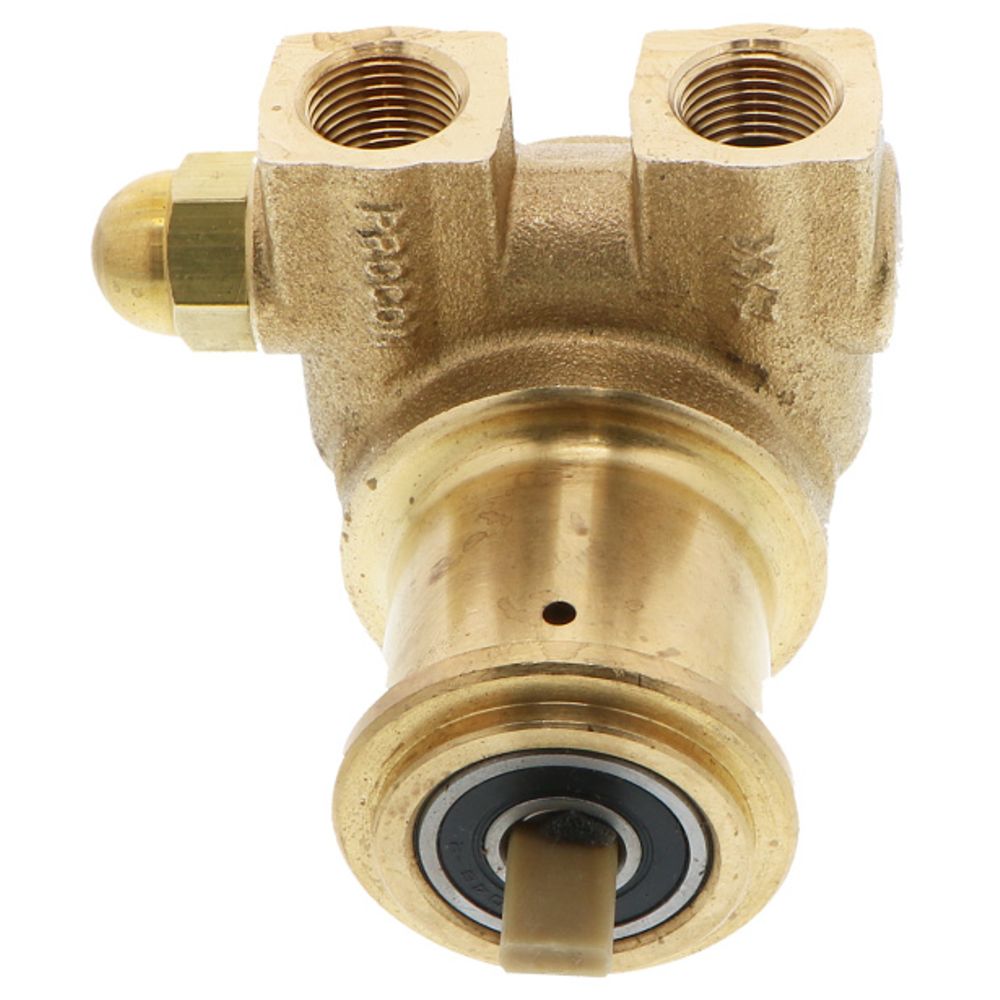

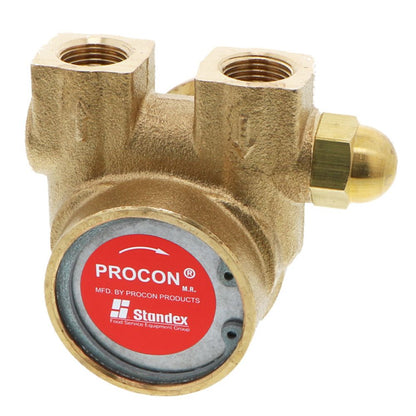

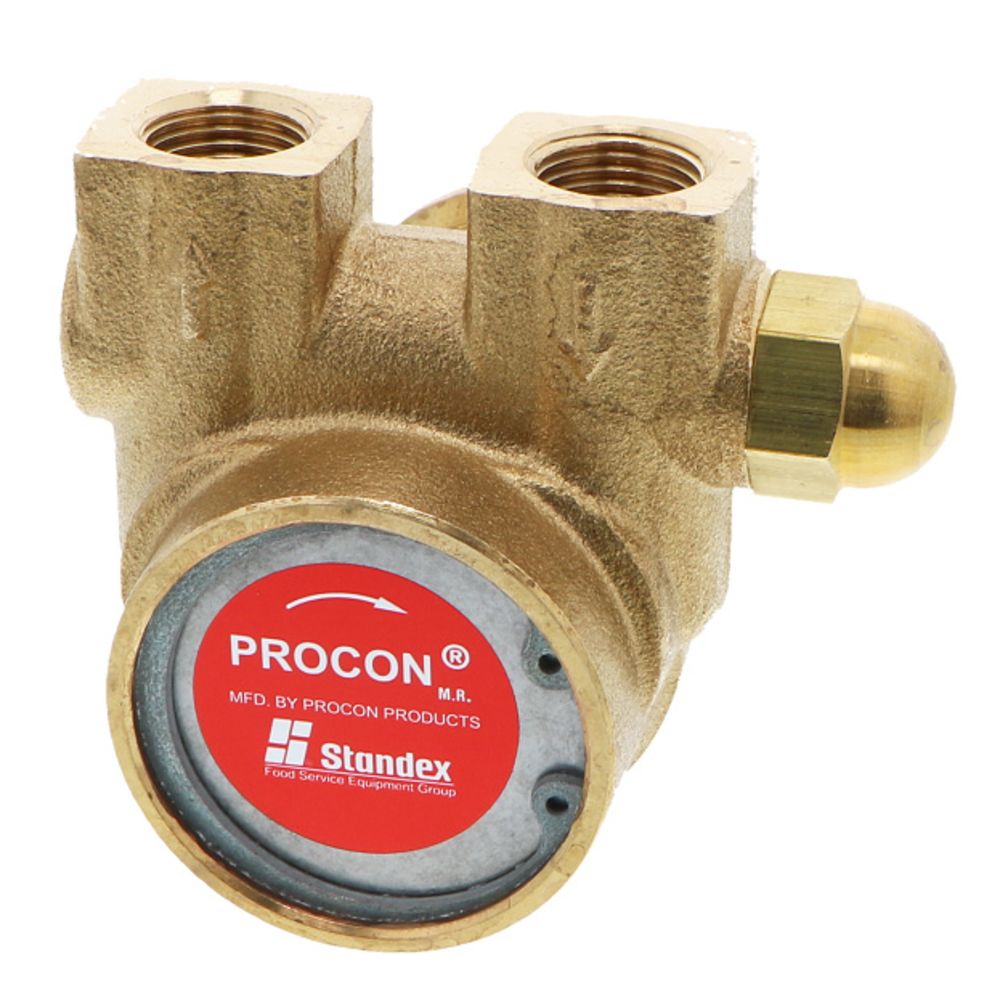

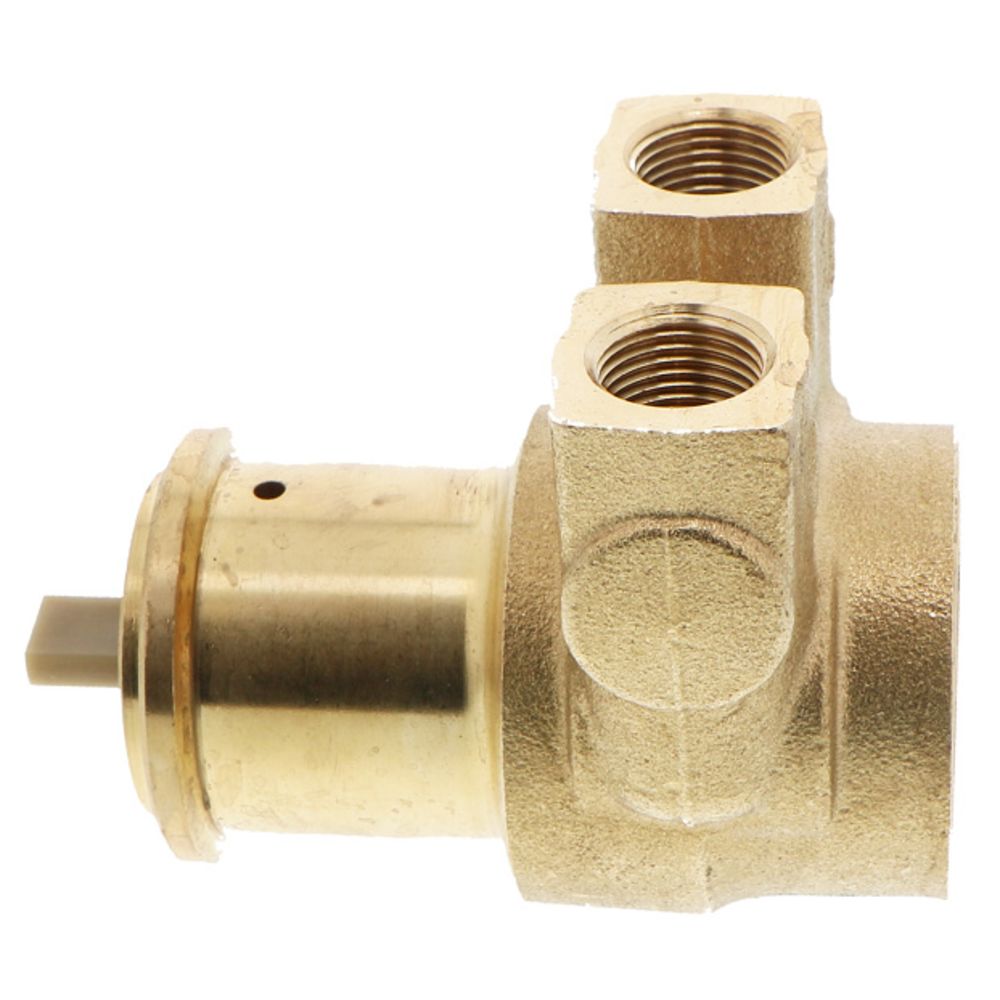

Procon Pump NSF Brass 100 GPH 3/8" NPT - 150 psi PRV w/ 1143-2 Plastic Coupling

The Procon Pump NSF Brass 100 GPH 3/8" NPT - 150 psi PRV w/ 1143-2 Plastic Coupling rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive and 1143-2 plastic coupling. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102C100F11BB150 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at  a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The default pressure relief valve setting for this pump is 150 PSI. The 102C100F11BB150 pump is designed to be directly connected to the motor with a stainless steel clamp.

Features:

• Capacity: 100 GPH

• Nominal Speed: 1725 RPM

• Relief Valve: 150 PSI

• Rotation: Clockwise

• Weight: 2.5 lbs

• Port Size: 3/8" NPT Inlet and Outlet

• Plastic Coupler
