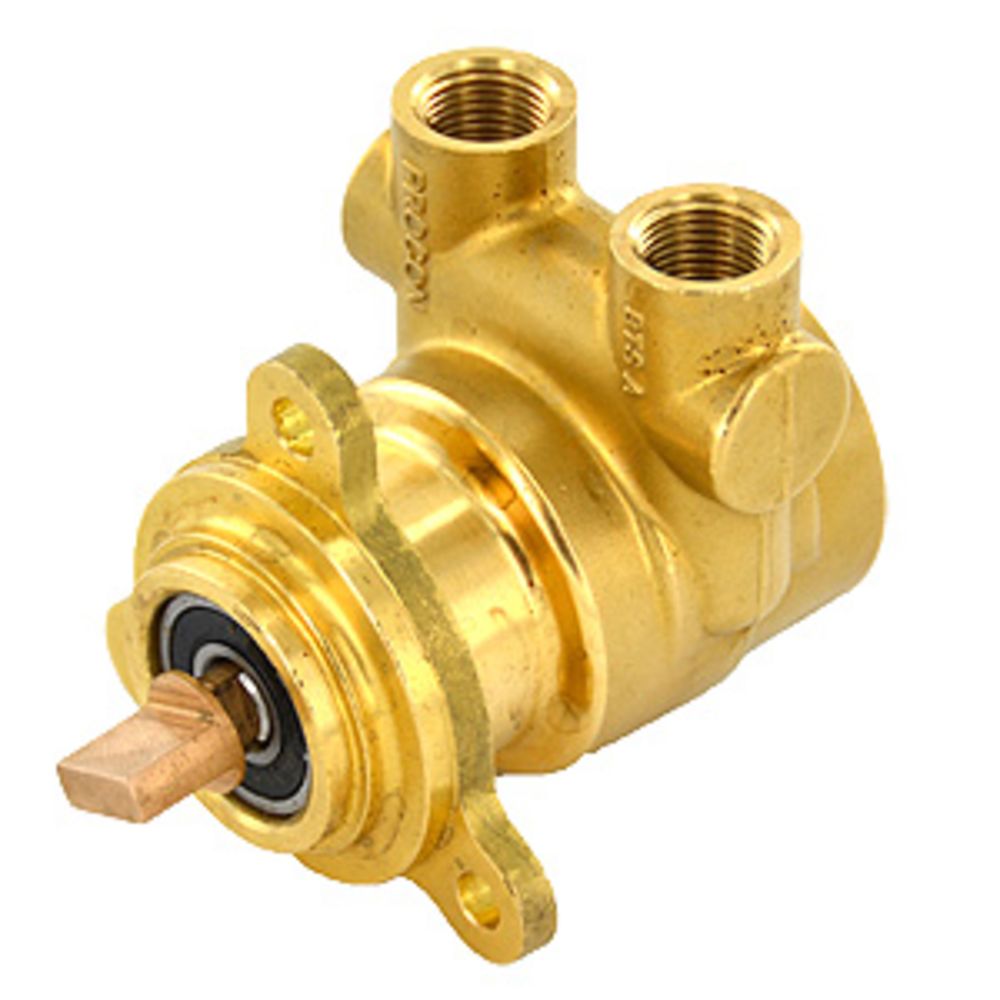

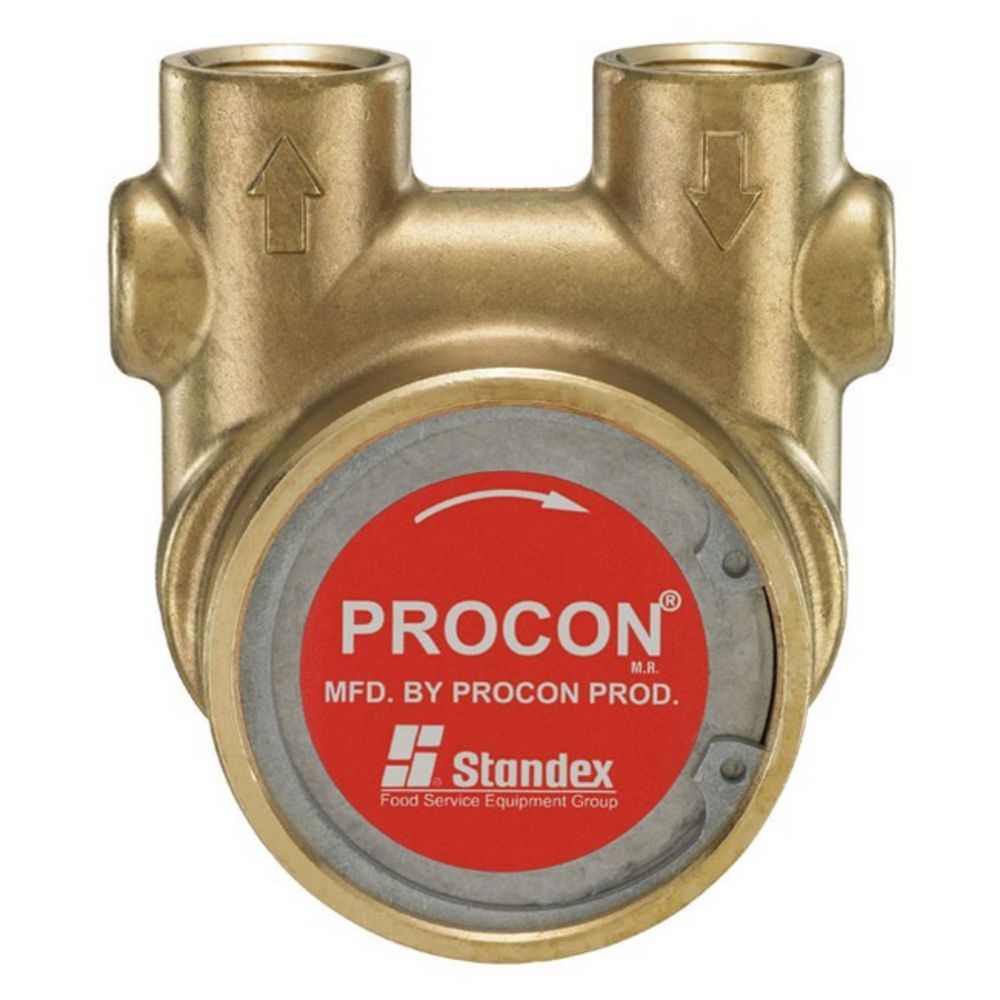

Procon Pump Brass w/ Oversize Coupling 215 GPH 1/2" NPT

Procon 104L215F11XX rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a single flat drive with an oversized coupler. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 215 gallons per hour. The seal configuration for the 104L00F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 104L215F11XX pump is designed to be bolted directly to the motor.

Specifications:

• Capacity: 215 GPH

• Nominal Speed: 1725 RPM

• Maximum Discharge Pressure: 250 PSI

• Rotation: Clockwise

• Weight: 2.5 lbs

• Port Size: 1/2" NPT Inlet and Outlet

• Oversized Coupler
