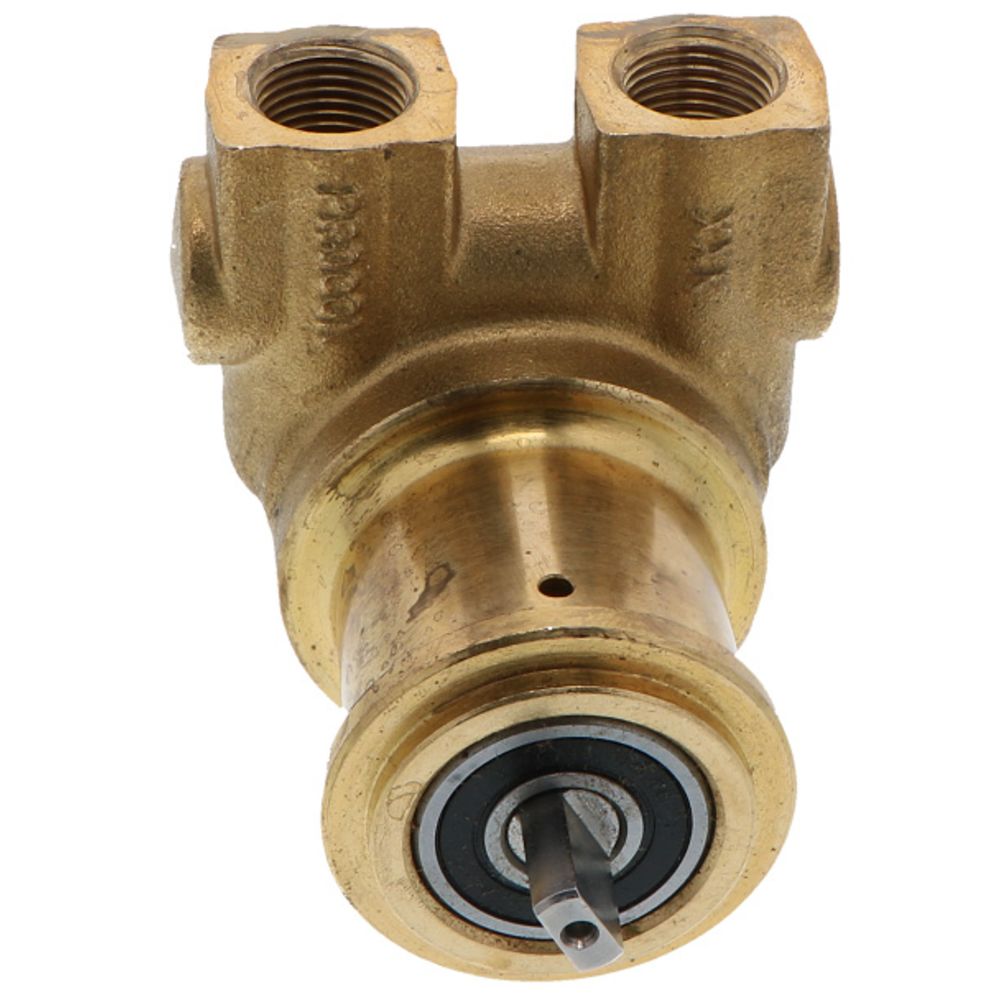

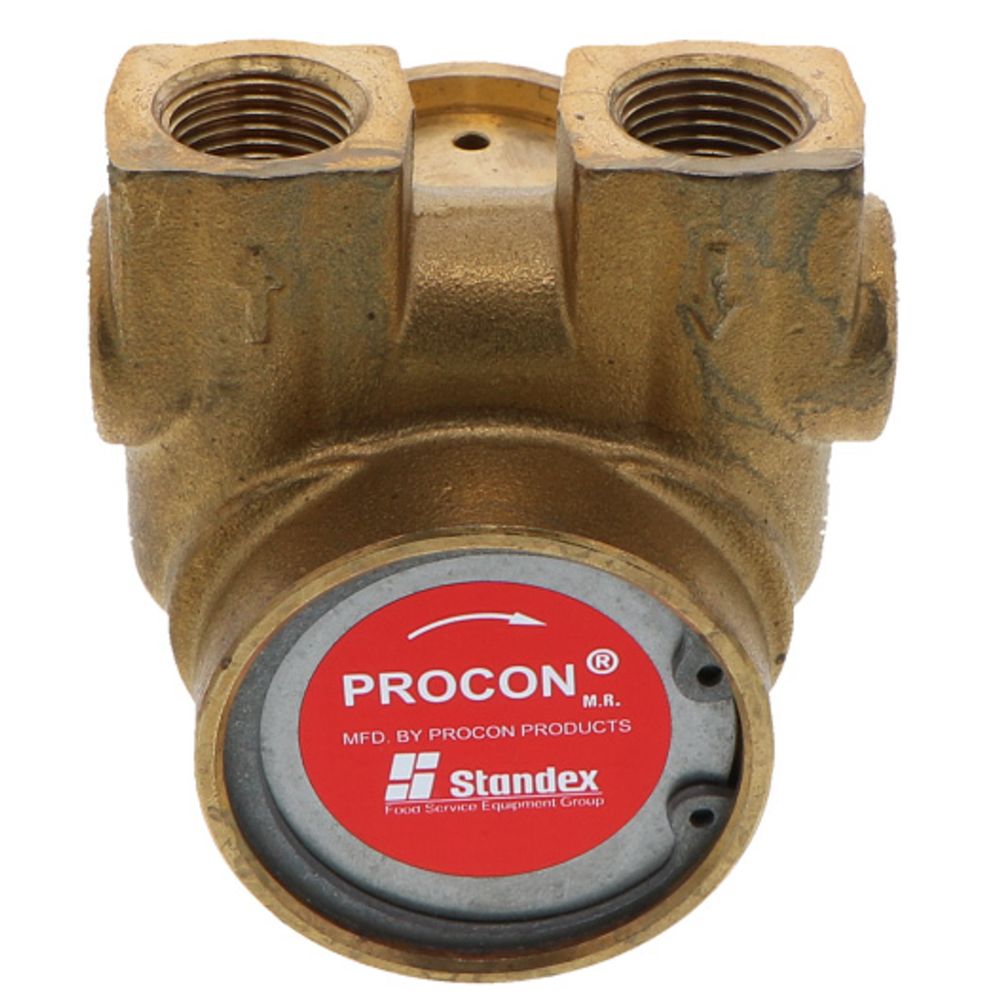

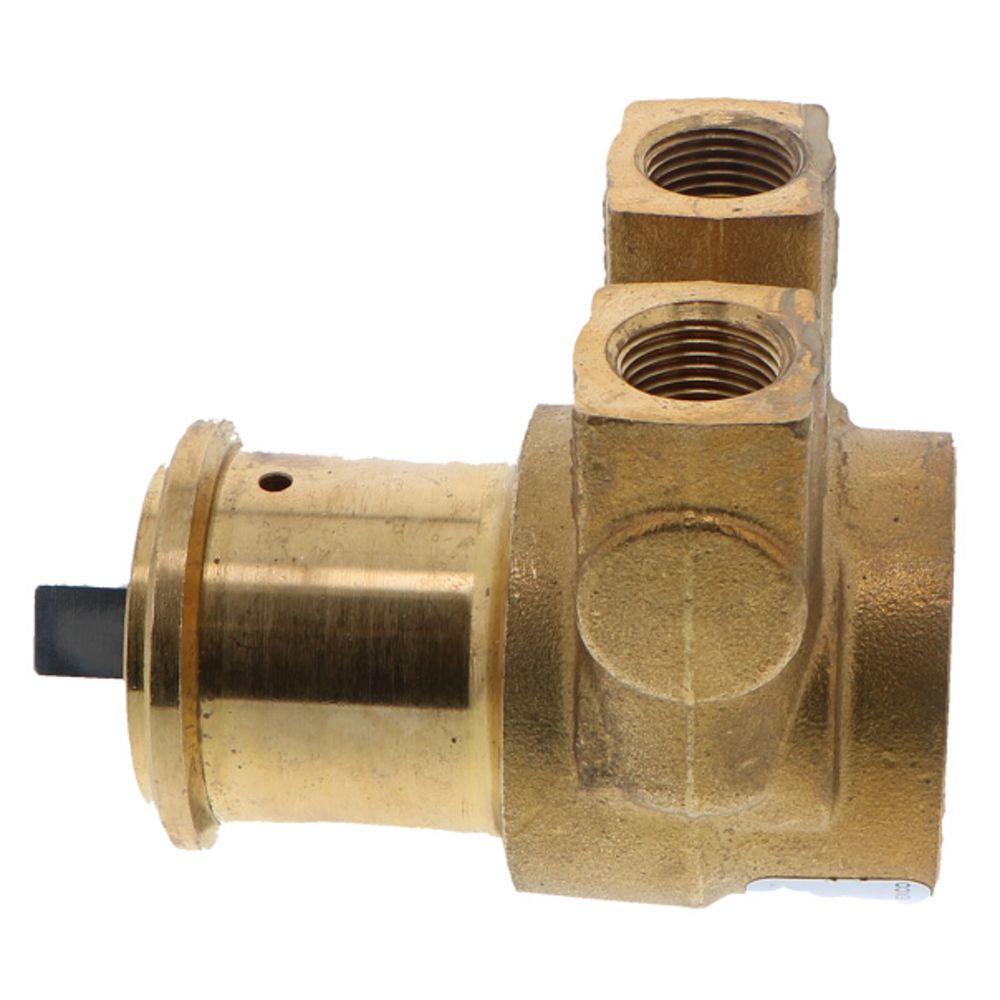

Procon Pump Brass w/ .188" Double Flat Drive 80 GPH 3/8" NPT

Procon 102A080R12XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass and has a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 80 gallons per hour. The seal configuration for the 102A080R12XX uses Flourocarbon Type 21 which will prevent leakage.

Features:
The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102A080R12XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:

• Capacity: 80 GPH
• Nominal Speed: 1725 RPM
• Maximum Discharge Pressure: 250 PSI
• Rotation: Clockwise
• Weight: 2.5 lbs
• Port Size: 3/8" NPT Inlet and Outlet
• Double Flat Drive: .188"
