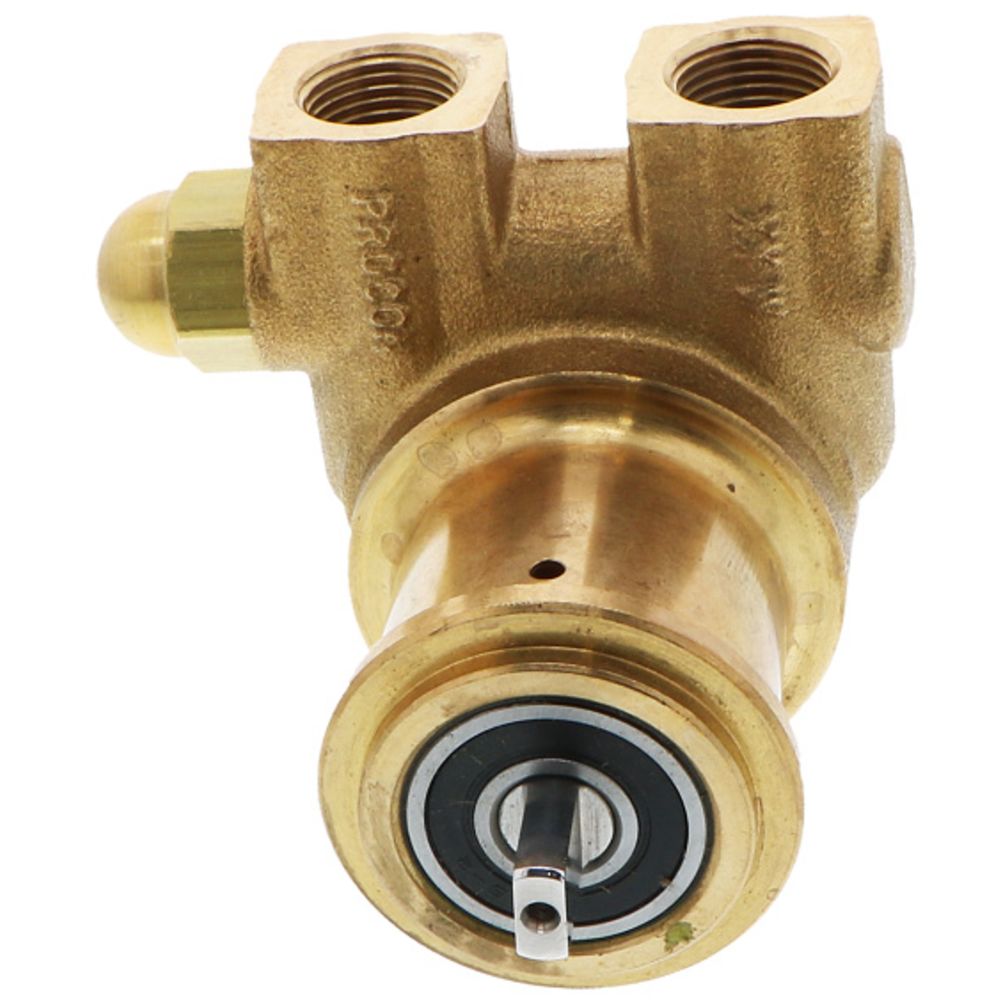

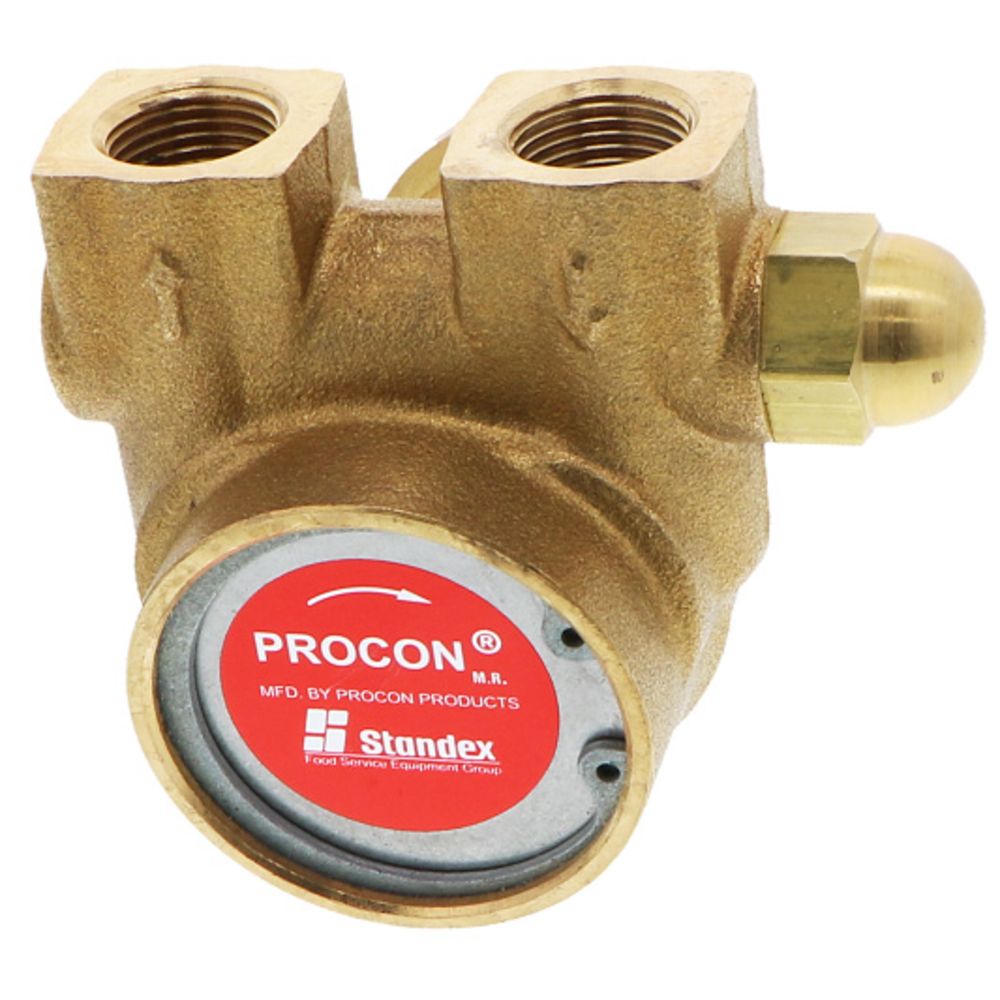

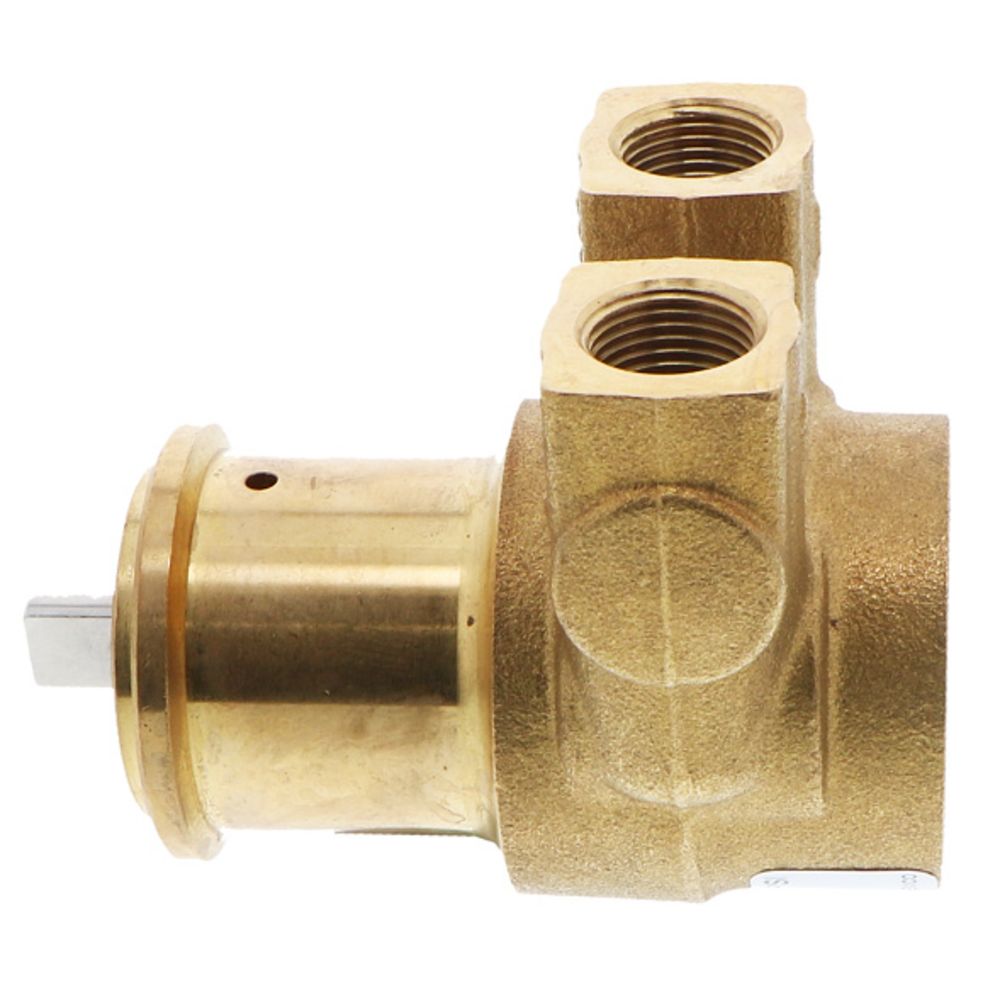

Procon Pump Brass w/ .188" Double Flat Drive 100 GPH 3/8" NPT Fluorocarbon Seal - 225 PSI Relief Valve

Procon 102A100R11BA225 rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102A100R11BA225 uses Flourocarbon Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 225 PSI. The 102A100R11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

• Capacity: 100 GPH

• Nominal Speed: 1725 RPM

• Relief Valve: 225 PSI

• Rotation: ClockwiseWeight: 2.5 lbs

• Port Size: 3/8" NPT Inlet and Outlet

• Double Flat Drive: .188"
