Parker LIQUIfit Male Elbow Valve - 1/4 QC x 1/4 MPT
Parker LIQUIfit Male Elbow Valve - 1/4 QC x 1/4 MPT
SKU:LFPP4VME4:10PK
Pricing is available for wholesale customers only, please login to see prices.
Interested in becoming a partner?
Click here for more info.
In stock

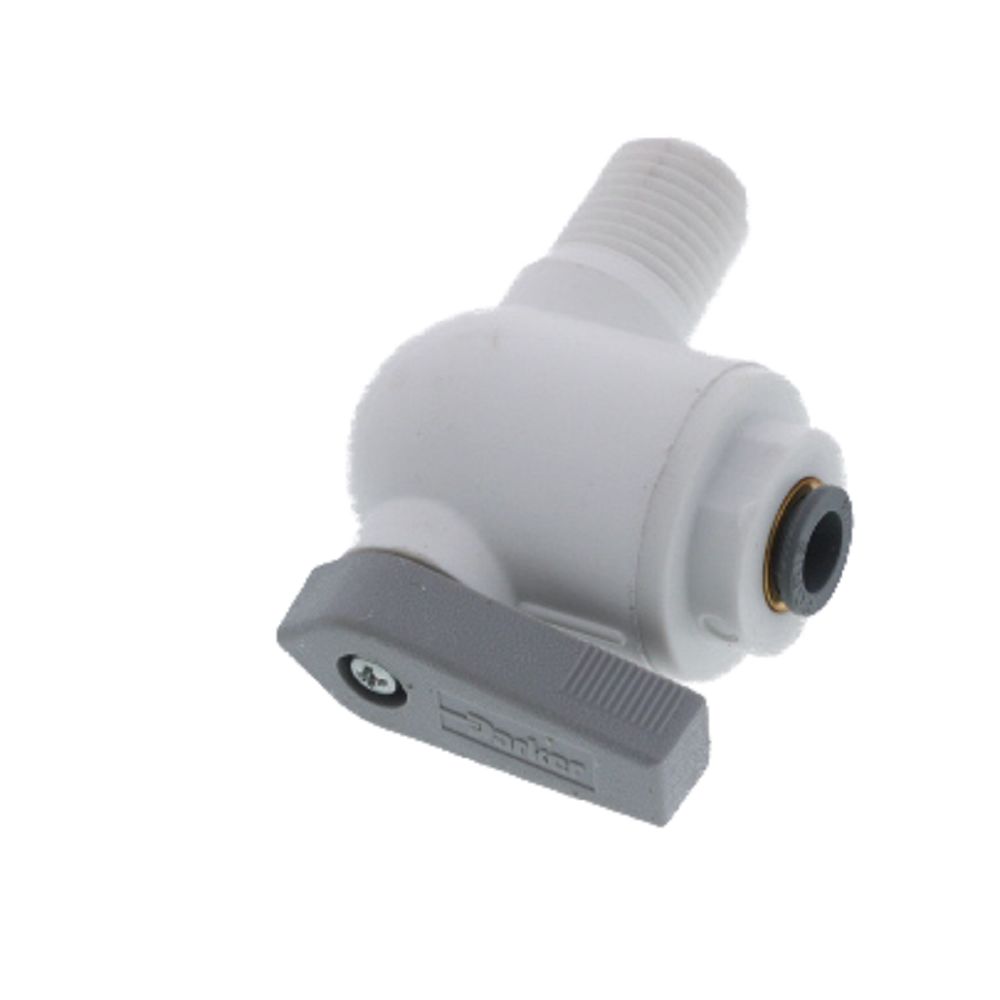

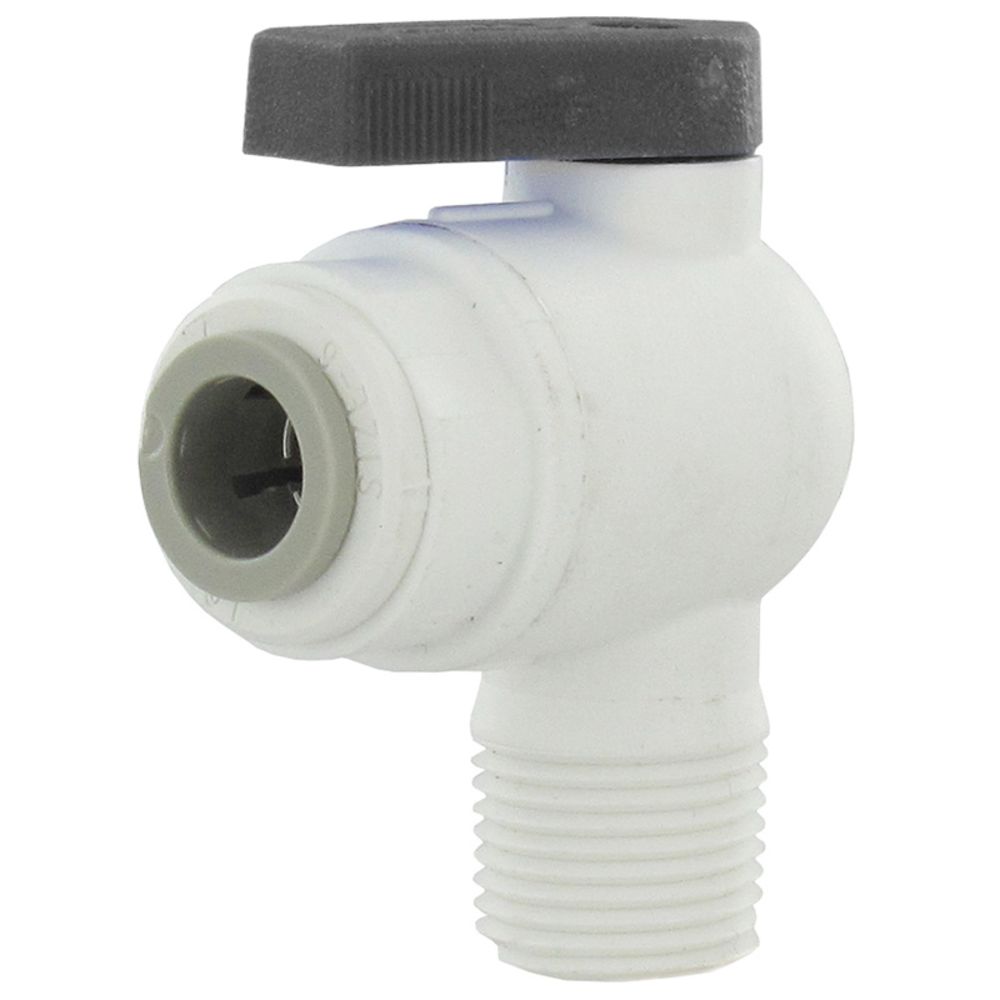

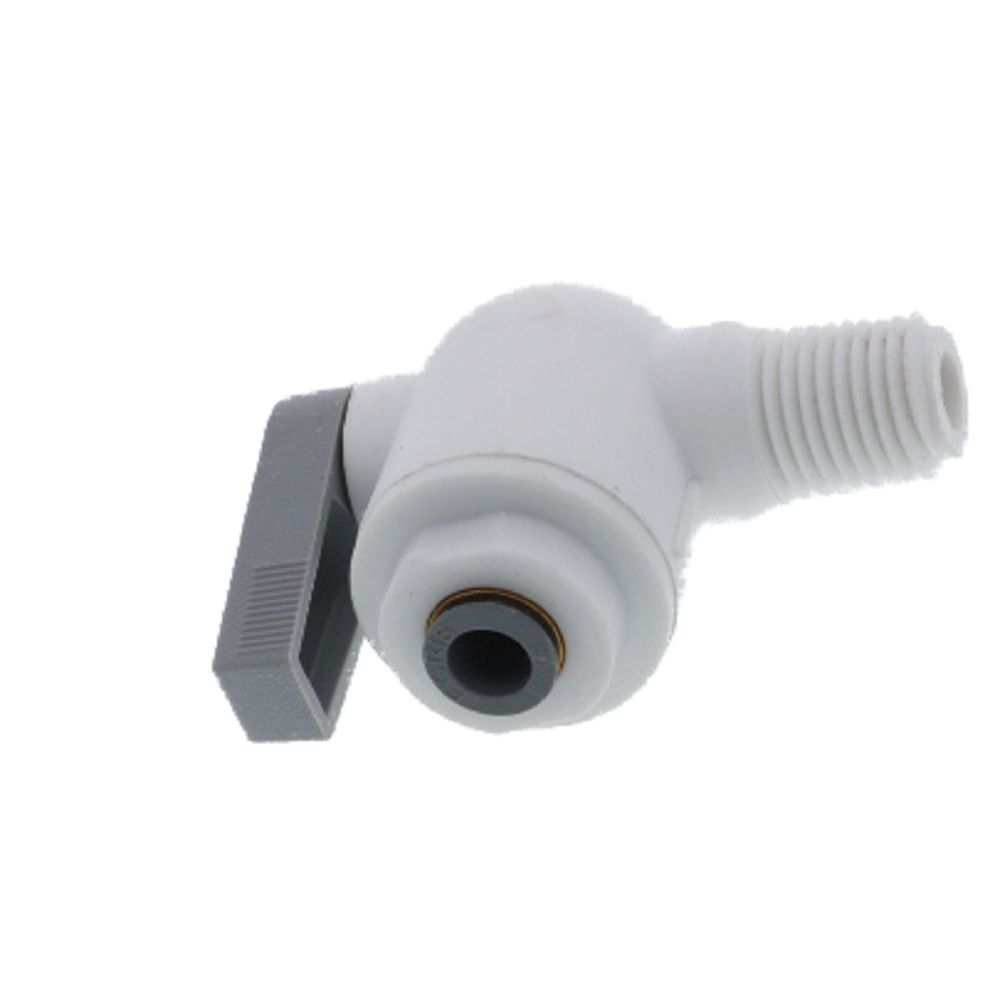

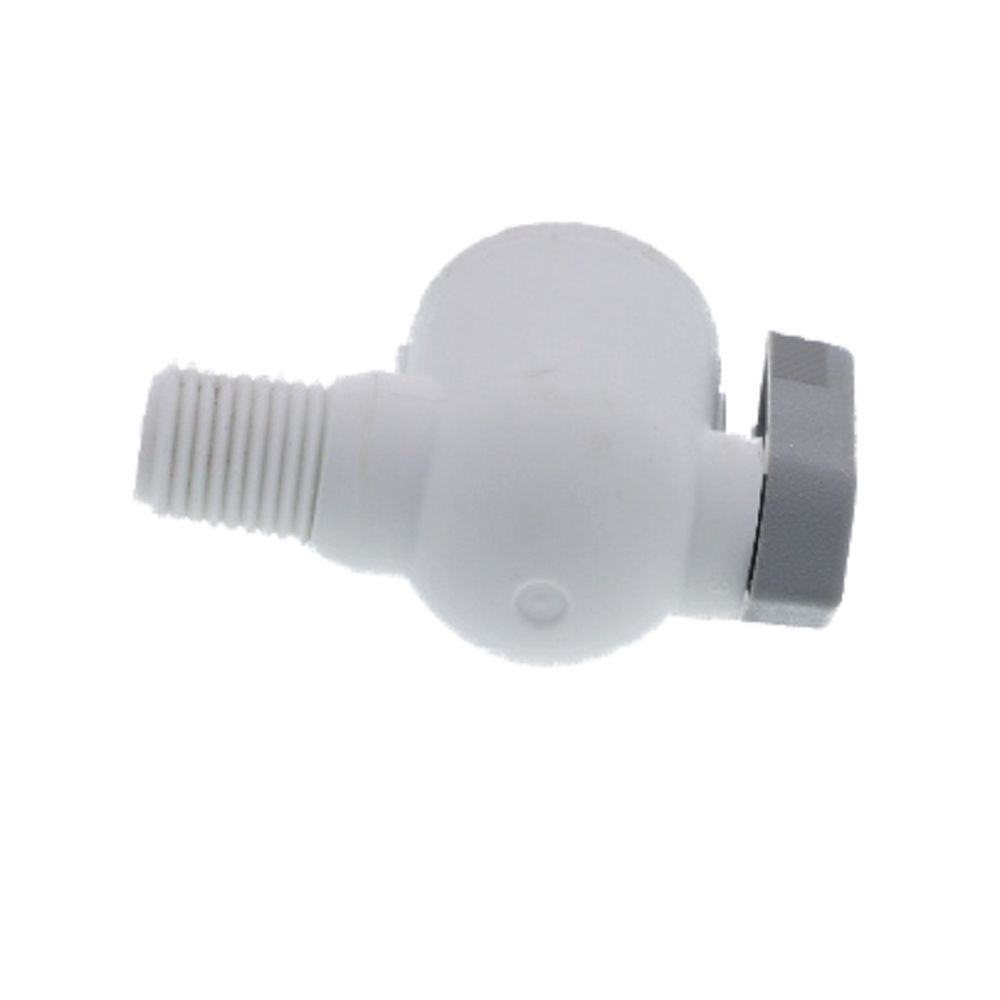

The Parker LFPP4VME4 LIQUIfit male elbow valve is designed with both quick connect and MPT connections, which eliminates the need for a secondary fitting. The Parker LIQUIfit technology provides reliability and superior performance over traditional valves. The LFPP4VME4 full flow valve reduces pressure drop across the valve while the bi-directional flow maximizes productivity.
Specifications:
Specifications:
- FDA & NSF-51 Listed
- WQA to NSF/ANSI Standard 61 and 372
- Ball Valve Construction: Nylon
- Seat Material: Nitrile
- Ball Material: Polysulfone
- Max Pressure: 150 psi
- Temp Range: 35° to 200° F
- Valve body rotates for easy tube routing
- Connections: 1/4 QC x 1/4 MPT
 | ||||||

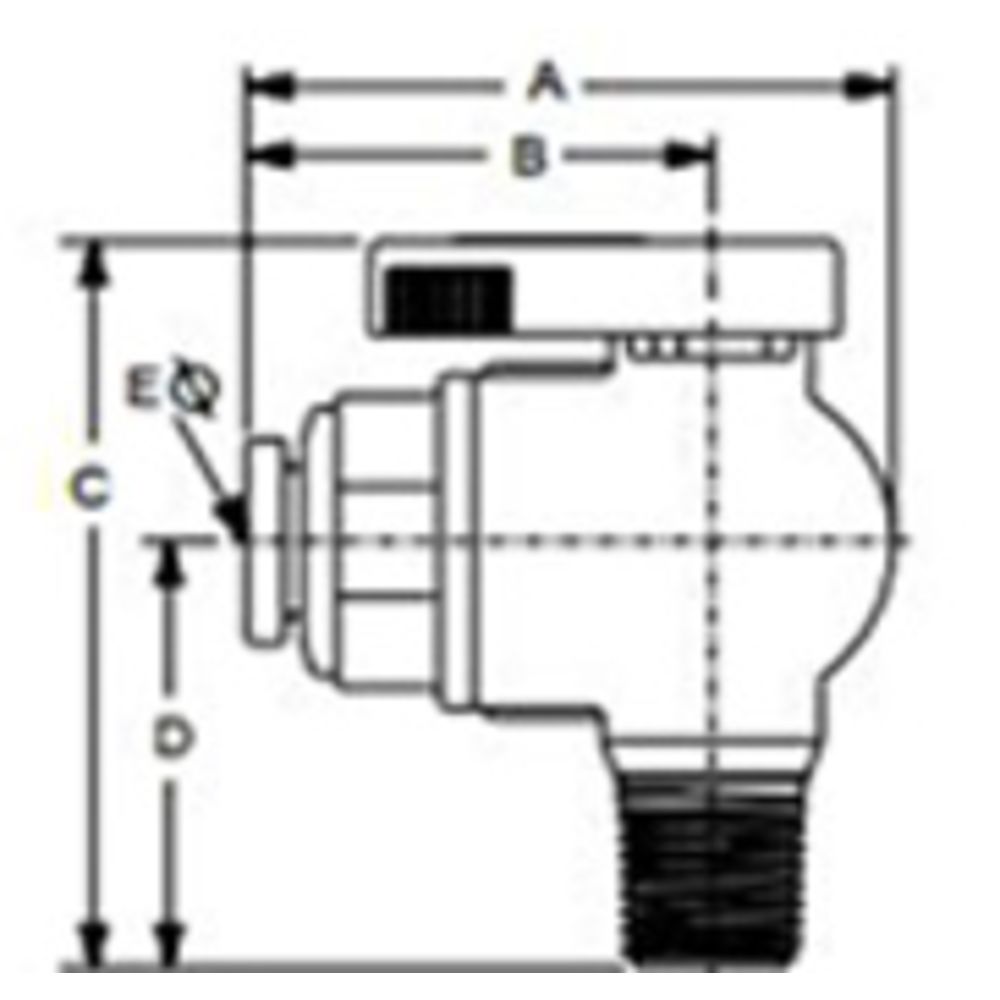

| Part Number | Tube Size | Tube Size | A | B | C | D |
| LFPP4VME4 | 1/4" QC | 1/4" MPT | 1.74" | 1.21" | 2.18" | 1.28" |
