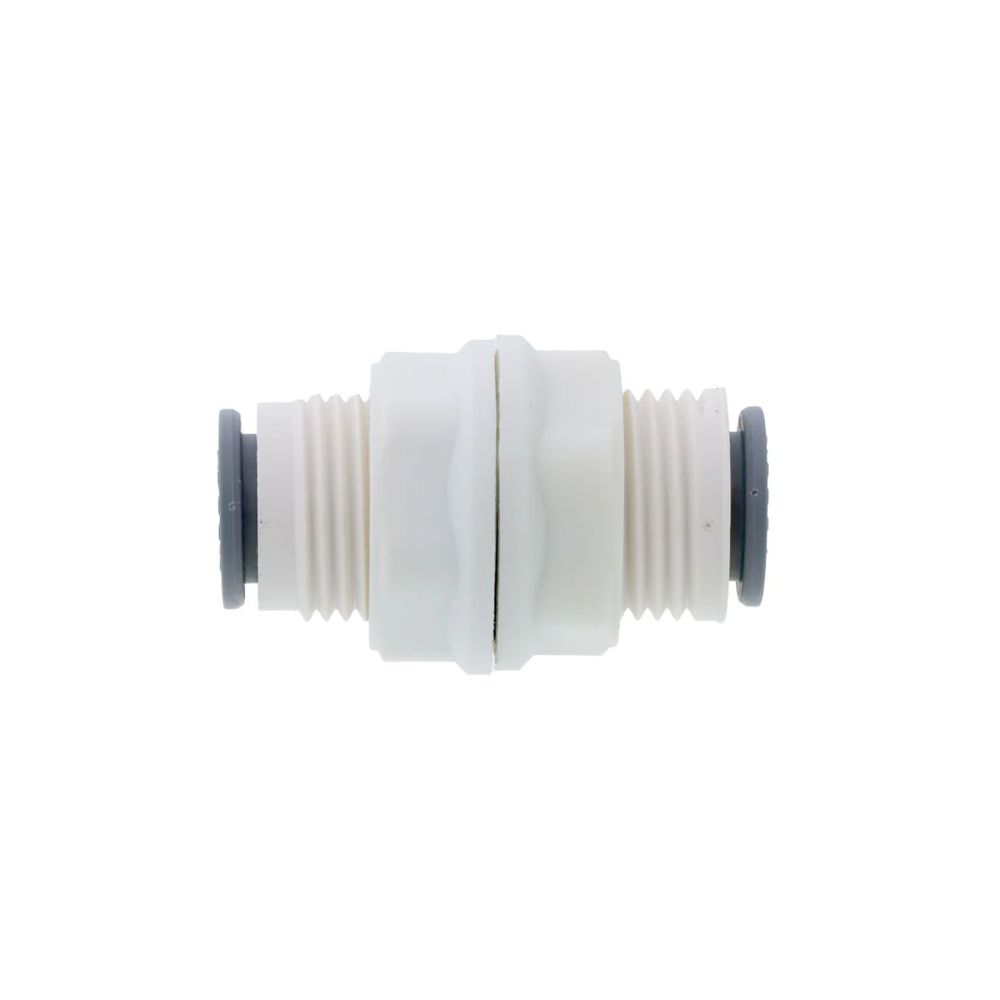

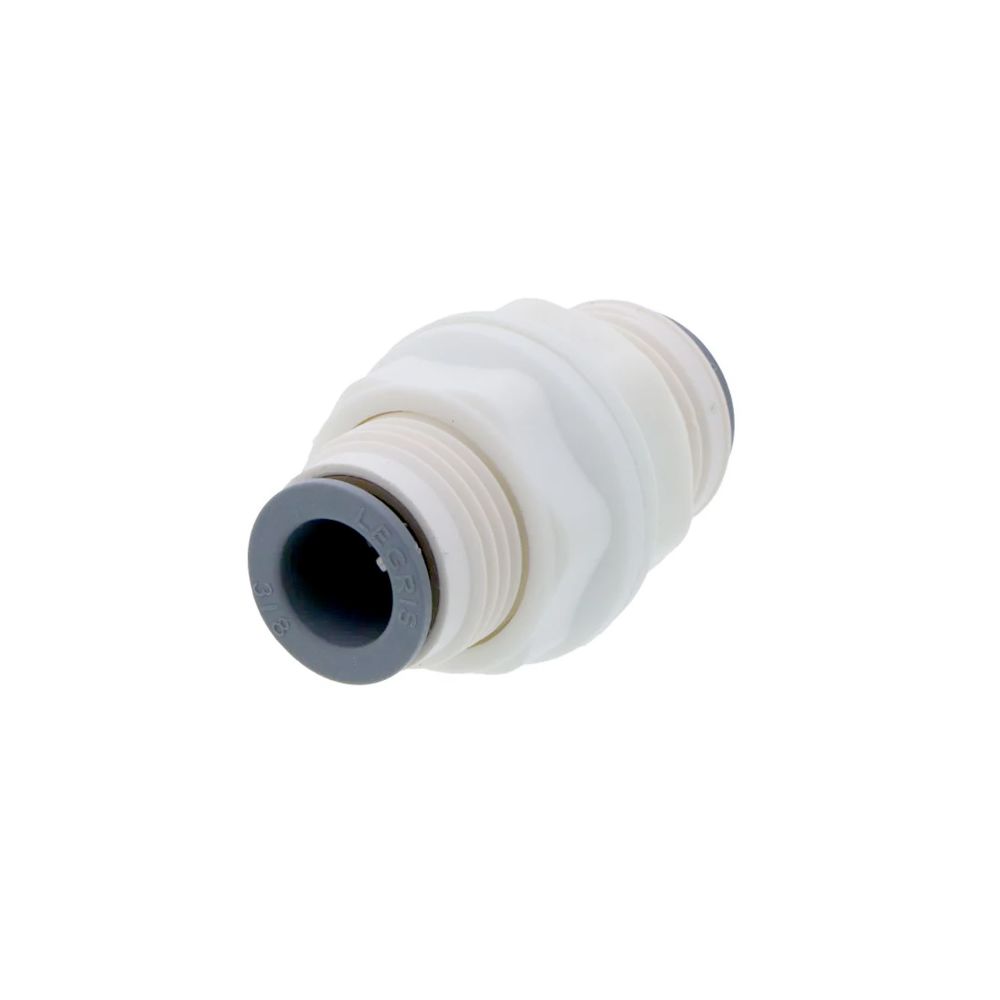

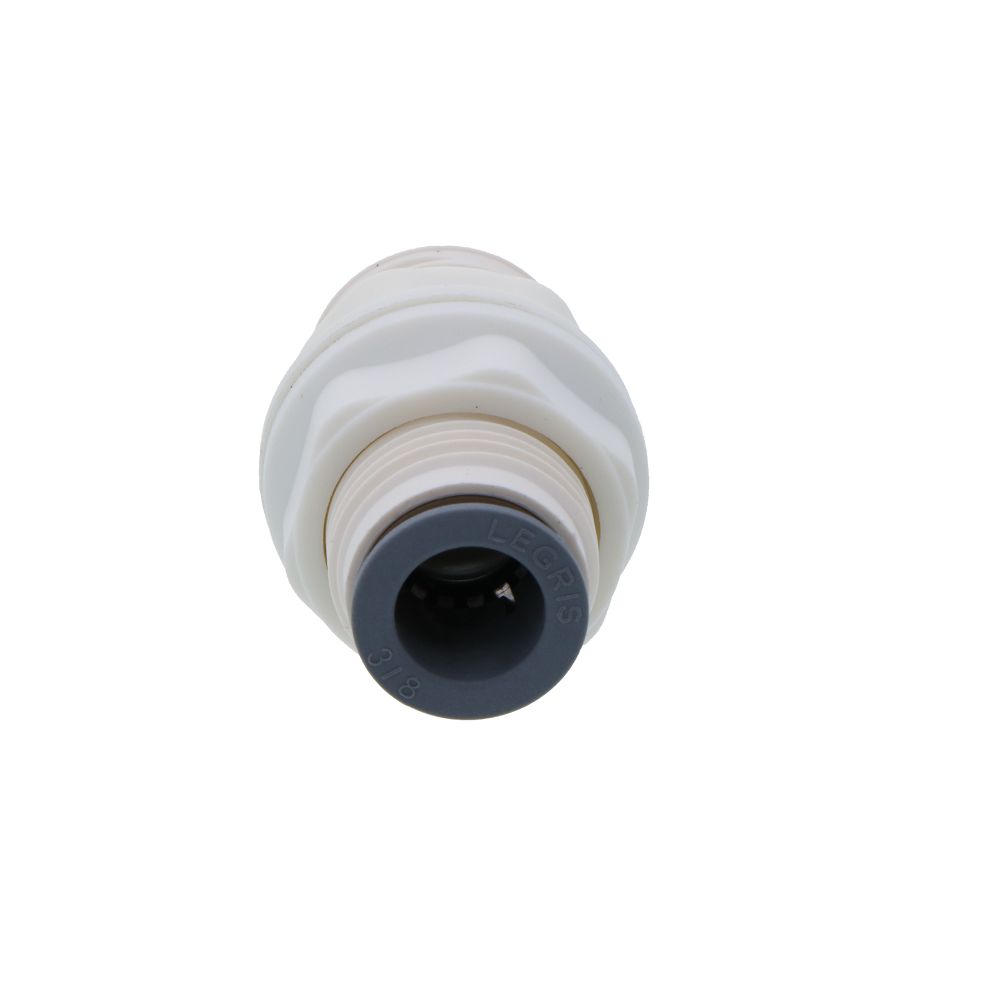

Parker LIQUIfit Bulkhead Union - 3/8 x 3/8

Parker LIQUIfit Bulkhead Union - 3/8 x 3/8

6316-60-00WP2:100PK

Log in to see price
Shipping calculated at checkout.

Low stock

Choose:
Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed..

Specifications:
  • Engineered Hi-Performance Nylon
  • High chemical resistance
  • EPDM O-ring
  • FDA Approved material
  • NSF Standard 51 & 61 Certified
  • Temperature rated up to 200º F
  • Suitable for potable liquids and food applications
  • Both ends unscrew
  • Gaskets (to create seal): YES


3/8" x 3/8" Bulkhead Unions
John Guest DM fit Parker LIQUIfit
PI1212S ABU0606 6316-60-00WP2

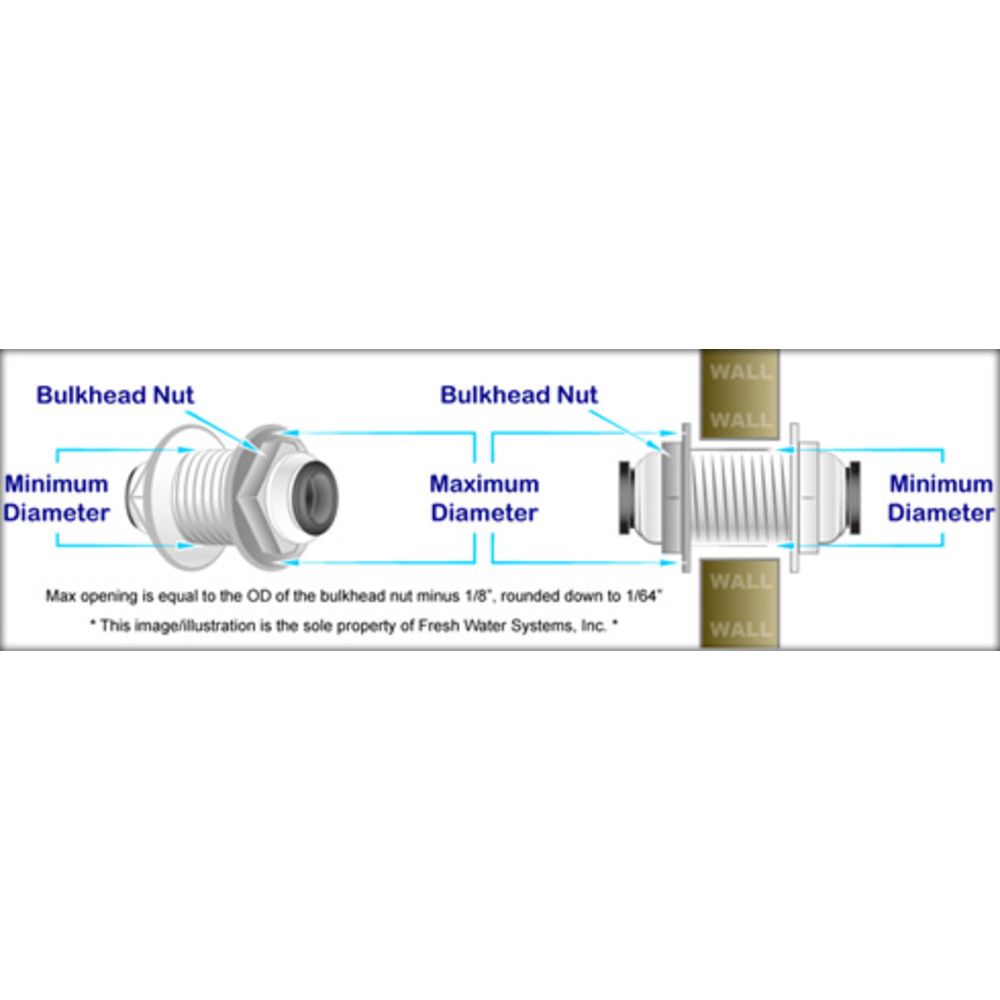

Min - Max
Hole Size 		Min - Max
Hole Size 		Min - Max
Hole Size
13/16" to 61/64" 51/64" to 15/16" 45/64" to 53/64"

Documents

Parker LIQUIfit Bulkhead Union - 3/8 x 3/8 Manual
