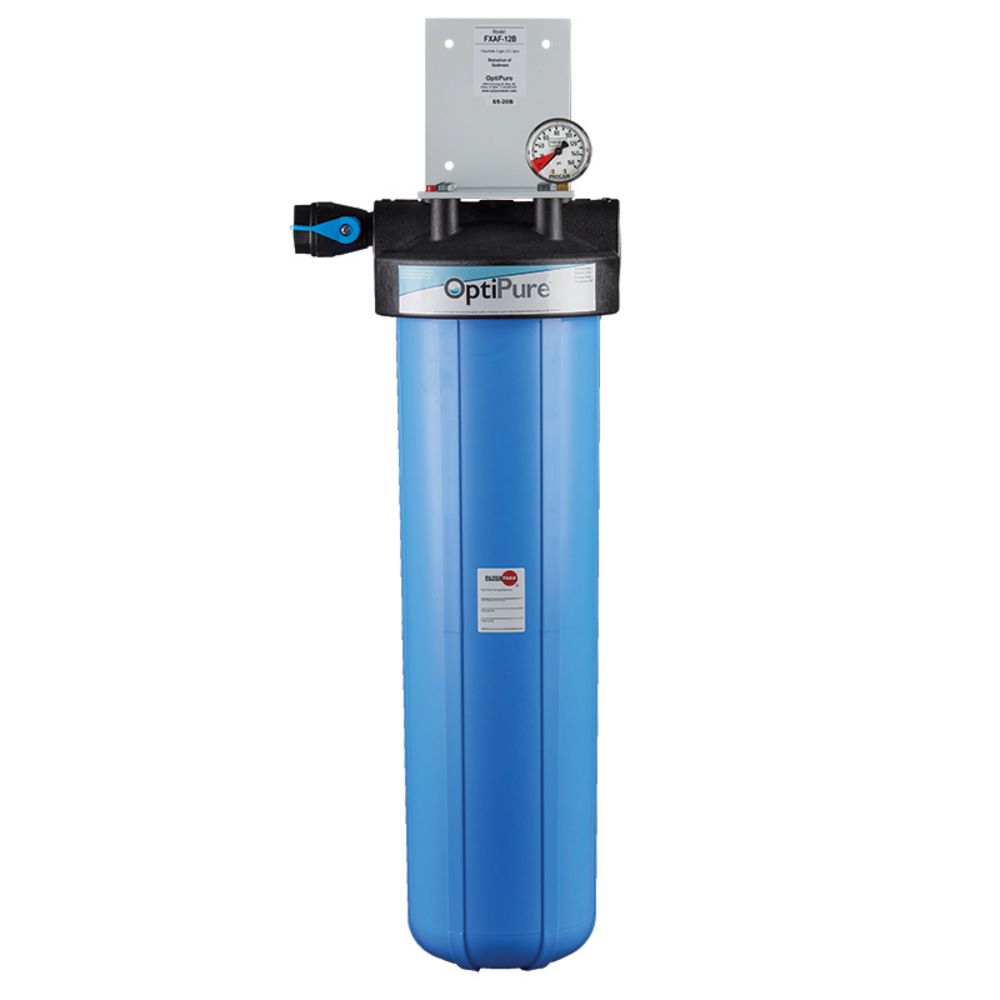

Optipure 160-50340 FXAF-12B Single 20" System

This Optipure 160-50340 FXAF-12B Single 20" System is a single-housing water treatment system with a drop-in 4.5” x 20” high-capacity, dual-density sediment cartridge that takes out dirt, rust and other particulates down to 5-microns. The system can be used as a point-of-use sediment reduction filter; or it can be applied prior to a primary filtration system to provide additional pre-filtration to protect against premature plugging due to excessive dirt and sediment levels found in some water supplies. System includes a pressure gauge, inlet ball valve and mounting bracket.

Features:

• Gradient-density sediment filtration protects against dirt, rust and other debris down to 5-microns.
• Protects down-line filtration systems against premature plugging, reducing filter change frequency and associated cost.
• Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
• Built-in pressure gauge allows visual monitoring of when filters need to be changed.
• Inlet shut-off and depressurization valves make filter replacement quick and simple.
• Minimizes waste by only replacing drop-in cartridge and reusing filter sump.


Specifications:

• Connection: Inlet & Outlet 3/4” FNPT
• Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
• Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
• Service Flow Rate: 8.0 gpm (30.3 lpm)
• Sediment Reduction: 0.5 microns (nominal)

Installation Tips:

• Feed-water connection to system should be COLD only.
• Do not exceed system specifications for temperature and pressure.
• Allow 3” clearance below system for filter housing removal and cartridge replacement.
• Detailed installation, operation and maintenance manual included with each system.
• No activation procedure or flushing required for system to perform as specified.
