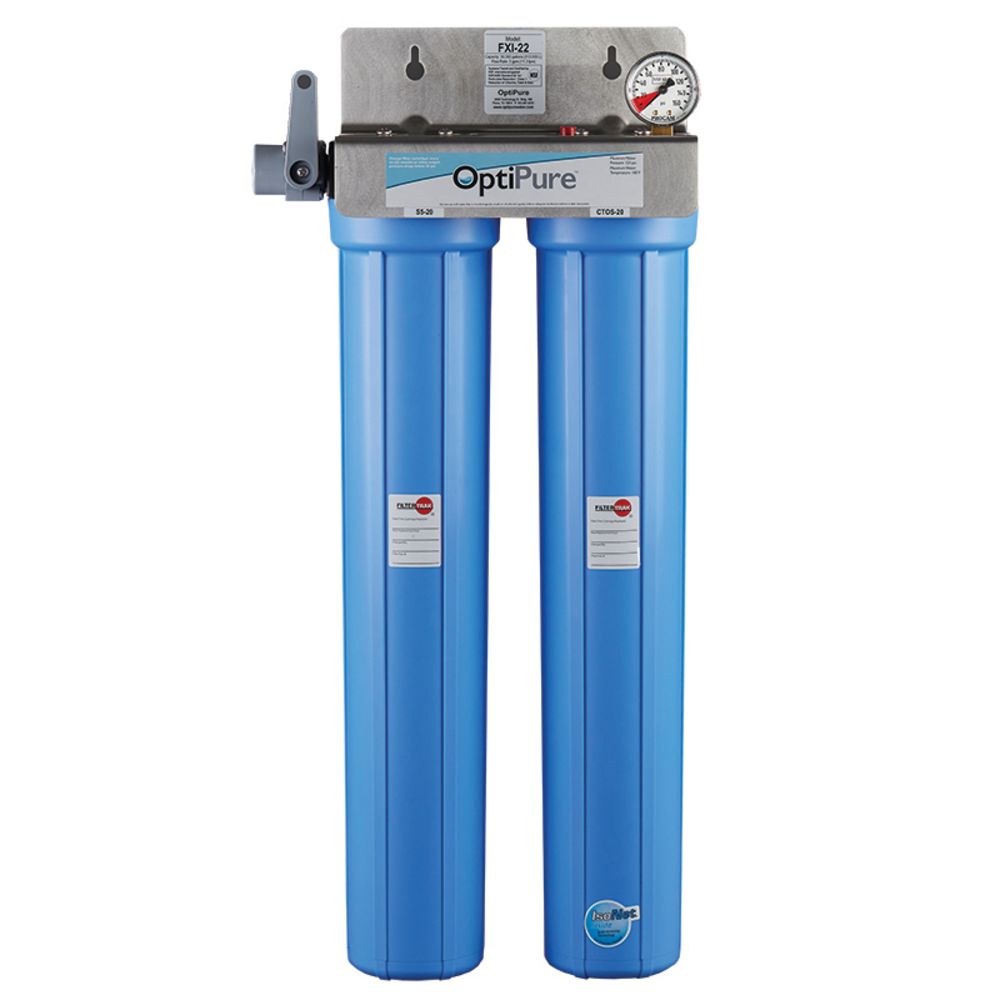

Optipure 160-50115 FXI-22 Dual 20" System

Optipure 160-50115 FXI-22 Dual 20" System

160-50115

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

Out of stock

This Optipure 160-50115 FXI-22 Dual 20" System is a dual-housing water treatment system with drop-in 20” cartridges that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 3.0 gpm for 30,000-gallons. The system includes IsoNet®, OptiPure’s patented scale inhibiting technology, which delivers consistent protection against the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.

 Features:
  • IsoNet®, OptiPure’s patented scale-inhibiting technology, helps protect equipment against scale and corrosion for the rated capacity of the system.
  • Reduces maintenance frequency and cost, and extends equipment life.
  • Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
  • Additional 5-micron pre-filter provides further protection on water supplies with excessive sediment.
  • High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
  • Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
  • Built-in pressure gauge allows visual monitoring of when filters need to be changed.
  • Inlet shut-off and depressurization valves make filter replacement quick and simple.
  • Minimizes waste by only replacing drop-in cartridges and reusing filter sumps.
  • NSF Certified under Standard 42.

Specifications:
  • Connection: Inlet & Outlet 1/2” FNPT
  • Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
  • Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
  • Service Flow Rate: 3.0 gpm (11.4 lpm)
  • Sediment Reduction: 0.5 microns (nominal)

Installation Tips:
  • Feed-water connection to system should be COLD only.
  • Do not exceed system specifications for temperature and pressure.
  • Allow 3” clearance below system for filter housing removal and cartridge replacement.
  • Connect filtered water line to ice and steam production connections only. Do not use for condenser water.
  • Detailed installation, operation and maintenance manual included with each system.
  • No activation procedure or flushing required for system to perform as specified


Documents

Optipure 160-50115 FXI-22 Dual 20
