Optipure 160-50110 FXI-12 Single 20" System
Optipure 160-50110 FXI-12 Single 20" System
Optipure 160-50110 FXI-12 Single 20" System
SKU:160-50110
Pricing is available for wholesale customers only, please login to see prices.
Interested in becoming a partner?
Click here for more info.
Out of stock

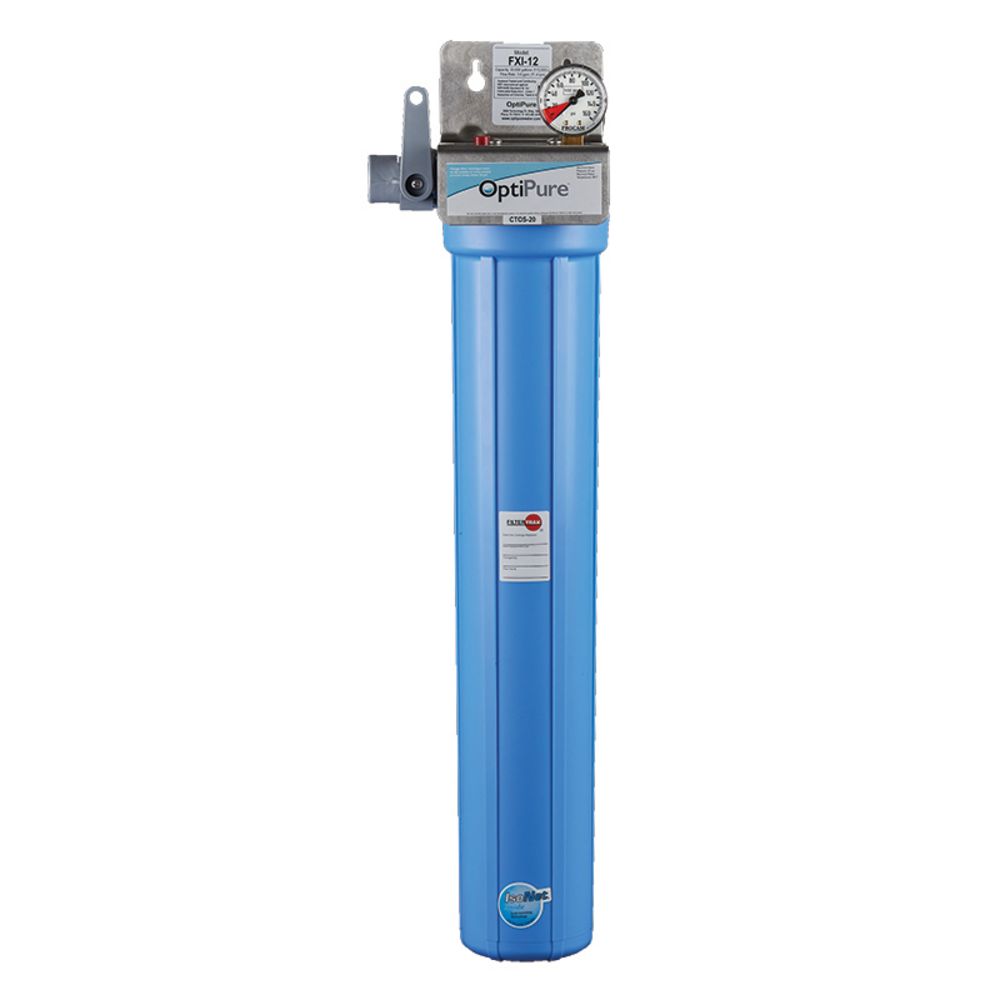

This Optipure 160-50110 FXI-12 Single 20" System is a single-housing water treatment system with a drop-in 20” cartridge that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 3.0 gpm for 30,000-gallons. The system includes IsoNet®, OptiPure’s patented scale inhibiting technology, which delivers consistent protection against the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.
Features:
Specifications:
Installation Tips:
Features:
- IsoNet®, OptiPure’s patented scale-inhibiting technology, helps protect equipment against scale and corrosion for the rated capacity of the system.
- Reduces maintenance frequency and cost, and extends equipment life.
- Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
- High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
- Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
- Built-in pressure gauge allows visual monitoring of when filters need to be changed.
- Inlet shut-off and depressurization valves make filter replacement quick and simple.
- Minimizes waste by only replacing drop-in cartridge and reusing filter sump.
- NSF Certified under Standard 42
Specifications:
- Connection: Inlet & Outlet 1/2” FNPT
- Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
- Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
- Service Flow Rate: 3.0 gpm (11.4 lpm)
- Sediment Reduction: 0.5 microns (nominal)
Installation Tips:
- Feed-water connection to system should be COLD only.
- Do not exceed system specifications for temperature and pressure.
- Allow 3” clearance below system for filter housing removal and cartridge replacement.
- Connect filtered water line to ice and steam production connections only. Do not use for condenser water.
- Detailed installation, operation and maintenance manual included with each system.
- No activation procedure or flushing required for system to perform as specified.
