Optipure 160-50012 FX11+CR Twin System

Optipure 160-50012 FX11+CR Twin System

160-50012

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

Out of stock

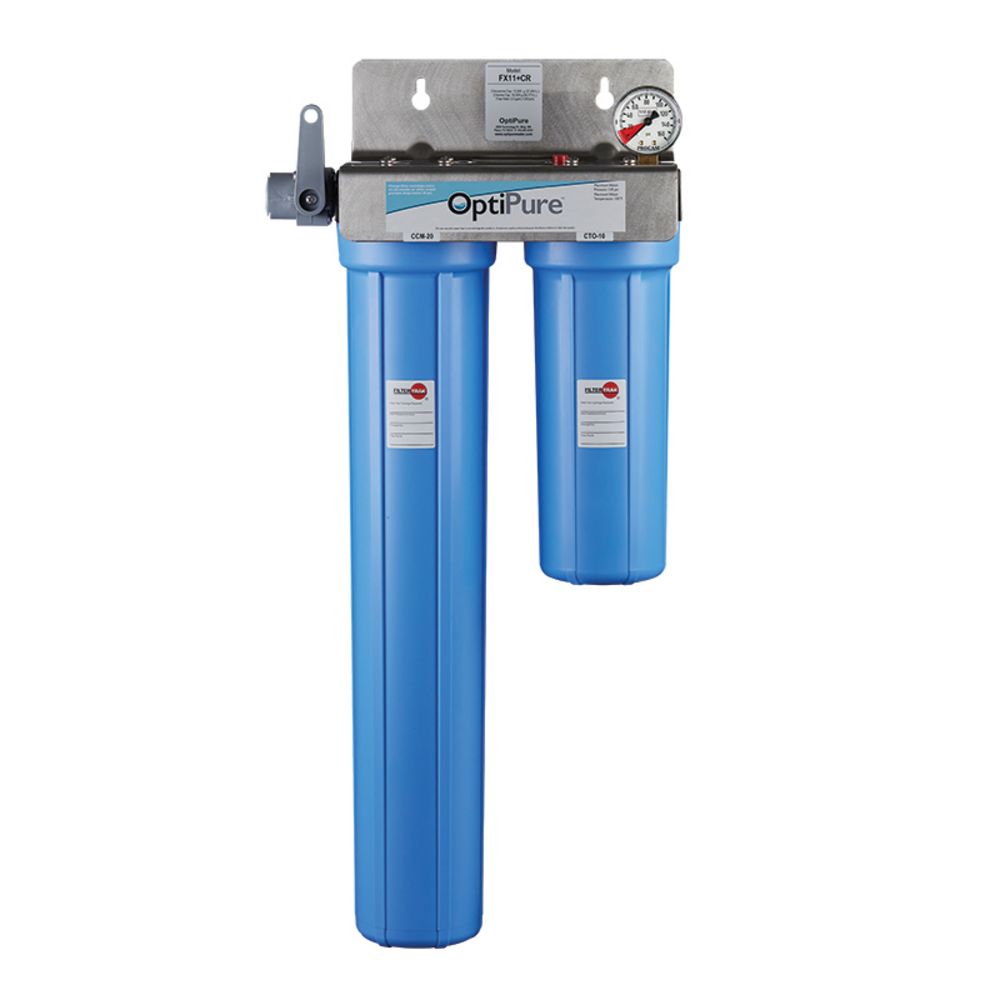

This Optipure 160-50012 FX11+CR Twin System is a dual-housing water treatment system with drop-in cartridges that reduces sediment down to 0.5-microns and reduces chlorine up to 20,000-gallons at 3 gpm and chloramine at a flow rate of 0.5 gpm for 10,000-gallons.

Features:
  • Reduces maintenance frequency and cost, and extends equipment life.
  • Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
  • Catalytic-carbon filtration provides added protection against chloramines that may be present in water supplies.
  • High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
  • Improves equipment operating efficiency.
  • Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
  • Built-in pressure gauge allows visual monitoring of when filters need to be changed.
  • Inlet shut-off and depressurization valves make filter replacement quick and simple.
  • Minimizes waste by only replacing drop-in cartridges and reusing filter sumps.


Specifications:
  • Connection: Inlet & Outlet 1/2” NFPT
  • Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
  • Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
  • Service Flow Rate: 3.0 gpm (11.4 lpm)
  • Sediment Reduction: 0.5 microns (nominal)
  • Chlorine Reduction Capacity at 3.0 gpm (11.4 lpm): 20,000 gals. (75,708 L)
  • Chloramine Reduction Capacity at 0.5 gpm (1.9 lpm): 10,000 gals. (37,800 L)


Installation Tips:
  • Feed-water connection to system should be COLD only.
  • Do not exceed system specifications for temperature and pressure.
  • Allow 3” clearance below system for filter housing removal and cartridge replacement.
  • Connect filtered water line to ice and steam production connections only. Do not use for condenser water.
  • Detailed installation, operation and maintenance manual included with each system.
  • No activation procedure or flushing


Documents

Optipure 160-50012 FX11+CR Twin System Manual
