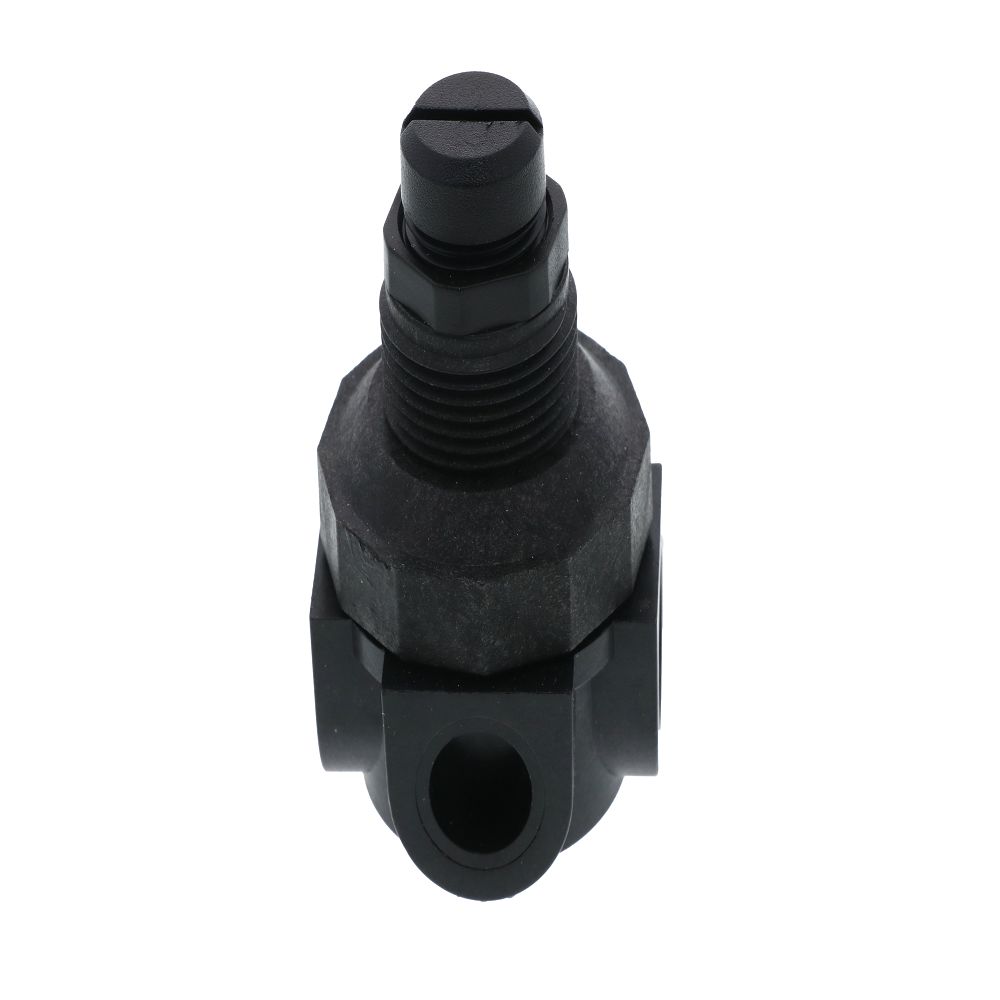

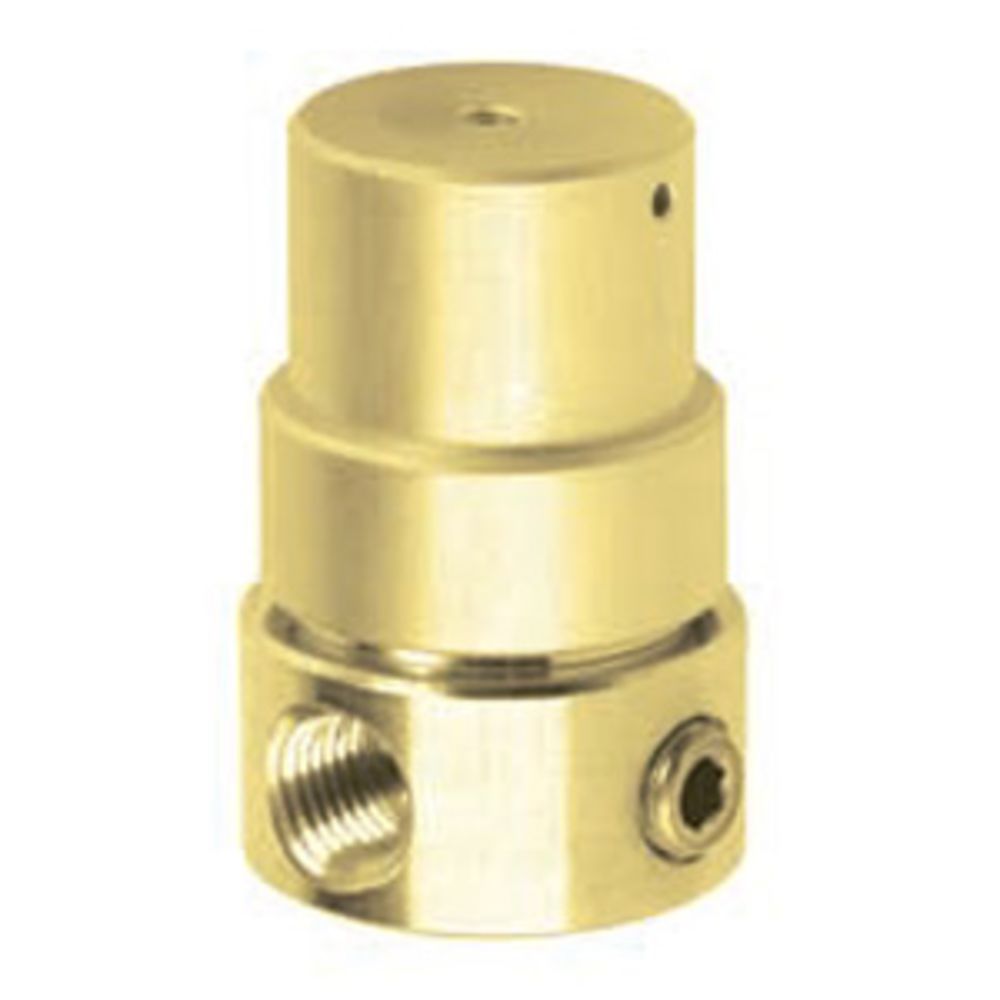

Norgren R16-200-R50A Nonadjustable Relieving Water/Air Regulator 1/4 FPT

The Norgren R16-200-R50A water/air pressure regulator features a compact corrosion resistant design. The R16-200-R50A has a factory preset, tamper resistant pressure setting. This regulator is suitable for use on compressed air and water service.

Specifications:

• Compact design
• Corrosion resistant construction
• Brass body and bonnet
• Relieving model; allows reduction of outlet pressure even when system is dead-ended
• For industrial applications
• Port size: 1/4" FPT
• Max inlet pressure: 100 psig (7 Bar)
• Outlet pressure (not adjustable): 50 psig (3.5 Bar)
• Max flow rate (water): 1.3 gpm
• Max flow rate (air): 12.0 scfm

NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)
