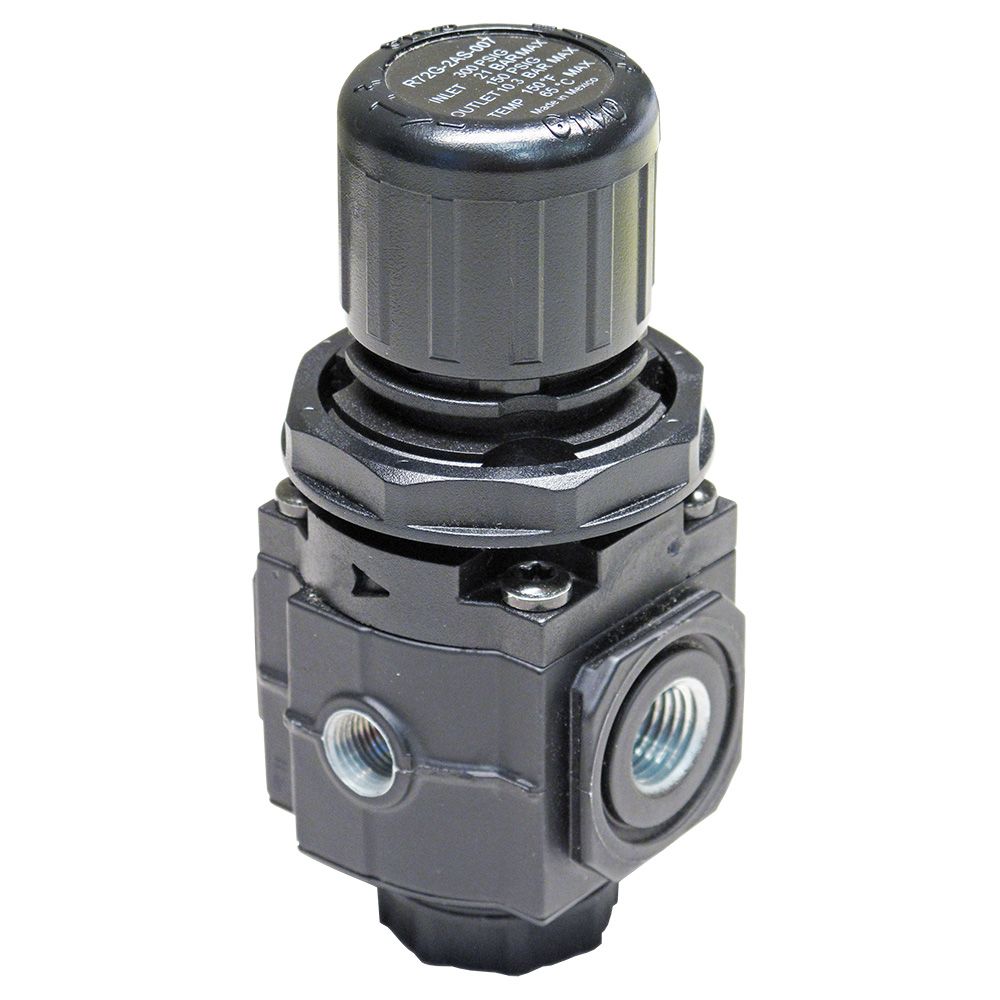

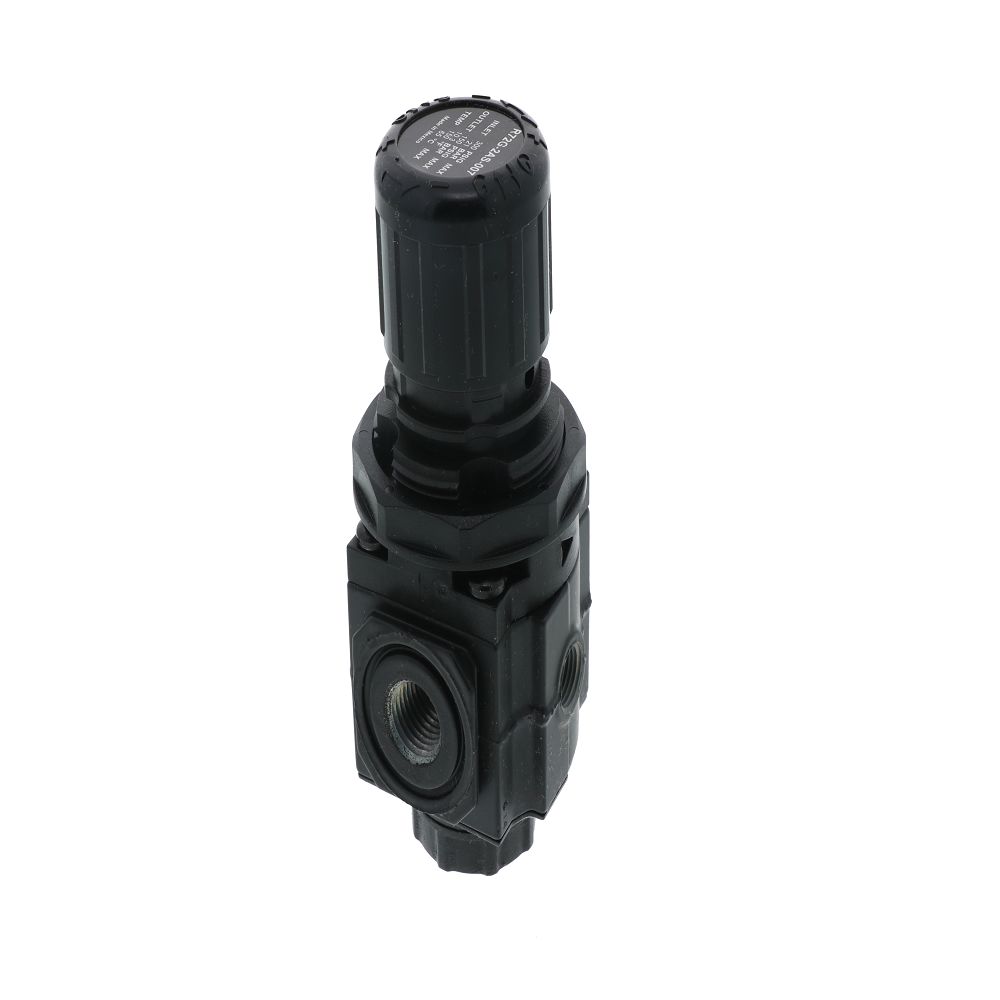

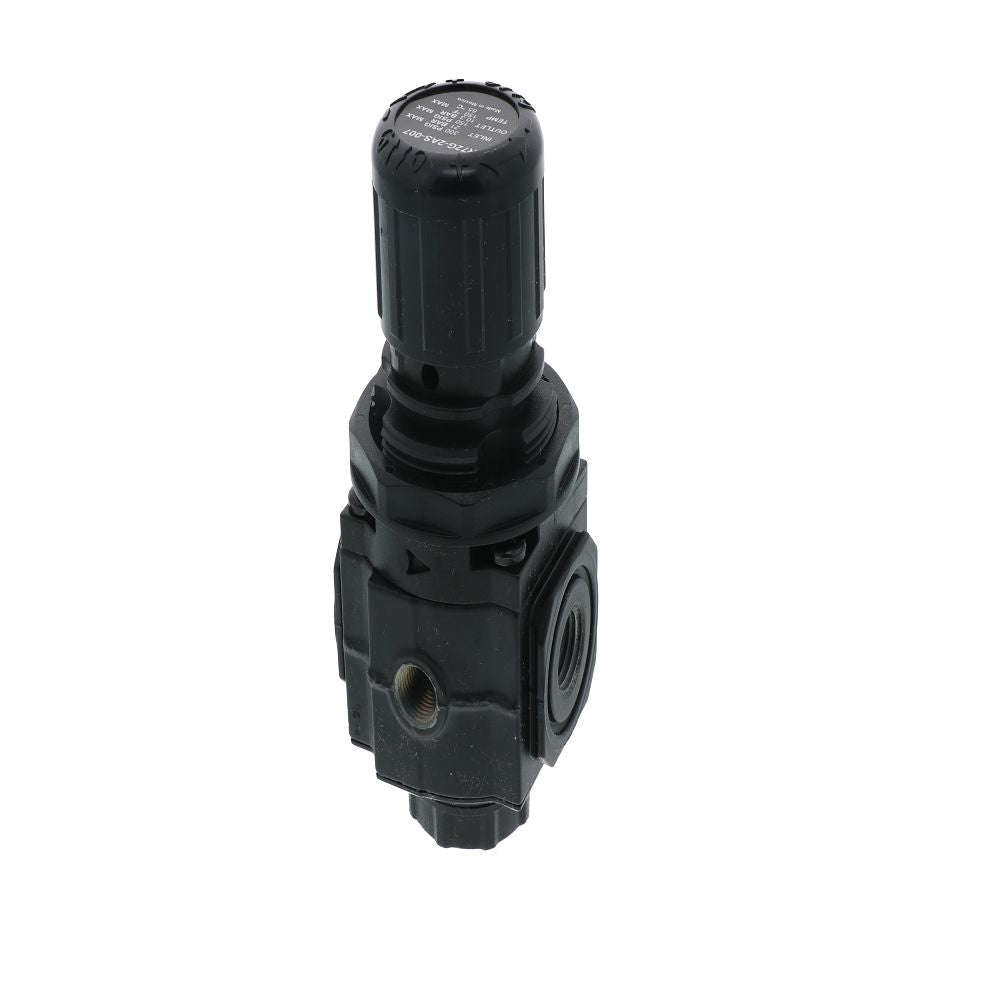

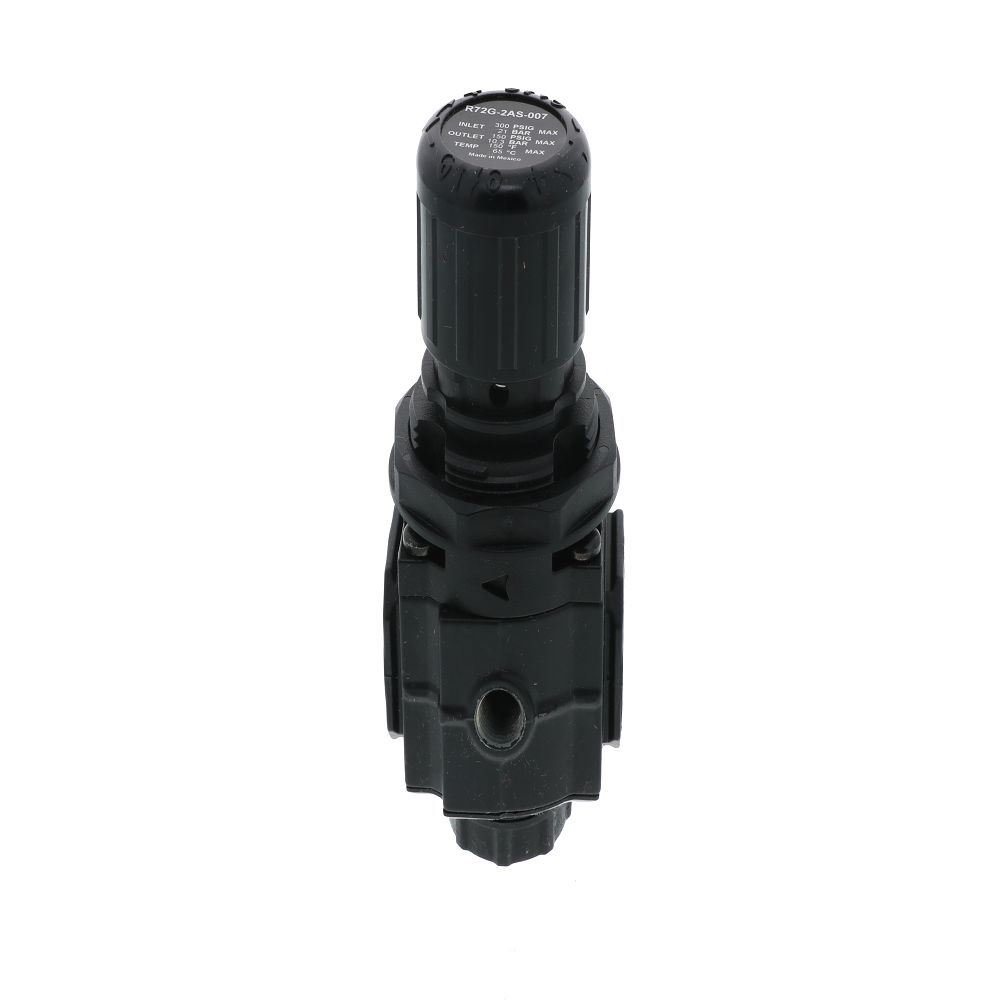

Norgren Excelon R72G-2AS-007 Relieving Air Pressure Regulator 1/4 FPT

The Norgren Excelon R72-2AS-007 air pressure regulator's design allows for in-line or modular installation. The R72-2AS-007 has a push to lock adjusting knob with tamper proof accessory and includes the panel mount nut (part number 4248-89). This regulator is suitable for use on compressed air.

Specification:

• Compact design
• Corrosion resistant construction
• Includes panel mount nut (part # 4248-89)
• Zinc body with Acetal bonnet
• Relieving model; allows reduction of outlet pressure even when system is dead-ended
• For industrial applications
• Port size: 1/4" FPT
• Max inlet pressure: 300 psig (21 Bar)
• Max outlet pressure: 150 psig (10.3 Bar)
• Outlet pressure adjustable from 5-150 psig (0.3-10.3 Bar)
• Max flow rate (air): 70 scfm

Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)
