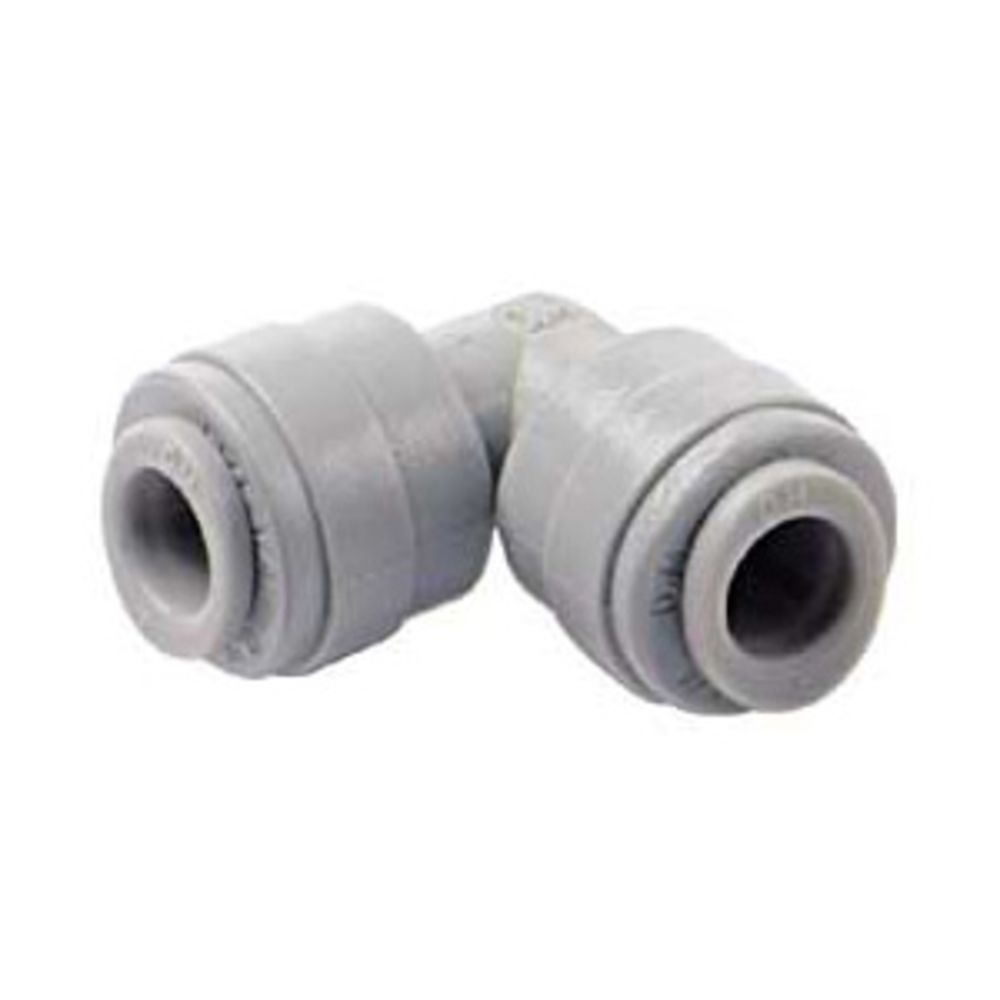

NeoFit - Polypropylene Natural White Union Elbow- 3/8"tube OD x 3/8"tube OD
NeoFit - Polypropylene Natural White Union Elbow- 3/8"tube OD x 3/8"tube OD
SKU:PEU66-W:10PK
In stock
Couldn't load pickup availability

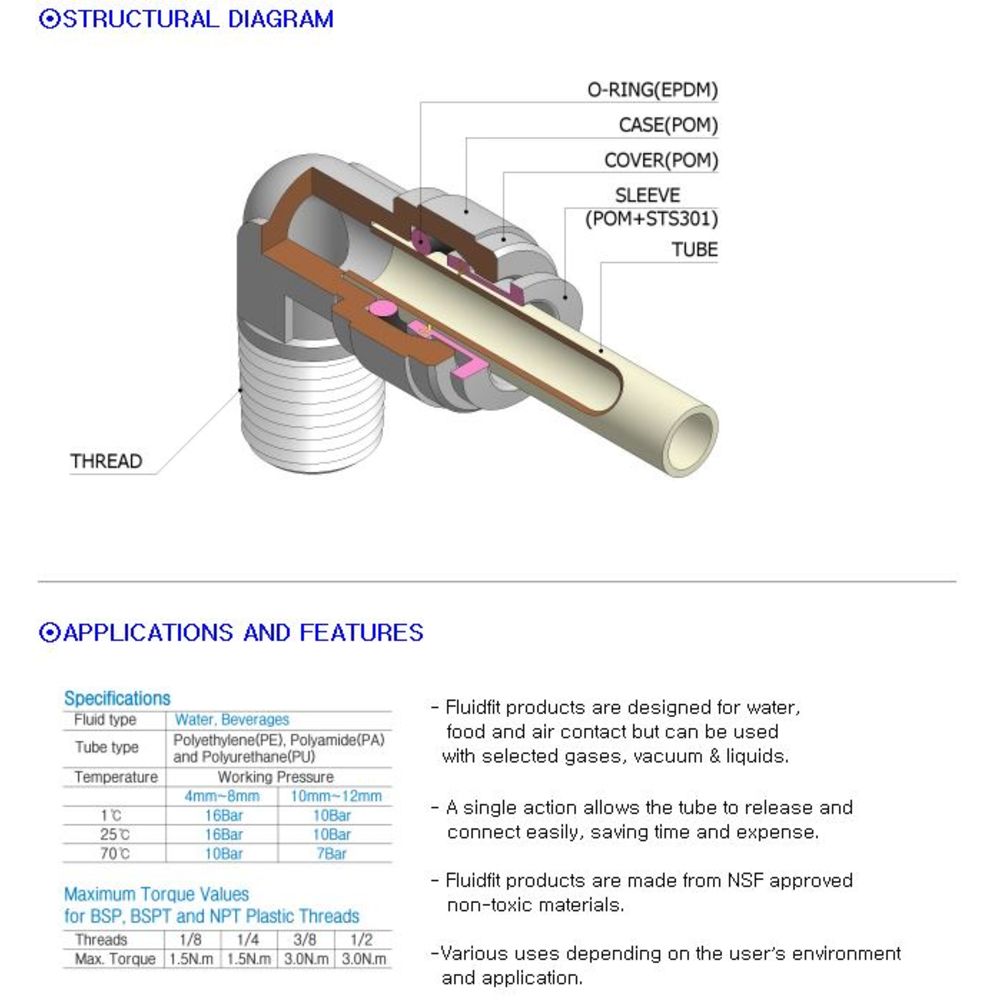

The NeoFit union elbows are used to connect OD tubing sizes. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
- Used to change tubing direction 90 degrees
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect quickly
- Food Quality and suitable for potable liquids and pure water applications
- Can be used for air/pneumatic & vacuum applications
- Acetal body with food grade EPDM O-Ring
- NSF 51 & 61 Certified
Fittings Comparison: Polypropylene White
|
Size |
NEO: Working PSI @ Temp |
JG: Working PSI @ Temp |
DM Fit: Working PSI@ Temp | Mur-Lok: Working PSI@ Temp |
|---|---|---|---|---|
|
1/4" |
150psi @ 68F/ 60psi @ 150F | 150psi @ 70F/ 60psi at 140F | 150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
|
3/8" |
150psi @ 68F/ 60psi @ 150F |
150psi @ 70F/ 60psi at 140F |
150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
|
1/2" |
150psi @ 68F/ 60psi @ 150F |
150psi @ 70F/ 60psi at 140F |
150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
|
Certifications |
NEO: NSF 51 & 61 Certified |
JG: NSF 51 & 61 Certified |
DM Fit: NSF 51 & 61 Certified | Mur-Lok: NSF 58 & 372 Certified |
|
Size |
NEO: Max Torque |
JG: Max Torque |
DM Fit: Max Torque |
Mur-Lok: Max Torque |
|---|---|---|---|---|
|
1/4" |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
|
3/8" |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
|
1/2" |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
