NeoFit - Polypropylene Natural White Union Elbow- 1/2"tube OD x 1/2"tube OD

NeoFit - Polypropylene Natural White Union Elbow- 1/2"tube OD x 1/2"tube OD

PEU88-W:10PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:

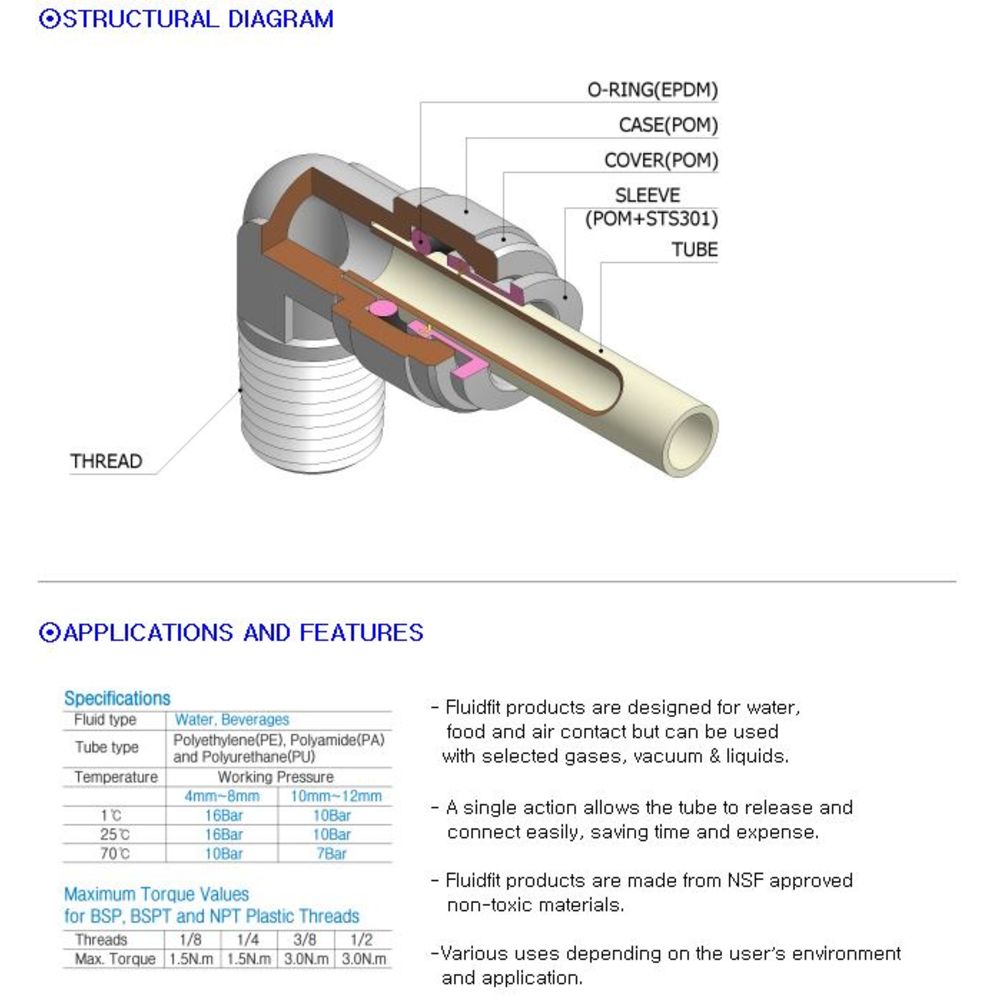

The NeoFit union elbows are used to connect OD tubing sizes. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

  • Used to change tubing direction 90 degrees
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect quickly
  • Food Quality and suitable for potable liquids and pure water applications
  • Can be used for air/pneumatic & vacuum applications
  • Acetal body with food grade EPDM O-Ring
  • NSF 51 & 61 Certified


Fittings Comparison
Size NEO: Working PSI @ Tempv JG: Working PSI @ Temp DM Fit: Working PSI@ Temp Mur-Lok: Working PSI@ Temp
1/4" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
3/8" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
1/2" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
Certifications NEO: NSF 51 & 61 Certified JG: NSF 51 & 61 Certified DM Fit: NSF 51 & 61 Certified Mur-Lok: NSF 58 & 372 Certified
Size NEO: Max Torque JG: Max Torque DM Fit: Max Torque Mur-Lok: Max Torque
1/4" 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm)
3/8" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)
1/2" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)

Documents

NeoFit - Polypropylene Natural White Union Elbow- 1/2
