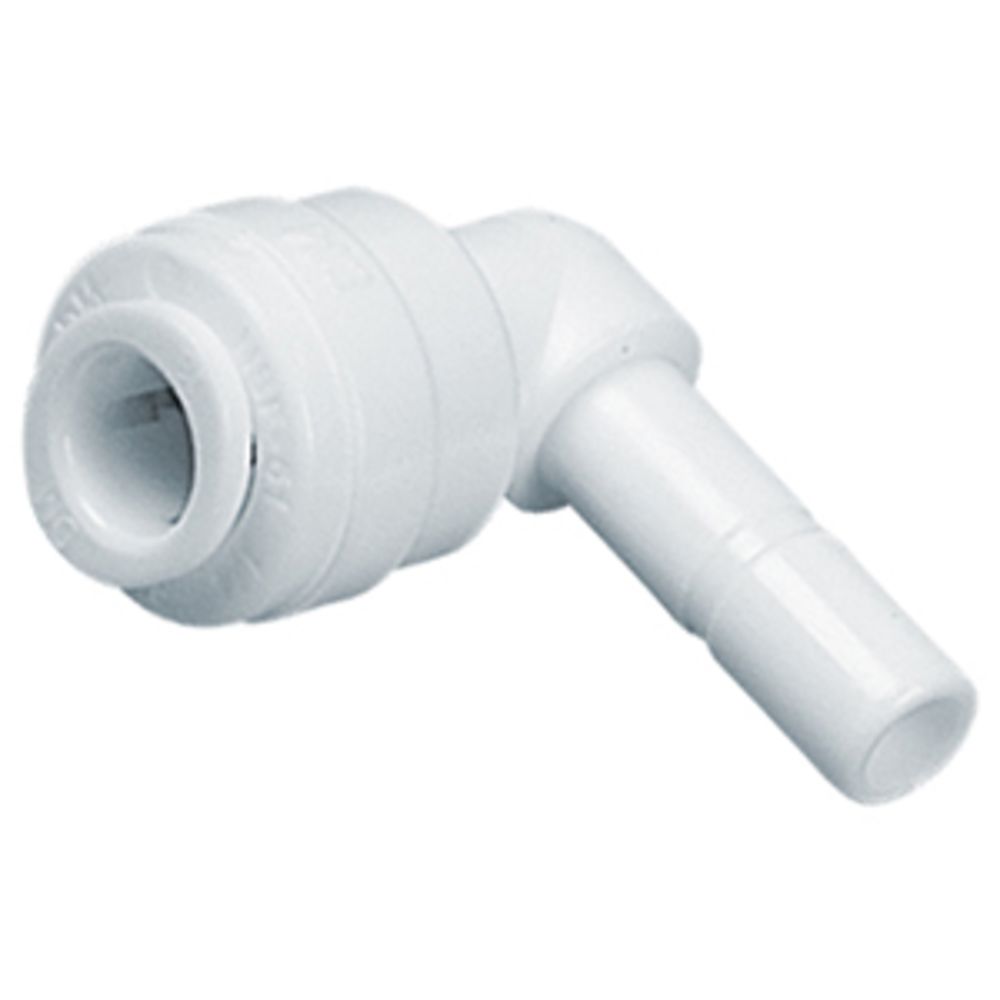

NeoFit - Polypropylene Natural White Stem Elbow- 3/8"tube OD x 3/8"stem

NeoFit - Polypropylene Natural White Stem Elbow- 3/8"tube OD x 3/8"stem

SKU:PTEU66-W:10PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:

The NeoFit stem elbow connectors are used to connect OD tubing sizes. The stem inserts into push-to-fit fittings to change the tubing direction by 90 degrees. Manufactured in acetal with a food-grade EPDM O-ring, these fittings were designed for water, beverage, and food applications. They are also suitable for air and inert gases; therefore, they can be used for CO₂ and nitrogen beverage gas lines, pneumatics, vacuum systems, as well as other applications.

Features:

  • Used to change tubing direction 90 degrees
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect quickly
  • Food Quality and suitable for potable liquids and pure water applications
  • Can be used for air/pneumatic & vacuum applications
  • Acetal body with food grade EPDM O-Ring
  • NSF 51 & 61 Certified


Fittings Comparison
Size NEO: Working PSI @ Tempv JG: Working PSI @ Temp DM Fit: Working PSI@ Temp Mur-Lok: Working PSI@ Temp
1/4" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
3/8" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
1/2" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
Certifications NEO: NSF 51 & 61 Certified JG: NSF 51 & 61 Certified DM Fit: NSF 51 & 61 Certified Mur-Lok: NSF 58 & 372 Certified
Size NEO: Max Torque JG: Max Torque DM Fit: Max Torque Mur-Lok: Max Torque
1/4" 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm)
3/8" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)
1/2" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)

Documents

NeoFit - Polypropylene Natural White Stem Elbow- 3/8

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
