NeoFit - Polypropylene Natural White Stem Adapter 1/2" Stem x 3/8" NPTF

NeoFit - Polypropylene Natural White Stem Adapter 1/2" Stem x 3/8" NPTF

SKU:PSA8-N3-W:10PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:

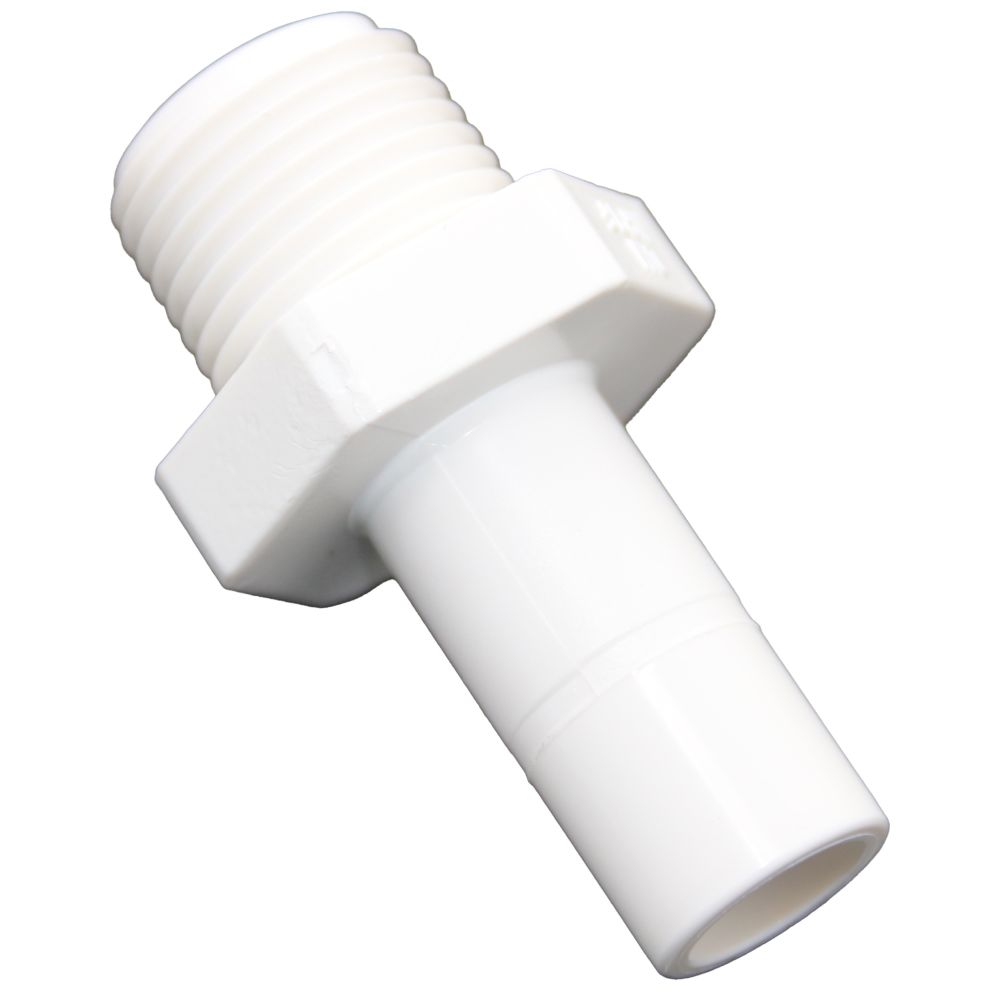

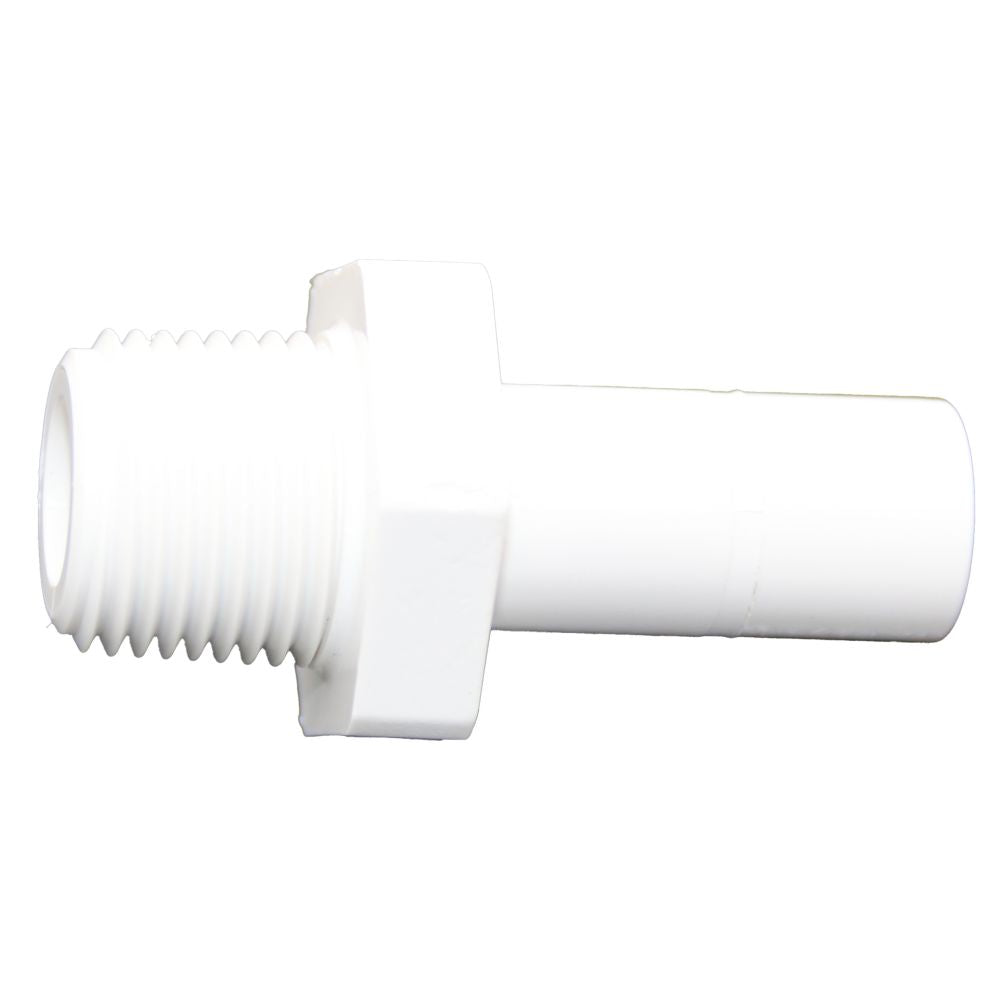

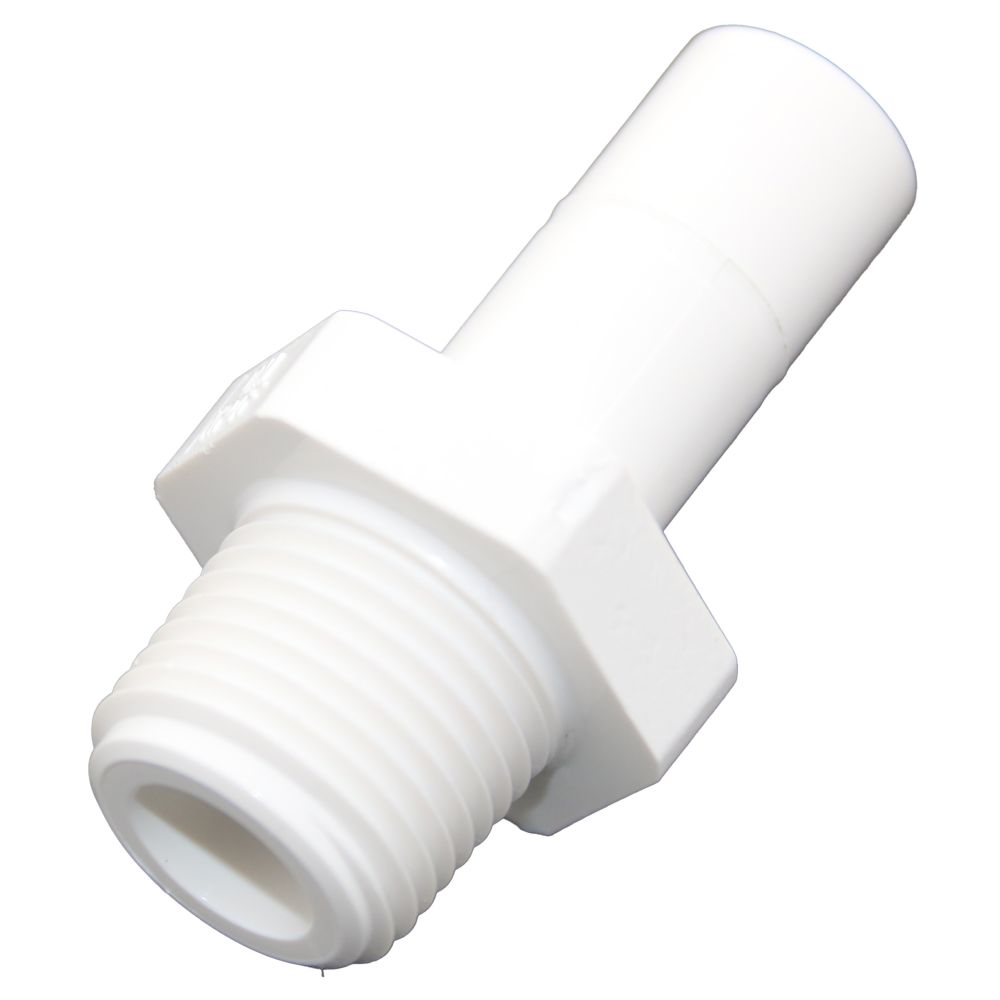

This Neo-Fit stem adapter makes connecting OD tubing sizes to female NPTF threads easy. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:
  • Push-fit Technology creates reliable, leak-free connections
  • Stem easily inserts into push to fit fittings to make a swivel connector
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Made with lead free materials

Working pressure and temperature:
  • Max. 150 psi at 70° F
  • Max. 60 psi at 140° F


Note: Not suitable for compressed air and vacuum applications
Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.

Fittings Comparison
Size NEO: Working PSI @ Tempv JG: Working PSI @ Temp DM Fit: Working PSI@ Temp Mur-Lok: Working PSI@ Temp
1/4" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
3/8" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
1/2" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
Certifications NEO: NSF 51 & 61 Certified JG: NSF 51 & 61 Certified DM Fit: NSF 51 & 61 Certified Mur-Lok: NSF 58 & 372 Certified
Size NEO: Max Torque JG: Max Torque DM Fit: Max Torque Mur-Lok: Max Torque
1/4" 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm)
3/8" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)
1/2" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)
