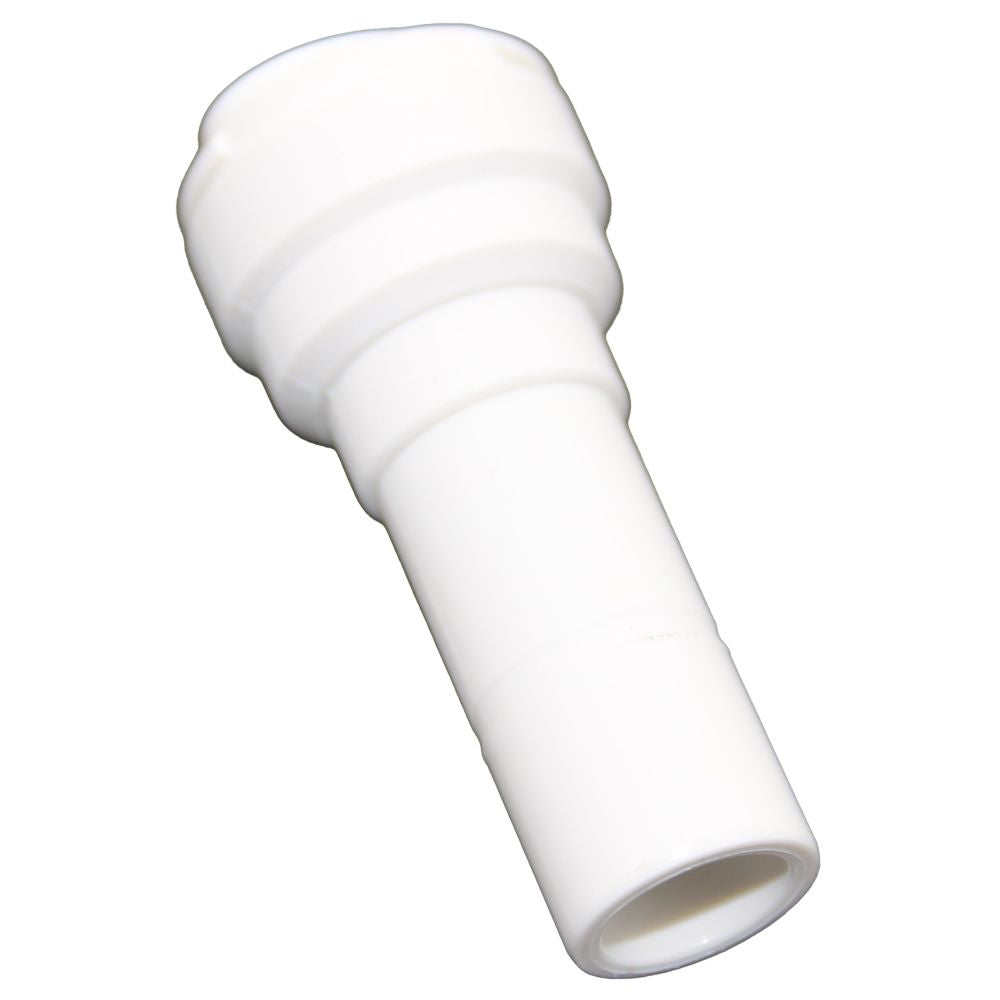

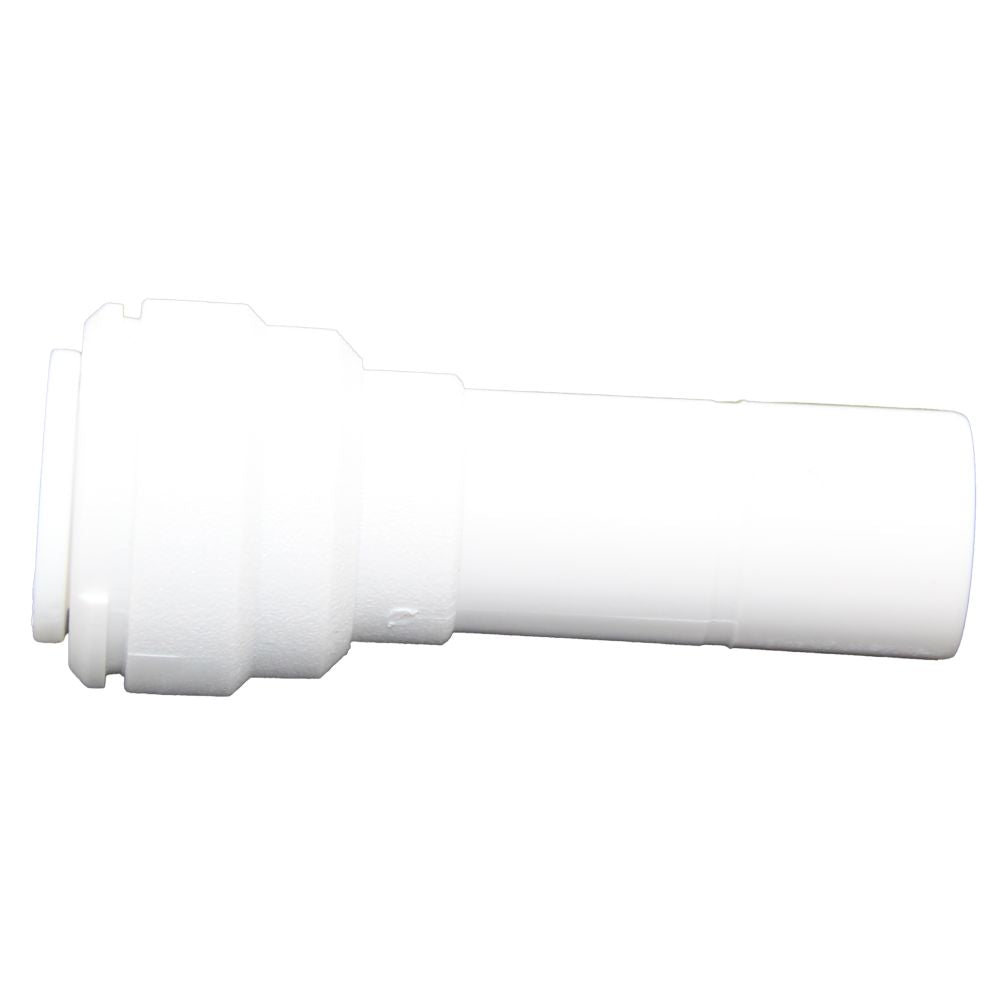

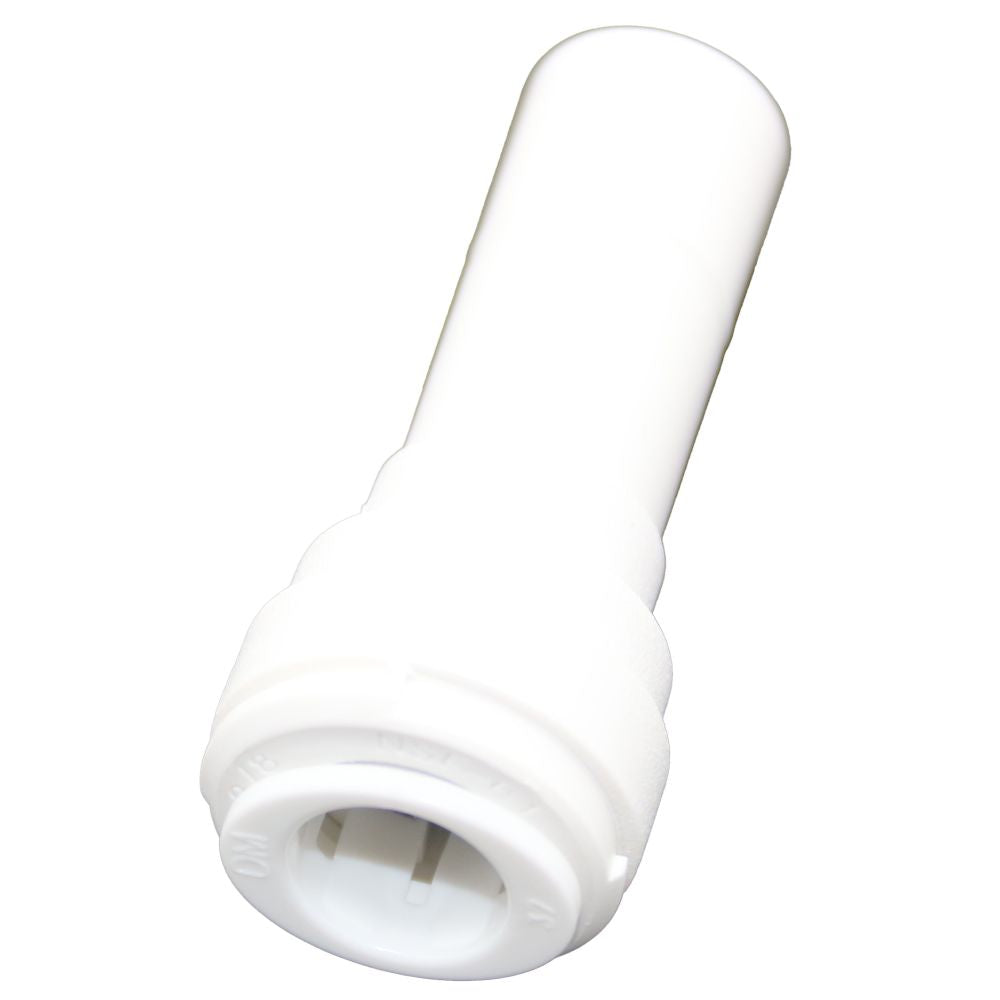

NeoFit - Polypropylene Natural White Reducer 3/8" OD x 1/2" Stem

The Neo-Fit reducer stem is used to reduce the tube size of a fitting. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:

• Push-fit Technology creates reliable, leak-free connections
• Stem easily inserts into push to fit fittings to reduce the tube size
• Compatible with plastic or copper OD sized tubing
• Connect, disconnect, and reconnect in seconds without tools
• Food Quality and suitable for potable liquids and pure water applications
• Polypropylene body with EDPM O-ring
• Made with lead free materials

Working pressure and temperature:

• Max. 150 psi at 70° F
• Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.

Fittings Comparison: Polypropylene White


Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp
1/4"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60 psi at 140F
3/8"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60 psi at 140F
1/2"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60 psi at 140F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified



Size	NEO: Max Torque	JG: Max Torque
1/4"	1ft/lb  (1.5nm)	1ft/lb  (1.5nm)
3/8"	2ft/lb  (3 nm)	2ft/lb  (3 nm)
1/2"	2ft/lb  (3 nm)	2ft/lb  (3 nm)
