NeoFit - Polypropylene Natural White Reducer 1/4" OD x 3/8" Stem
1
/
of
3

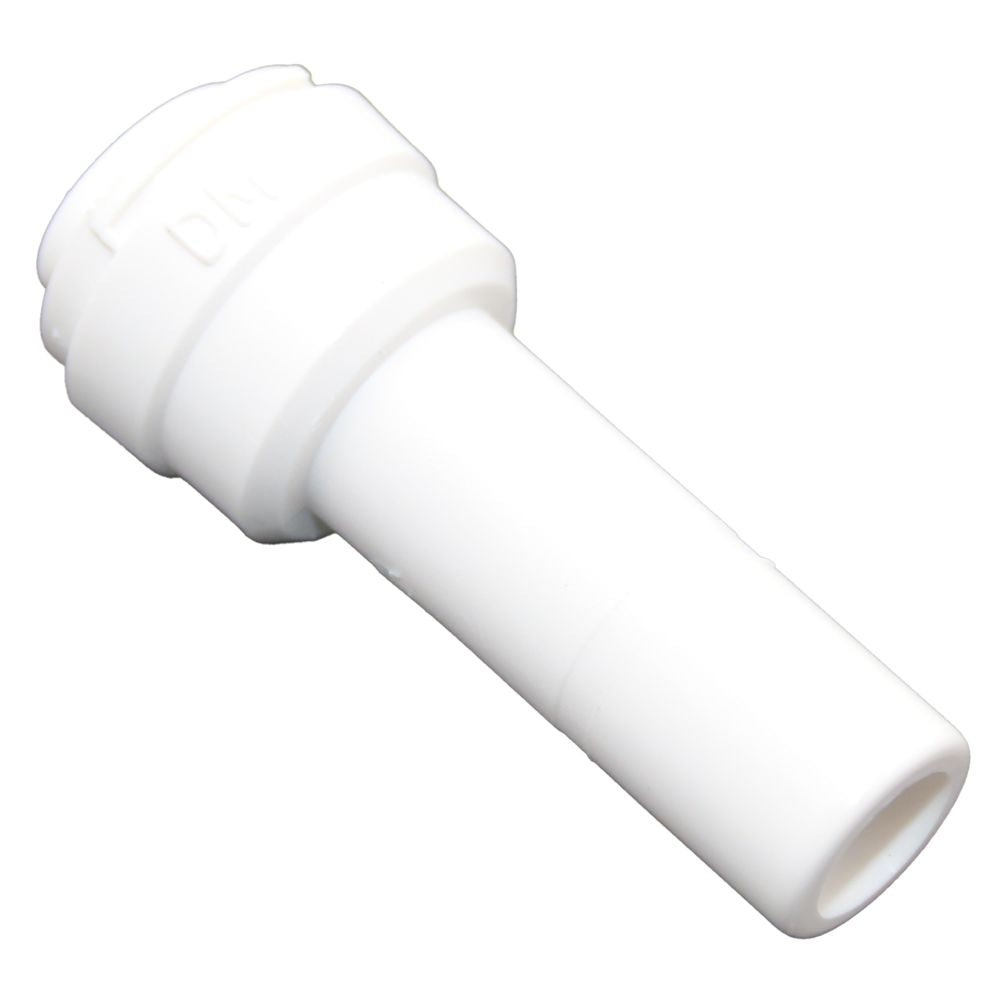

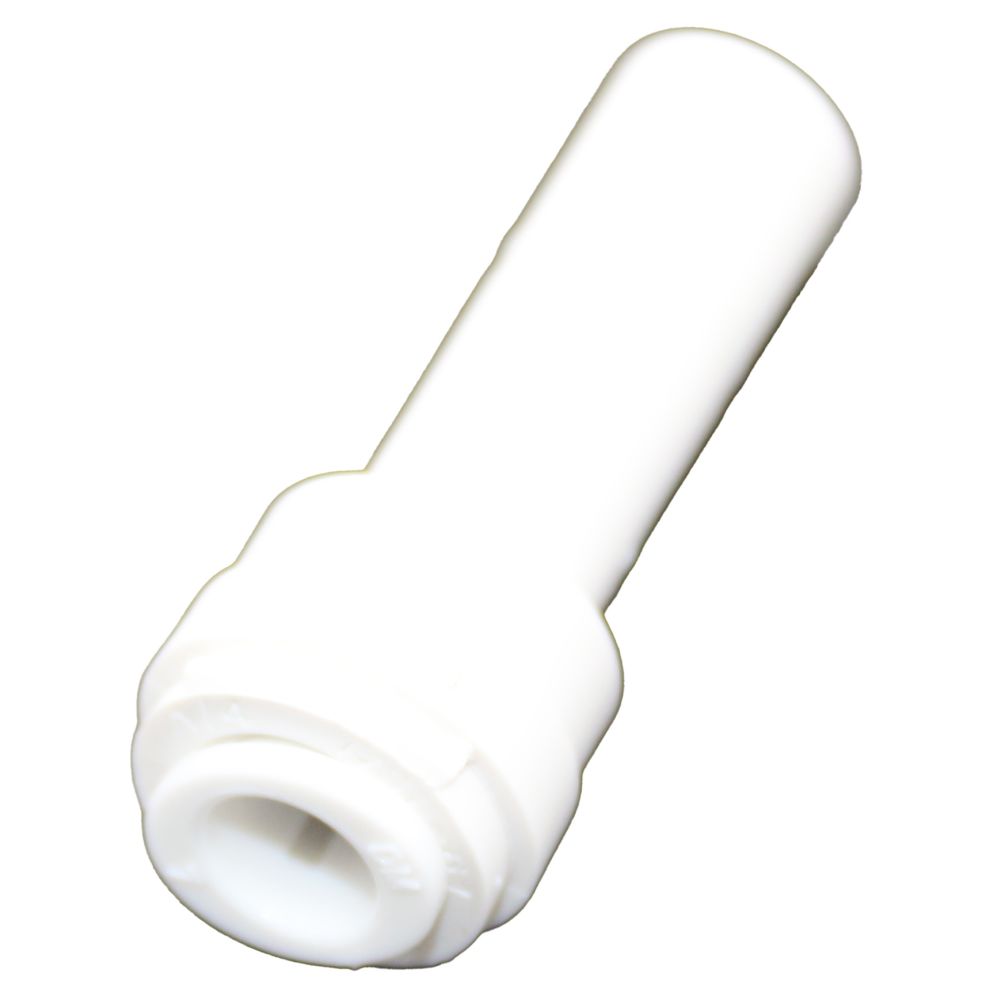

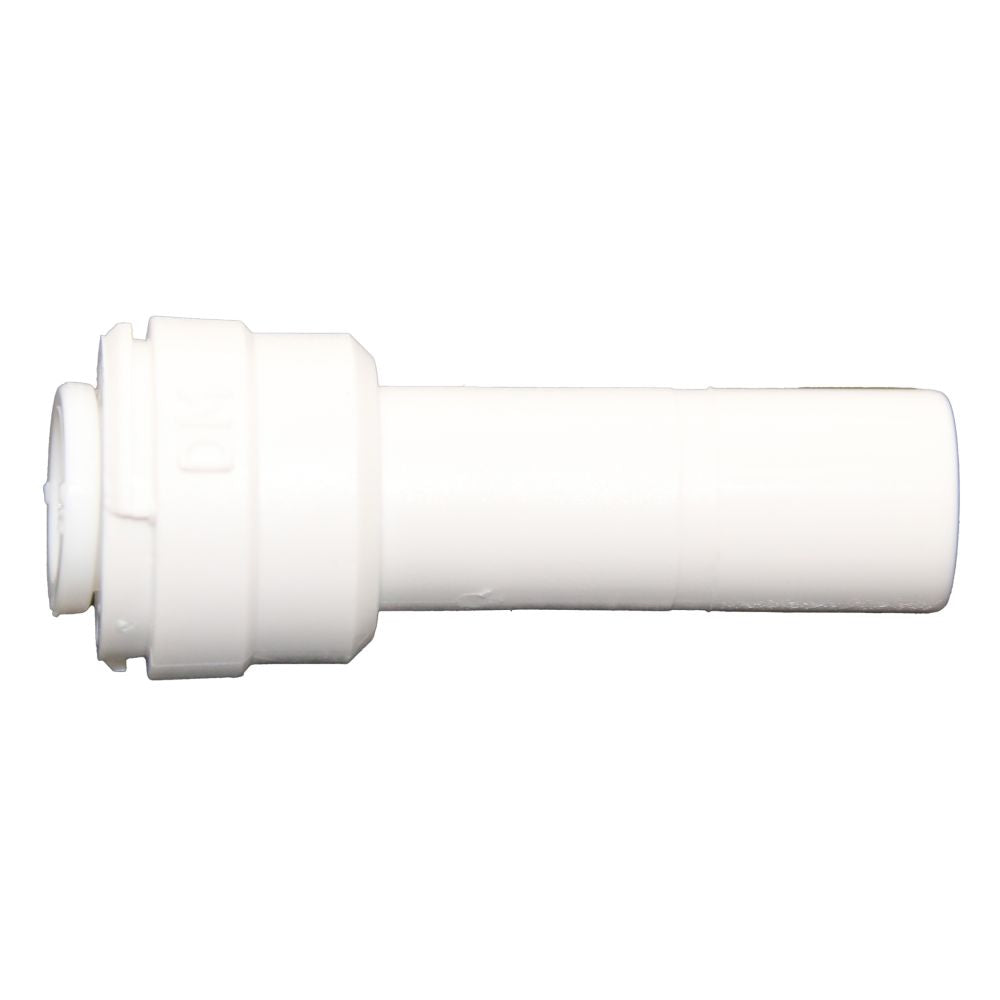

NeoFit - Polypropylene Natural White Reducer 1/4" OD x 3/8" Stem
NeoFit - Polypropylene Natural White Reducer 1/4" OD x 3/8" Stem
SKU:PRD46-W:10PK
Pricing is available for wholesale customers only, please login to see prices.
Interested in becoming a partner?
Click here for more info.
In stock
The Neo-Fit reducer stem is used to reduce the tube size of a fitting. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.
Features:
Working pressure and temperature:
Note: Not suitable for compressed air and vacuum applications
Features:
- Push-fit Technology creates reliable, leak-free connections
- Stem easily inserts into push to fit fittings to reduce the tube size
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Polypropylene body with EDPM O-ring
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70° F
- Max. 60 psi at 140° F
Note: Not suitable for compressed air and vacuum applications
Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.
Fittings Comparison
| Size | NEO: Working PSI @ Tempv | JG: Working PSI @ Temp | DM Fit: Working PSI@ Temp | Mur-Lok: Working PSI@ Temp |
|---|---|---|---|---|
| 1/4" | 150psi @ 68F/ 60psi @ 150F | 150psi @ 70F/ 60psi at 140 | 150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
| 3/8" | 150psi @ 68F/ 60psi @ 150F | 150psi @ 70F/ 60psi at 140 | 150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
| 1/2" | 150psi @ 68F/ 60psi @ 150F | 150psi @ 70F/ 60psi at 140 | 150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
| Certifications | NEO: NSF 51 & 61 Certified | JG: NSF 51 & 61 Certified | DM Fit: NSF 51 & 61 Certified | Mur-Lok: NSF 58 & 372 Certified |
| Size | NEO: Max Torque | JG: Max Torque | DM Fit: Max Torque | Mur-Lok: Max Torque |
| 1/4" | 1ft/lb (1.5nm) | 1ft/lb (1.5nm) | 1ft/lb (1.5nm) | 1ft/lb (1.5nm) |
| 3/8" | 2ft/lb (3 nm) | 2ft/lb (3 nm) | 2ft/lb (3 nm) | 2ft/lb (3 nm) |
| 1/2" | 2ft/lb (3 nm) | 2ft/lb (3 nm) | 2ft/lb (3 nm) | 2ft/lb (3 nm) |
