NeoFit - Half Cartridge Acetal Gray 8mm(5/16")

NeoFit - Half Cartridge Acetal Gray 8mm(5/16")

HCAE-8MG:1000PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose:

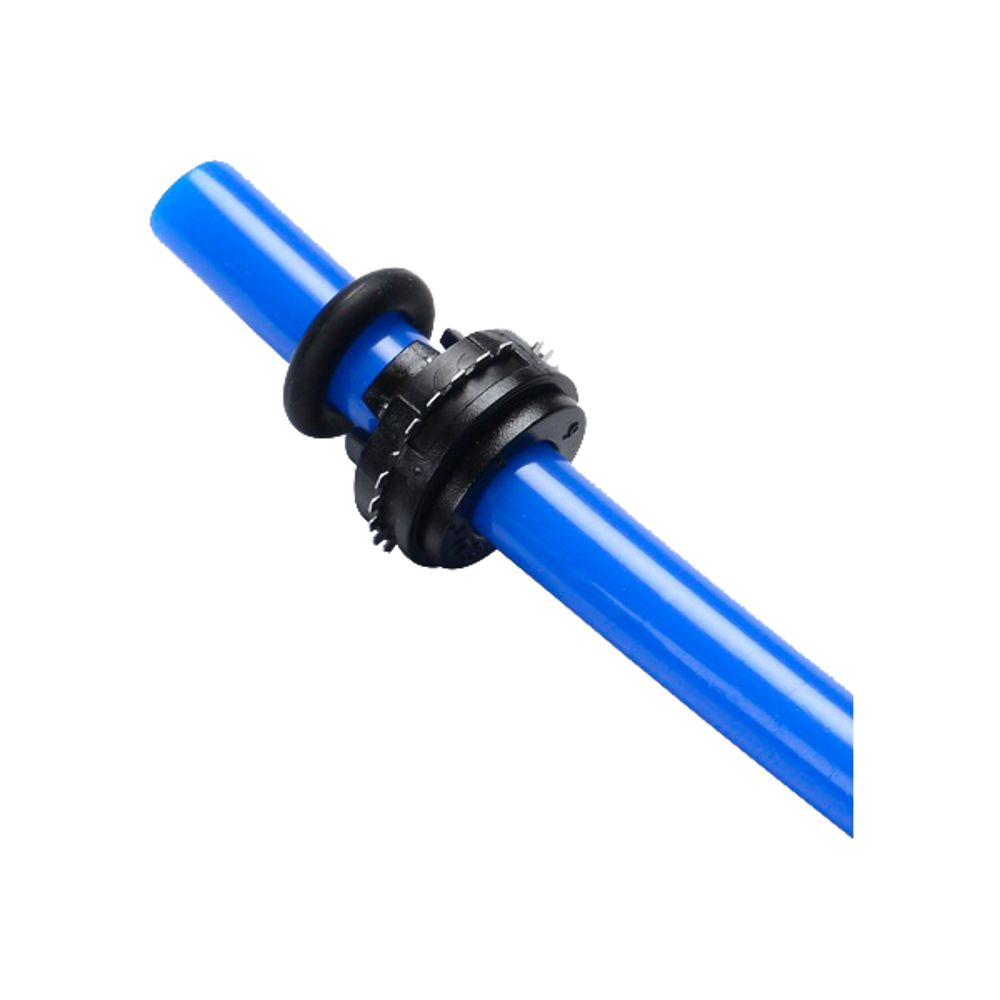

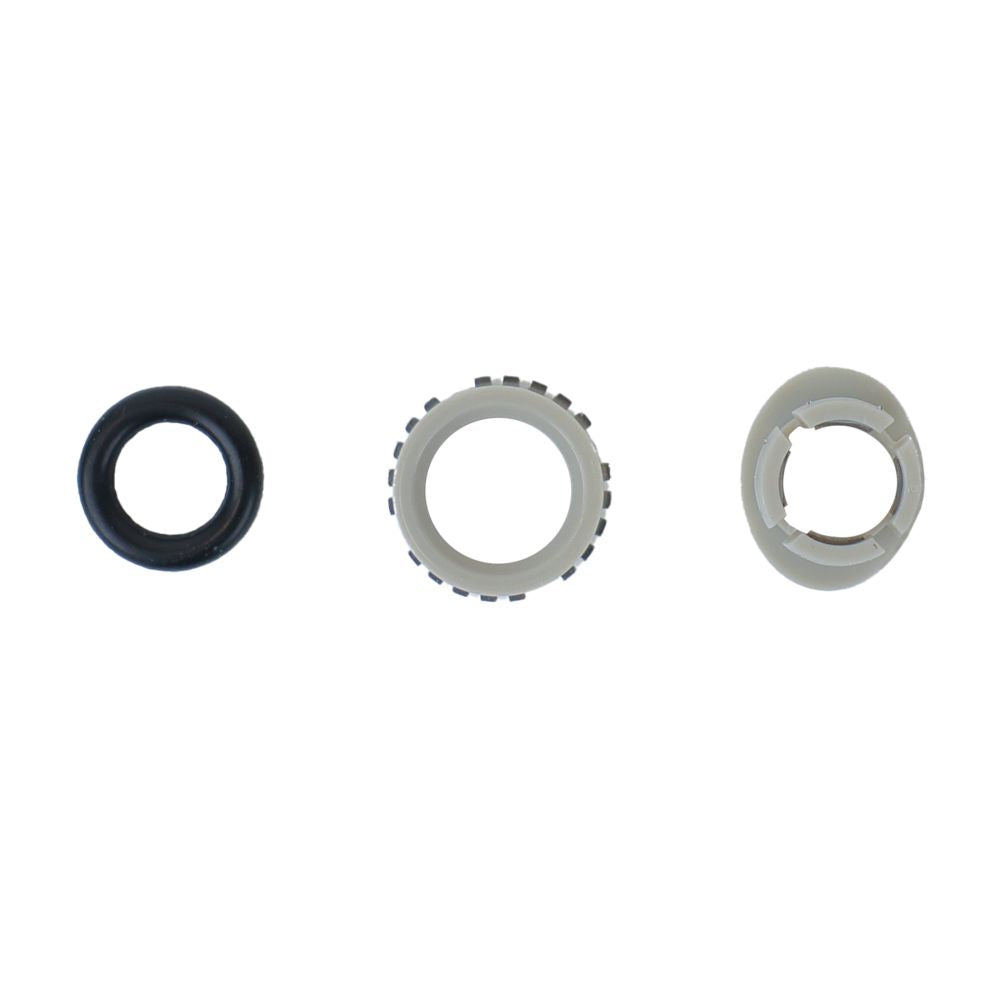

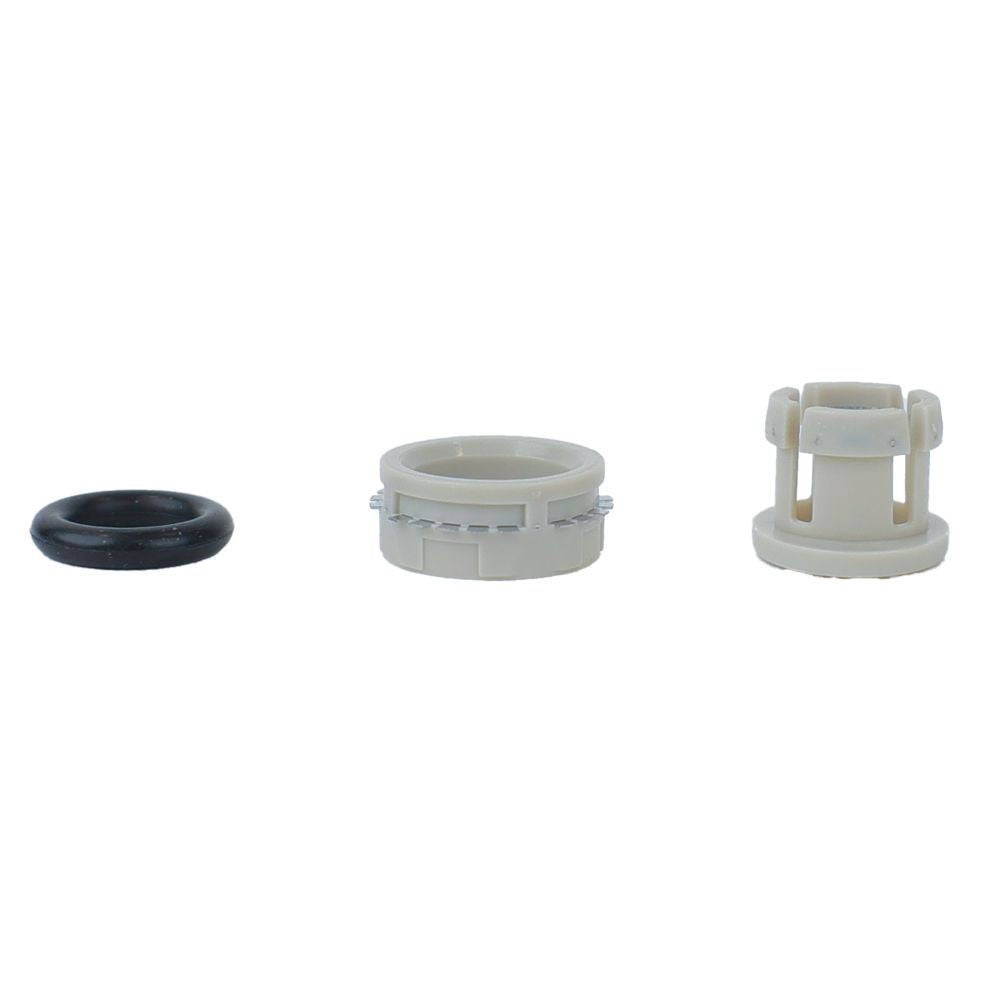

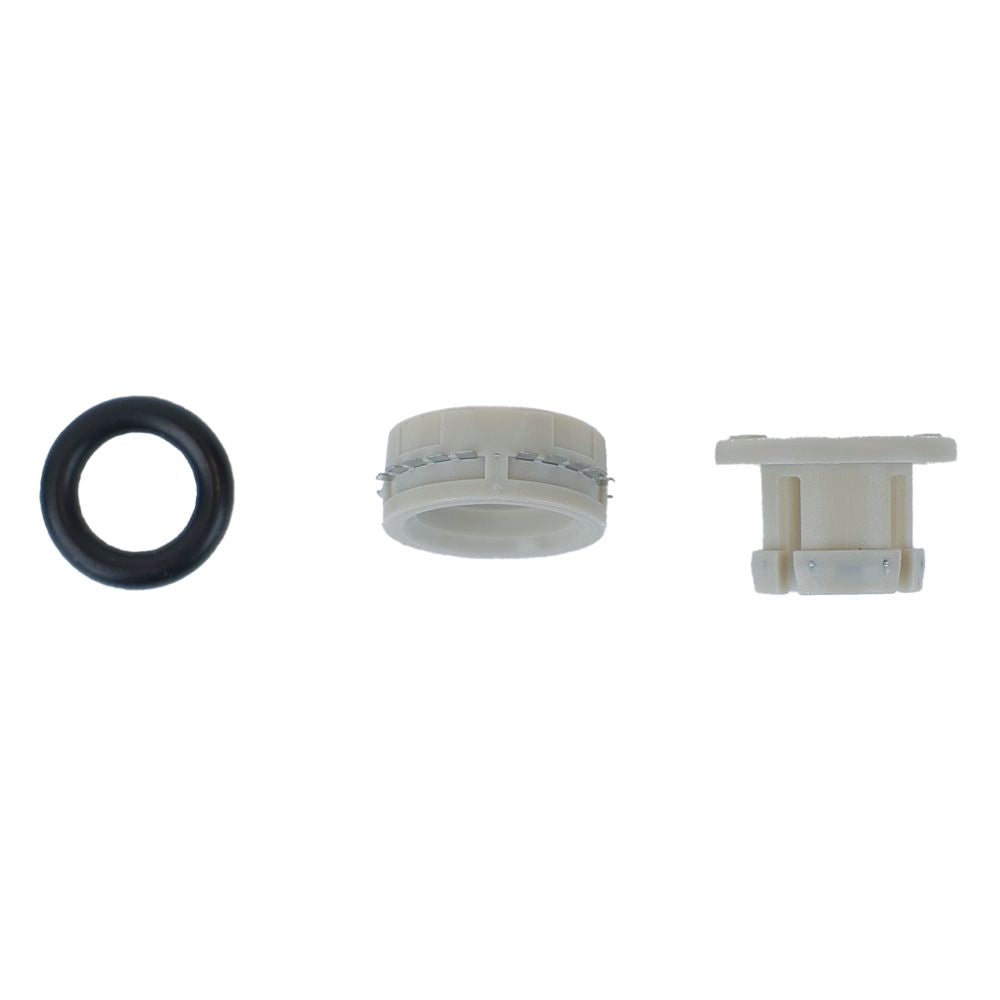

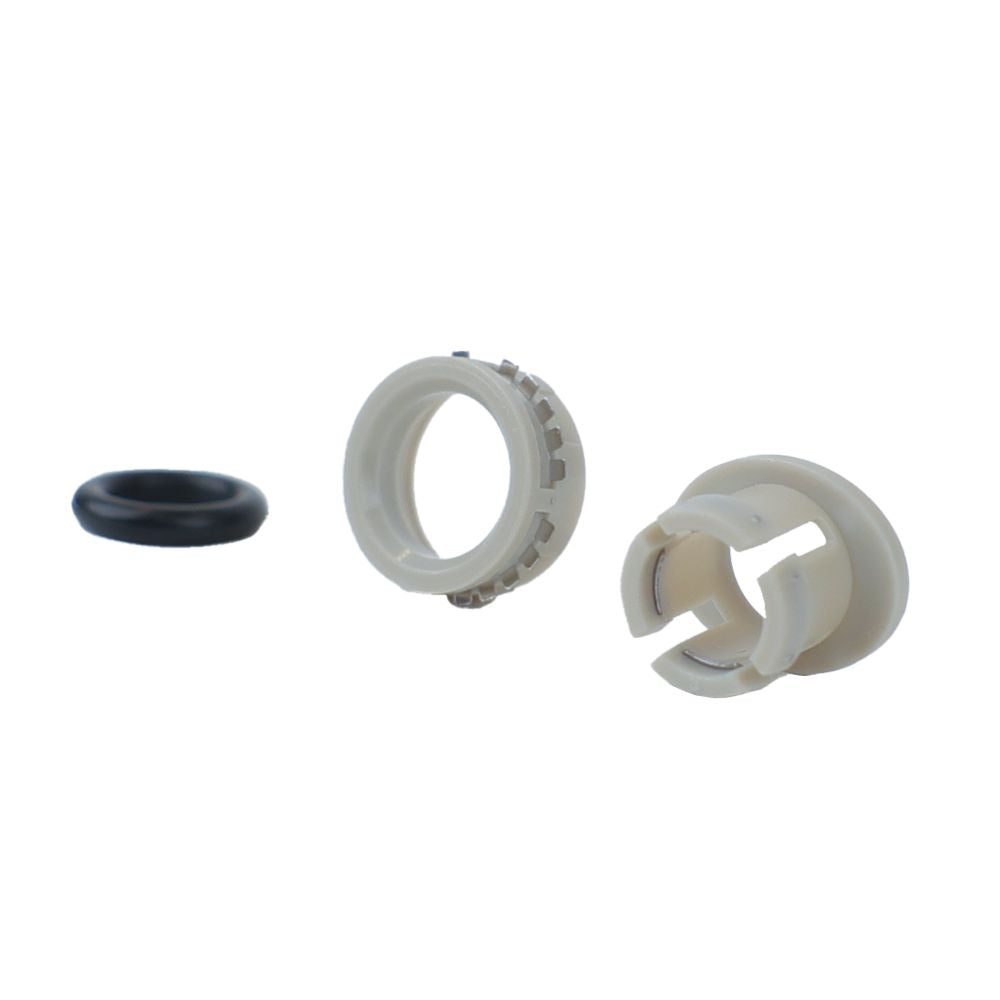

Half cartridges are an easy and cost-effective way of incorporating a push-fit connection into a wide range of OEM equipment.

Features:

  • Cartridges are available in acetal and brass
  • Compatible with plastic or copper OD sized tubing
  • Cost effective vs. fittings
  • Assembly is quick resulting in cost and time savings

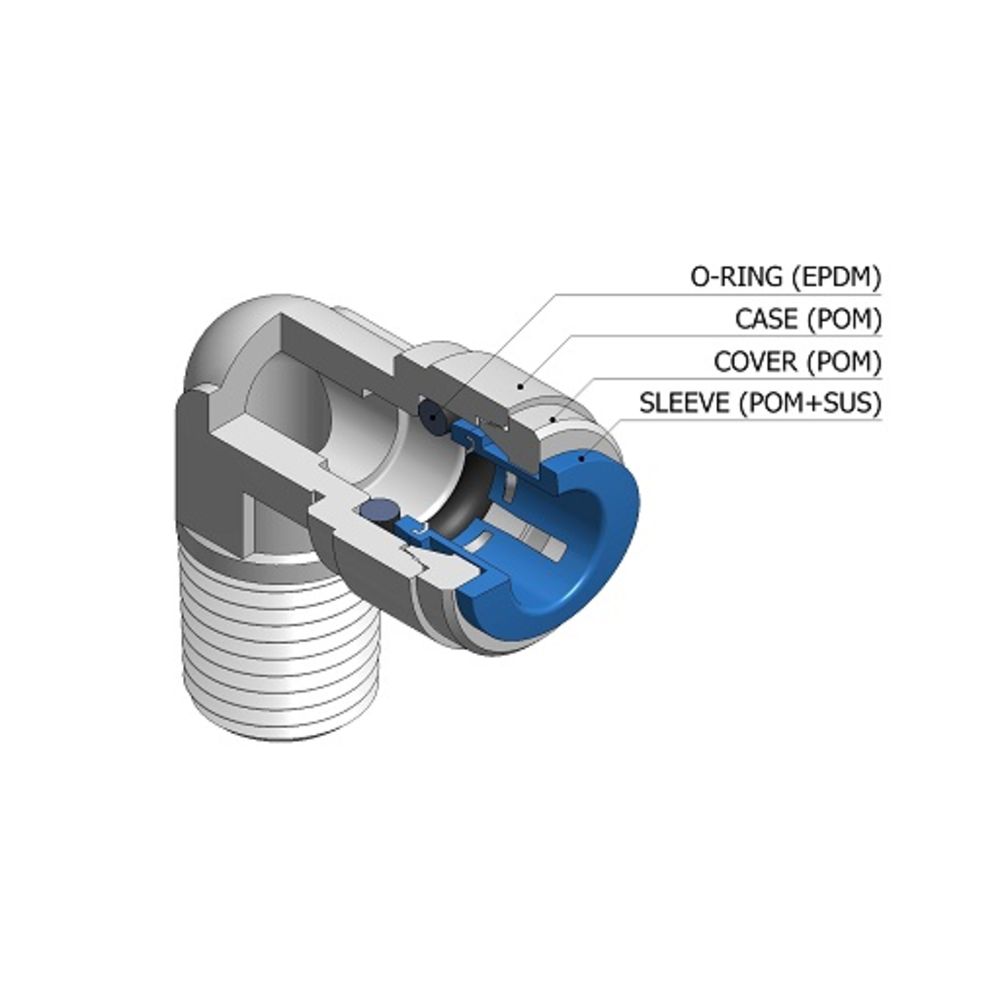

  • EPDM O-Ring with acetal collet (Sleeve) for improved seal

Note: As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities.



Fittings Comparison:
Size NEO: Working PSI @ Temp JG: Working PSI @ Temp JG: Working PSI @ Temp
1/4" 290psi @ 68F/ 232psi @ 150F 230psi @ 68F/ 150 psi at 150F 230psi @ 68F/ 100 psi at 150F
3/8" 232psi @ 68F/ 203psi @ 150F 150psi @ 68F/ 100 psi at 150F 170psi @ 68F/ 100 psi at 150F
1/2" 203psi @ 68F/ 116psi @ 150F 150psi @ 68F/ 100 psi at 150F 170psi @ 68F/ 100 psi at 150F
Certifications NEO: NSF 51 & 61 Certified JG: NSF 51 & JG: NSF 51 & 61 Certified DM Fit: NSF 51 & 61 Certified
Size NEO: Max Torque JG: Max Torque DM Fit: Max Torque
1/4" 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm)
3/8" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)
1/2" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)
