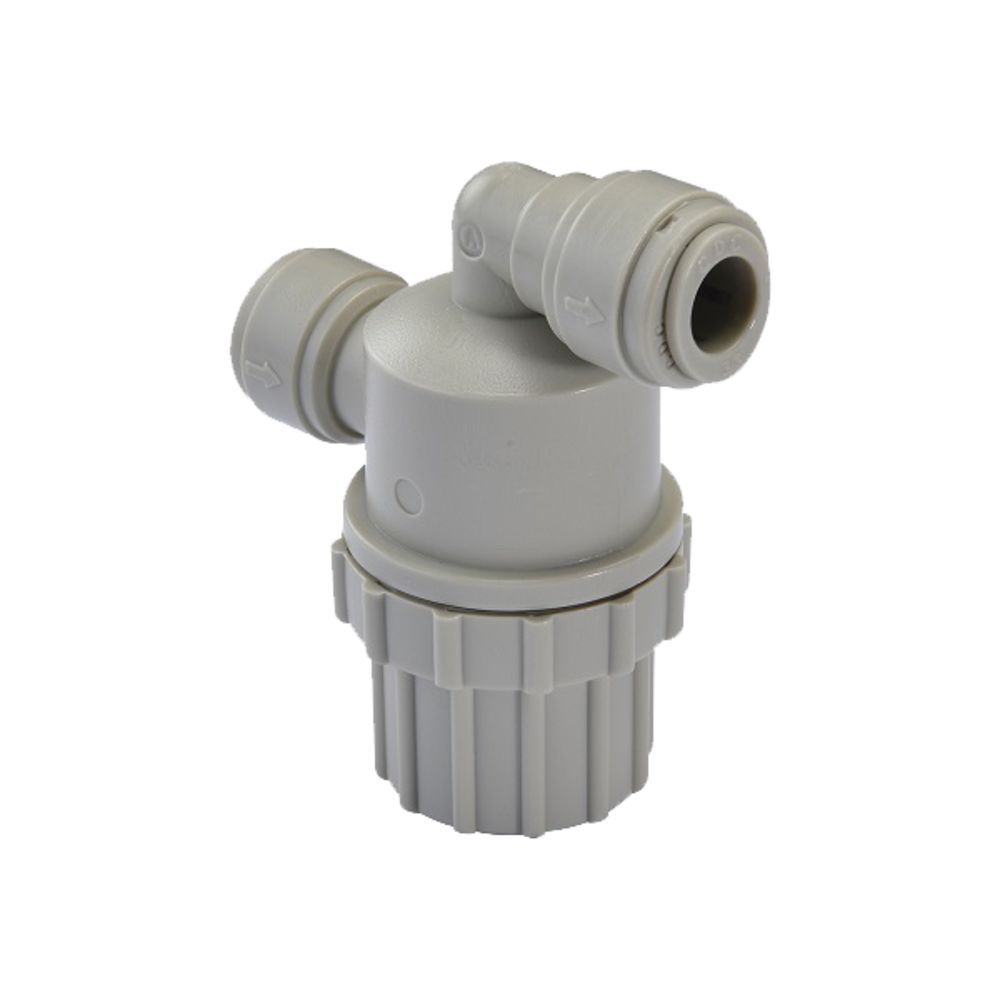

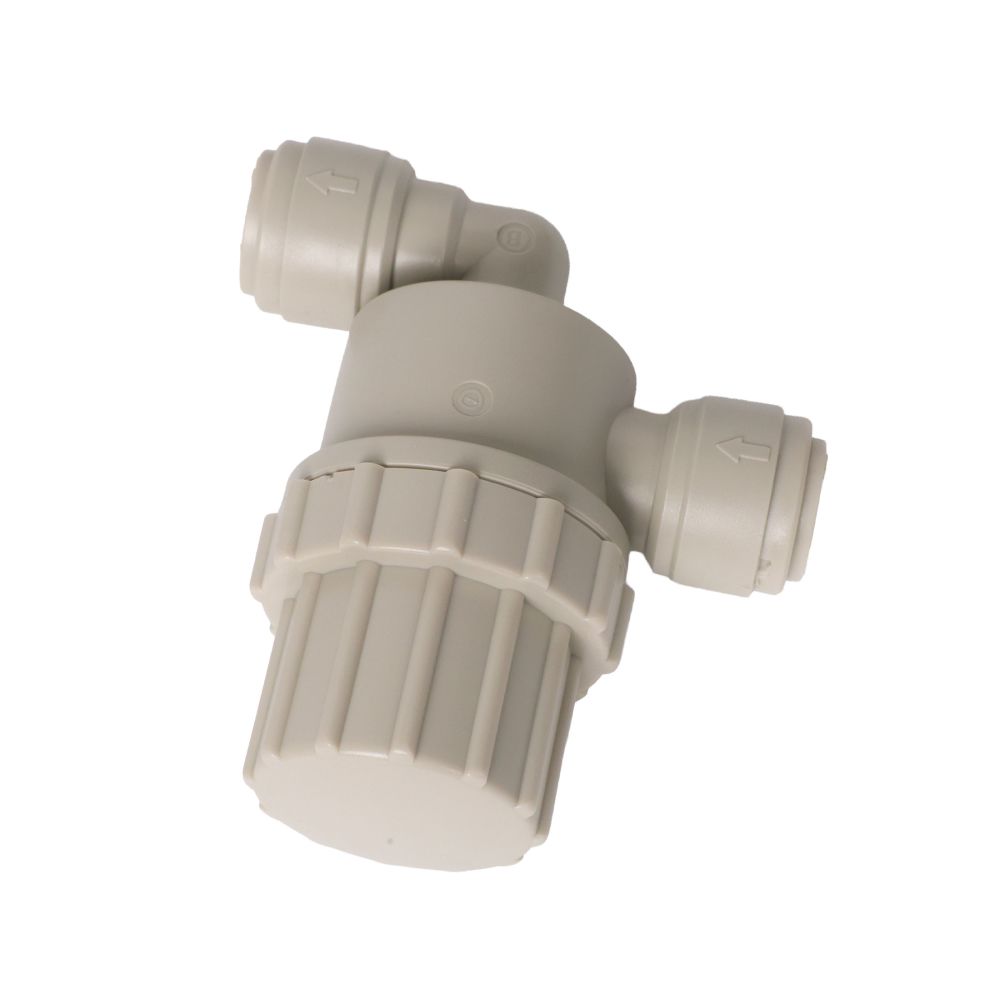

NeoFit - Acetal Gray Filter Strainer 3/8" OD Tube x 3/8" Push-in 100 mesh (150 mic)

The NeoFit Strainers are used for the protection of your pumps, filters, and other more expensive equipment. These strainers prevent damage by keeping debris and other particles out of your pumps and filters, which eliminates unnecessary and costly repairs. They also allow you to easily reduce your filter consumption. The filter screen uses perforated mesh media to strain out these particles.

Features:

• The detachable CAP and BODY allow for easy installation and maintenance
• Can be used with a variety of chemicals and gases. However, when using with other than water or air, please refer to the Chemical Compatability Tables or consult with your NeoFit representative.
• Compatible with standard-sized tubing from a variety of other manufacturers
• Stainless Steel Filter Strainer: 100 mesh (150 micron)

Specifications:

• Inlet/Outlet: 3/8" Push-in
• Strainer: 100 mesh (150 micron)
• Max. Operating Pressure: 145psi
• Max. Operating Temp: (-20F) - (+150F)

NOTE: Do not apply excessive vibration, torque, shock or other strong loads to the filter. The filter body may be damaged or collets may be dislocated.

Fittings Comparison: Acetal Gray


Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp	DM Fit: Working PSI @ Temp
1/4"	290psi @ 68F/ 232psi @ 150F	230psi @ 68F/ 150 psi at 150F	230psi @ 68F/ 100 psi at 150F
3/8"	232psi @ 68F/ 203psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
1/2"	203psi @ 68F/ 116psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified



Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque
1/4"	1ft/lb  (1.5nm)	1ft/lb  (1.5nm)	1ft/lb  (1.5nm)
3/8"	2ft/lb  (3 nm)	2ft/lb  (3 nm)	2ft/lb  (3 nm)
1/2"	2ft/lb  (3 nm)	2ft/lb  (3 nm)	2ft/lb  (3 nm)
