NeoFit - Acetal Gray Ball Valves 8mm (5/16") tube

SKU:AHVU88M-G:5PK

Pricing is available for wholesale customers only, please login to see prices.

Interested in becoming a partner?
Click here for more info.

In stock

Choose: Bag of 5 Box of 100

The NeoFit Acetal Ball Valves are used to isolate the supply for service and maintenance.
Features:

Push-fit Technology creates reliable, leak-free connections
Used to isolate the supply for service and maintenance
Quarter turn to open or close

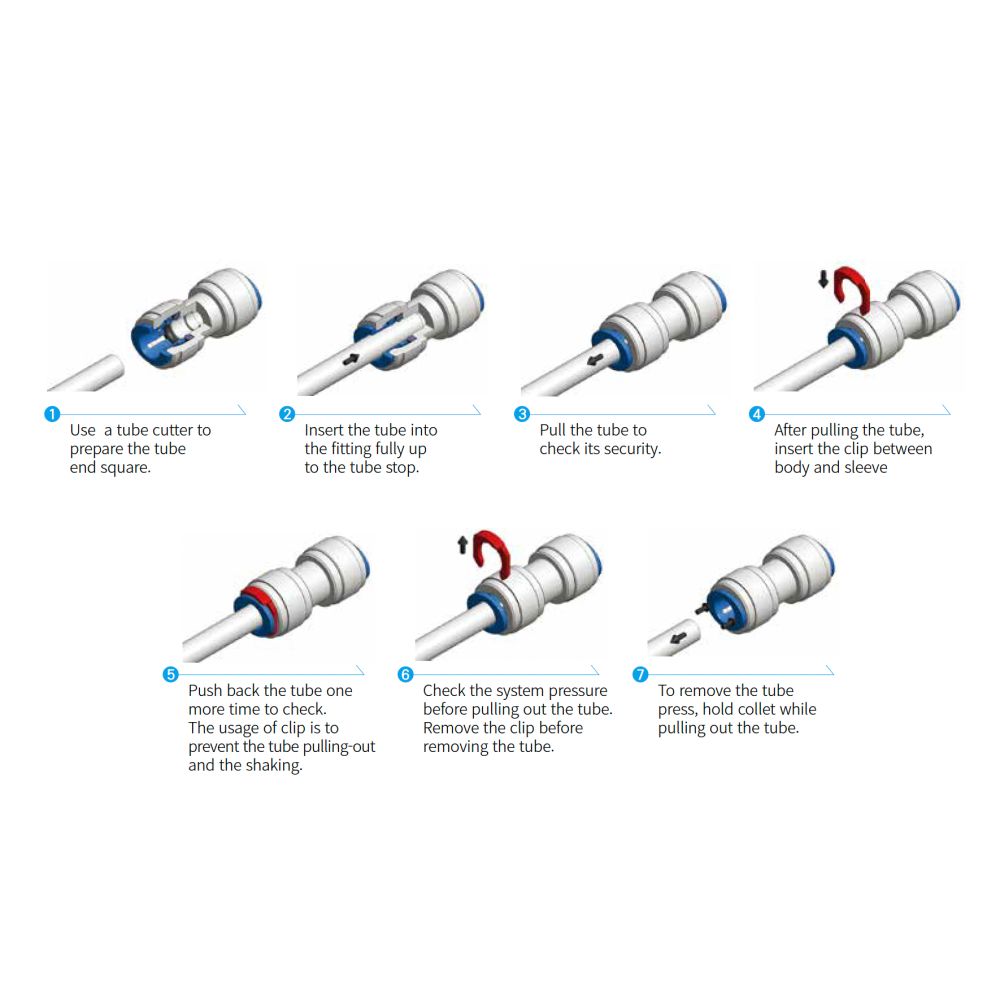

Connect, disconnect, and reconnect in seconds without tools
Compatible with plastic or copper OD sized tubing
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring

Note: Not suitable for compressed air and vacuum applications

Fittings Comparison: Acetal Gray

Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp	DM Fit: Working PSI @ Temp
1/4"	290psi @ 68F/ 232psi @ 150F	230psi @ 68F/ 150 psi at 150F	230psi @ 68F/ 100 psi at 150F
3/8"	232psi @ 68F/ 203psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
1/2"	203psi @ 68F/ 116psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified

Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque
1/4"	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)
3/8"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)
1/2"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)

Documents

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
