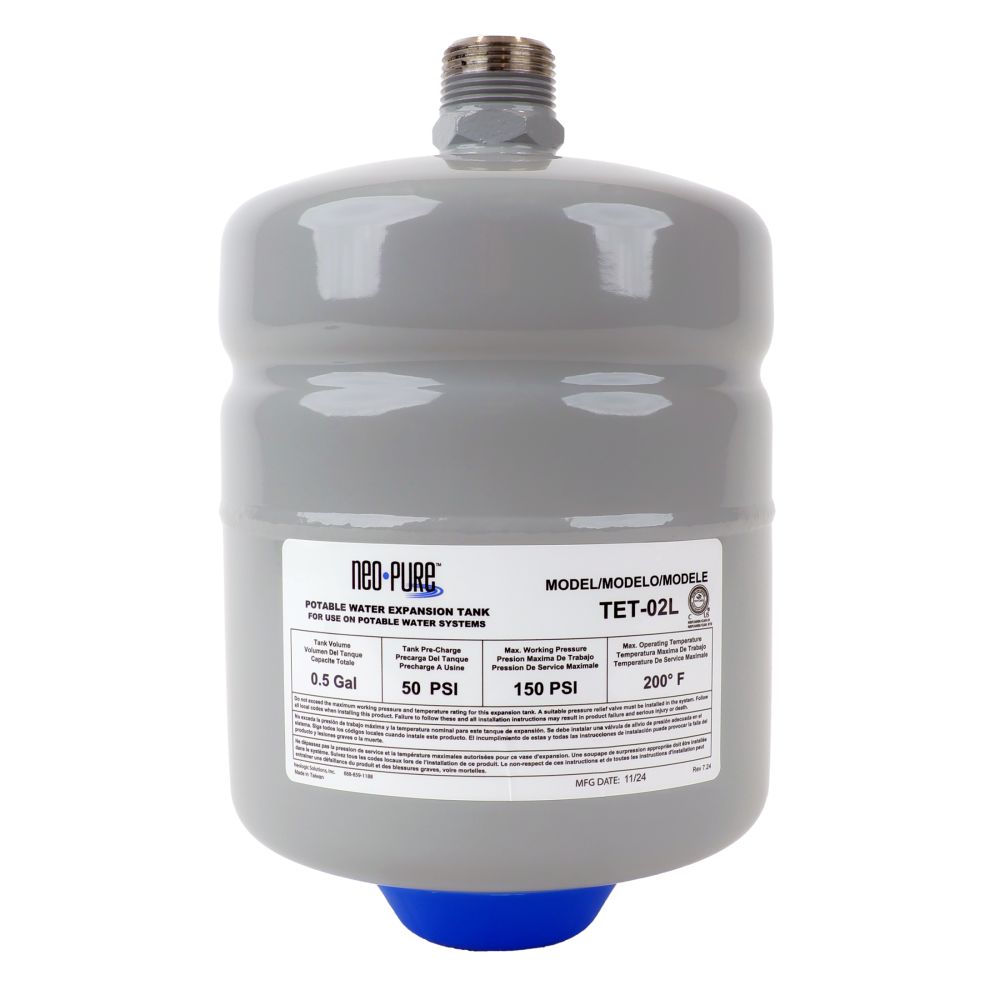

Neo-Pure Thermal Expansion Tank 0.52 gal (2 Liter) 3/4 MNPT - Gray

Neo-Pure Thermal Expansion Tank 0.52 gal (2 Liter) 3/4 MNPT - Gray

TET-02L

Log in to see price
Shipping calculated at checkout.

In stock

Choose:
The Neo-Pure Thermal Expansion tanks are designed for residential water heater and hot water storage tank systems to manage the increased water volume caused by thermal expansion. By maintaining consistent pressure throughout the water supply system, these tanks help protect against over-pressure conditions and extend the life of the system. A durable internal membrane separates air and water, ensuring reliable performance over time. Thermal Expansion Tanks are the perfect solution for protecting your appliances, water heater, and fixtures.

Features
  • Protects the water heater and plumbing fixtures from premature failure
  • Prevents pressure build up within the system


QUICK SIZING CHART
Maximum Water Temperature
Water Heater Size/Volume 130º F 140º F 160º F 180º F
30 GALLONS TET-021 TET-021 TET-021 TET-021
40 GALLONS TET-021 TET-021 TET-021 TET-021
50 GALLONS TET-021 TET-021 TET-021 TET-048
60 GALLONS TET-021 TET-021 TET-021 TET-048
80 GALLONS TET-021 TET-048 TET-048 TET-048
100 GALLONS TET-048 TET-048 TET-048 TET-090
120 GALLONS TET-048 TET-048 TET-048 TET-090
150 GALLONS TET-048 TET-048 TET-090 TET-090
175 GALLONS TET-048 TET-090 TET-090 TET-090

Sizing based on water heater recovery from 40F, water supply pressure of 60 PSIG, and relief valve set at 150 PSIG. Adjust tank precharge to equal incoming water pressure.

Diagram showing a water heater, boiler, and a thermal expansion tank (TET-02L) installed to prevent unsafe pressures and dripping relief valves
Close ups of the bottom and top of the thermal expansion tank next to a water heater. The tank prevents pressure build up
Diagram showing how water enters a water heater and where the thermal expansion tank is in the process

Documents

Neo-Pure Thermal Expansion Tank 0.52 gal (2 Liter) 3/4 MNPT - Gray Manual
