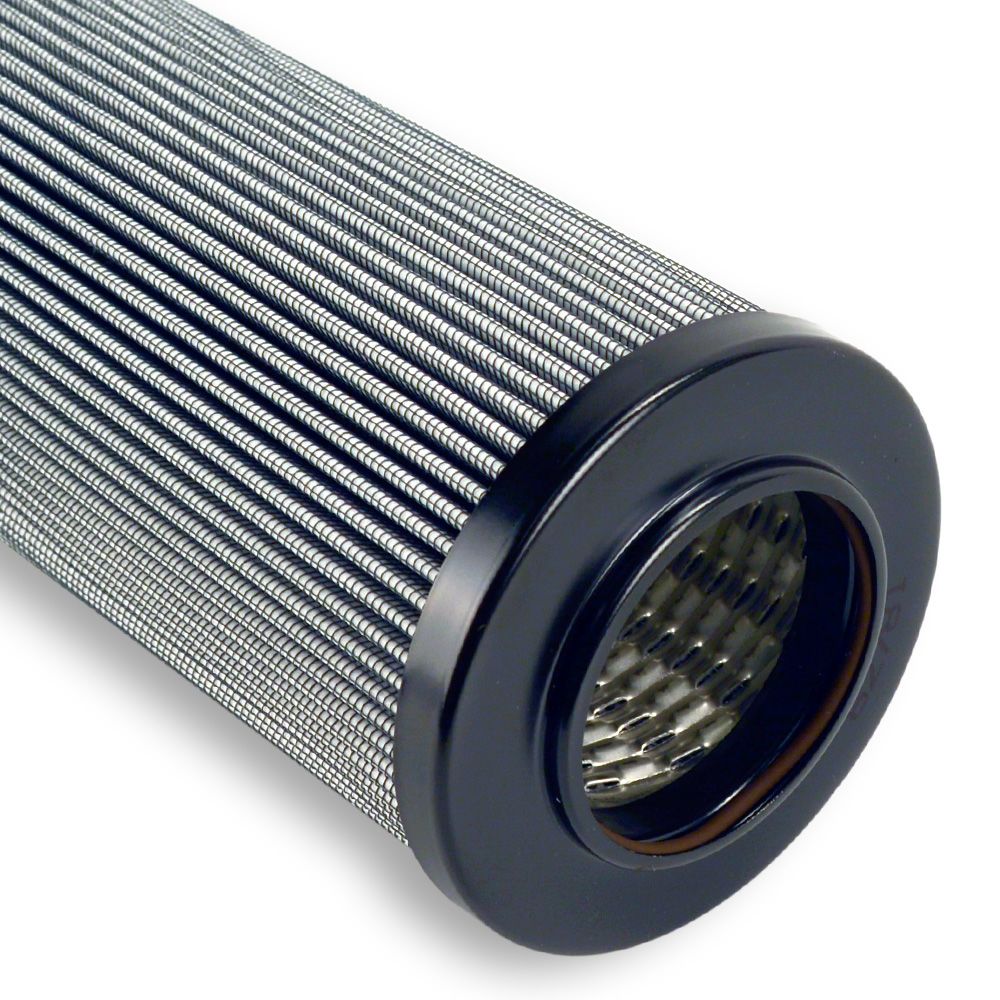

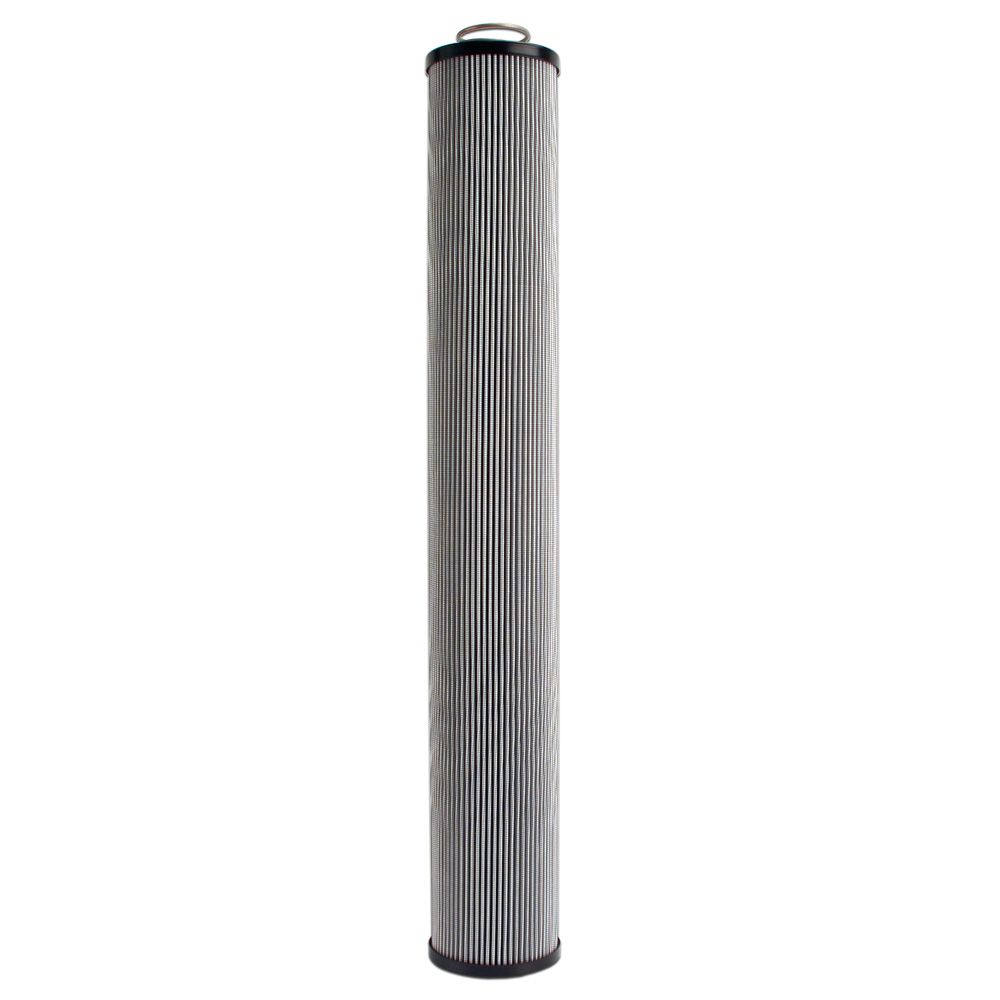

Neo-Pure HYL426-12VS HYL Series Hydraulic & Lubrication Filter

The Neo-Pure HYL Series Hydraulic and Lubrication Filters are designed for a variety of oil and hydraulic fluid filtration applications and are manufactured the USA. The HYL426-12VS is constructed out of carbon steel and contains multi-layer dual phase microglass pleated media designed to handle high flow rates. HYL Series filters are ISO 16889 and Dynamic Filter Efficiency Tested.

Specifications:

• Multi-layer dual phase microglass pleated media
• High flow rates, low pressure drop and stable Beta x[c] rated efficiencies
• Micron Rating: Beta 12[c] >= 1000
• Max Temperature: 250°F

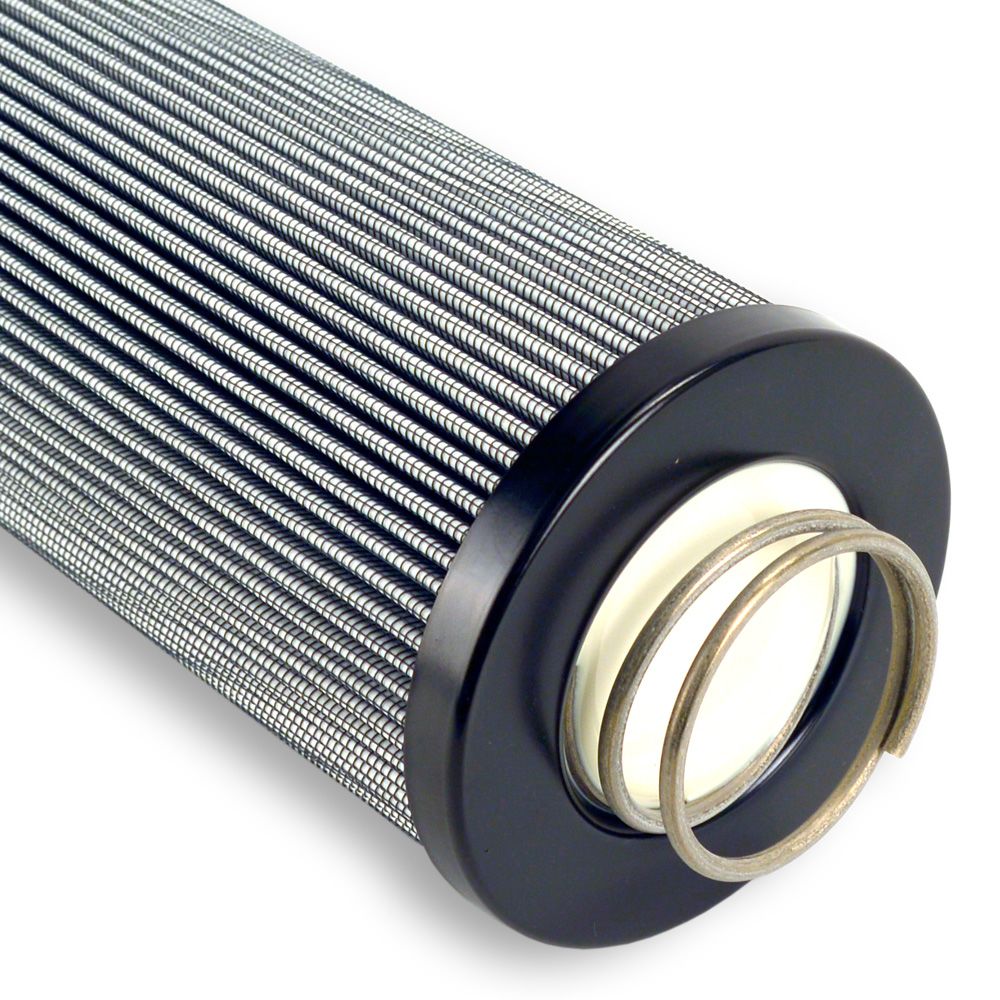

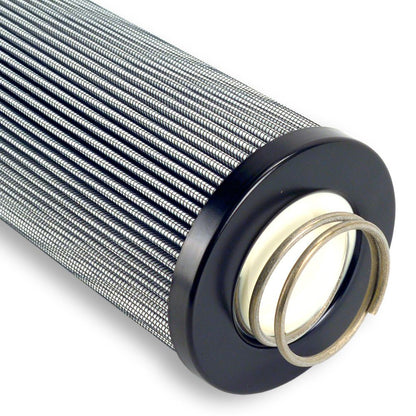

• Viton O-ring seal with external hold-down spring
• Made in the USA

Compatible with the following filters:

• GE: 328A8836P003, 358A8836P001
• Hilco: PH426-01-CG1V, PH426-11-CG1V
• Hycoa: V2640120V1
• Hy-pro: HPQ20228-12MV
• National Filter: 2200A2, 2200FE, P4260120PC17
• National Filtration: 2200A3, REP, HF12426-1-7, HF06426-1-7
