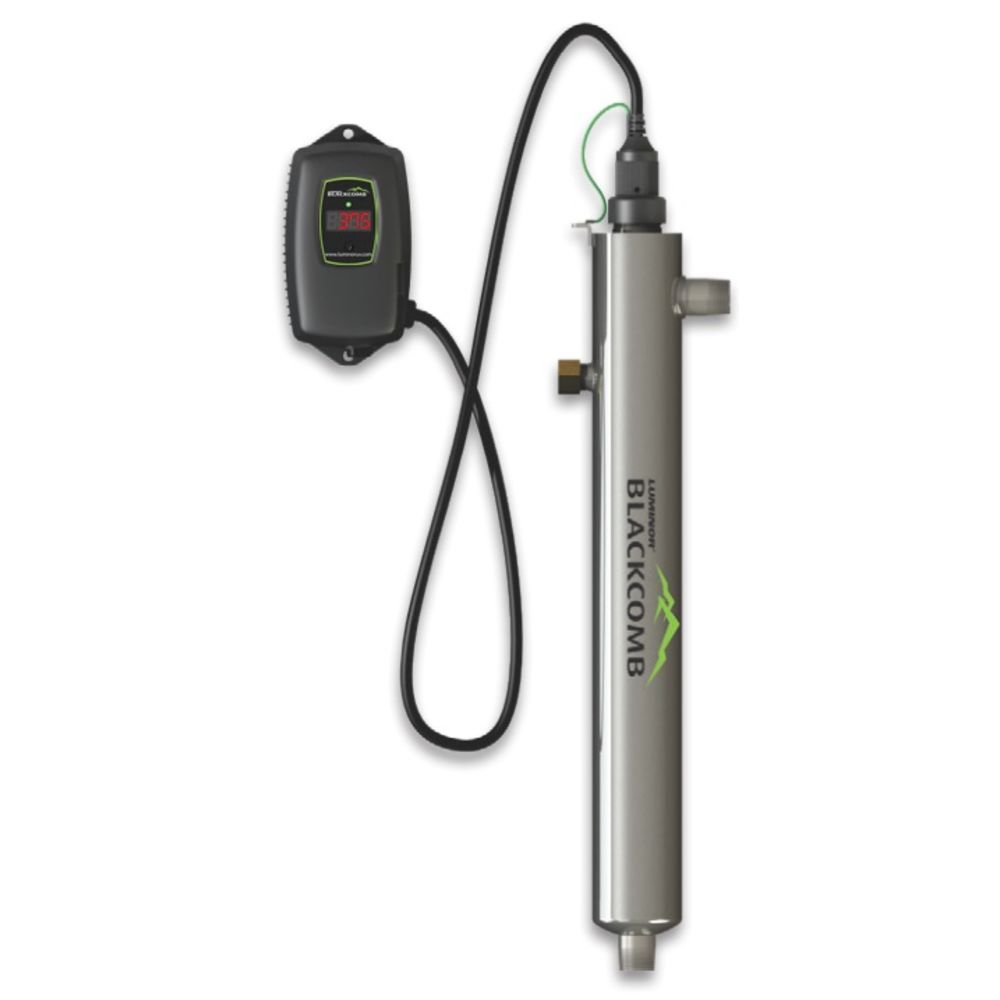

Luminor Blackcomb 4.1 UV System LB4-061 - 5.8 GPM LP System, 3/4" MNPT ports, 110V./50-60Hz

The Luminor Blackcomb 4.1 UV System LB4-061 is the mainstay of the home water treatment products. Simplicity and ease of operation were the fundamental design criteria in the creation of Blackcomb.

Features:

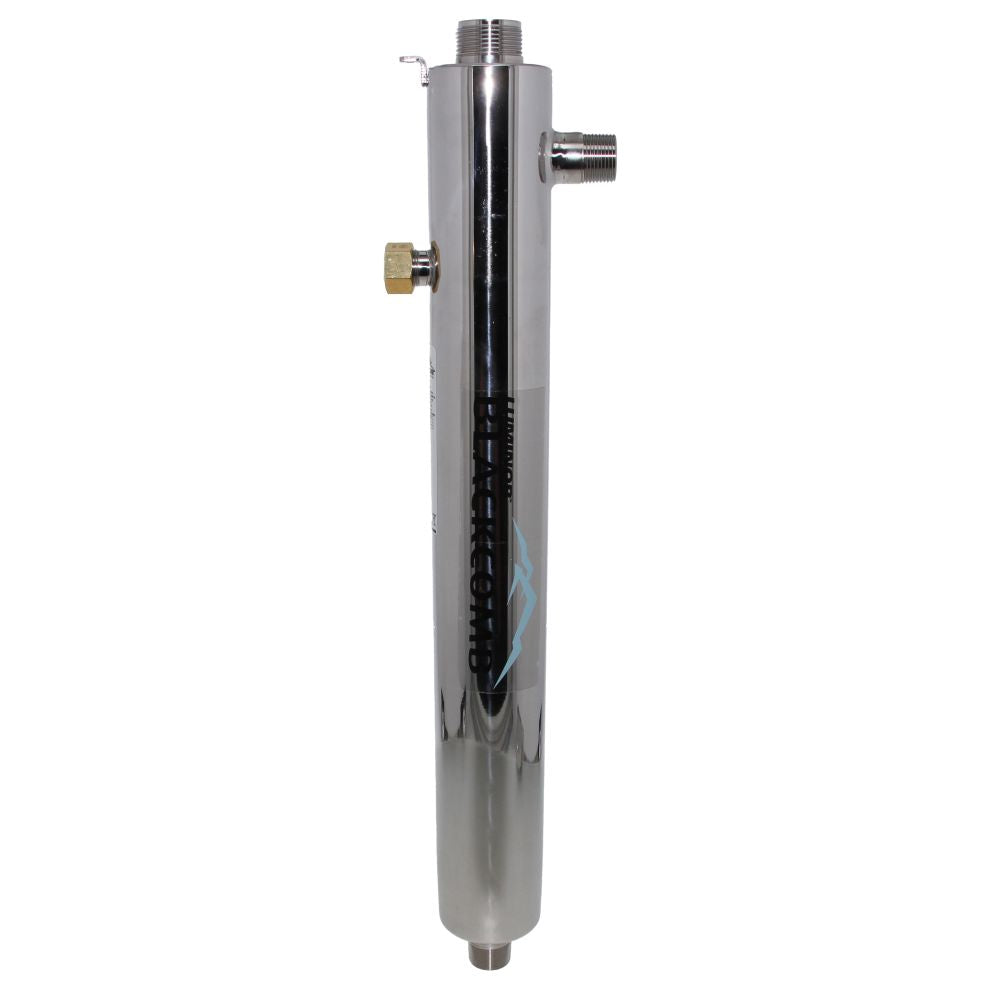

• Rugged 304 stainless steel, single-end reactors. Designed & manufactured to ASME pressure vessel standards allow for easy lamp change without the need to drain the reactor chamber as in competitive systems.

• Bayonet style lamp connector. Allows for easy lamp change without the need for additional tools.

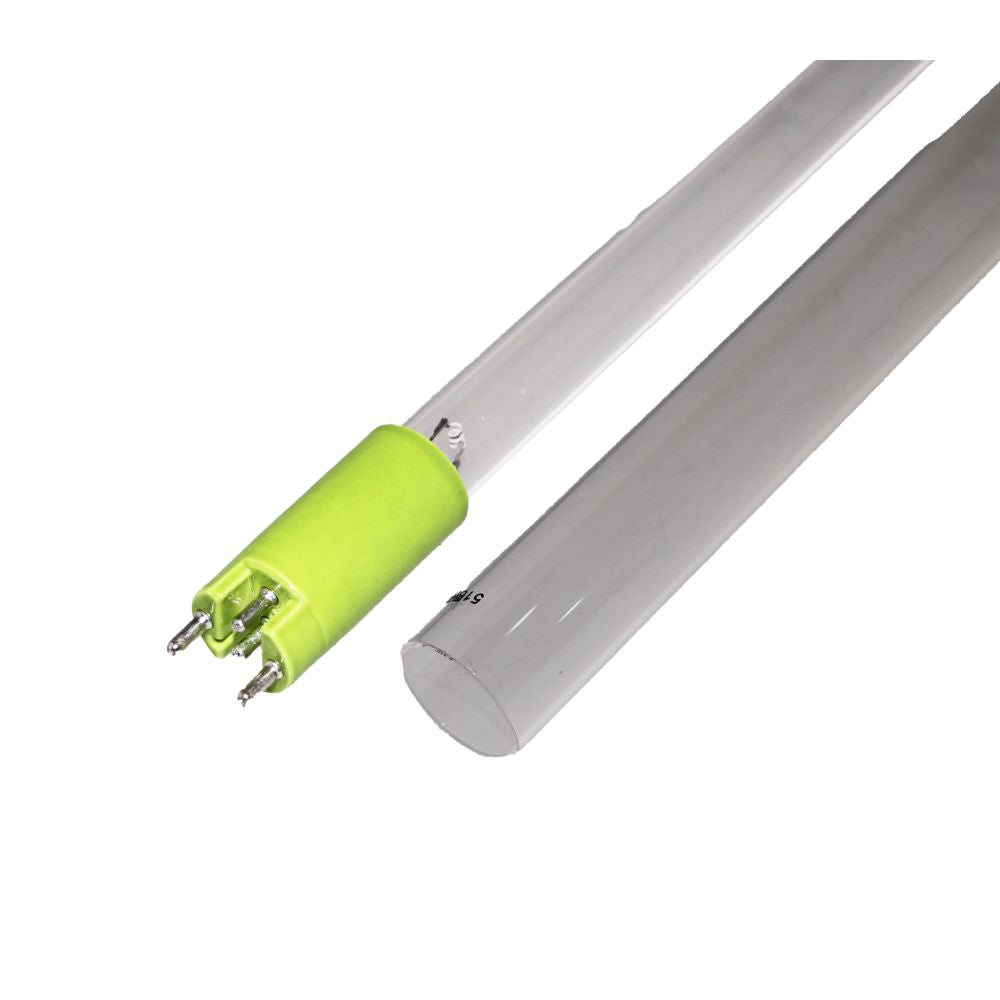

• Low pressure (LP) coated UV lamps. Used offering a consistent output over their 9,000 hour rated life.

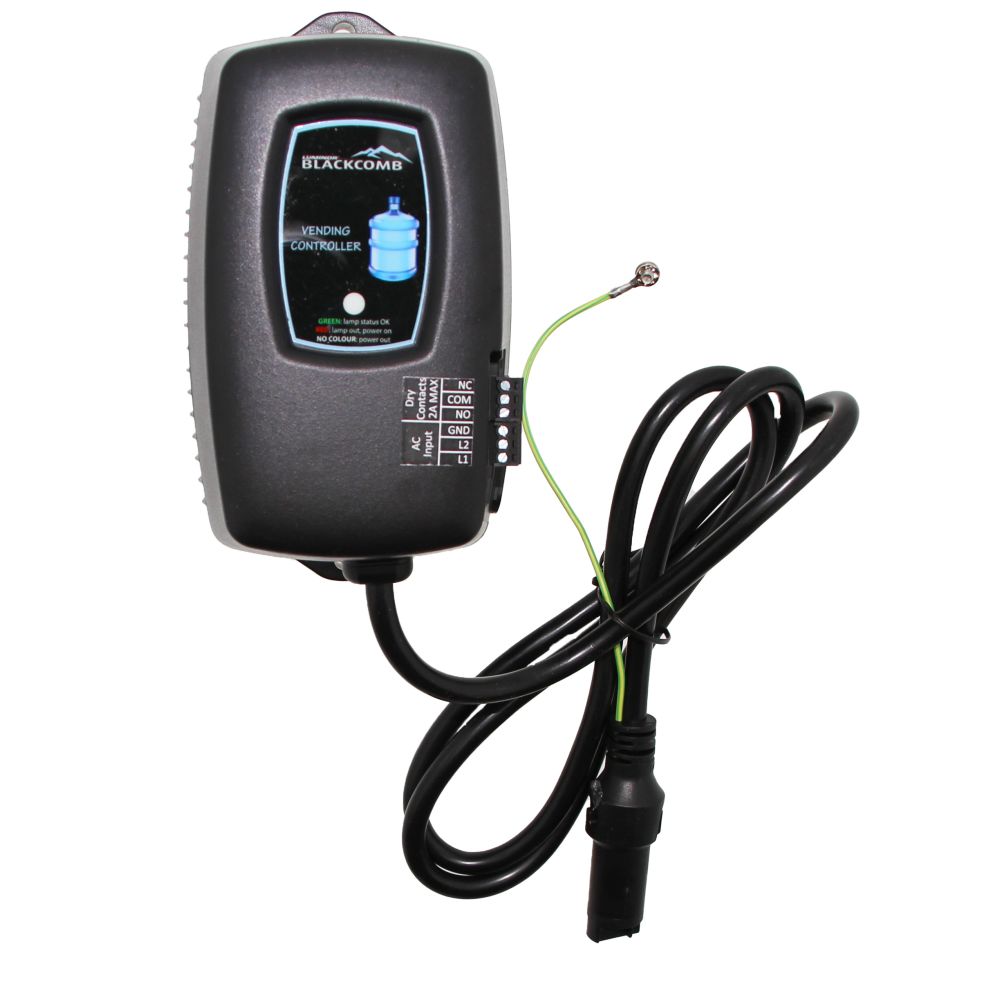

• Audible and visual lamp failure indicators. The Blackcomb controller houses a constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case.

Specifications:

• Port Size: 3/4" MNPT
• Flow Rate*: 5.8 gpm
• Electrical: 110V / 50-60Hz
• Lamp Watts: 22
• Max Operating Pressure: 10 bar (150 psi)
• Operating Temperature Range: 36-104° F (2-40° C)

*Please Note: Flow Rate @ 30 mJ/cm² - Flow rate for a given dose is calculated based on system output at end of lamp life in water with 95% UVT

Luminor Blackcomb UV Systems

Model	LB4-061	LB4-101	LB4-201	LBH4-251 (High Output)	LBV-061 (Vending)
Flow Rate	5.8 gpm	11 gpm	21 gpm	25 gpm	6 gpm
Port Size	¾" MNPT	¾" MNPT	1" MNPT	1" MNPT	¾" MNPT
Electrical	110-230V	110-230V	110-230V	110-230V	110-230V
Lamp Watts	22	39	42	67	22
Max Operating Pressure	150 psi	150 psi	150 psi	150 psi	150 psi
Operating Temp. Range	36-104° F	36-104° F	36-104° F	36-104° F	36-104° F
