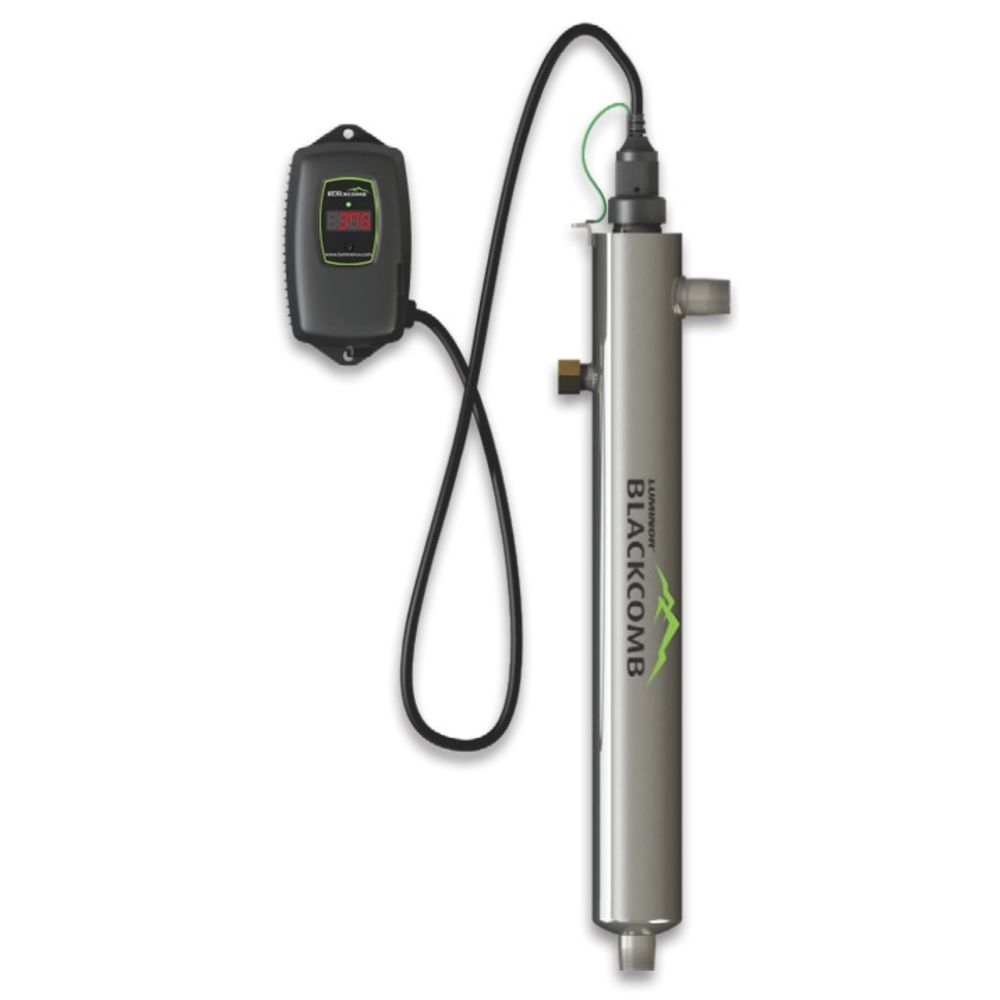

Luminor Blackcomb 4.1 High Output UV System LBH4-251 - 25 GPM LP-HO System, 1" MNPT ports, 110V./50-60Hz

The Luminor Blackcomb 4.1 High Output UV System LBH4-251 is classified as a "Residential Crossover" UV water treatment system. Not only would this product bode well in a large custom home or lodge, but it could also be used in many of those same applications as is outlined in the light commercial market segment.

Features:

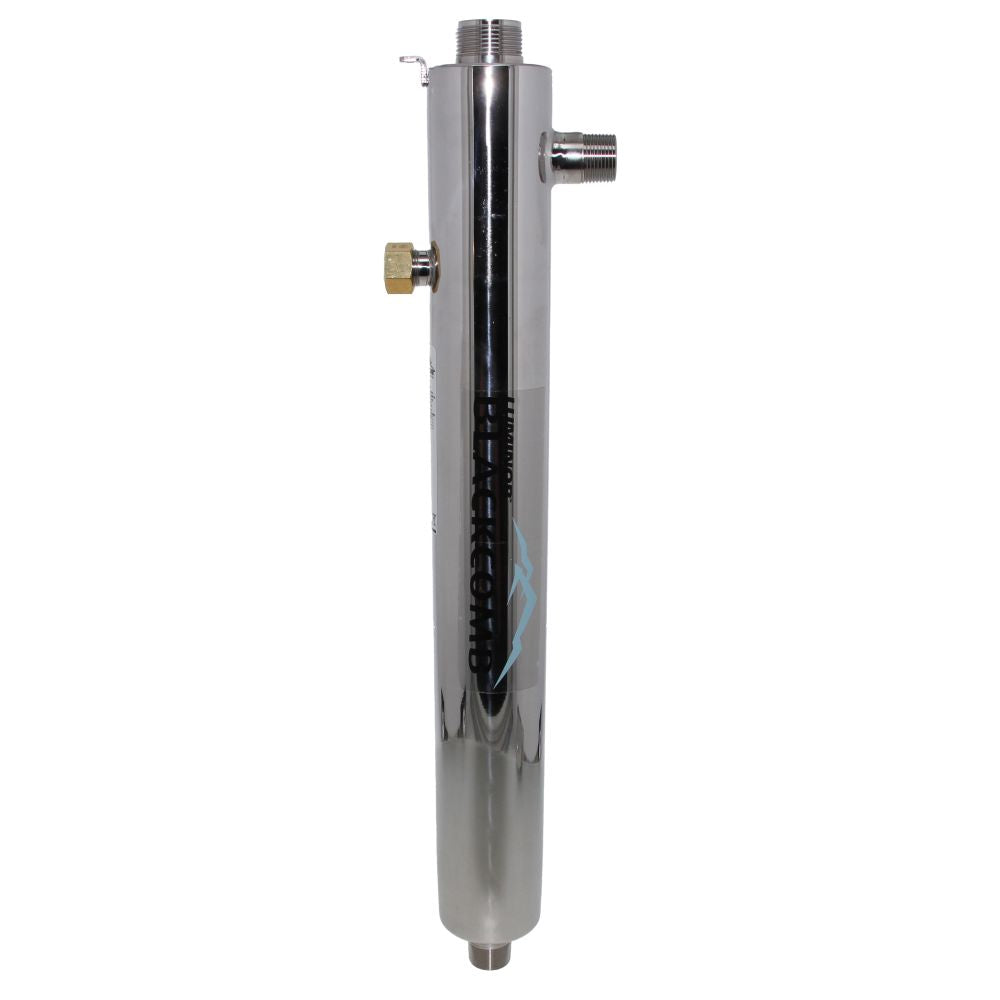

• Commercial grade axial flow 316L stainless steel reactors. Designed & manufactured to ASME pressure vessel standards allow for easy sleeve change without the need to drain the reactor chamber as in competitive systems.

• Bayonet style lamp connector. Allows for easy lamp change without the need for additional tools.

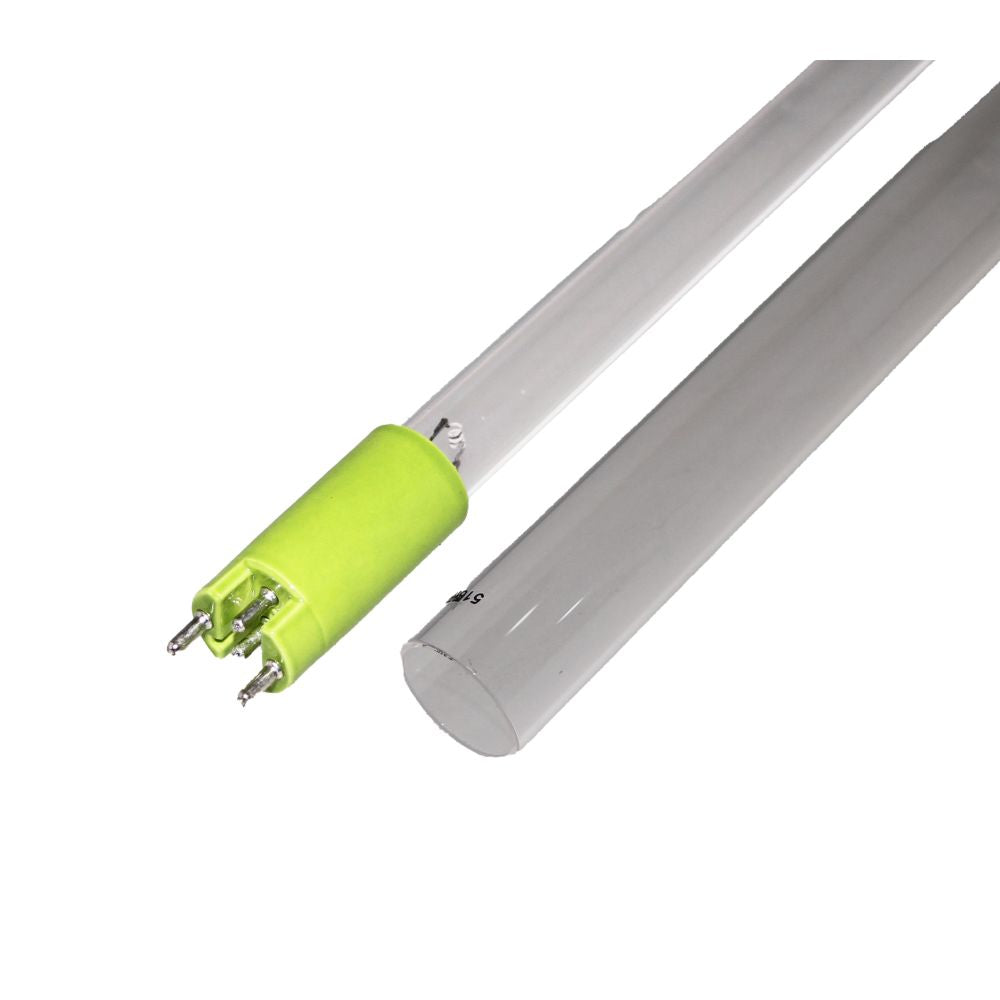

• Increased power density. Incorporates low pressure, high-output (LP-HO) coated UV lamps offering a consistent output over their 10,000 hour rated life

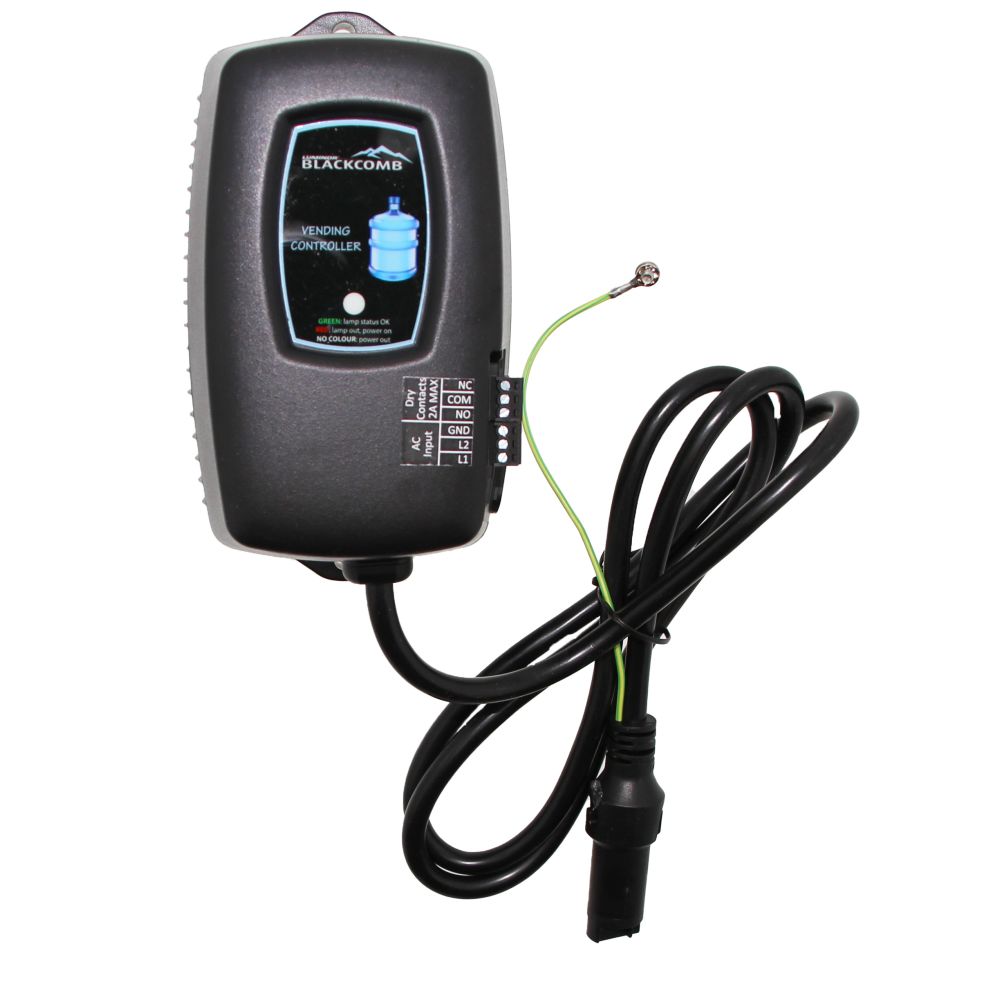

• Audible and visual lamp failure indicators. The Blackcomb controller houses a constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case.

Specifications:

• Port Size: 1" MNPT
• Flow Rate*: 25 gpm
• Electrical: 110V / 50-60Hz
• Lamp Watts: 67
• Max Operating Pressure: 10 bar (150 psi)
• Operating Temperature Range: 36-104° F (2-40° C)

*Please Note: Flow Rate @ 30 mJ/cm² - Flow rate for a given dose is calculated based on system output at end of lamp life in water with 95% UVT

Luminor Blackcomb UV Systems

Model	LB4-061	LB4-101	LB4-201	LBH4-251 (High Output)	LBV-061 (Vending)
Flow Rate	5.8 gpm	11 gpm	21 gpm	25 gpm	6 gpm
Port Size	¾" MNPT	¾" MNPT	1" MNPT	1" MNPT	¾" MNPT
Electrical	110-230V	110-230V	110-230V	110-230V	110-230V
Lamp Watts	22	39	42	67	22
Max Operating Pressure	150 psi	150 psi	150 psi	150 psi	150 psi
Operating Temp. Range	36-104° F	36-104° F	36-104° F	36-104° F	36-104° F
