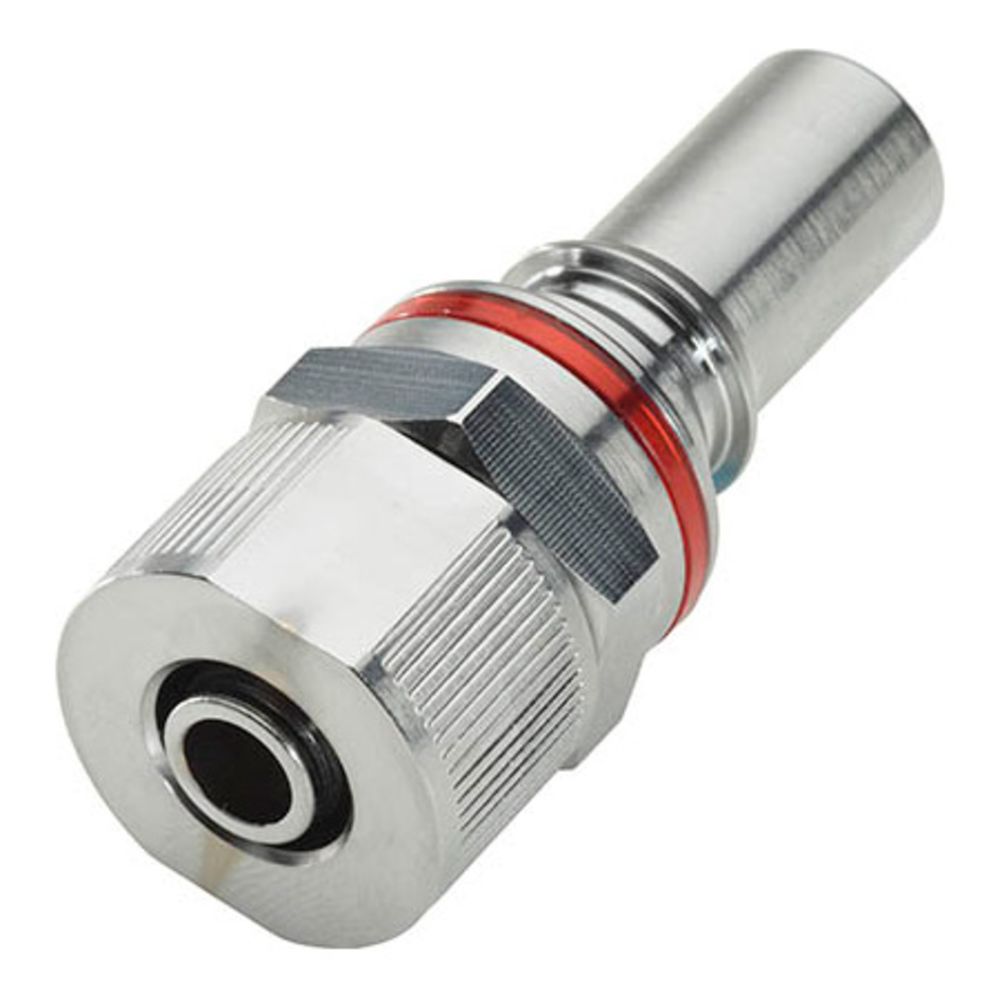

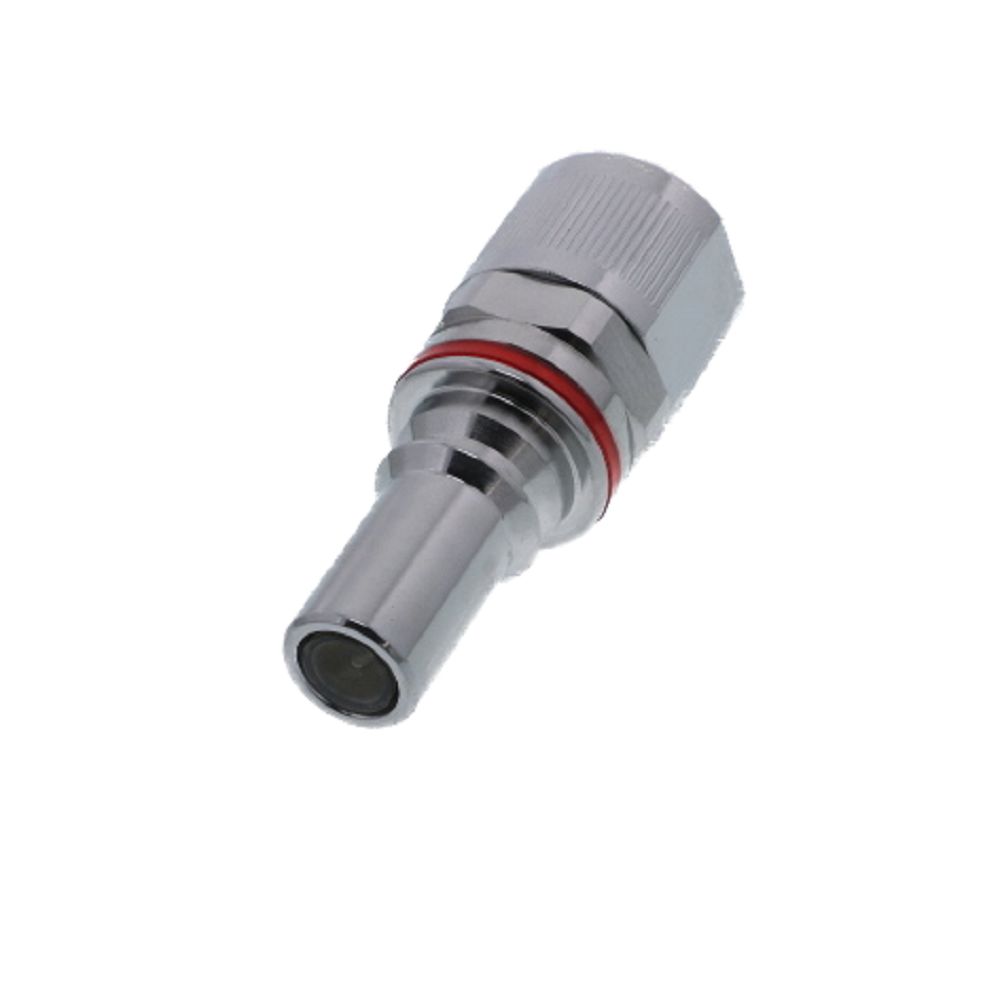

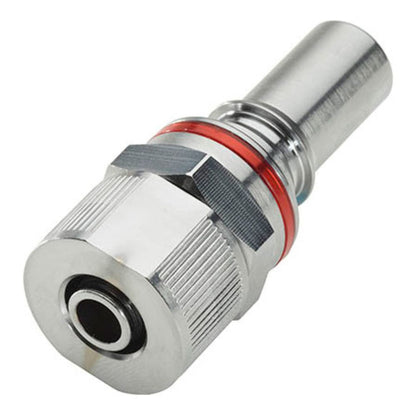

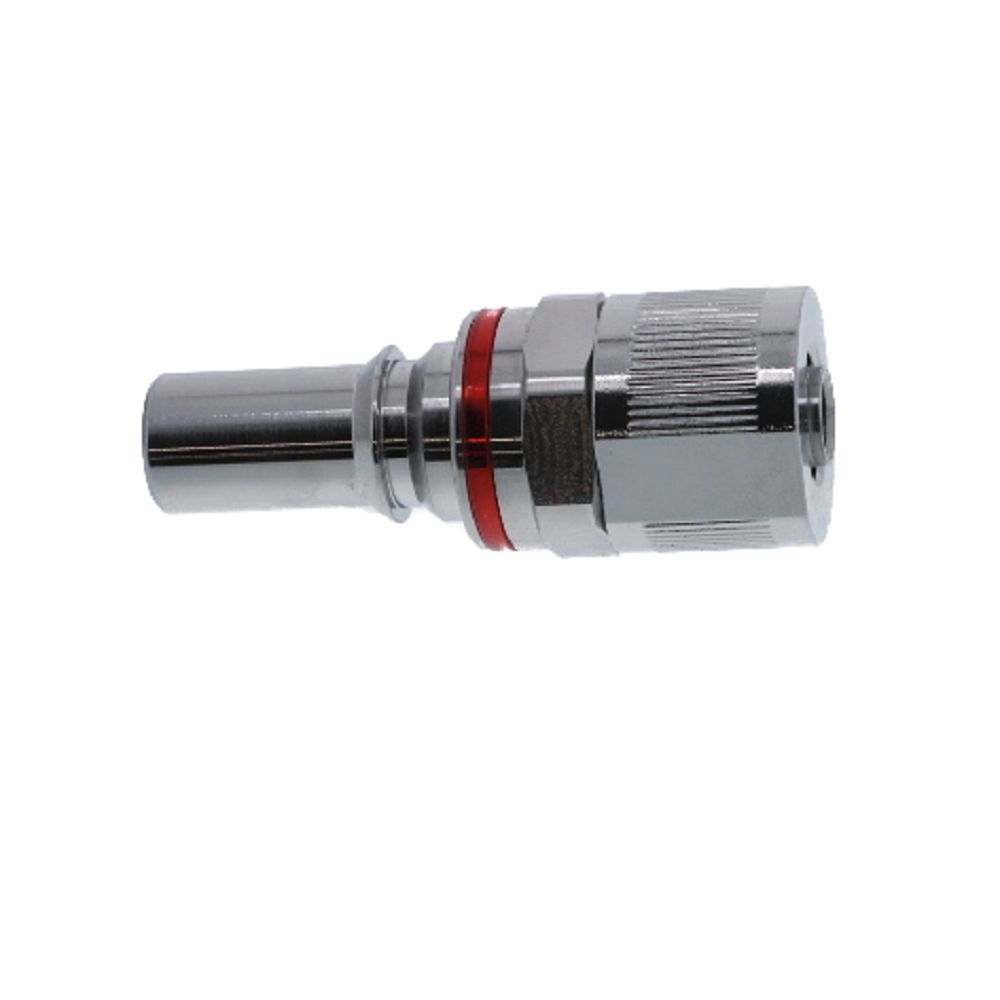

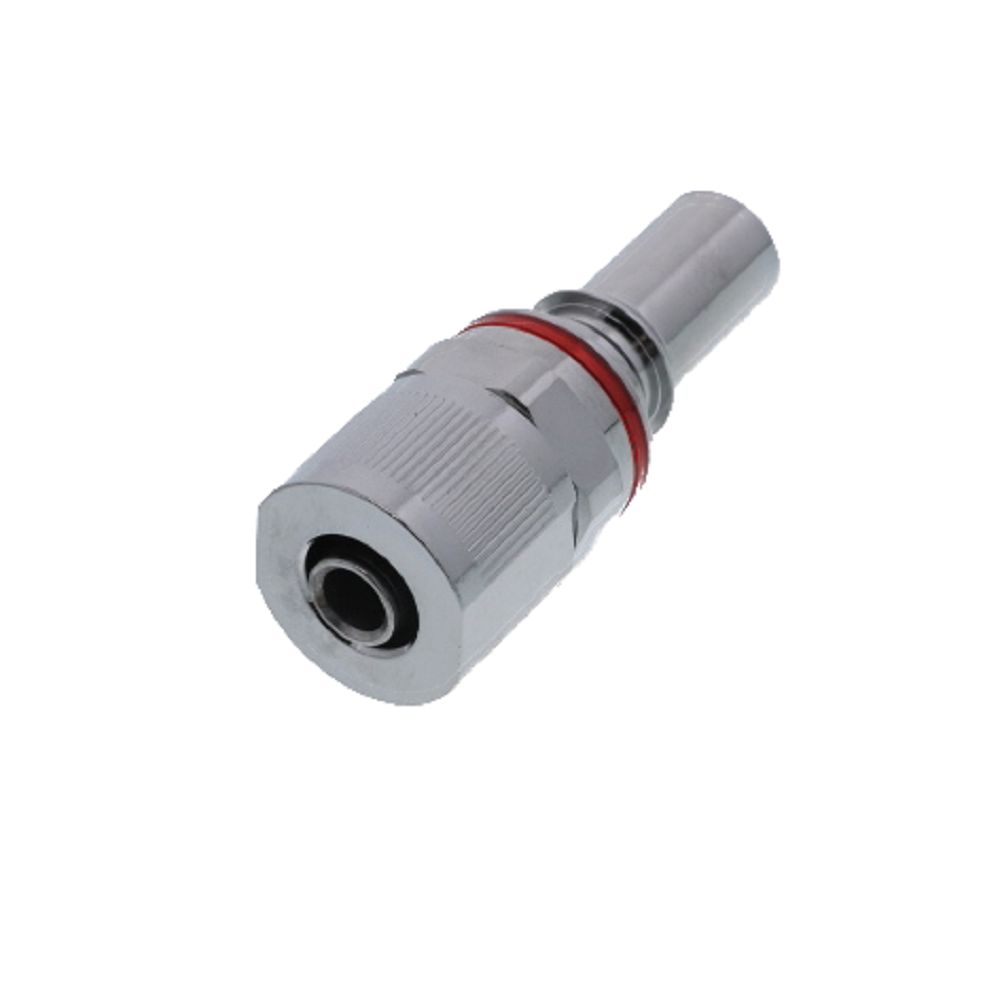

LQ6D20008RED Valved Inline PTF Liquid Cooling Coupling Insert 1/2 PTF Warm Red

Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in blue.

Specifications:

• Material: Brass
• Pressure Range: Vacuum to 120 psi, 8.3 bar
• Mounting Option: Thread
• Tubing Size: 3/8" ID, 1/2" OD
• Valve Option: Valved
• Finish: Chrome
• Color Coding: Cool Blue or Warm Red
• Temperature Range: -0ºF to 240ºF
• Max Flow at Disconnect: 4.0 gpm
• Valve Spring: 302 Stainless Steel
• Valve: Polysulfone
• Lubricants: Krytox® PFPE
• Seal Options: EPDM
• Spillage:
• <0.05 cc per disconnect (at 0 psi)
• <0.125 cc per disconnect (at 120 psi)
• Inclusion: <0.42 cc per connect
