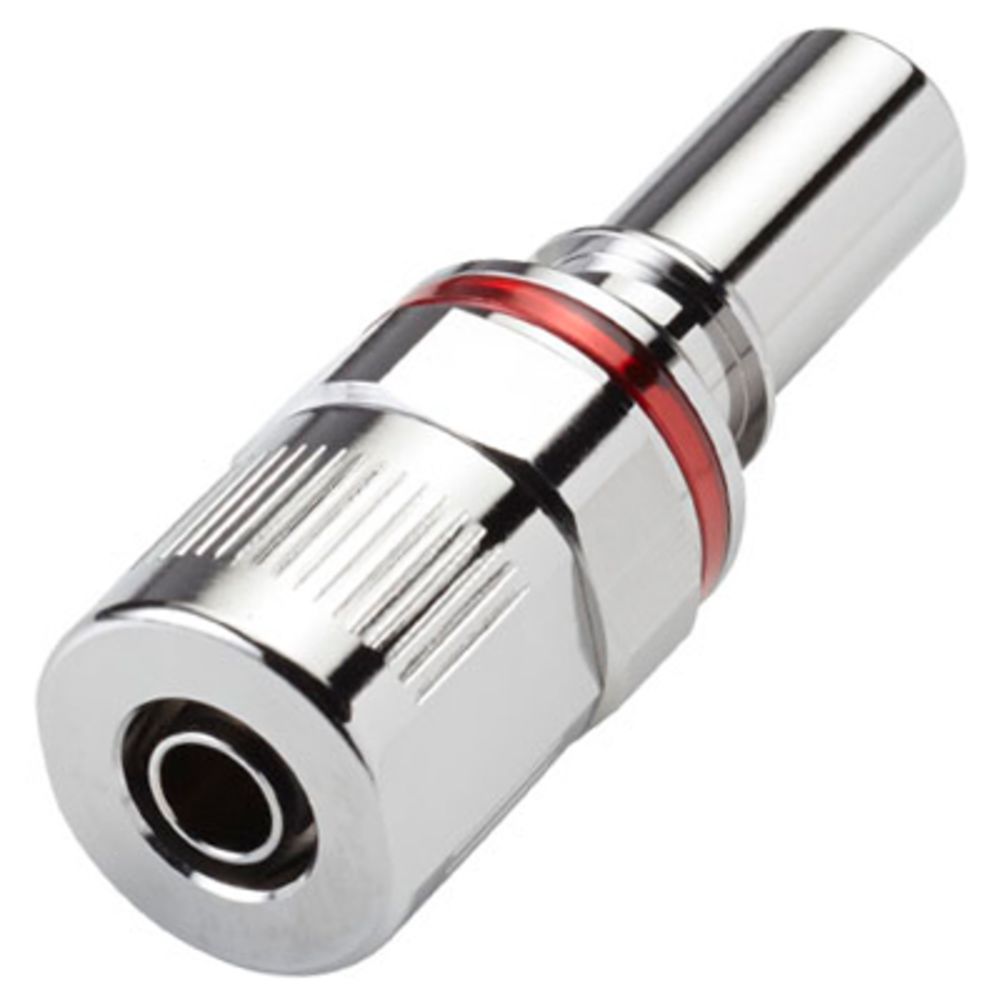

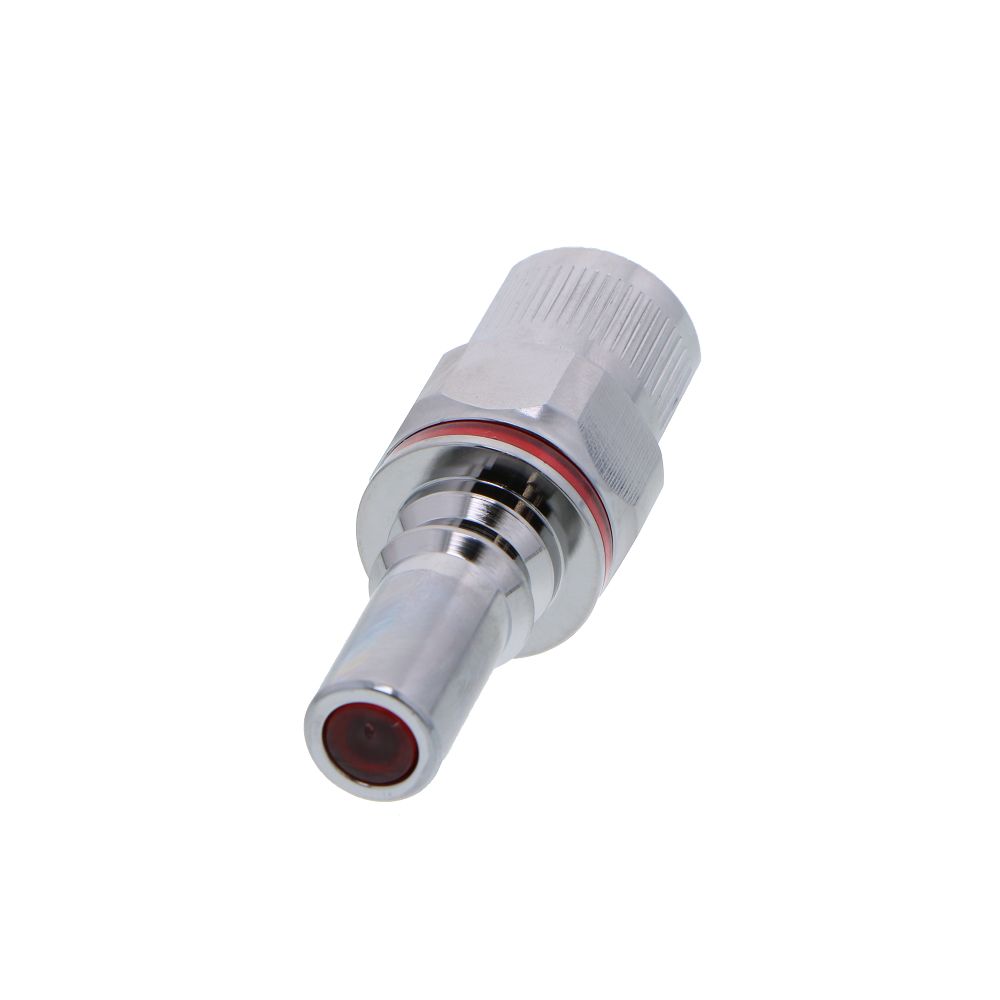

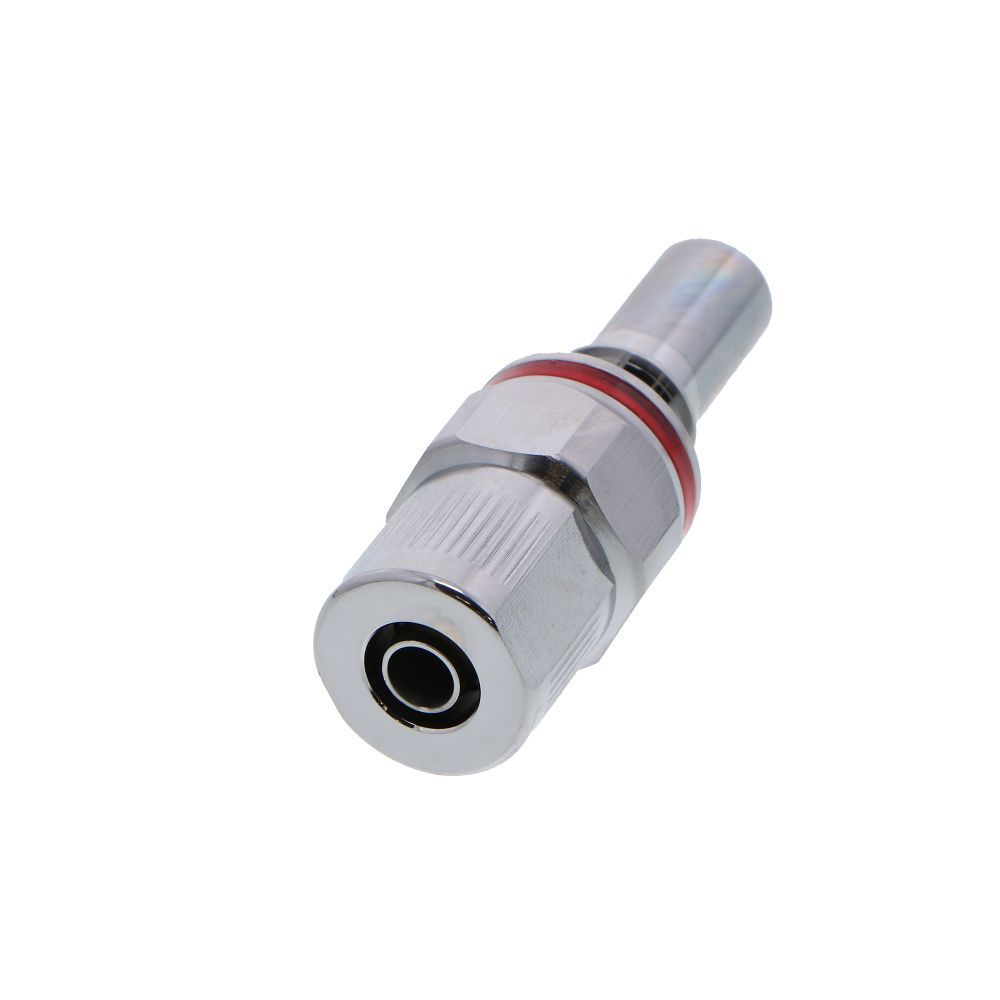

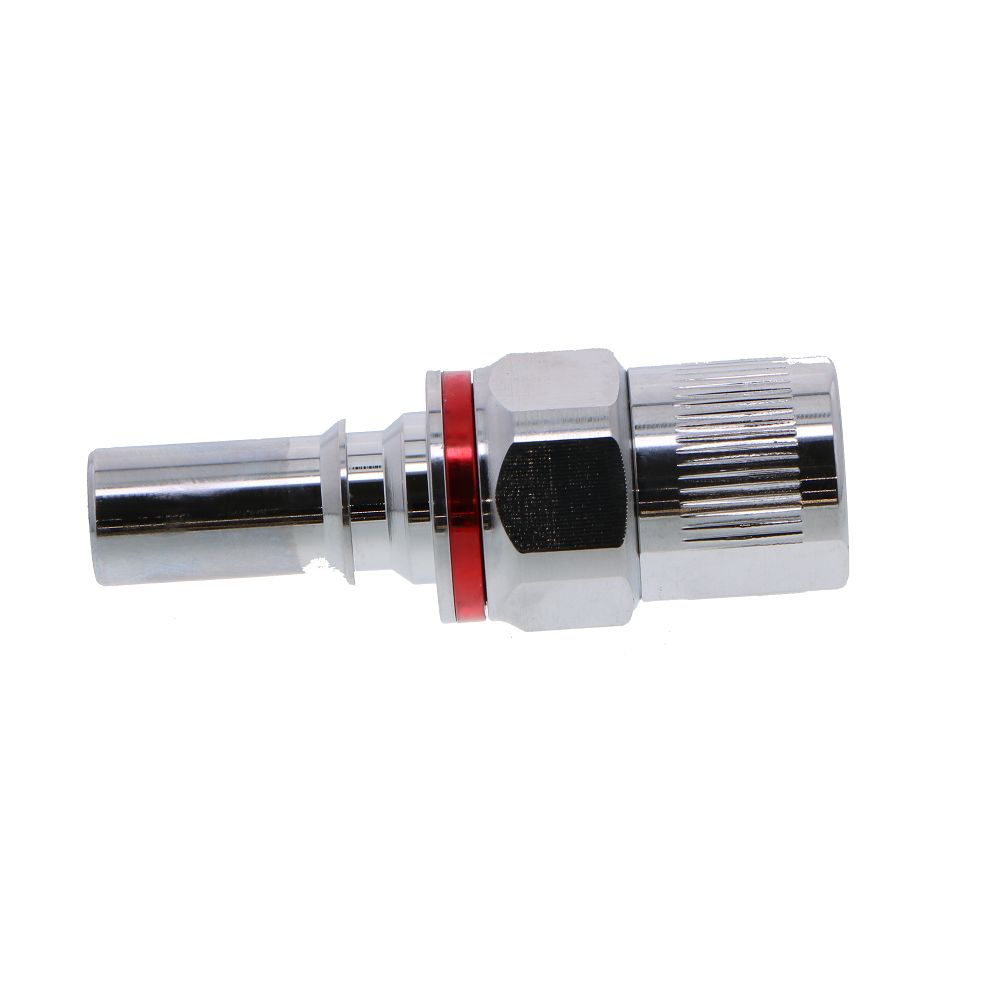

LQ4D20006RED Valved In-Line 3/8" PTF Liquid Cooling Coupling Insert Warm Red

Colder’s LQ4 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ4's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections to protect valuable electronics, even after long-term and repeated use. Also available in blue.

Specifications:

• Material: Brass
• Pressure Range: Vacuum to 120 psi, 8.3 bar
• Mounting Option: Free Floating
• Valve Option: Valved
• Finish: Chrome
• Color Coding: Cool Blue or Warm Red
• Temperature Range: -0ºF to 240ºF
• Max Flow at Disconnect: 3.0 gpm
• Valve Spring: Stainless Steel
• Valves and Thumb Latch: Polysulfone
• Lubricants: Krytox® PFPE
• Seal Options: EPDM
• Spillage:
  • <0.025 cc per disconnect (at 0 psi)
  • <0.055 cc per disconnect (at 120 psi)
• Inclusion: <0.055 cc per connect
• Tubing Size: 1/4" ID, 3/8" OD
