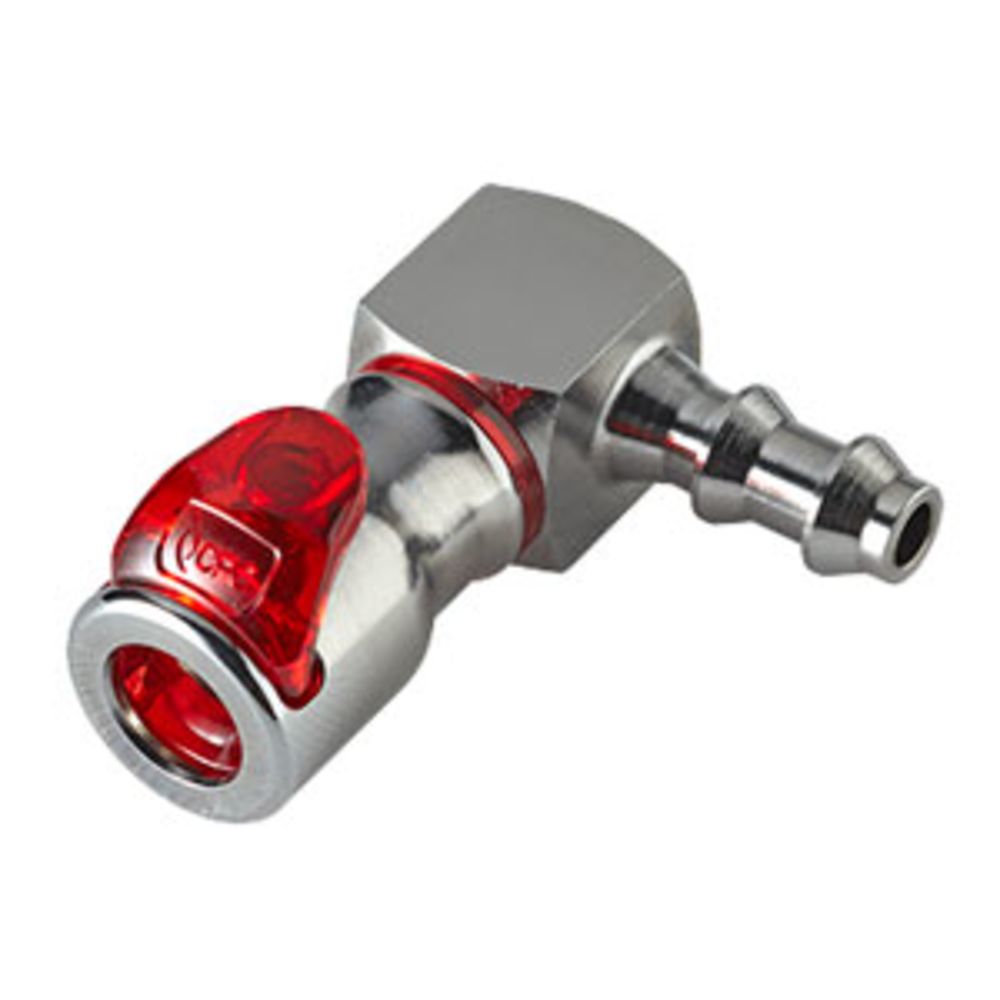

LQ2D3304LRED Valved Elbow Locking Hose Barb Liquid Cooling Coupling Body 1/4"

LQ2 Series provides ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, the LQ2 offers a high-flow capacity to optimize liquid cooling system performance. LQ2 uses CPC developed valve technology that eliminates drips and is able to withstand long-term use.

Specifications:

• Material: Brass
• Material Finish: Chrome
• Color: Chrome with warm red
• Mounting Option: Free Floating
• Pressure Range: Vacuum to 200 psi, 13.8 bar
• Temperature Range: 0°C to 240°F
• Seal Options: EPDM
• Valve Spring: Stainless Steel
• Valve Option: Valved
• Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi
