Home / Fittings & Valves / Fittings / LC23004 Elbow Hose Barb Coupling Insert 1/4 ID Barb
  • LC23004 Elbow Hose Barb Coupling Insert 1/4 ID Barb
  • LC23004 Elbow Hose Barb Coupling Insert 1/4 ID Barb
  • LC23004 Elbow Hose Barb Coupling Insert 1/4 ID Barb
1 3

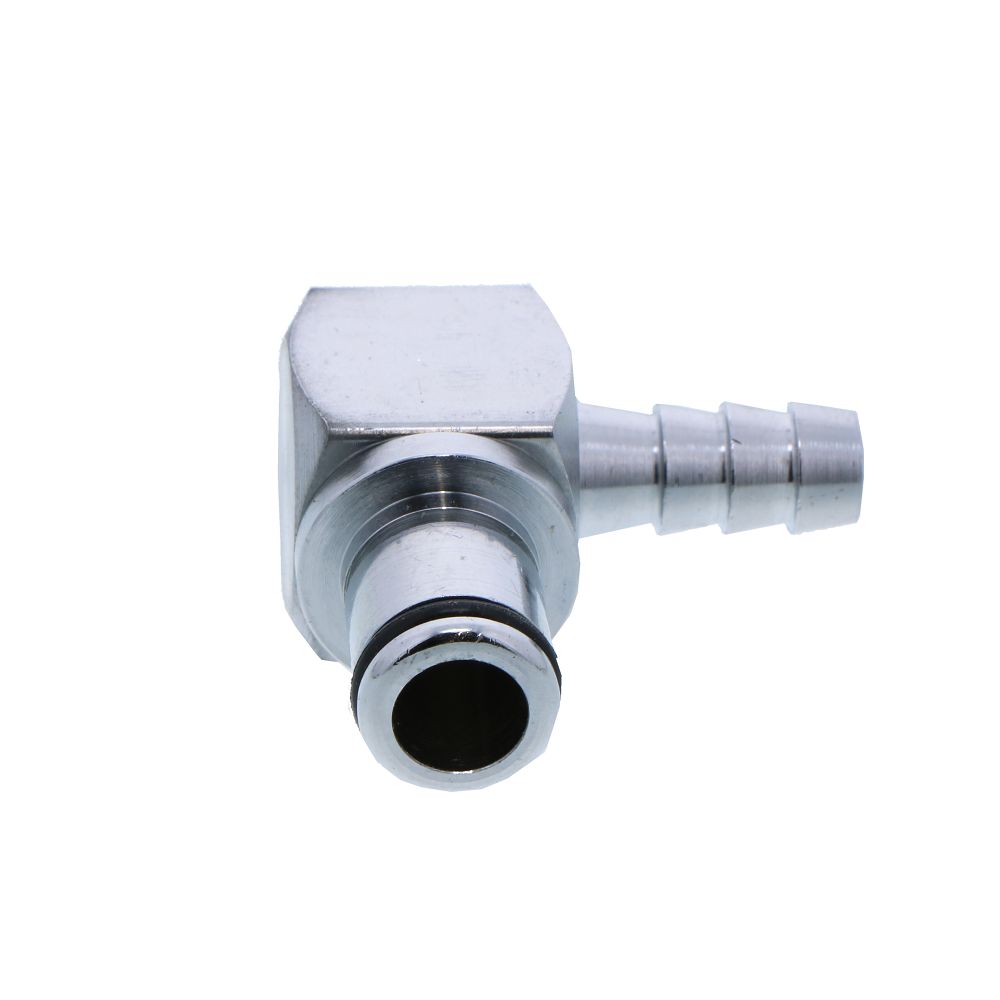

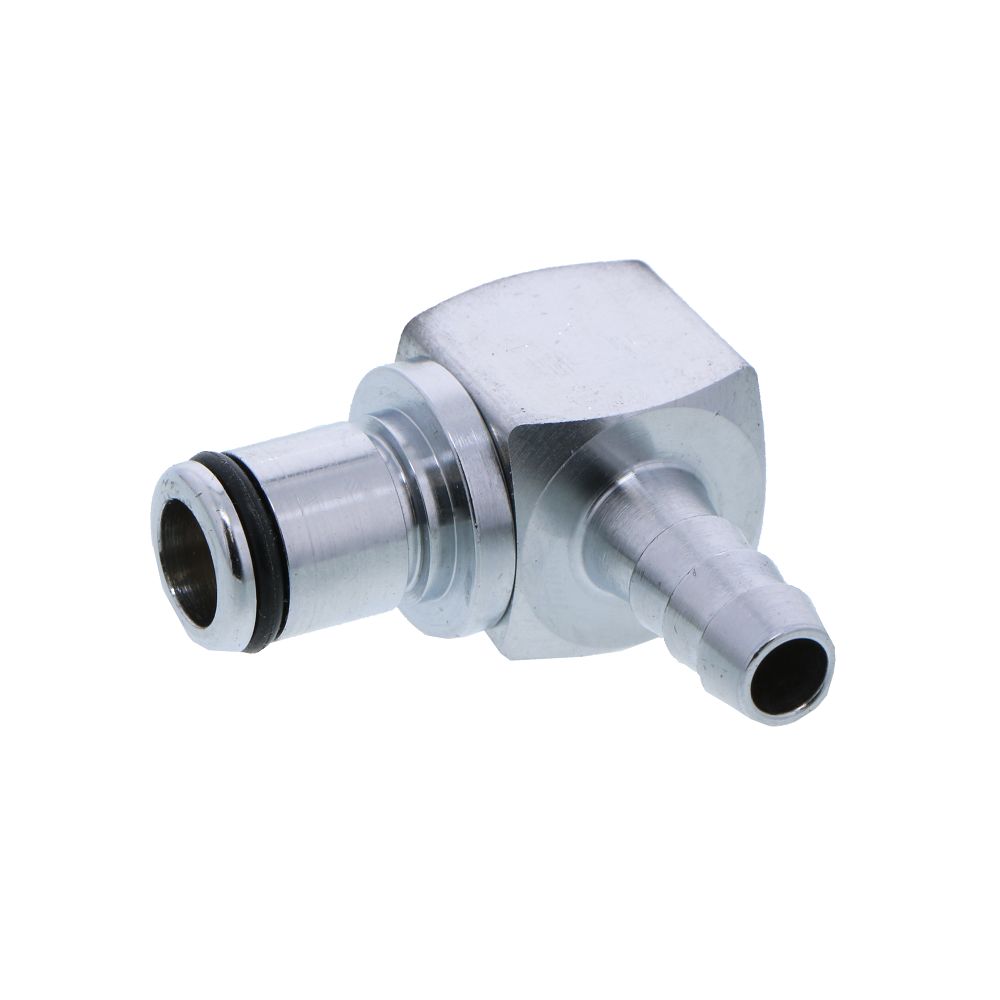

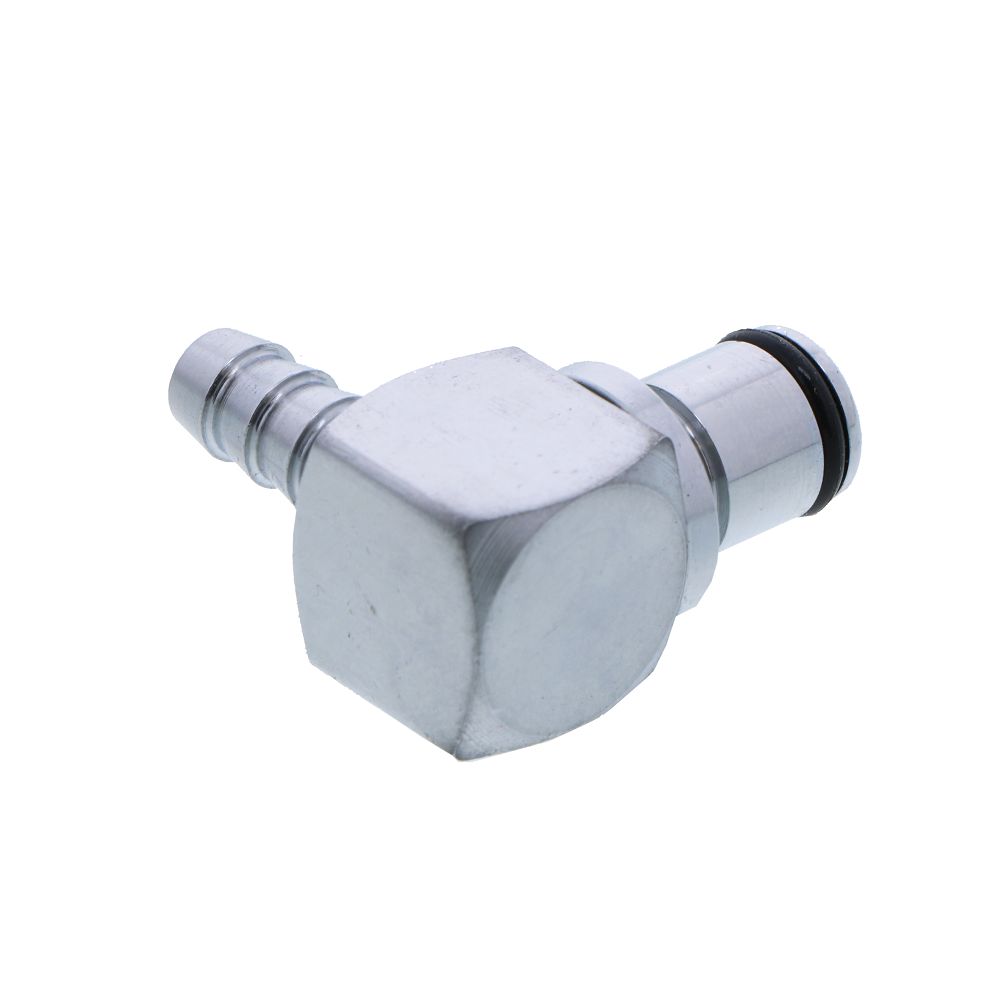

LC23004 Elbow Hose Barb Coupling Insert 1/4 ID Barb

LC23004 Elbow Hose Barb Coupling Insert 1/4 ID Barb

LC23004:10PK

Log in to see price
Shipping calculated at checkout.

In stock

Choose:
Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units
  • NSF Listed Version (part # 74400) Available Upon Request


Documents

LC23004 Elbow Hose Barb Coupling Insert 1/4 ID Barb Manual
