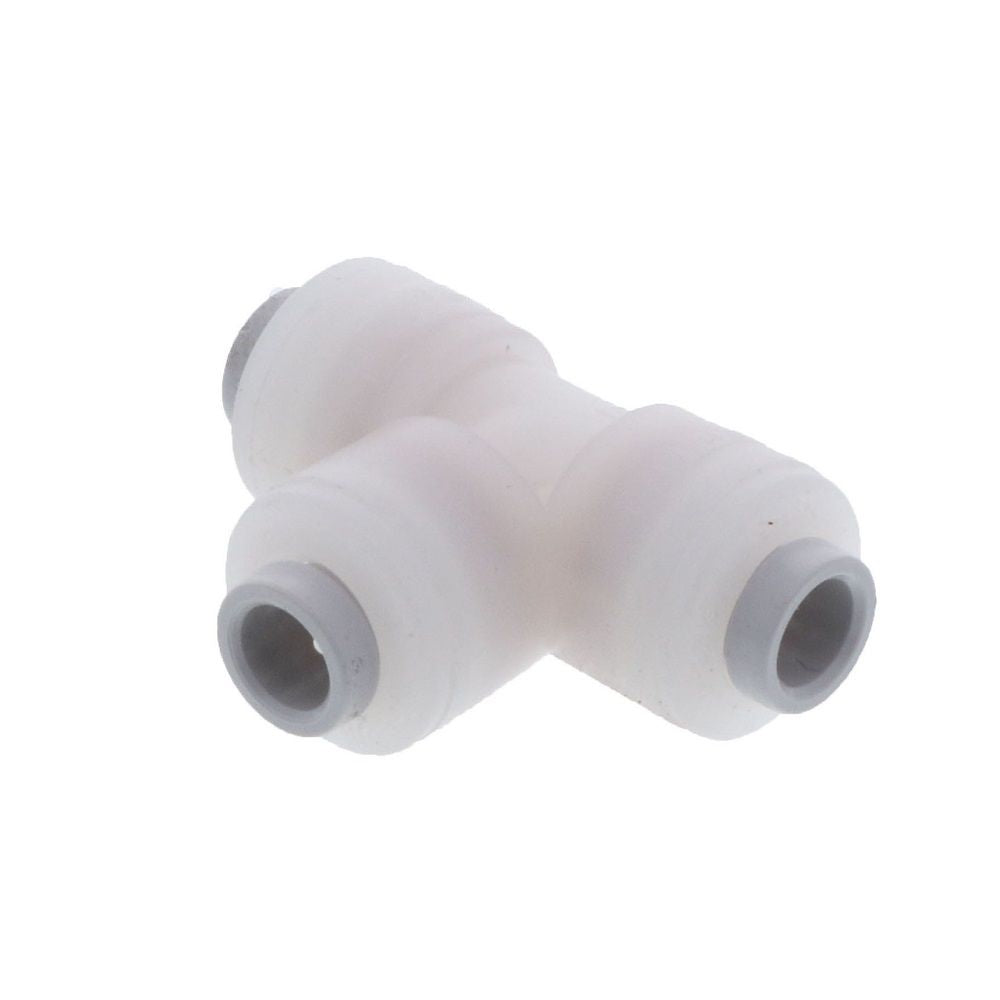

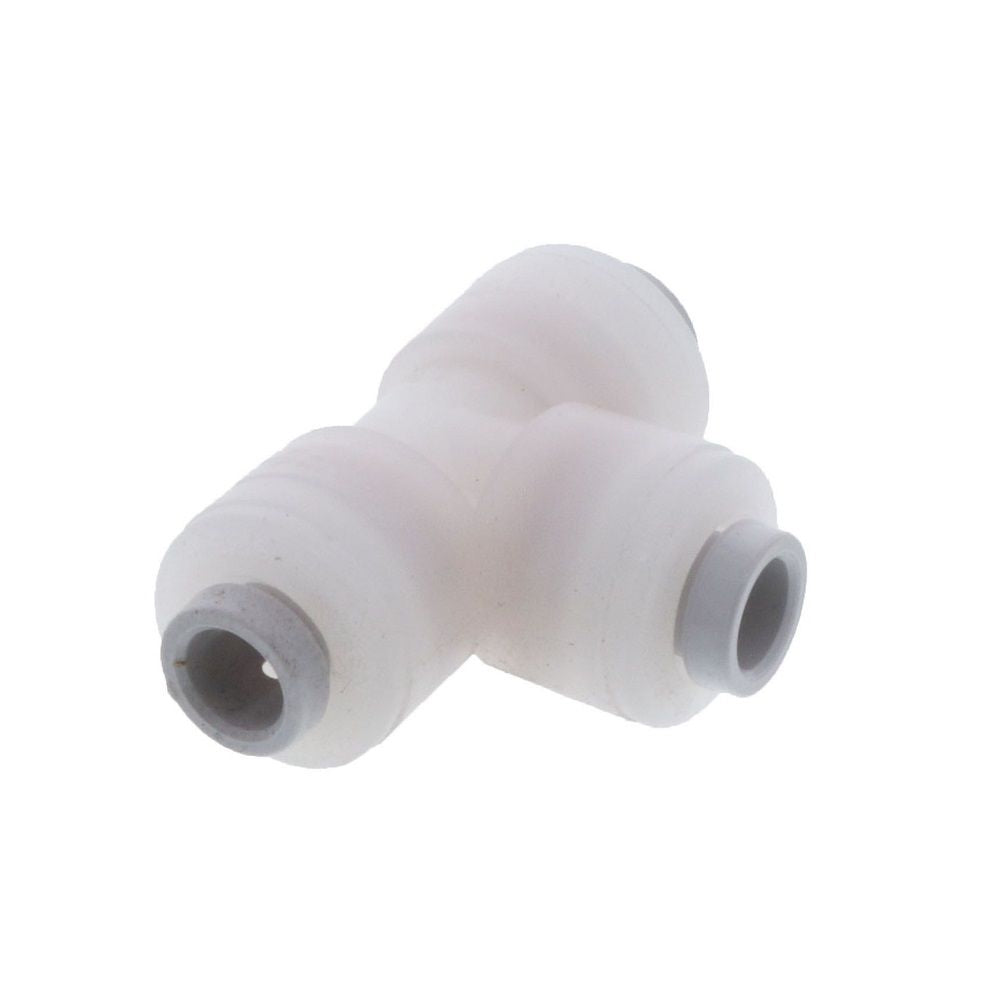

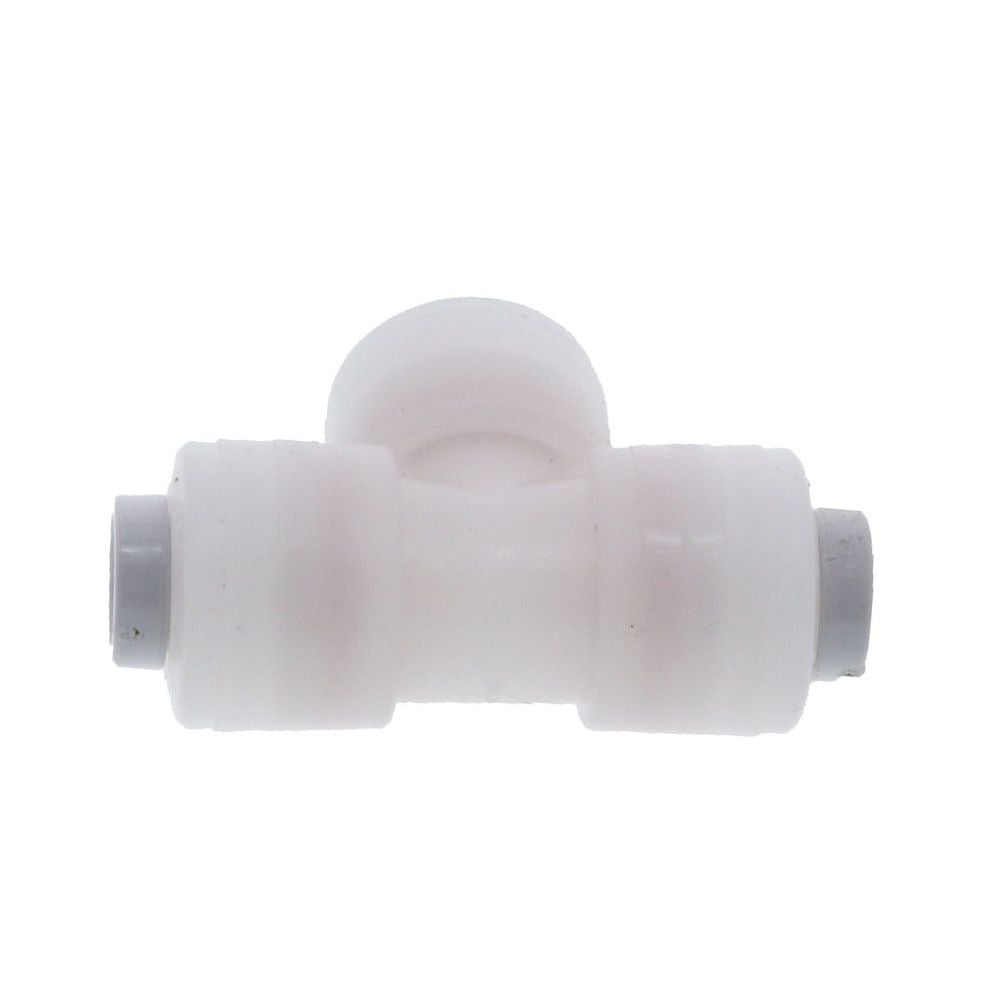

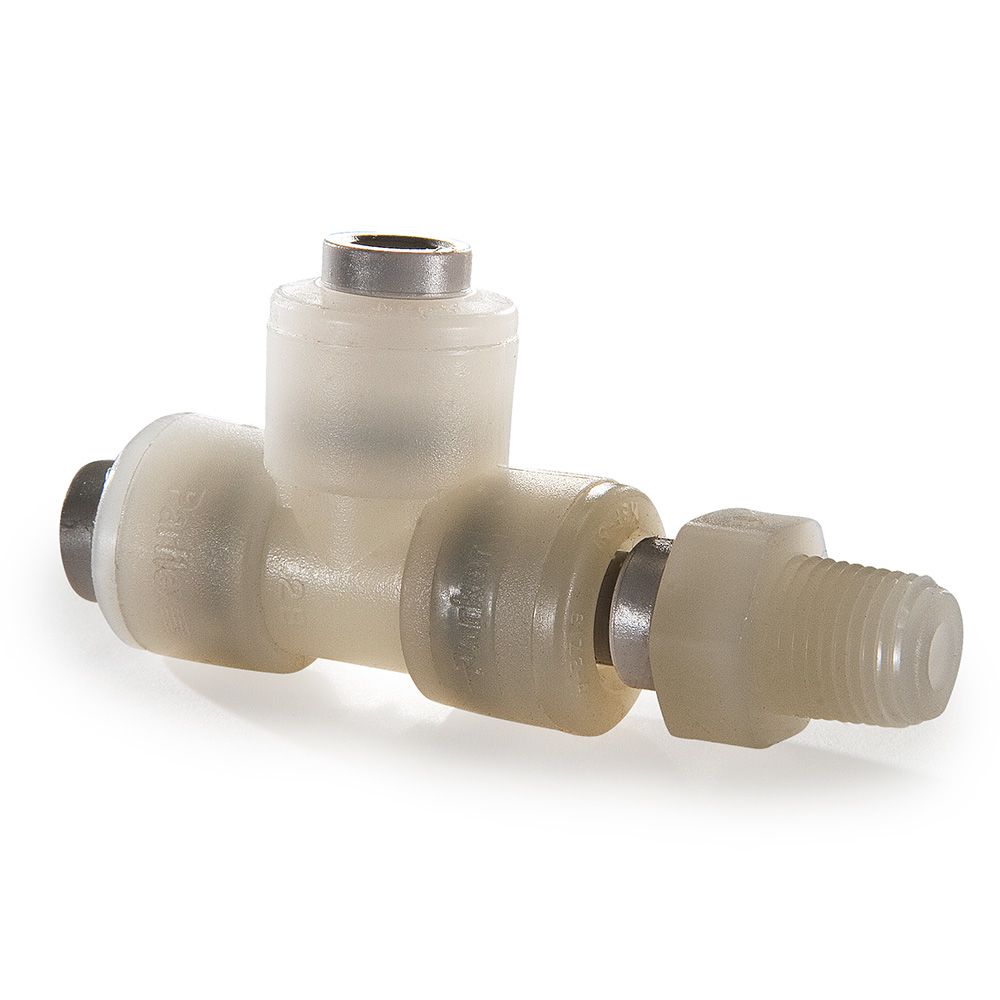

Kynar PVDF Male Run Swivel Tee - 1/4 x 1/8 NPTF
Kynar PVDF Male Run Swivel Tee - 1/4 x 1/8 NPTF
SKU:F4MRS2:10PK
Pricing is available for wholesale customers only, please login to see prices.
Interested in becoming a partner?
Click here for more info.
Low stock
Push-to-connect fittings offer unique solutions for applications with high temperature, strong chemical concentration or oxidizers such as ozone. The lead free all plastic design is NSF 51 listed, temperature rated up to 275° F and offers a maximum working pressure of up to 300 psi. TrueSeal™ fittings are offered in Kynar® with a fluorocarbon seal or polypropylene and acetal with an EPDM seal. Gripping rings are offered with either stainless steel or engineered thermoplastic bite edges.
Features:
Features:
- Patented Push-to-connect Design
- Chemical Resistance
- UV Resistance
- FDA Compliant
- Chemical Processing/Storage
- Fluid Handling
- Semiconductor Equipment
- DI Water Systems
- High Purity
- Aquariums
 | |||||||

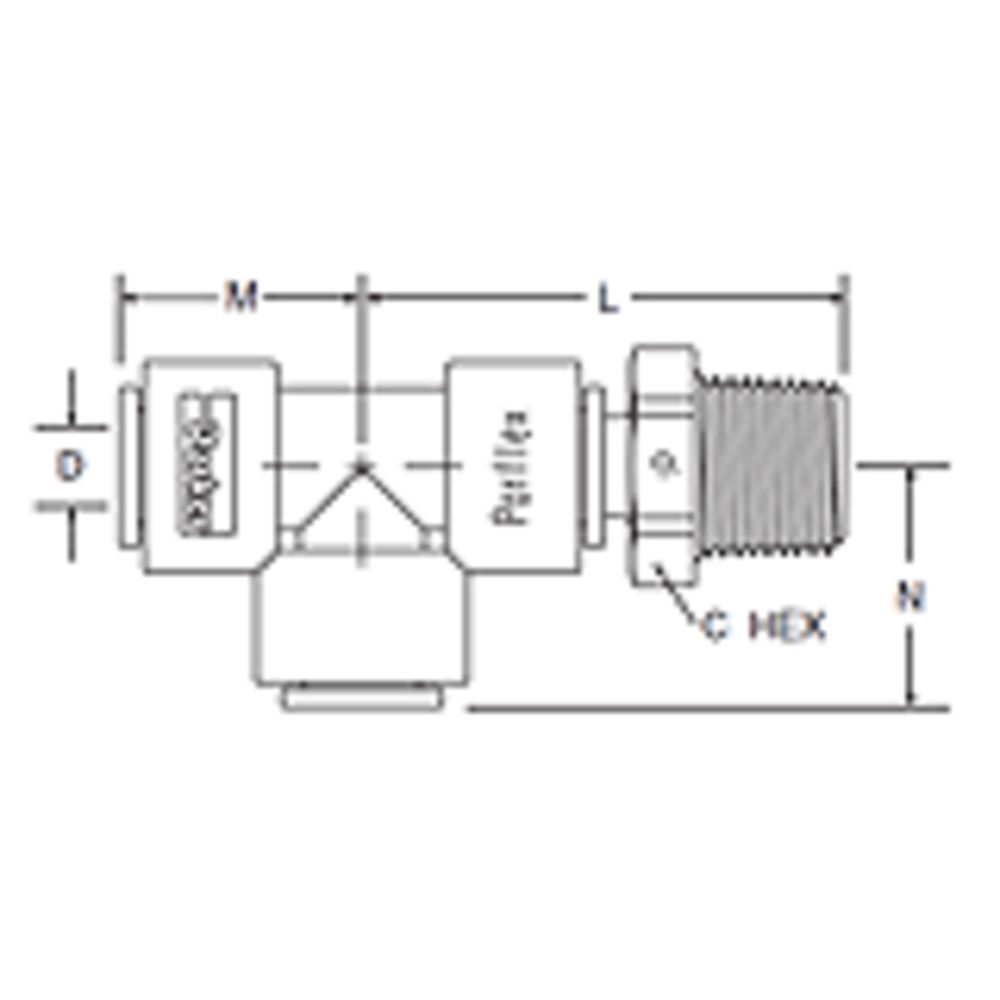

| Kynar w/Viton Seal |
Tube O.D. | NPTF Thread |
C Hex |
L | M | N | D |
| F4MRS2 | 1/4 | 1/8 |
9/16 | 1.55 | 0.81 | 0.85 |
.175 |
| F4MRS4 | 1/4 | 1/4 | 11/16 | 1.67 | 0.81 | 0.85 | .175 |
| F6MRS4 | 3/8 | 1/4 | 13/16 | 1.90 | 1.02 | 1.02 | .250 |
| F6MRS6 | 3/8 | 3/8 | 13/16 | 1.90 | 1.02 | 1.02 | .250 |
