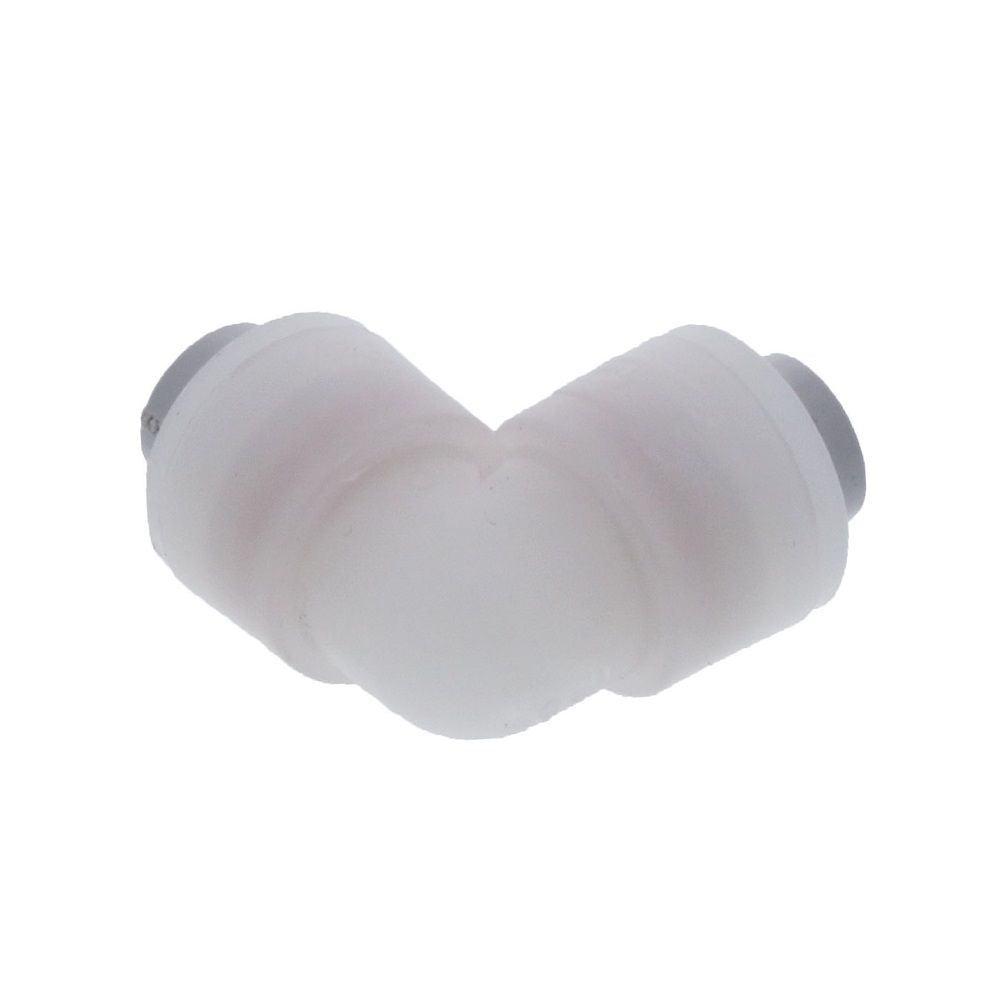

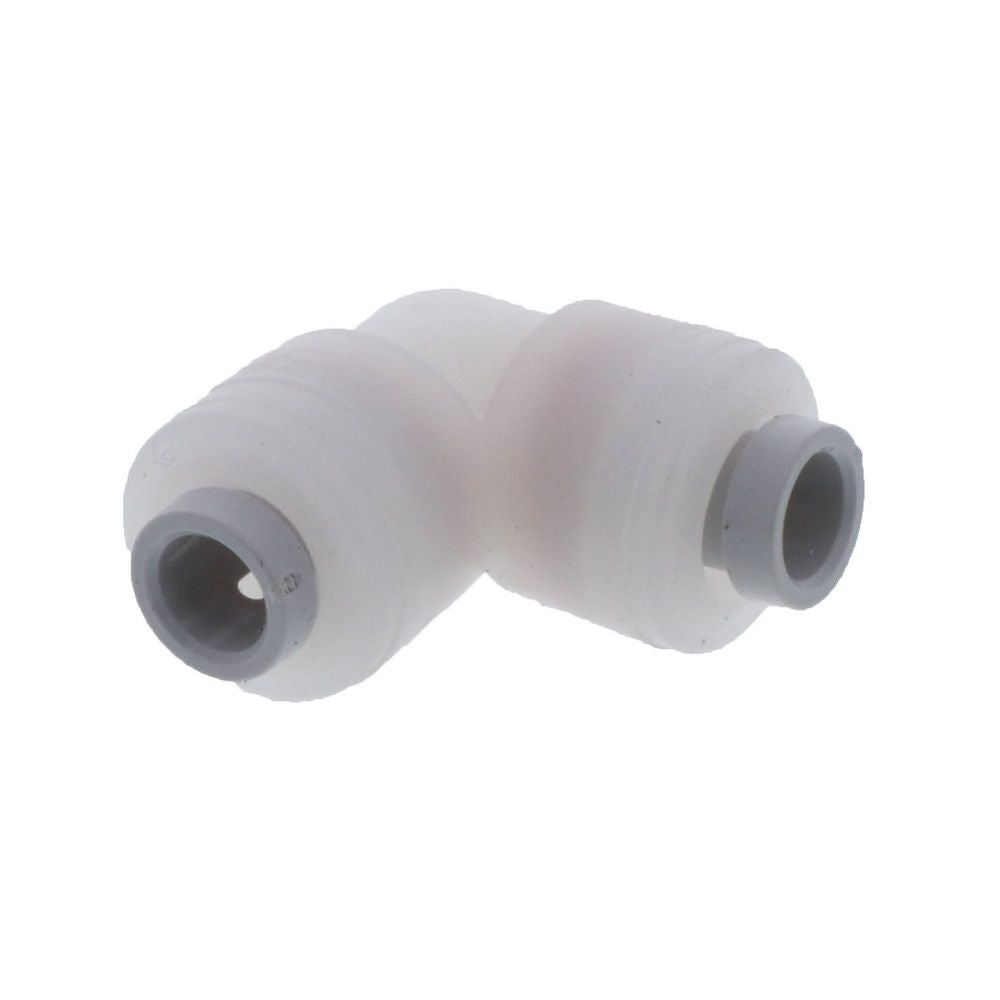

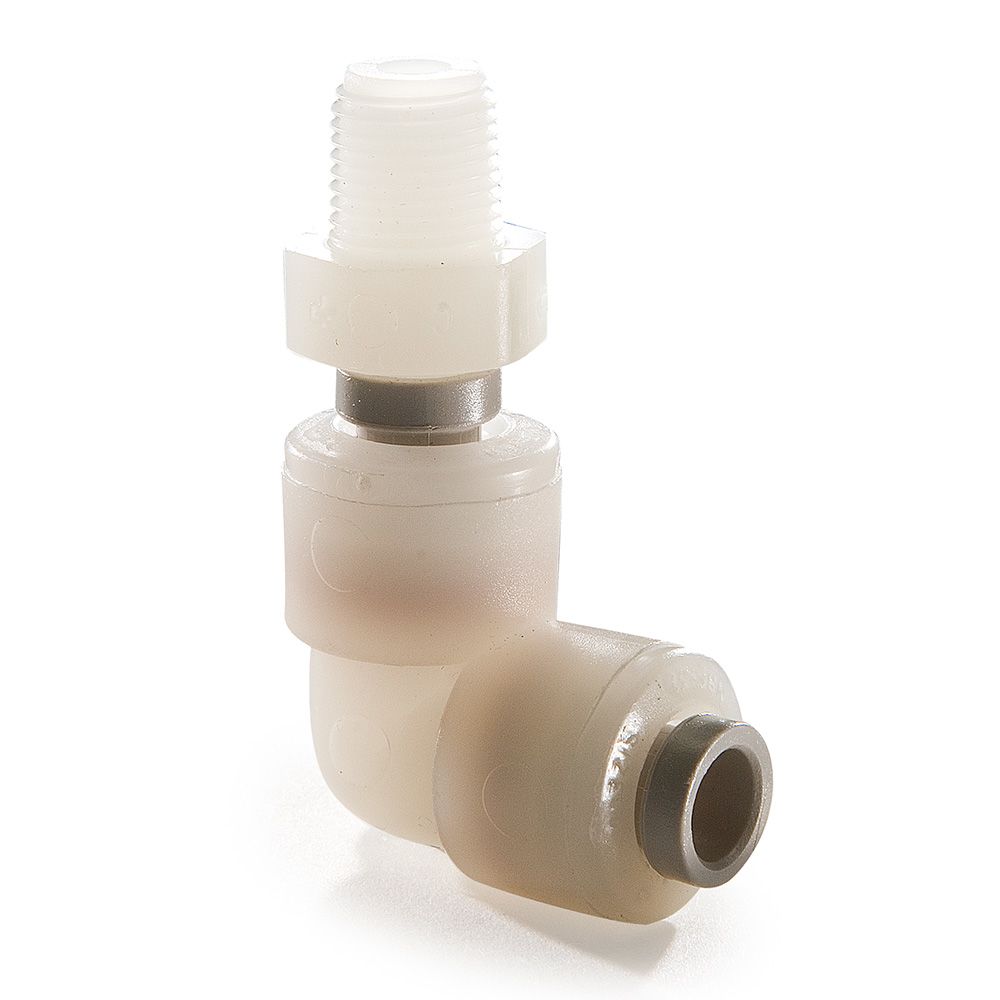

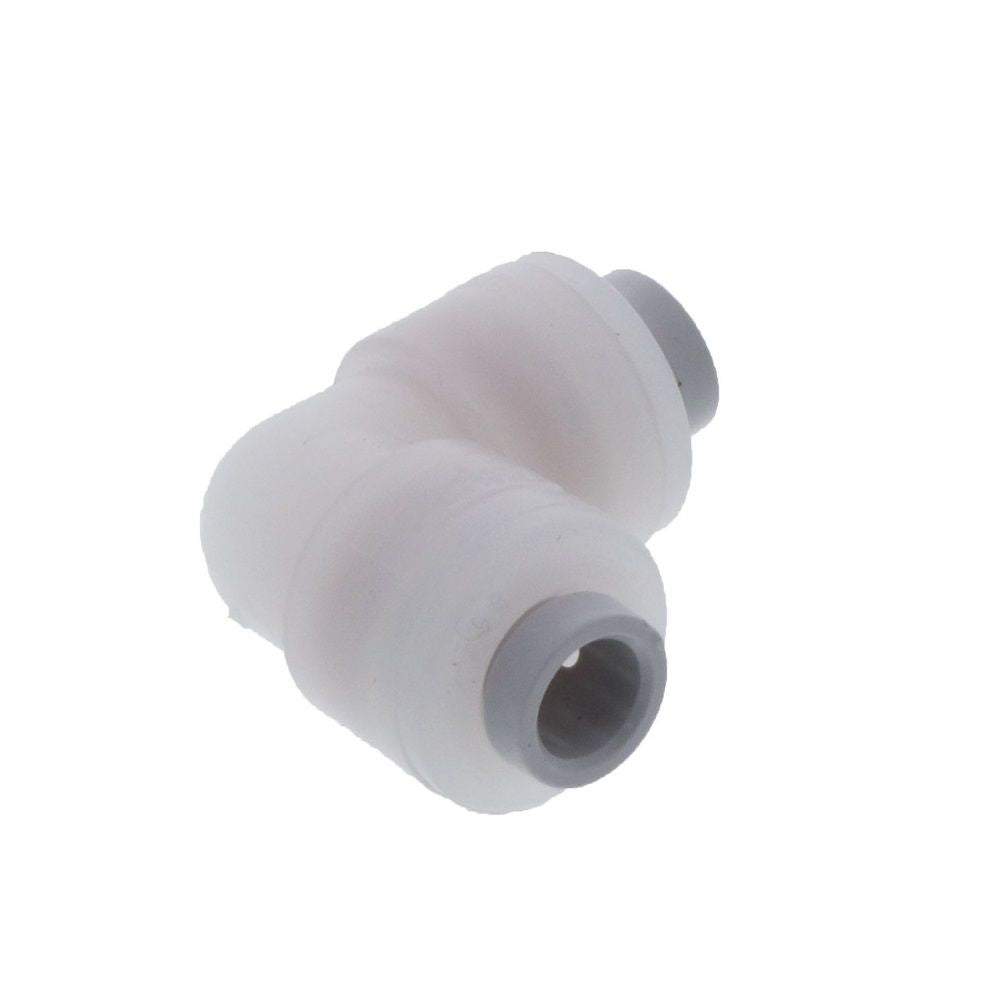

Kynar PVDF Male Elbow Swivel - 1/4 x 1/8 NPTF
Kynar PVDF Male Elbow Swivel - 1/4 x 1/8 NPTF
SKU:F4MES2
Pricing is available for wholesale customers only, please login to see prices.
Interested in becoming a partner?
Click here for more info.
Low stock
Features:
- Patented Push-to-connect design
- Chemical Resistance
- UV Resistance
- FDA Compliant
- Chemical Processing/Storage
- Fluid Handling
- Semiconductor Equipment
- DI Water Systems
- High Purity
- Aquariums
 | ||||||

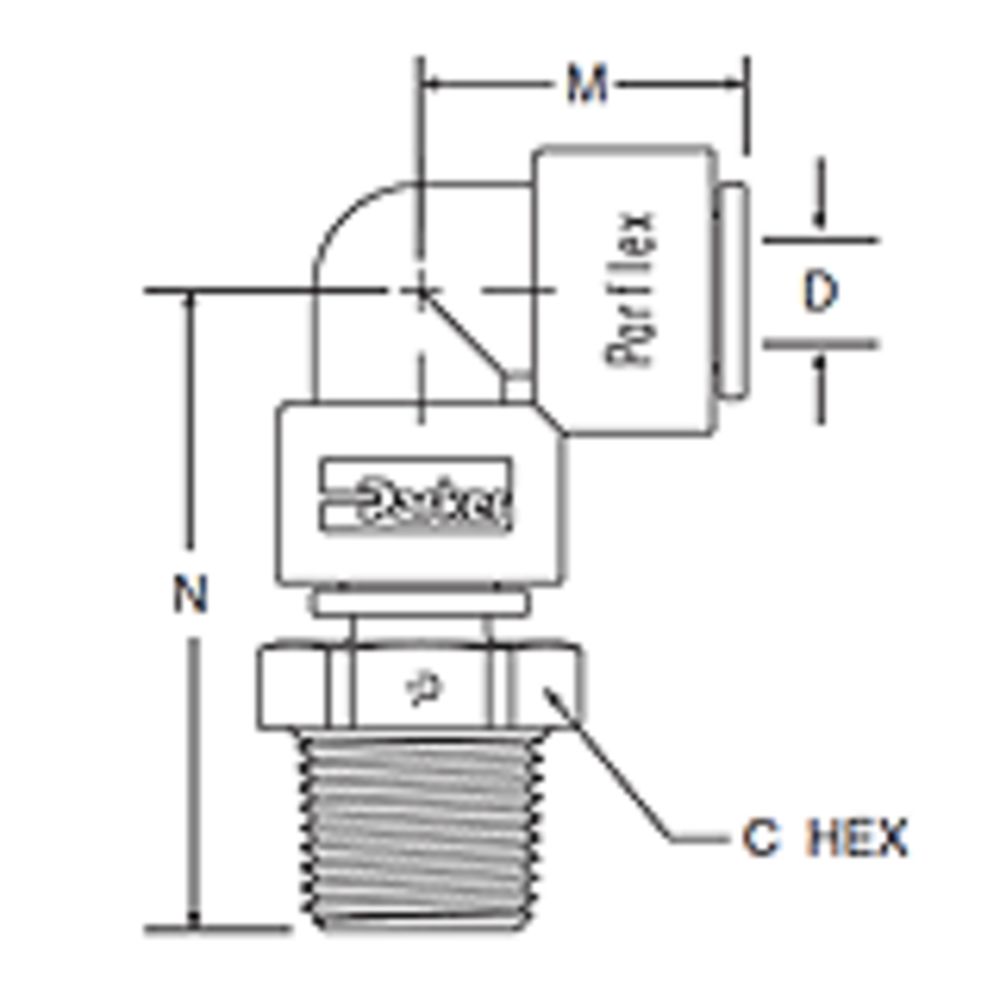

| Kynar w/ Viton Seal |
Tube O.D. | NPTF Thread |
C Hex | M | N | D |
| F4MES2 | 1/4 | 1/8 | 9/16 | 0.87 | 1.60 | .175 |
| F4MES4 | 1/4 | 1/4 | 11/16 | 0.87 | 1.71 | .175 |
| F4MES6 | 1/4 | 3/8 | 13/16 | 0.90 | 1.91 | .212 |
| F6MES4 | 3/8 | 1/4 | 9/16 | 1.02 | 1.90 | .250 |
| F6MES6 | 3/8 | 3/8 | 13/16 | 1.02 | 1.90 | .250 |
| F6MES6 | 3/8 | 3/8 | 13/16 | 1.02 | 1.06 | .250 |
